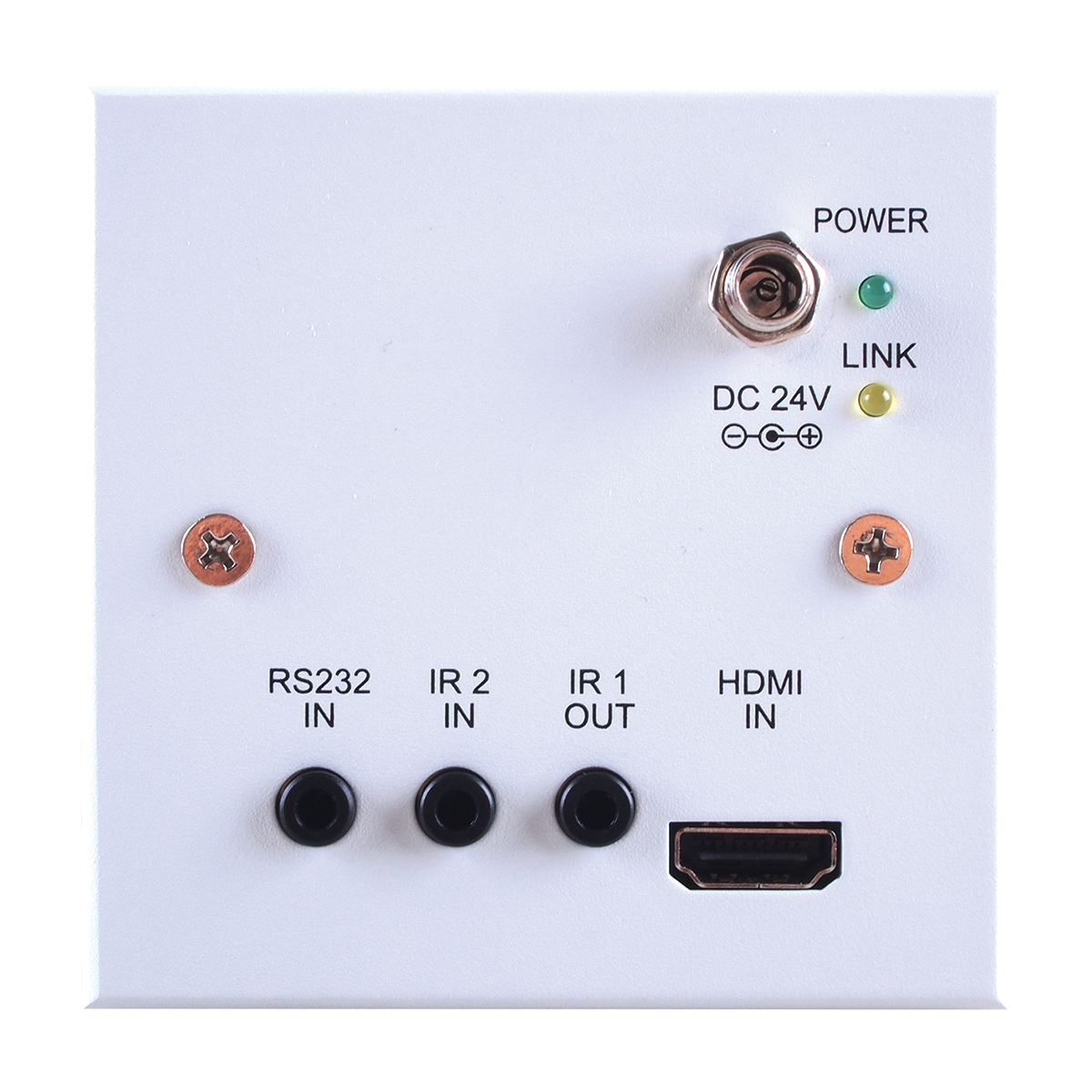

CH-506TXWP HDMI over HDBaseT Transmitter, 100m@1080Pixel, 70m@4K Range
Please sign in so that we can notify you about a reply
The device that can make your home or office more efficient, this unit of HDMI over Single CAT5e/6/7 can transmit and receive uncompressed audio/video, control through the built-in RS-232 and IR ports and Power on Cable(PoC) over 100 meters at 1080p or 70 meters at 4K with all plate design. Hence, if you want to make your home or office more efficient, get the HDMI & IR over single CAT5e/6/7 and prepare to be amazed.
Features- HDCP compliant
- Supports HDMI 3D and 4K x 2K features
- Supports HDCP repeater and CEC bypass
- Supports distance up to 100m/328ft at 1080p and 70m/229ft at 4K through CAT5e/6/7 cable
- HDMI input resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) or 4K@30Hz(YUV 4:4:4, 8-bit)
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, and Bitstream over HDMI
Brand:
Cypress Technology
Product Type:
Transmitter
Specifications
Maximum Operating Temperature:
40°C
Encryption:
8-Bit
Transmission Range:
100m@1080Pixel, 70m@4K
Special Features:
Supports HDMI 3D and 4Kx2K Features, Supports HDCP Repeater and CEC Bypass, Supports Pass-Through of Audio Formats Including LPCM 2.0/5.1/7.1, and Bit Stream Over HDMI
Power Rating:
3W
Chassis Material:
Aluminium
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Chassis Colour:
Black
Minimum Operating Temperature:
0°C
Includes:
(1) IR Blaster, (1) 3.5Ø to RS-232 Female Cable for transmitter, (1) 24V/1.25A DC Power Adaptor, Operation Manual
Performance
Video Format:
4K@60Hz 8-bits YUV 4:2:0
Inputs and Ports
Input Port Type:
1xHDMI, 1xIR Extender, 1xRS-232
Output Port Type:
1xCAT5e/6/7, 1xIR Blaster
Power
Current Rating:
1.25A
Dimensions
Width:
8.7cm
Depth:
8.7cm
Height:
3.1cm
Weight:
200g
Other
Voltage Rating:
24V DC
Standards Met:
US, EU, CE, FCC, UL
