CH-506TX HDMI over CAT5e/6/7 Transmitter
Please sign in so that we can notify you about a reply

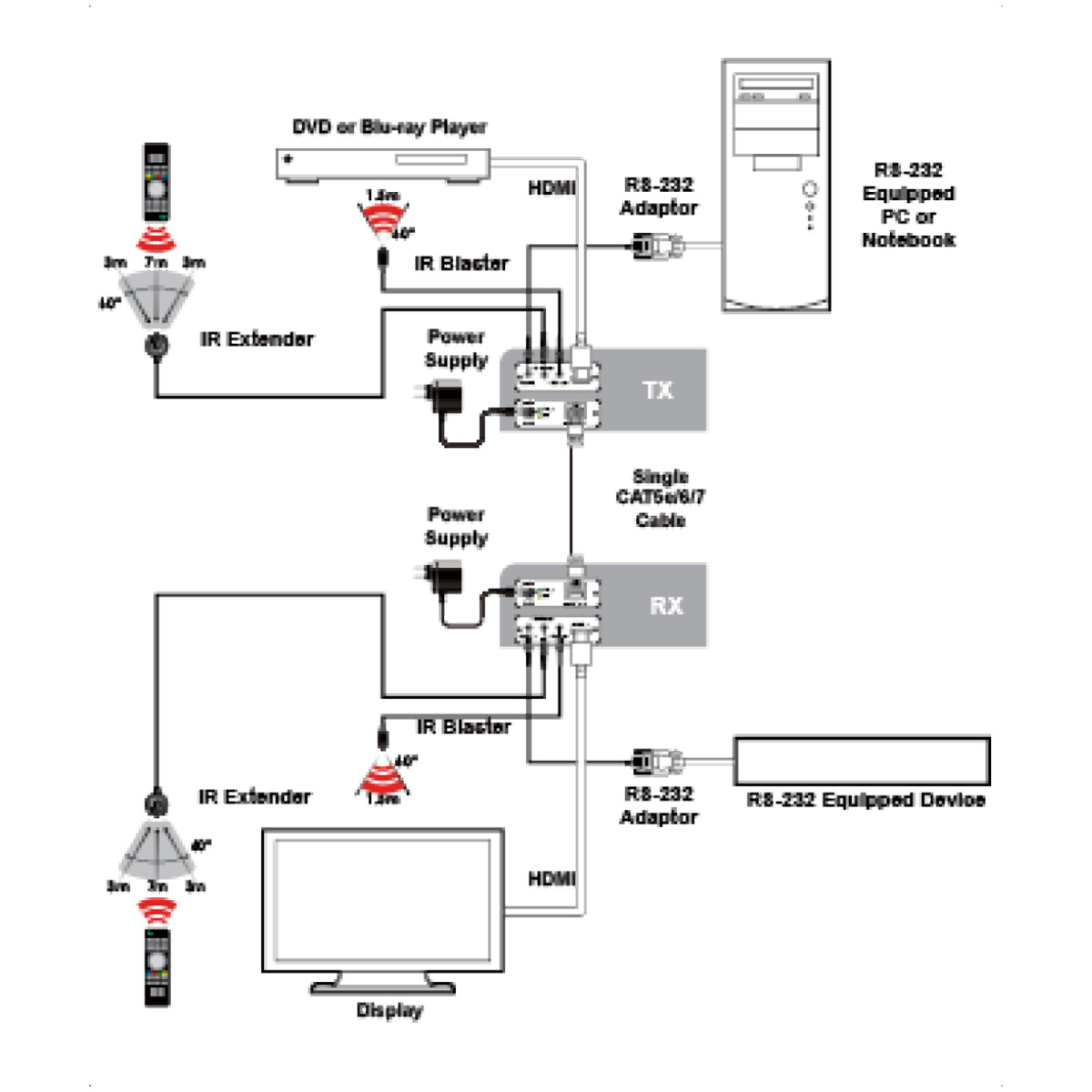

This HDBaseT™ HDMI over Single CAT5e/6/7 Transmitter and Receiver Set can send uncompressed audio/video over a single run of CAT5e/6/7 cable up to 100m (1080p) and has the added benefit of control through the built-in RS-232 and 2-way IR.
Features
- HDMI including 3D and 4K2K (Ultra HD) support, HDCP and DVI compliant
- Supports HDCP repeater and CEC functions
- Simultaneous transmission of uncompressed video, audio and data over a single Cat.5e/6 / 7 cable up to 100m/328ft at 1080p and 70m/230ft at 4K
- Supports HD resolutions up to 1080p@60Hz/36-bit and Ultra HD (4K2K)
- Audio support up to LPCM 7.1CH, Dolby TrueHD and DTS-HD Master AudioSupports HDBaseT Technology including 2-Way IR and RS-232
- Installation friendly
Brand:
Cypress Technology
Product Type:
HDMI Over CAT5e/6/7 Transmitter
Specifications
Maximum Operating Temperature:
+40°C
Encryption:
36bits
Transmission Range:
70, 100m
Special Features:
HDCP Repeater and CEC Functions, Audio Support Up to LPCM 7.1ch, Dolby TrueHD and DTS-HD Master Audio, HD Base T Technology Including 2-Way IR and RS-232
Power Rating:
3W
Chassis Material:
Aluminium
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream
Performance
Video Format:
1080pixels, 4K
Frequency Rating:
30kHz to 50kHz
Inputs and Ports
Input Port Type:
1xHDMI, 1xIR Extender, 1xRS-232
Output Port Type:
1xCAT5e/6/7, 1xIR Blaster
Power
Current Rating:
2.6A
Dimensions
Width:
7.1cm
Depth:
7.9cm
Height:
2.3cm
Weight:
240g
Other
Voltage Rating:
5V
Voltage Rating:
5V
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
