CH-2603TX HDMI/DP/VGA/USB to HDMI/HDBaseT Transmitter

Write a review
CH-2603TX
Cypress Technology
Out of stock
Log in to see price Add to wish list

This HDBaseT 2.0 Receiver is designed for use in environments needing a wide range of flexibility when it comes to inputs, outputs, and control. With a 2 by 2 matrix arrangement of HDBaseT & HDMI inputs and dual HDMI outputs this Receiver can handle a variety of source routing scenarios. The HDMI input and outputs support resolutions up to a maximum of 4K@60Hz (4:4:4, 8-bit) while the HDBaseT input supports resolutions up to a maximum of 4K@60Hz (YUV 4:2:0, 8-bit). A balanced analog stereo audio breakout is also provided (LPCM 2.0 sources only) allowing for professional local powered speakers to be easily added to the system. The HDBaseT input not only supports video and audio but also bi-directional Ethernet, RS-232, USB, and IR.When paired with this unit’s standard Transmitter, up to 3 switchable USB 2.0 host (Type B) connections are available (2 on the Transmitter, 1 on the Receiver) which connect to 6 USB 2.0 (Type A) device ports (3 on the Transmitter, 3 on the Receiver) for a multi-source, bi- irectional, and highly flexible KVM configuration (Note: Only 1 USB host may be active at a time).This Receiver (PSE) can provide PoH (Power over HDBaseT) power to the connected HDBaseT Transmitter (PD) (compatible Transmitters only), allowing for greater flexibility within different installation scenarios. This unit is controllable via front-panel controls, WebGUI, Telnet, and RS-232.

Features

  • 4×4 matrix switching (both HDMI outputs are independent)
  • Supported HDBaseT features: HD video and audio, 100BaseT Ethernet, PoH, and control (bi-directional IR/RS-232/USB pass-through)
  • Balanced analog stereo audio breakout

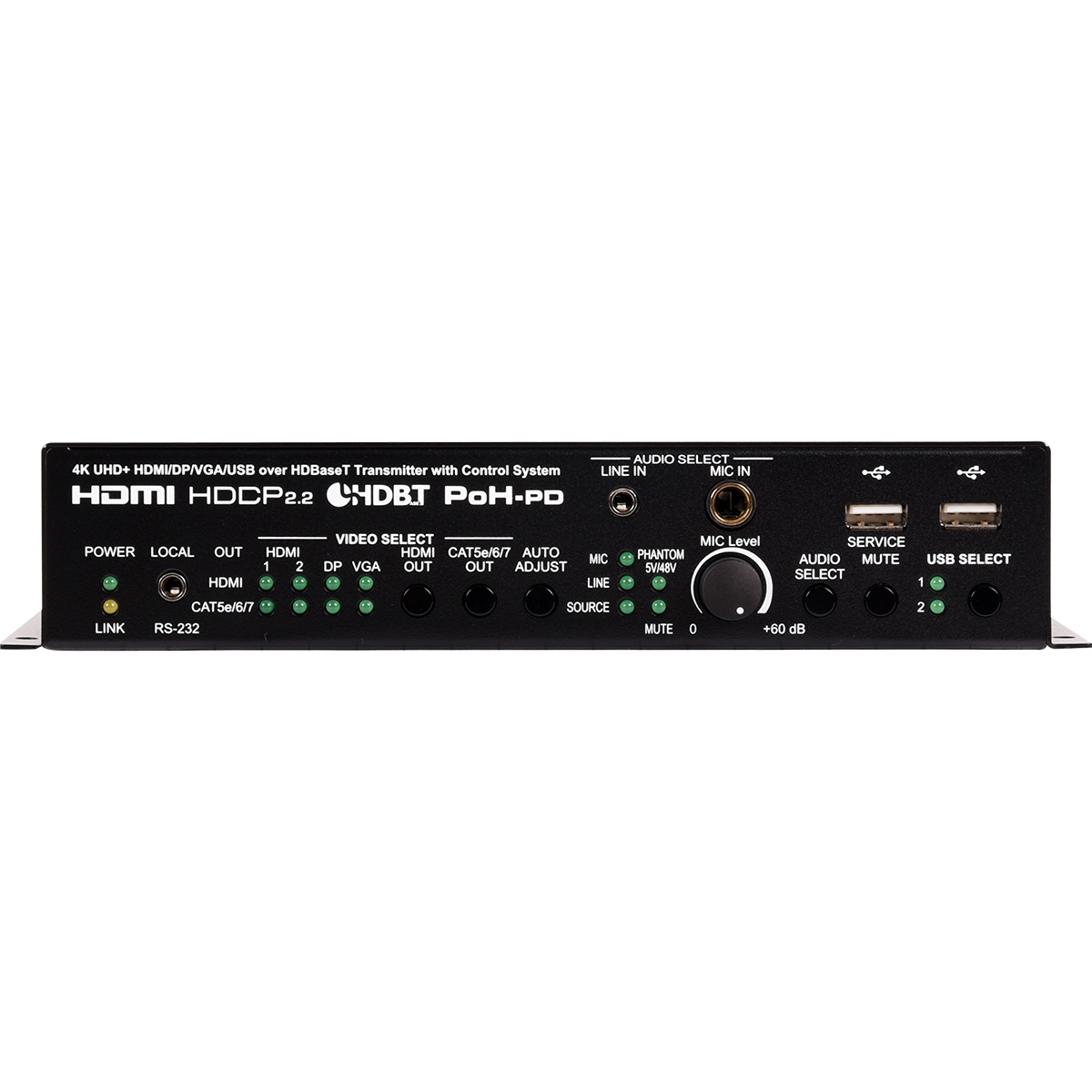

  • Flexible USB host selection using front panel buttons
  • Multiple USB hosts may be connected at once (up to 3 total, between the Tx and a compatible Rx unit) with a single selected host active at a time
  • Supports providing PoH power from Receiver (PSE) to Transmitter (PD) (compatible Transmitters only)
Brand:
Cypress Technology
Specifications
Product Type:
HDMI/DP/VGA/USB to HDMI/HDBaseT Transmitter
Maximum Operating Temperature:
+40°C
Encryption:
8bits
Transmission Range:
100m
Number of Channels:
Sound Field:
Stereo
Special Features:
HDMI and HD Base T Output are Independent, Pass-Through of 8 Channel LPCM, Bitstream and HD Bitstream Audio Formats, Balanced Analog Stereo Audio Breakout, Microphone Input Supports Optional 48V or 5V Phantom Power, Microphone Input Feeds Into a DSP Mixer
Power Rating:
23.54W
Chassis Color:
Black
Chassis Material:
Steel
Applications:
Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Microphone Input, 48V/5V Phantom Power Support
Performance
Video Format:
4K@60Hz YUV 4:4:4, 4K@60Hz YUV 4:2:0
Impedance Rating:
10kΩ
Frequency Rating:
30kHz to 50kHz
Inputs and Ports
Input Port Type:

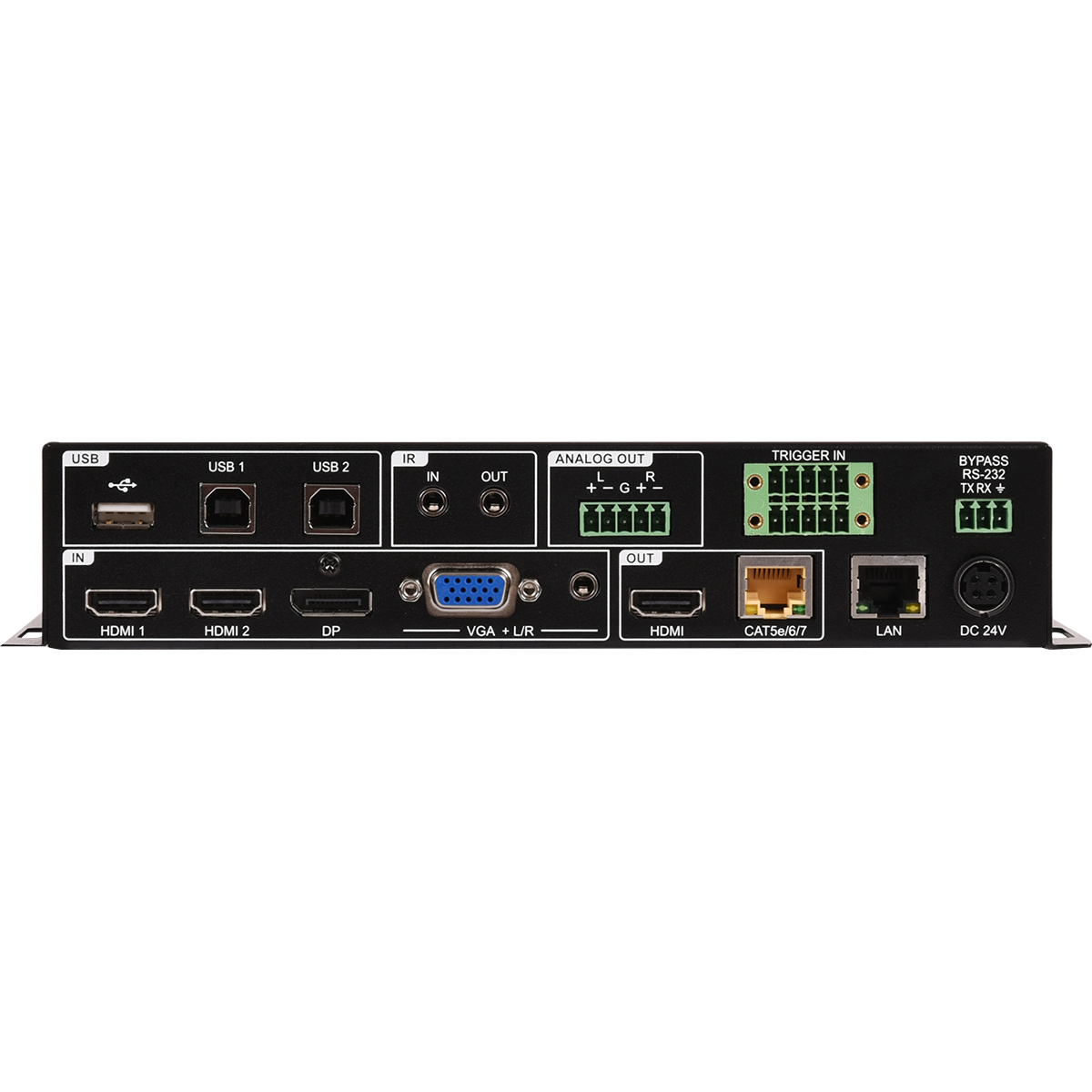

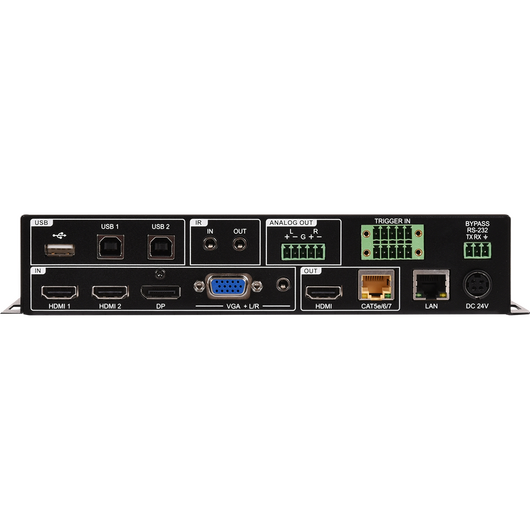

2xHDMI-Type A, 1 Display Port, 1xVGA (HD-15), 2xUnbalanced Stereo (3.5mm), 1xMicrophone (6.35mm)
Output Port Type:
1xHDBaseT (RJ45), 1xHDMI-Type A, 1xBalanced Stereo (5-Pin Term.Block)
Interface Type:
USB Flash Drive, WebGUI
Power
Current Rating:
3.75A
Dimensions
Width:
23.15cm
Depth:
17.4cm
Height:
4.4cm
Weight:
1204g
Other
Voltage Rating:
24V
Voltage Rating:
24V
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
