CH-2538TXPLWPEUK UHD HDMI/VGA over HDBaseT Wallplate Transmitter
Please sign in so that we can notify you about a reply

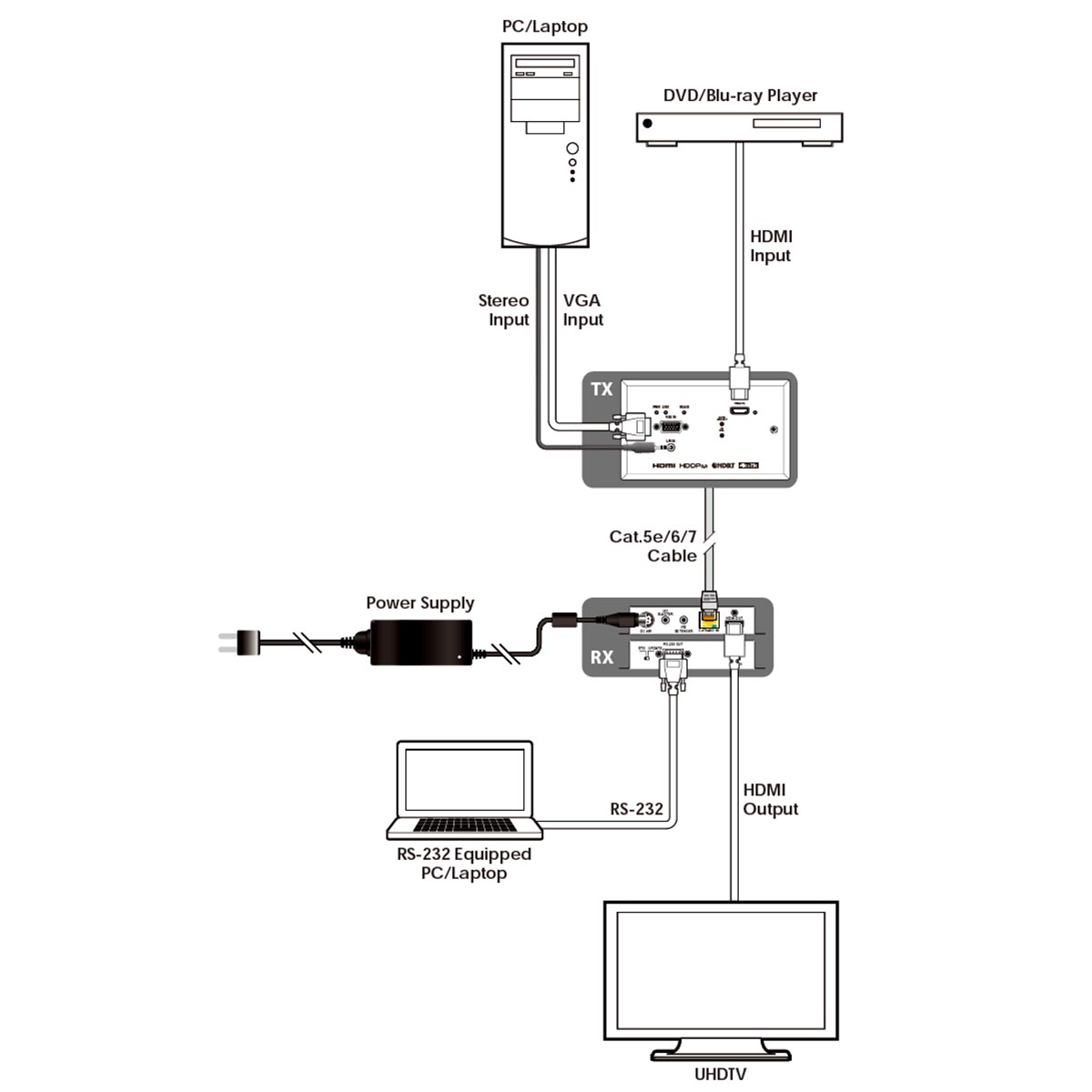

This wallplate is an HDMI/VGA switch with audio embedding and HDBaseT output. This unit can send high definition uncompressed audio/video along with Ethernet over a single cable up to a distance of 70 meters at 1080p@60Hz and 35m at 4K. To provide maximum compatibility with a wide range of display types, all sources will be automatically scaled to match the preferred resolution and timing of the connected display (as reported by the display’s EDID). This unit also supports automatic input selection between the HDMI and VGA inputs, with hot plug detection, enabling hands-free operation. It may be powered locally or via 48V PoH (Power over HDBaseT) from a compatible HDBaseT Receiver.
Features

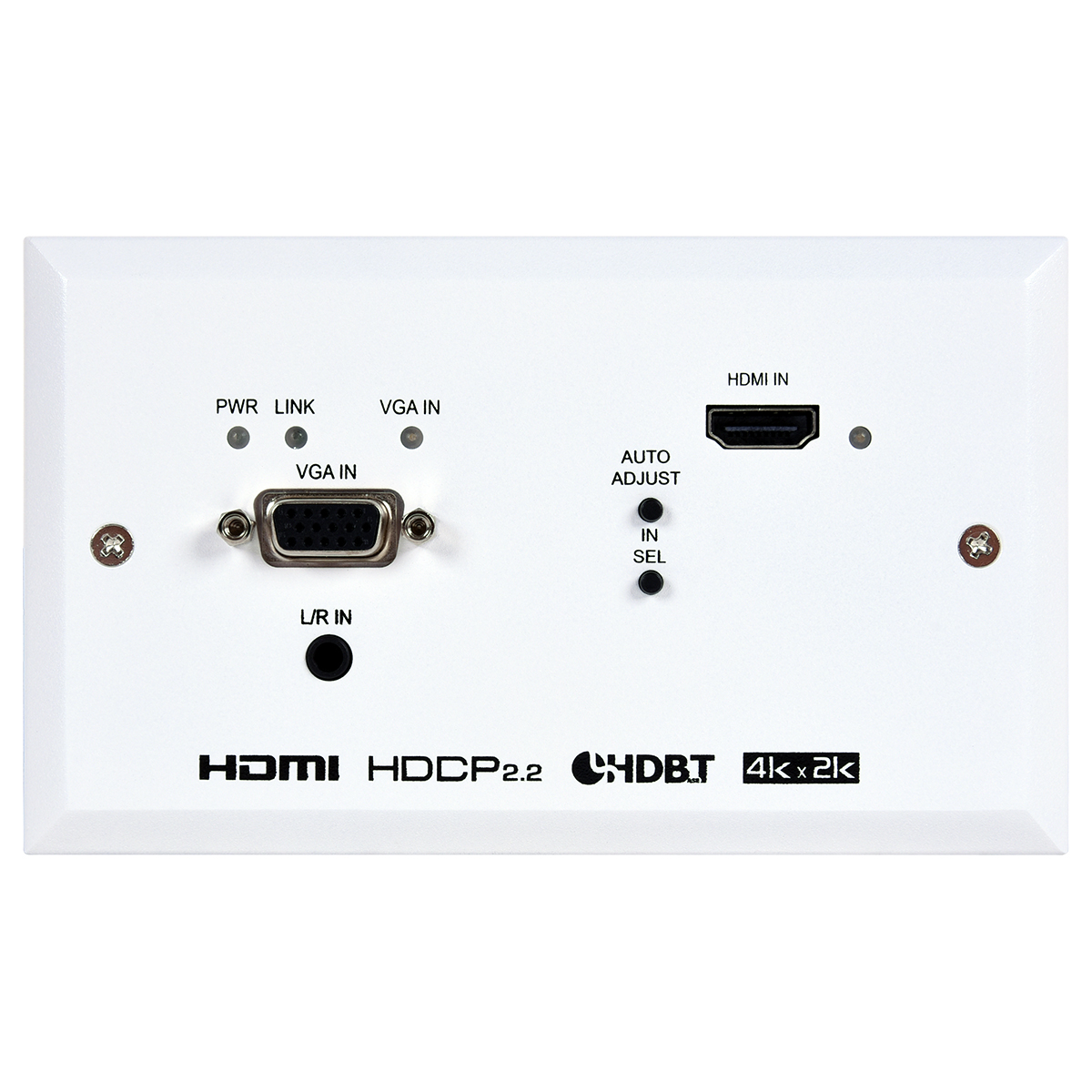

- 1 HDMI input, 1 VGA input with 3.5mm mini-jack audio input
- Supports VGA input resolutions up to WUXGA (RB)
- Automatic conversion of 4K@50/60Hz HDMI sources to 4K@30Hz (4:4:4, 8-bit) for transmission over HDBaseT
- Automatic scaling of sources to match the native resolution of the HDMI display based on EDID
- HDBaseT feature support: HD Video and Audio, 48V PoH, and Control (Ethernet bypass)
- Simultaneous transmission of uncompressed video, audio and data over a single 70m Cat.5e/6/7 cable at 1080p and 35m at 4K
- Automatic input selection with hot plug detection enabling hands-free operation
- Unit may be powered locally or via 48V PoH (PD) from a compatible HDBaseT Receiver (PSE)
- Wall plate is designed for EU two-gang sized enclosures
Brand:
Cypress Technology
Specifications
Product Type:
UHD HDMI/VGA Over HDBaseT Wallplate Transmitter
Maximum Operating Temperature:
+40°C
Encryption:
8bits
Transmission Range:
70m
Number of Channels:
Sound Field:
Stereo
Power Rating:
11.5W
Chassis Color:
White
Chassis Material:
Aluminium
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
8 Channel LPCM, Bitstream, HD Bitstream
Performance
Video Format:
4K@60Hz YUV 4:4:4
Impedance Rating:
10kΩ
Frequency Rating:
30kHz to 50kHz
Inputs and Ports
Input Port Type:
1xHDMI-Type A, 1xVGA (HD-15), 1xStereo Audio (3.5mm)
Output Port Type:
1xHDBaseT (RJ45)
Interface Type:
USB Flash Drive
Power
Current Rating:
3A
Dimensions
Width:
14.7cm
Depth:
4.1cm
Height:
8.7cm
Weight:
250g
Other
Voltage Rating:
12V
Voltage Rating:
12V
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
