CH-2538TXPLWPEU UHD 2x1 HDMI/VGA over HDBaseT Wallplate Transmitter (EU 2-Gang)

Write a review
CH-2538TXPLWPEU
Cypress Technology
Out of stock
Log in to see price Add to wish list

This wallplate is an HDMI/VGA switch with audio embedding and HDBaseT output. The wall plate is designed for use with EU two- gang sized enclosures. It is suitable for various installation requirements with aesthetic considerations. The HDMI input supports resolutions up to 4K@60Hz (4:4:4, 8-bit). The VGA input supports resolutions up to WUXGA (RB) and with the use of the associated 3.5mm audio input, stereo audio may be embedded as well. To provide maximum compatibility with a wide range of display types, all sources will be automatically scaled to match the preferred resolution and timing of the connected display (as reported by the display’s EDID). Despite HDBaseT’s 10.2Gbps bandwidth limitation, even 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit), can be supported by converting the signal to 4K@30Hz when necessary. This unit also supports automatic input selection between the HDMI and VGA inputs, with hot plug detection, enabling hands-free operation. Additionally, the unit may be powered locally or via 48V PoH (Power over HDBaseT) from a compatible HDBaseT Receiver, which allows for greater flexibility in installations. It is controllable via front panel buttons and RS-232 (remote only). Front panel LEDs indicate input selection, power and link status.

Features

  • Automatic scaling of sources to match the native resolution of the HDMI display based on EDID
  • HDBaseT feature support: HD Video and Audio, 48V PoH, and Control (Ethernet bypass)
  • Simultaneous transmission of uncompressed video, audio and data over a single 70m Cat.5e/6/7 cable at 1080p and 35m at 4K
  • Automatic input selection with hot plug detection enabling handsfree operation
  • Unit may be powered locally or via 48V PoH (PD) from a compatible HDBaseT Receiver (PSE)
  • Controllable via front panel buttons and RS-232 (remote only)

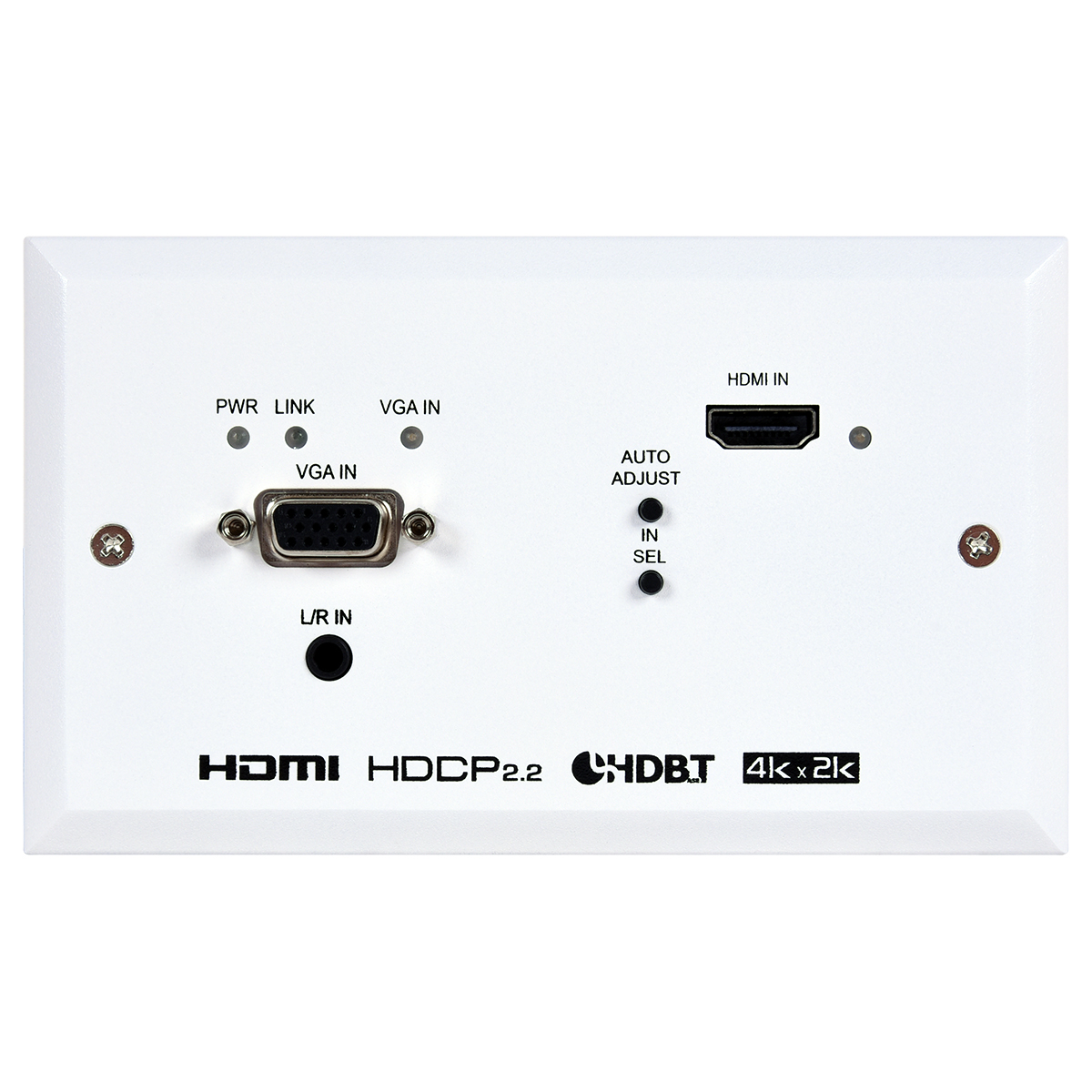

  • Front panel LEDs indicate input selection, power and link status
Brand:
Cypress Technology
Specifications
Product Type:
UHD 2x1 HDMI/VGA Over HDBaseT Wallplate Transmitter (EU 2-Gang)
Maximum Operating Temperature:
+40°C
Encryption:
8bits
Transmission Range:
35m
Number of Channels:
Sound Field:
Stereo
Power Rating:
11.5W
Chassis Color:
White
Chassis Material:
Aluminium
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
8 Channel LPCM, Bitstream, HD Bitstream
Performance
Video Format:
4K@60Hz 8bits YUV 4:4:4, 1920x1080pixels@60Hz, 4K@60Hz 8bits YUV 4:2:0
Impedance Rating:
10kΩ
Frequency Rating:
30kHz to 50kHz
Inputs and Ports
Input Port Type:
1xHDMI-Type A, 1xVGA (HD-15), 1xStereo Audio (3.5mm)
Output Port Type:
1xHDBaseT (RJ45)
Interface Type:
USB Flash Drive
Power
Current Rating:
3A
Dimensions
Width:
15.2cm
Depth:
5.3cm
Height:
8.1cm
Weight:
258g
Other
Voltage Rating:
12V
Voltage Rating:
12V
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
