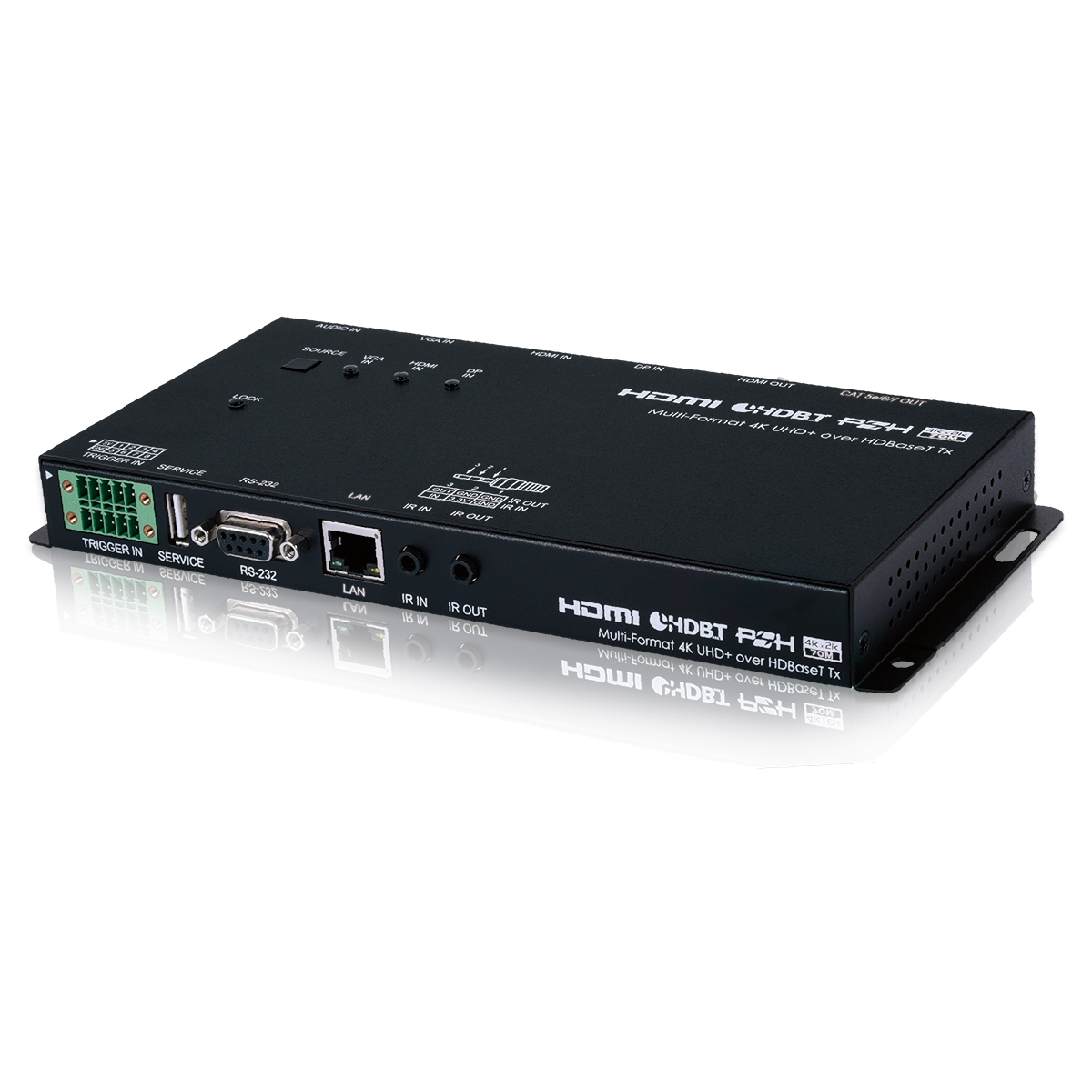

CH-2535TX Multi-Format 4K UHD+ over HDBaseT Transmitter
Please sign in so that we can notify you about a reply

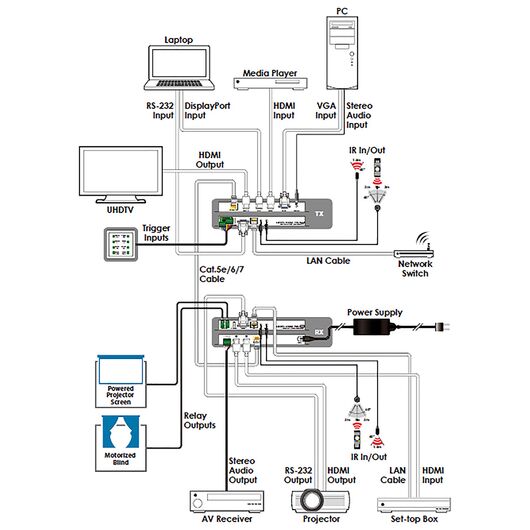

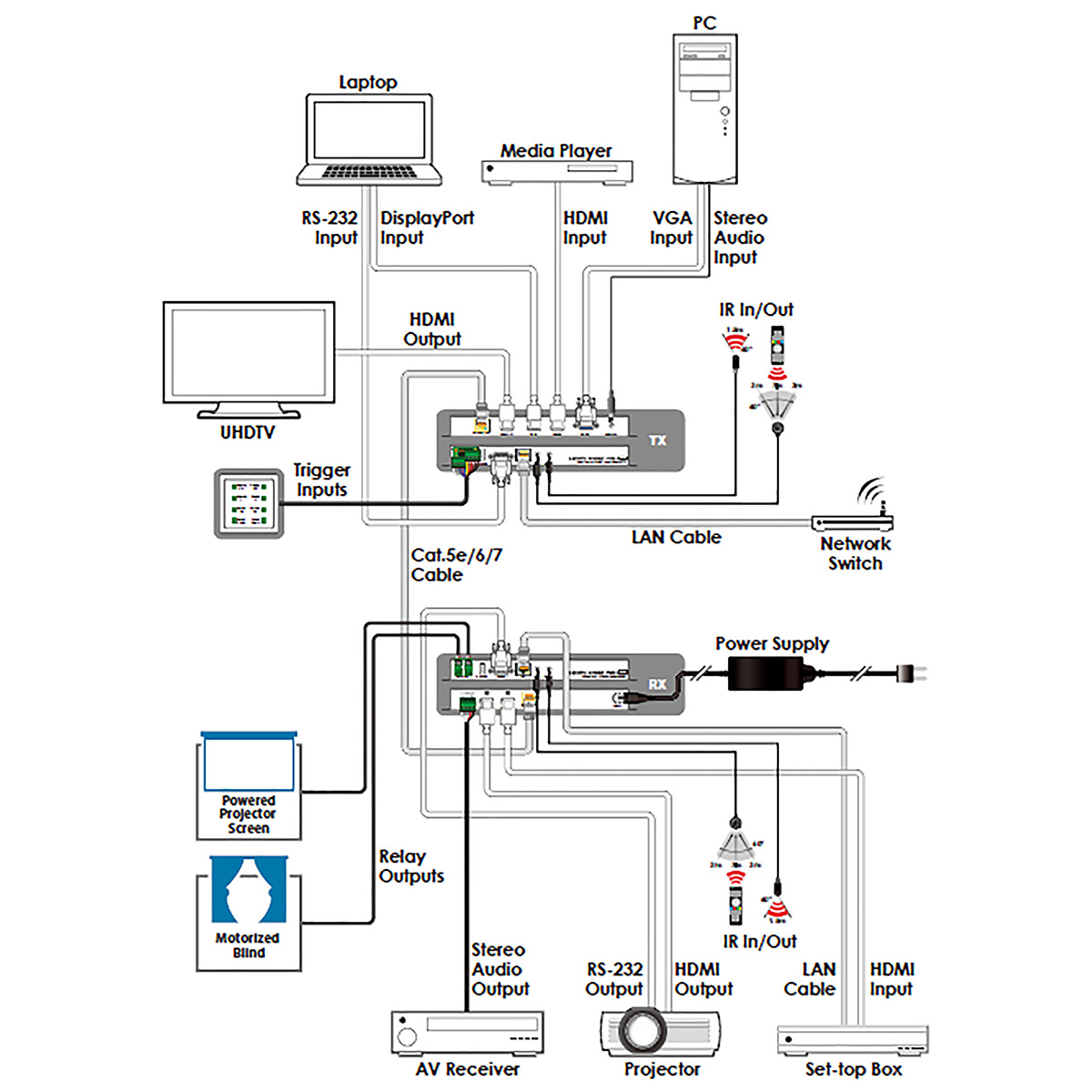

This new collaboration Transmitter and Receiver system is a convenient turnkey solution for video selection and extension in conference rooms, classrooms and showrooms. These units provide not only AV conversion and extension but also an intelligent and easy way to control devices throughout the entire venue. The three most common input interfaces (HDMI, DisplayPort, and VGA) are supported by the Transmitter, providing the ultimate in source compatibility and flexibility. The HDMI and DisplayPort inputs both support resolution/ timing up to a maximum of 4K@30Hz (4:4:4, 8-bit) which is converted, as appropriate, for transmission over HDBaseT. The selected source can be transmitted over Cat.6/7 cable up to 70m (at 4K@60Hz). The Receiver can scale the HDBaseT video source, or local HDMI input, to match the connected display’s resolution requirements.
Features
- External analog stereo audio embedding/de-embedding support
- Support for automatic input detection and automatic switching on source loss
- Supports controlling a wide variety of conference room equipment such as media players, projectors, projection screens, curtains, etc. via Ethernet, RS-232, IR, or relay (method is device dependent)
- Support for IR code learning as well as IR broadcasting
- Supports Telnet for both client and server functionality
- Control system supports defining up to 16 devices to simplify control and management of controlled devices within the system
- Integrated macro command lists support activating multiple events from a single button press (up to 16 actions per macro)
- Battery backed up RTC (Real Time Clock) to control scheduled macro execution and program event activation
Brand:
Cypress Technology
Product Type:
Transmitter
Specifications
Maximum Operating Temperature:
+40°C
Encryption:
8bits
Transmission Range:
70m
Sound Field:
Stereo
Special Features:
External Analog Stereo Audio Embedding/De-Embedding Support, Automatic Input Detection and Automatic Switching on Source Loss, IR Code Learning as Well as IR Broadcasting, Telnet for both Client and Server Functionality, Battery Backed Up RTC (Real Time C
Power Rating:
12W
Chassis Color:
Black
Chassis Material:
Steel
Applications:
Conference Room Display, Classroom Display, Showroom Display
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Output Resolution, Audio Volume, Proc-Amp Functions, Relay Control
Performance
Video Format:
4K@60Hz YUV 4:4:4
Frequency Rating:
30kHz to 50kHz
Inputs and Ports

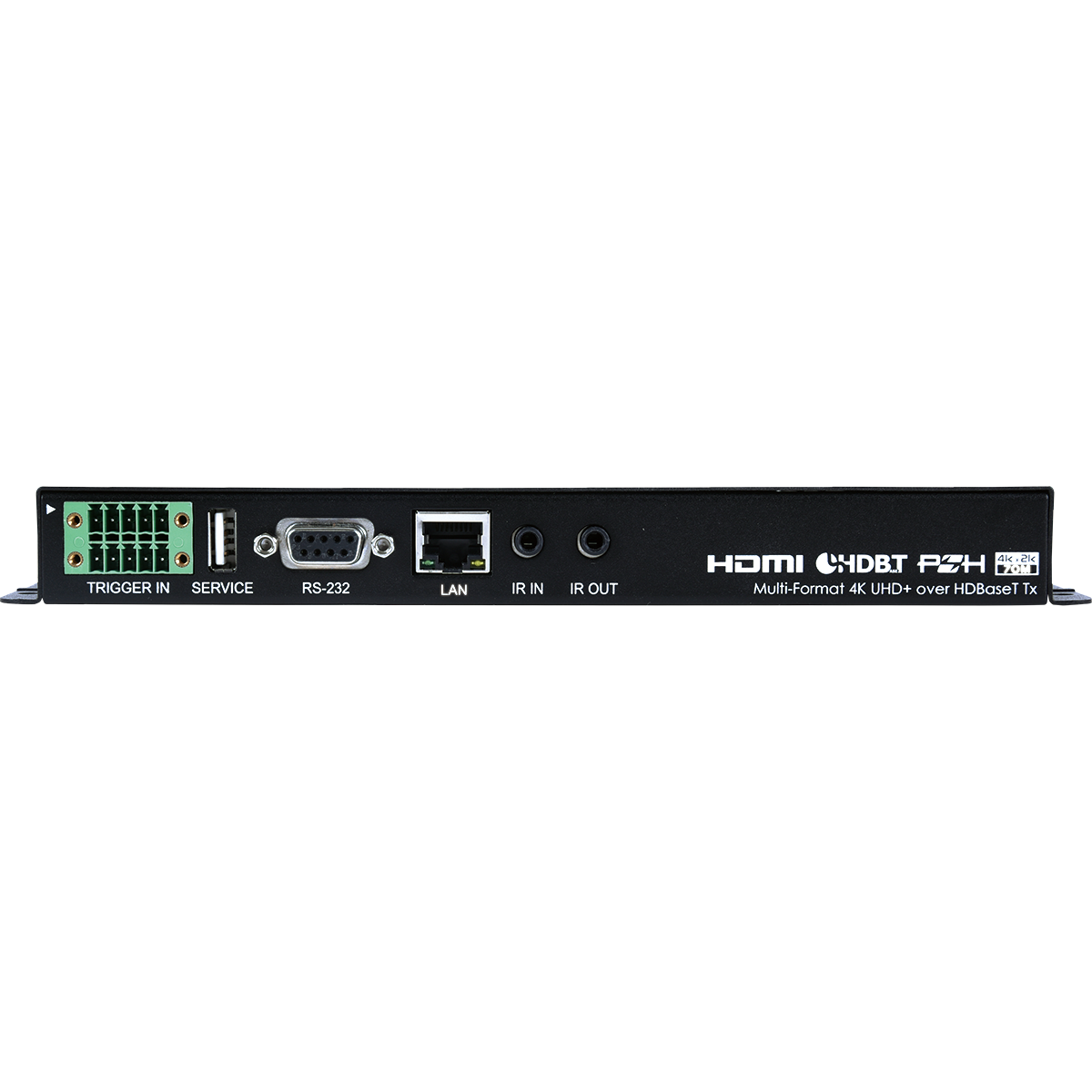

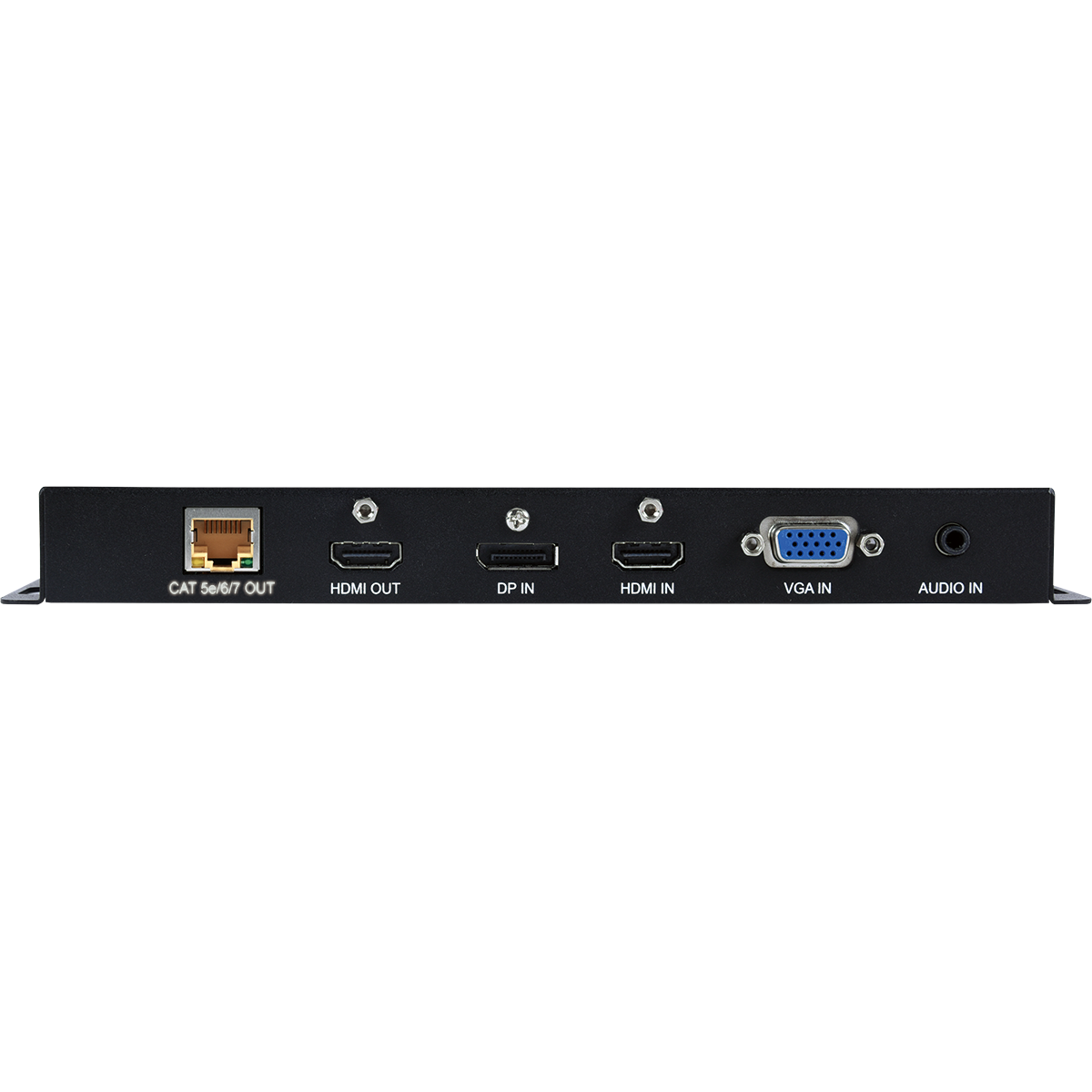

Input Port Type:
1xHDMI- Type A, 1xDisplay Port (Female), 1xVGA(HD-15), 1x3.5 m Stereo Audio
Output Port Type:
1xHDMI-Type A, 1xHDBaesT (CAT.5e/6/7)
Interface Type:
USB, WebGUI
Dimensions
Width:
23.15cm
Depth:
12cm
Height:
2.5cm
Weight:
420g
Other
Voltage Rating:
48V
Voltage Rating:
48V
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
