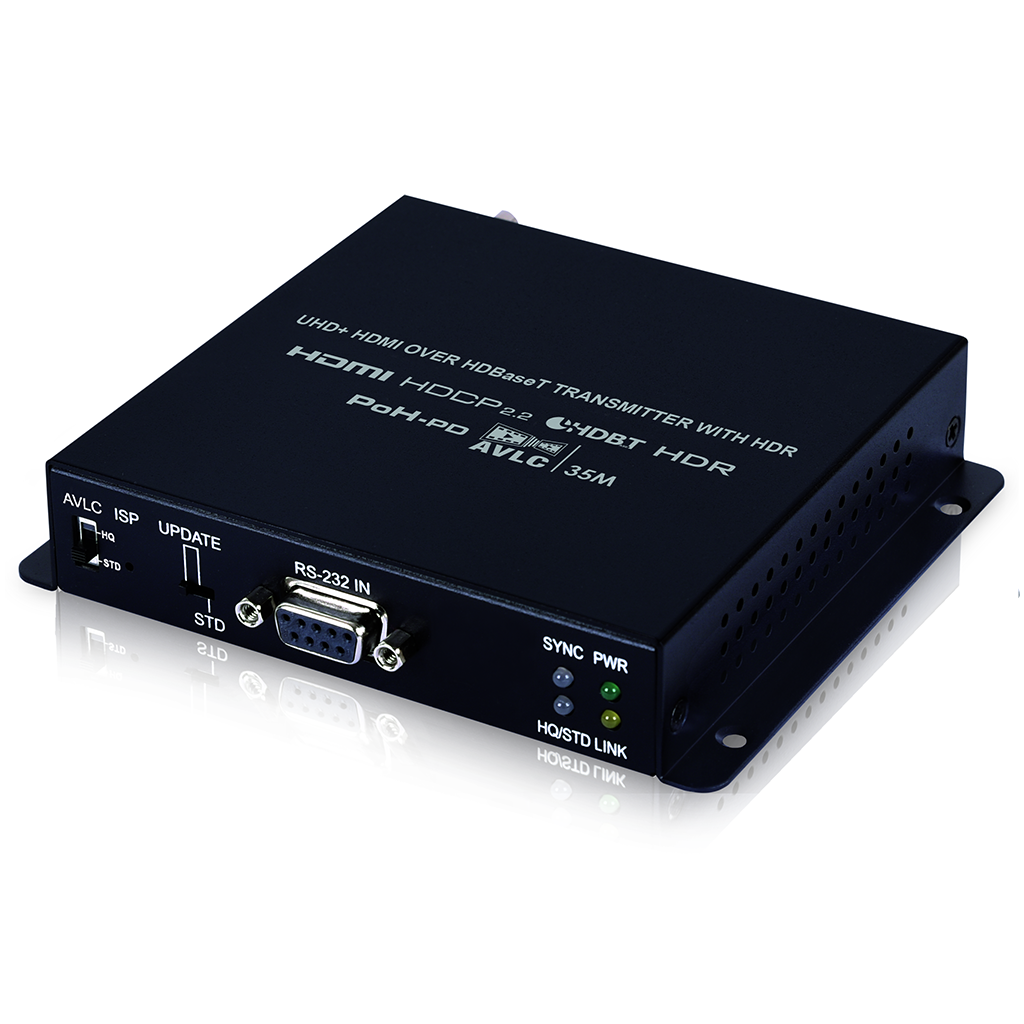

CH-2527TXPLV UHD+ HDMI over HDBaseT Transmitter with HDR
Please sign in so that we can notify you about a reply

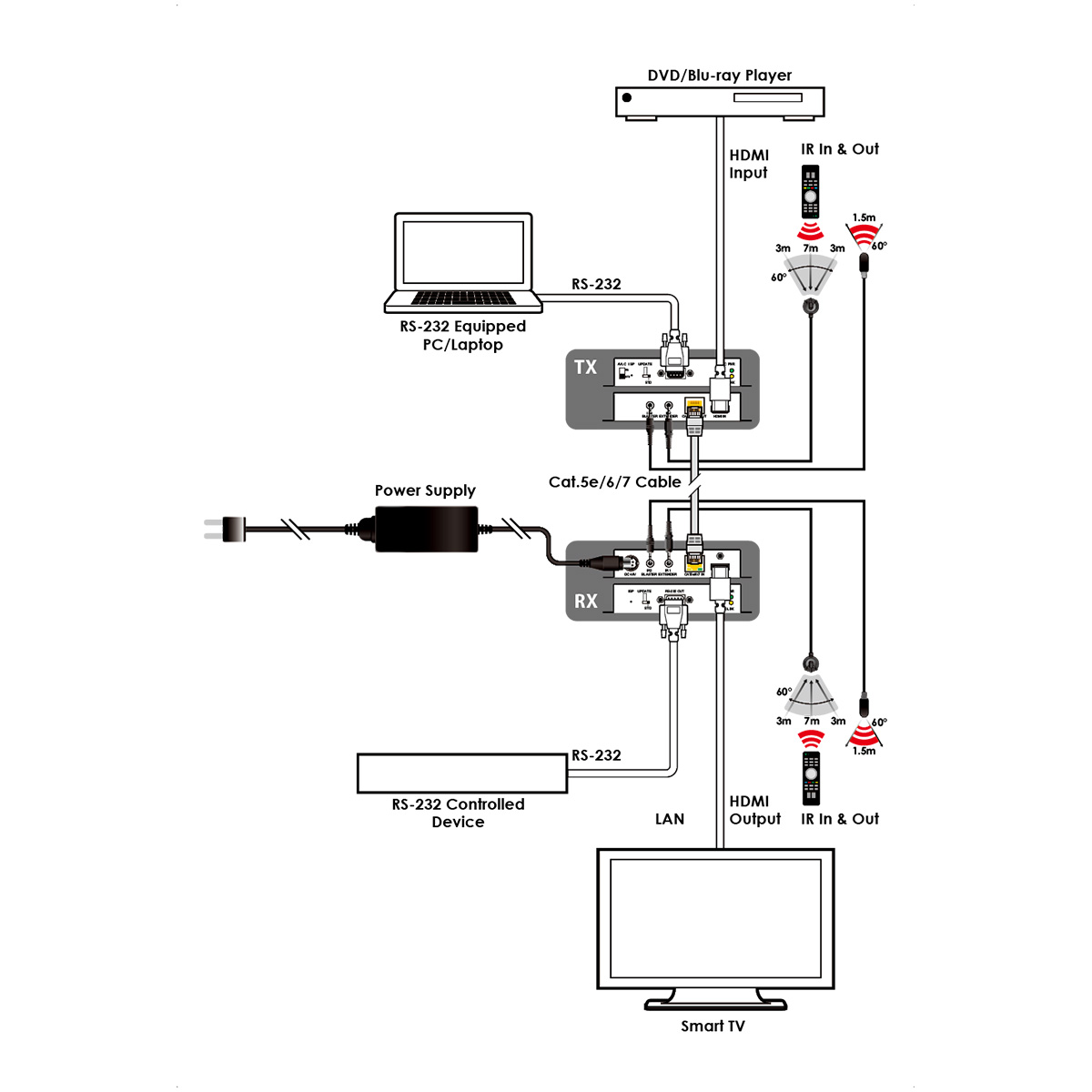

This Transmitter is a great solution for extending UHD video and audio as well as control via a single run of Cat.5e/6/7 cable over distances up to 35 meters. This Transmitter complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. Despite HDBaseT’s 10.2Gbps bandwidth limitation, 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be processed and extended by the use of AVLC (Adaptive Visually Lossless Compression) when needed. Multiple data and control interfaces are also provided, including IR, and RS-232 connections. This Transmitter (PD) is powered by 48V PoH (Power over HDBaseT) from a compatible Receiver (PSE), allowing for greater flexibility within different installation scenarios.
Features
- HDMI with HDR, 3D & 4K@60Hz support,
- Supports Deep Color input and output up to 12-bit

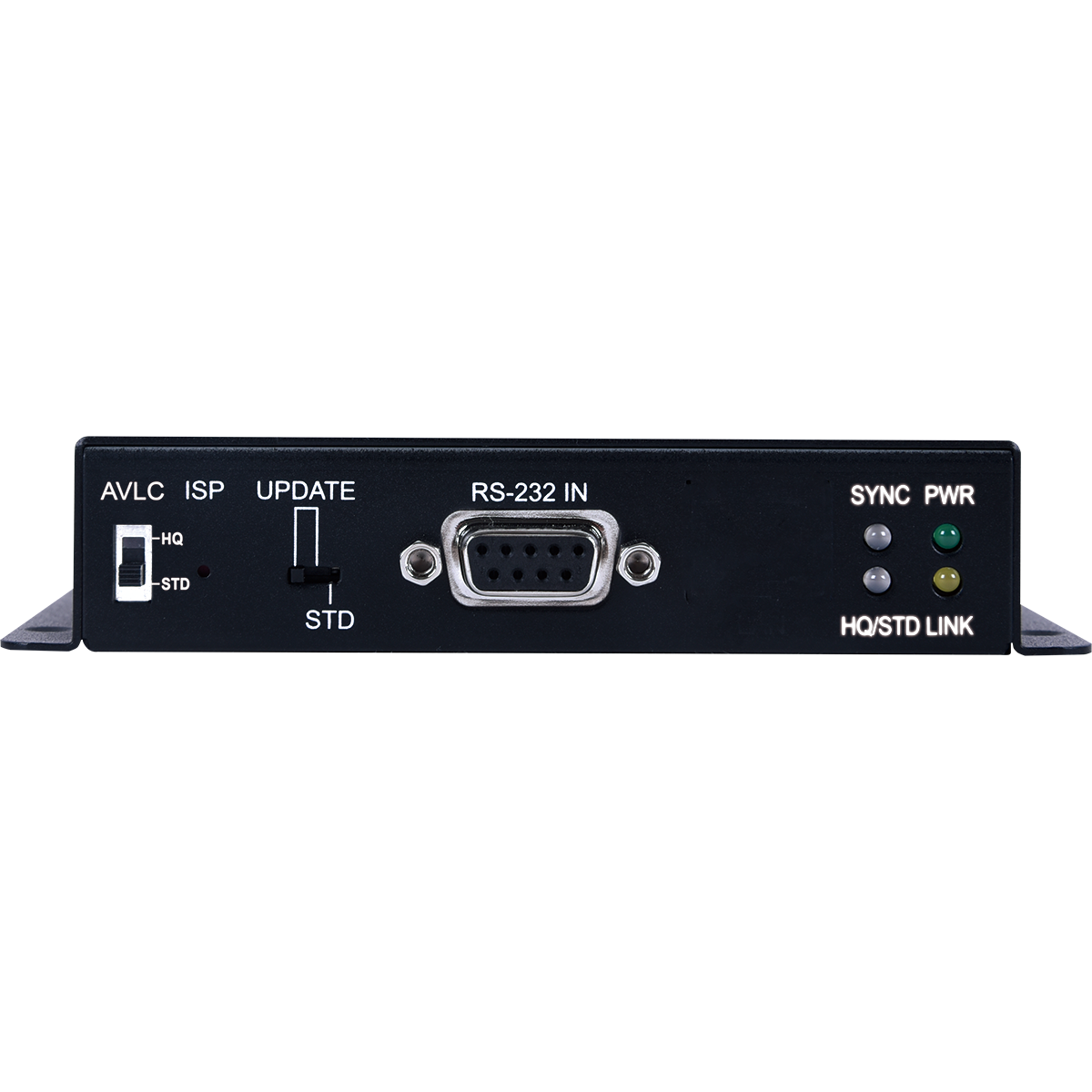

- Supports CEC bypass HDBaseT output transmits video, audio and data over a single Cat.5e/6/7 cable and can reach distances up to 35m/230ft at 4K when using Cat.6a/7 Supported HDBaseT feature set: HD Video & Audio, 100BaseT Ethernet, PoH, and Control (Bi-directional IR/RS-232 pass-through) Integrated AVLC (Adaptive Visually Lossless Compression) activates when the bandwidth requirements of the source are beyond 10.2Gbps (340MHz) allowing for support of sources up to 18Gbps (600MHz) with no loss of visual quality The AVLC function allows manual selection between High Quality (Full bandwidth) mode and Standard mode (Lower bandwidth, activates at a lower bandwidth threshold)
- Supports pass-through of many audio formats including 8 channel LPCM, Bitstream, and HD Bitstream Receiver (PSE) provides power to the Transmitter (PD) using PoH (Power over HDBaseT)
Note:
The PoH function is designed for powering compatible Transmitter units only. Non-PoH Transmitters will need their own power supply. Transmitters from other brands may not be compatible.
Brand:
Cypress Technology
Product Type:
HDMI Over HDBaseT Transmitter
Specifications
Encryption:
12bits
Transmission Range:
35m
Number of Channels:
Special Features:
CEC Bypass, AVLC Function Allows Manual Selection Between High Quality Mode, Receiver (PSE) Provides Power to the Transmitter (PD) Using POH (Power Over HDbaset)
Power Rating:
8.3W
Chassis Color:
Black
Chassis Material:
Steel
Includes:
8 Channel LPCM, Bitstream, HD Bitstream
Performance
Video Format:
4K@60Hz YUV 4:4:4
Frequency Rating:
60Hz

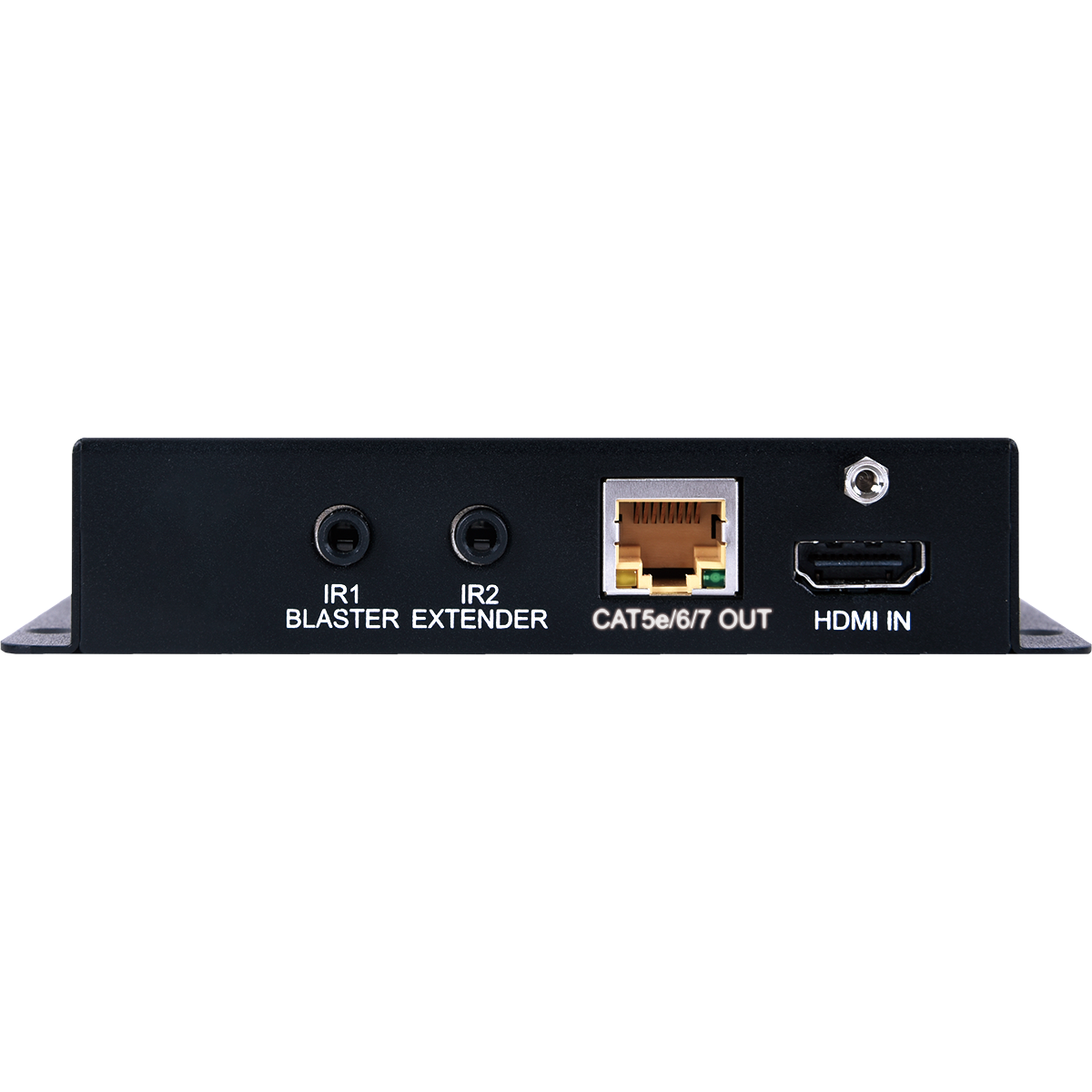

Inputs and Ports
Input Port Type:
1xHDMI-Type A
Output Port Type:
1xHDBaseT (RJ45)
Dimensions
Width:
12.8cm
Depth:
11.7cm
Height:
2.5cm
Weight:
386g
