CH-2527TXPL UHD HDMI over HDBaseT Transmitter with PoH
Please sign in so that we can notify you about a reply

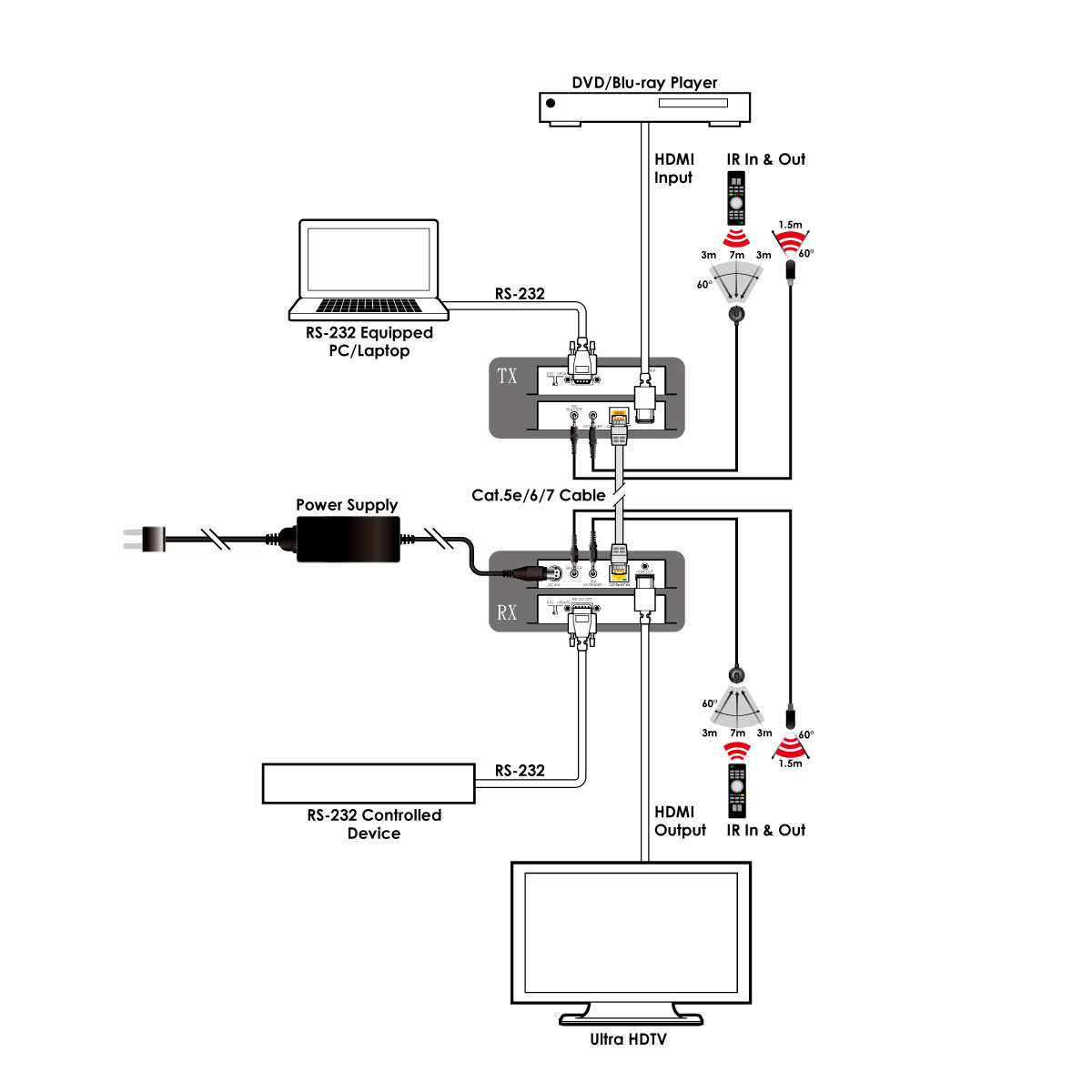

This transmitter and receiver set is a great solution for extending uncompressed HD audio and video as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances of up to 70 meters. Multiple data and control interfaces are provided, including IR and RS-232 connections. This extender set complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. The Transmitter (PD) is powered by 48V PoH (Power over HDBaseT) provided by the Receiver (PSE), allowing for greater flexibility within different installation scenarios.
Features
- HDMI with 3D & 4K support
- Supports CEC bypass
- Simultaneous transmission of uncompressed video, audio and data over a single 70m/230ft Cat.5e/6/7 cable at 1080p60 and 35m/115ft at 4K
- HDBaseT feature support: HD Video and Audio, 48V PoH, and Control (bidirectional IR/RS-232 pass-through)
- Supports standard 48V PoH from Receiver (PSE) to Transmitter (PD) (compatible Transmitters only)
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over HDBaseT Transmitter
Maximum Operating Temperature:
+40°C
Encryption:
8bits
Transmission Range:
35m
Special Features:
HDMI with 3D and 4K Support lCEC Bypass, Standard 48V POH From Receiver (PSE) to Transmitter (PD) (Compatible Transmitters Only)
Power Rating:
4.71W
Chassis Color:
Black
Chassis Material:
Metal
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
IR and RS-232 Connections
Performance
Video Format:
4K@60Hz YUV 4:4:4
Frequency Rating:
30kHz to 50kHz
Inputs and Ports
Input Port Type:
1xHDMI-Type A
Output Port Type:
1xHDBaseT (RJ45)
Interface Type:
RS-232L
Dimensions
Width:
12.8cm
Depth:
11.7cm
Height:
2.5cm
Weight:
370g
Other
Voltage Rating:
48V
Voltage Rating:
48V
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
