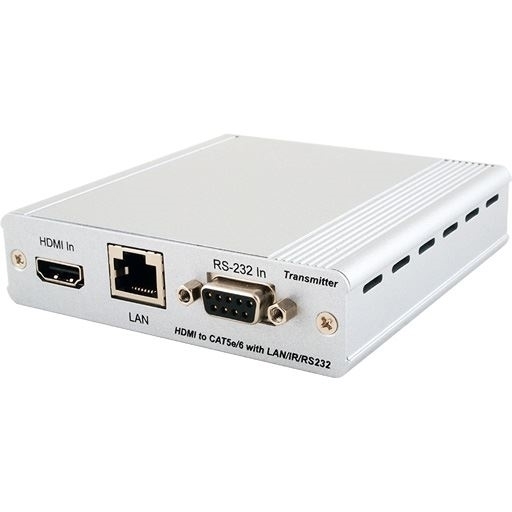

CH-2507TX HDMI over HDBaseT 4K UHD Transmitter
Please sign in so that we can notify you about a reply
CH-2507TX is a twisted pair HDMI, Ethernet, bi-directional RS-232 and IR signal transmitter. The inverse transformation is performed by the receiver. Supports resolutions up to 4Kx2K, 3D, CEC control signaling, HDBaseT 5Play technology. The length of the transmission line over one CAT5e/6 twisted pair cable is up to 100 m.
Features
- HDMI with 3D, 4K×2K support, HDCP and DVI compliant
- Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 100m/328ft
- HDBaseT™ 5Play™ convergence: uncompressed high definition Video and Audio, LAN serving, Power over Ethernet and RS-232/IR control
- Uncompressed video support up to 1080p@60 Hz/36-bit
- High definition audio support up to LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
- Supports audio sampling rates of 32kHz to 192kHz
- Support standard 48V power from Receiver (PSE) to Transmitter (PD)
- Supports CEC bypass
- Installation friendly
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Transmitter
Maximum Operating Temperature:
+40°C
Encryption:
12bits
Transmission Range:
100m
Power Rating:
15W
Chassis Color:
Silver
Chassis Material:
Aluminium
Applications:
48V PoE from Transmitter (PSE) to Receiver (PD), Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Video Format:
1080pixels
Frequency Rating:
30kHz to 50kHz
Inputs and Ports
Input Port Type:

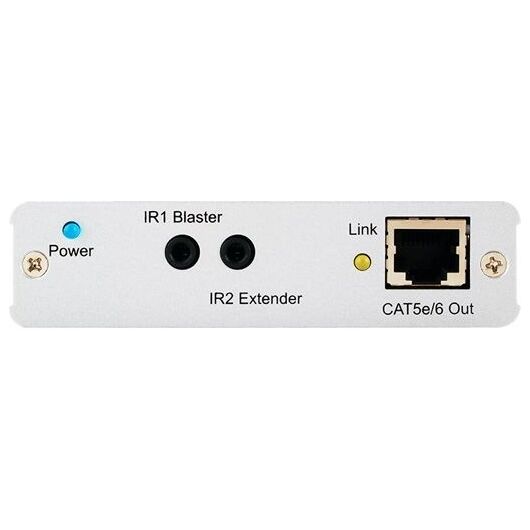

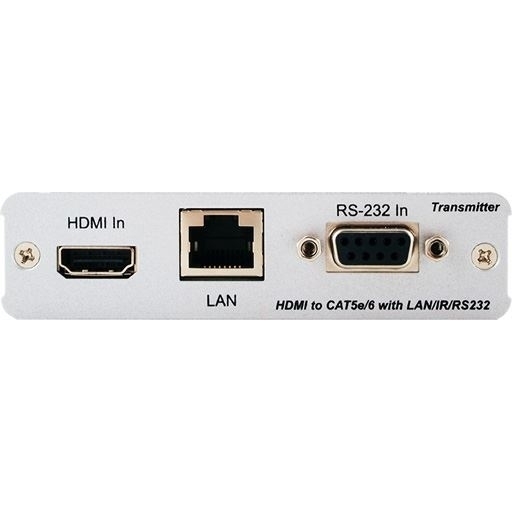

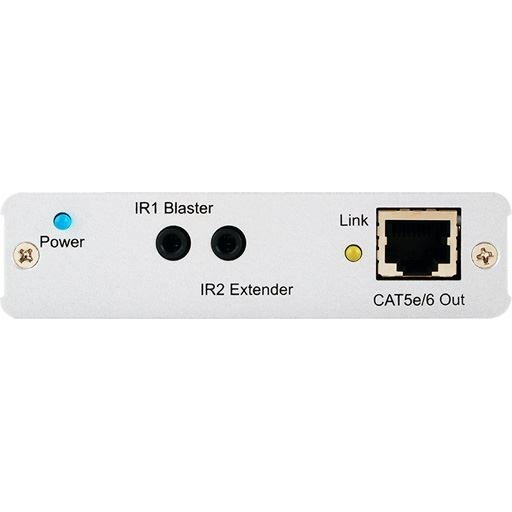

1xHDMI Type a (Female), 1-IR/3.5mm Mini Jack Connector (Female)
Output Port Type:
1xCAT5e/6/7, 1xIR Blaster
Power
Current Rating:
0.83A
Dimensions
Width:
10.2cm
Depth:
10.7cm
Height:
2.5cm
Weight:
0.252kg
Other
Voltage Rating:
48V
Voltage Rating:
48V
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
