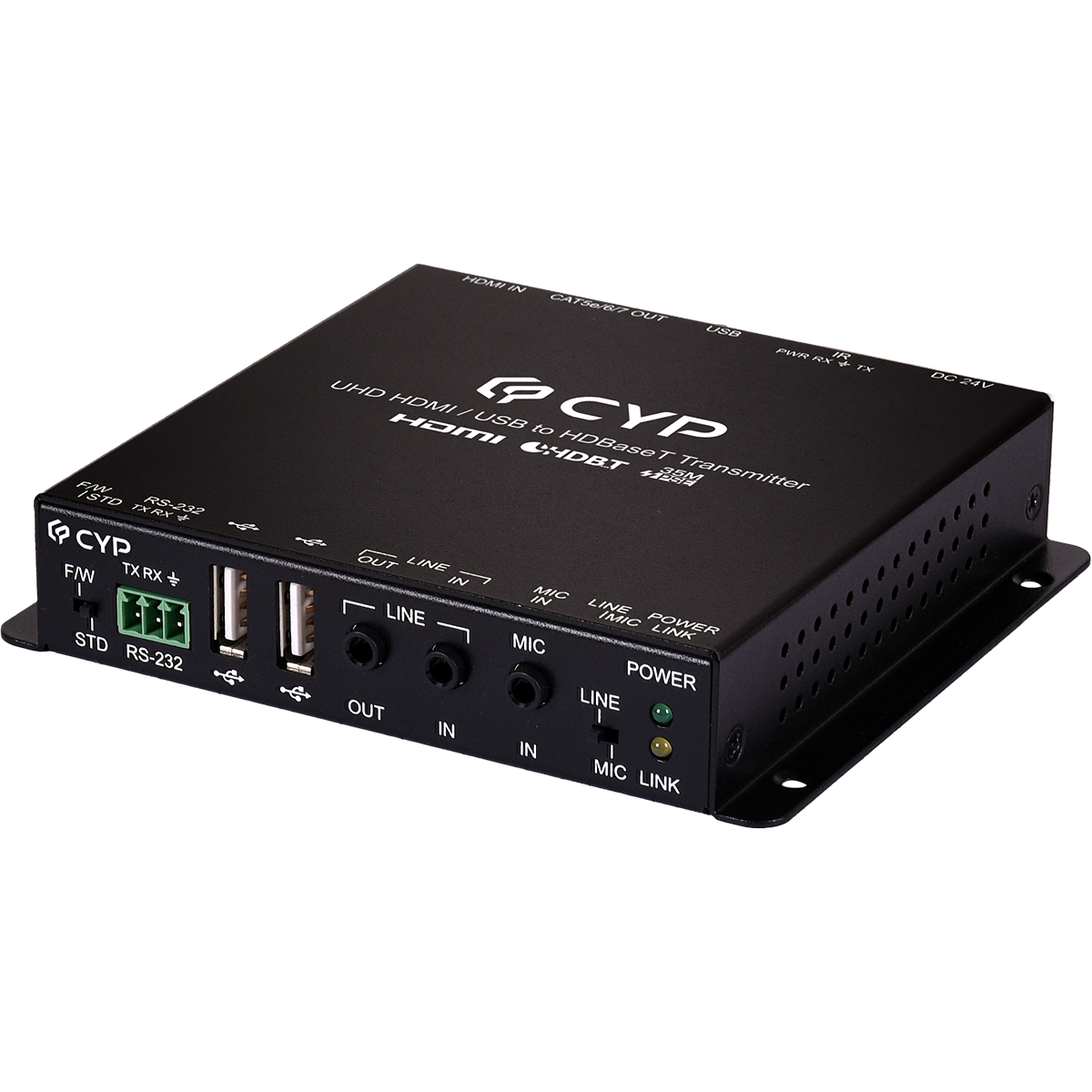

CH-1610TXPL UHD HDMI/USB to HDBaseT Transmitter
Please sign in so that we can notify you about a reply

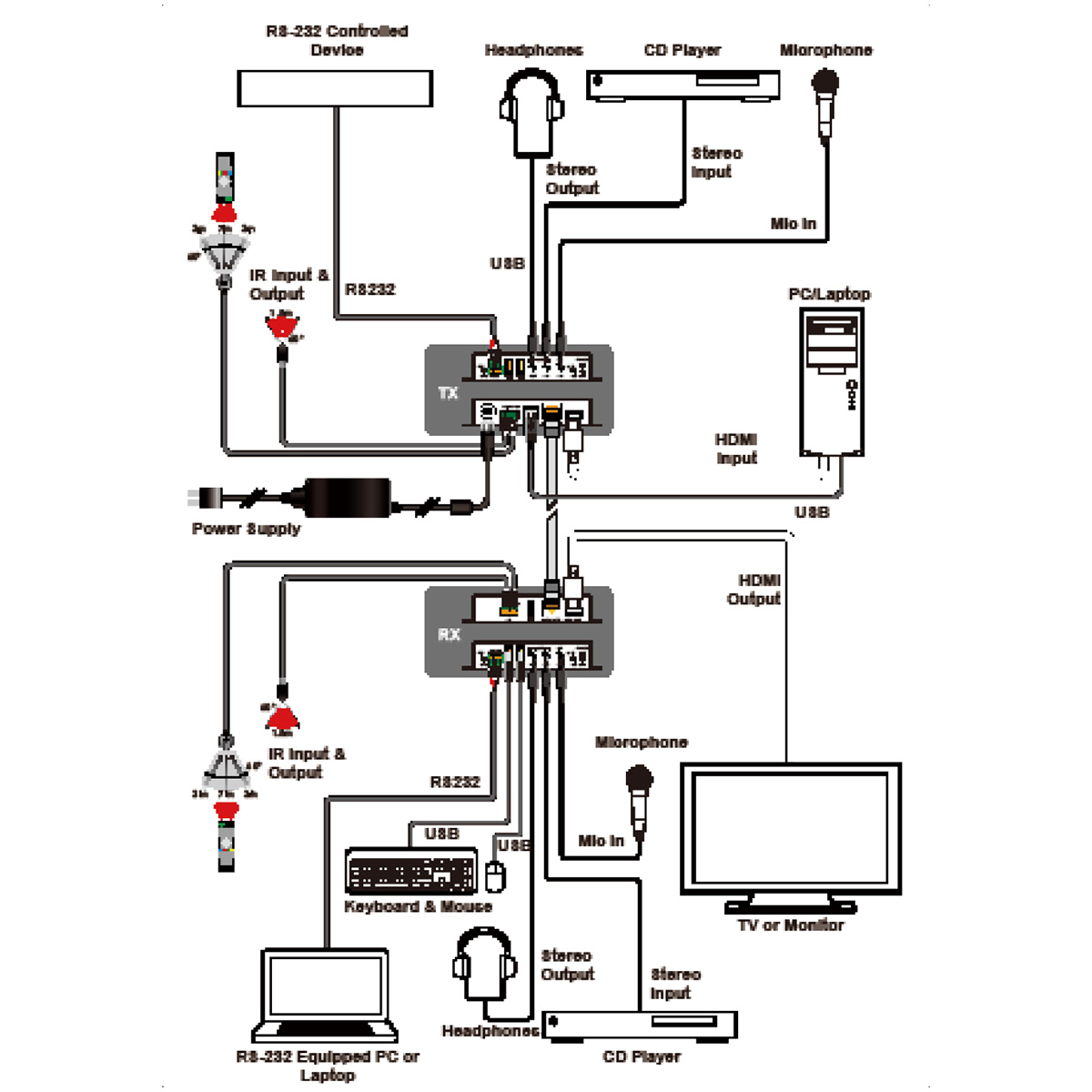

The HDMI over single CAT5e/6/7 Transmitter set can send uncompressed audio/video over a single run of CAT5e/6/7 cable at a distance up to 35 meter. Multi-control interfaces are available which includes IR, RS-232 and USB connection. This extender complies with advanced protocols of HDCP2.2 and HDMI 2.0, as well as supporting the legacy HDCP 1.x standards.
Features
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI HDBaseT 2.0 compatible HDMI 2.0 and DVI 1.0 compatible HDCP 2.2 and HDCP 1.x compliant Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 35m
- Supports UHD resolutions up to 3840×2160@60Hz (4:2:0, 8-bit) & 4096×2160@60Hz (4:2:0, 8-bit)
- Supports 16-bit Deep Color up to 1080p@60Hz
- Supports standard 48V from Transmitter (PSE) to Receiver (PD)
Brand:
Cypress Technology
Specifications
Product Type:
Transmitter
Maximum Operating Temperature:
+40°C
Encryption:
16bits
Transmission Range:
35m
Sound Field:
Stereo
Special Features:
HD Base T 2.0 Compatible, HDMI 2.0 and DVI 1.0 Compatible, HDCP 2.2 and HDCP 1xCompliant, UHD Resolutions Up to 3840x2160@60Hz (4:2:0, 8bits) and 4096x2160@60Hz (4:2:0, 8bits), Standard 48V From Transmitter (PSE) to Receiver (PD)
Power Rating:
4.5W
Chassis Color:
Black
Chassis Material:
Steel
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
8 Channel LPCM, Bitstream and HD Bitstream
Performance
Video Format:
Up to 3840x2160pixels@60Hz (4:2:0,8bits), 4096x2160pixels@60Hz (4:2:0,8bits)
Impedance Rating:
10kΩ
Frequency Rating:
30kHz to 50kHz
Inputs and Ports
Input Port Type:
1xHDMI-Type A, 1xStereo Audio Input, 1xMicrophone Input
Output Port Type:
1xHDBaseT (RJ45), 1xStereo Audio Output
Interface Type:
Multimedia Interface
Power
Current Rating:
2.7A
Dimensions
Width:
12.8cm
Depth:
11.3cm
Height:
2.5cm
Weight:
410g
Other
Voltage Rating:
24V
Voltage Rating:
24V
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
