CH-1602TXWPUK 4K60 (4:2:0) HDMI over HDBaseT Wallplate Transmitter with IR, RS-232, PoH (PSE), LAN, USB/KVM & ARC (2 Gang UK)
Please sign in so that we can notify you about a reply
This HDMI and Audio over Single CAT5e/6/7 Transmitter and Receiver set can send uncompressed audio/video along with controls, IP and USB data over a single run of CAT5e/6/7 cable up to 100m. It has the added benefit of control through the built-in RS-232 and IR ports. With LAN serving connection and external digital and analog audio capability that gives users the convenience of additional audio connection. This system also allows the connection of any USB host, enabling a USB connection to up to 2 USB ports, giving the Receiver the ability to act like a USB hub. The 48V PoH design can power the Receiver (PD) from the Transmitter (PSE), eliminating the need for a separate power supply for the Receiver.
Features
- Supports HDBaseT 2.0 specification transmitting 4K@30 or 4K@60 YUV420 video signal over a single CAT6/7 cable up to 100m/328ft and CAT5e cable up to 90m/295ft
- Receiver features 2 USB 2.0 ports
- HDMI (with 3D & 4K@60Hz YUV420 support), HDCP 2.2 and DVI compatible
- HDBaseT 5Play™ convergence: High-Definition (HD) Video and Audio, 100BaseT Ethernet, Power over HDBaseT (PoH) and Control (Bidirectional IR/RS-232 passthrough)
- Supports passthrough of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD & DTS-HD Master Audio
- Supports 10/100 Ethernet network connection
- Supports external analog and digital audio transmission
- Supports ARC function from HDMI out to both HDMI in and optical output
- Supports RS-232 baud rate from 110~115200bps
- UK 2 gang wall-plate design and installation friendly
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over HDBaseT Wallplate Transmitter
Maximum Operating Temperature:
+40°C
Encryption:
36bits
Transmission Range:
100, 90m
Sound Field:
Stereo
Special Features:
Receiver Features 2 USB 2.0 Ports, HDMI (with 3D and 4K@60Hz Yuv420 Support), HDCP 2.2 and DVI Compatible, Passthrough of HD Audio Formats, 10/100 Ethernet Network Connection, External Analog and Digital Audio Transmission, Arc Function From HDMI Out to B
Power Rating:
21.34W
Chassis Material:
Metal
Applications:
48V PoH from Transmitter (PSE) to Receiver (PD), Household Entertainment Extending and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Video Format:
3D and 4K@60Hz YUV 420
Frequency Rating:
30kHz to 50kHz
Inputs and Ports
Input Port Type:

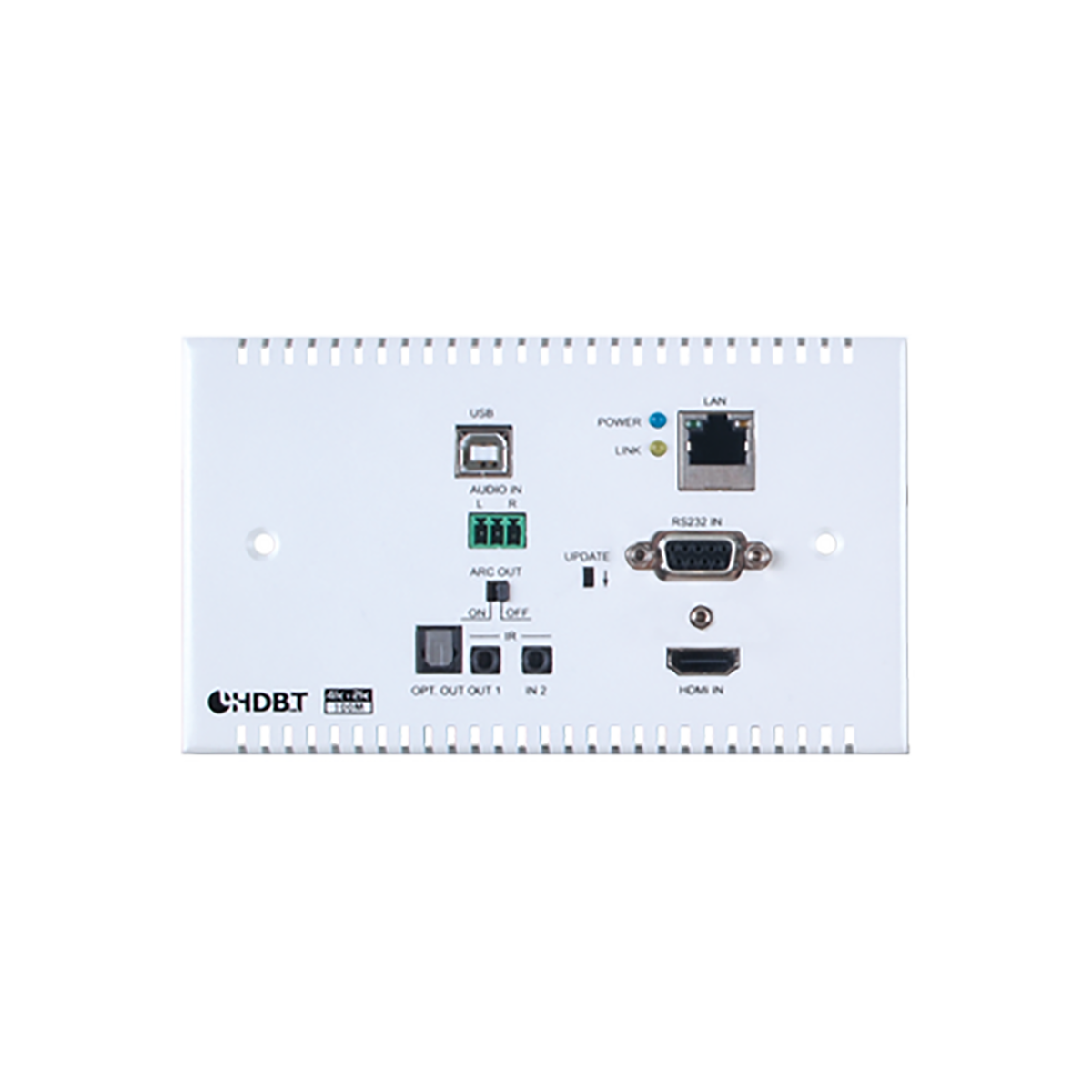

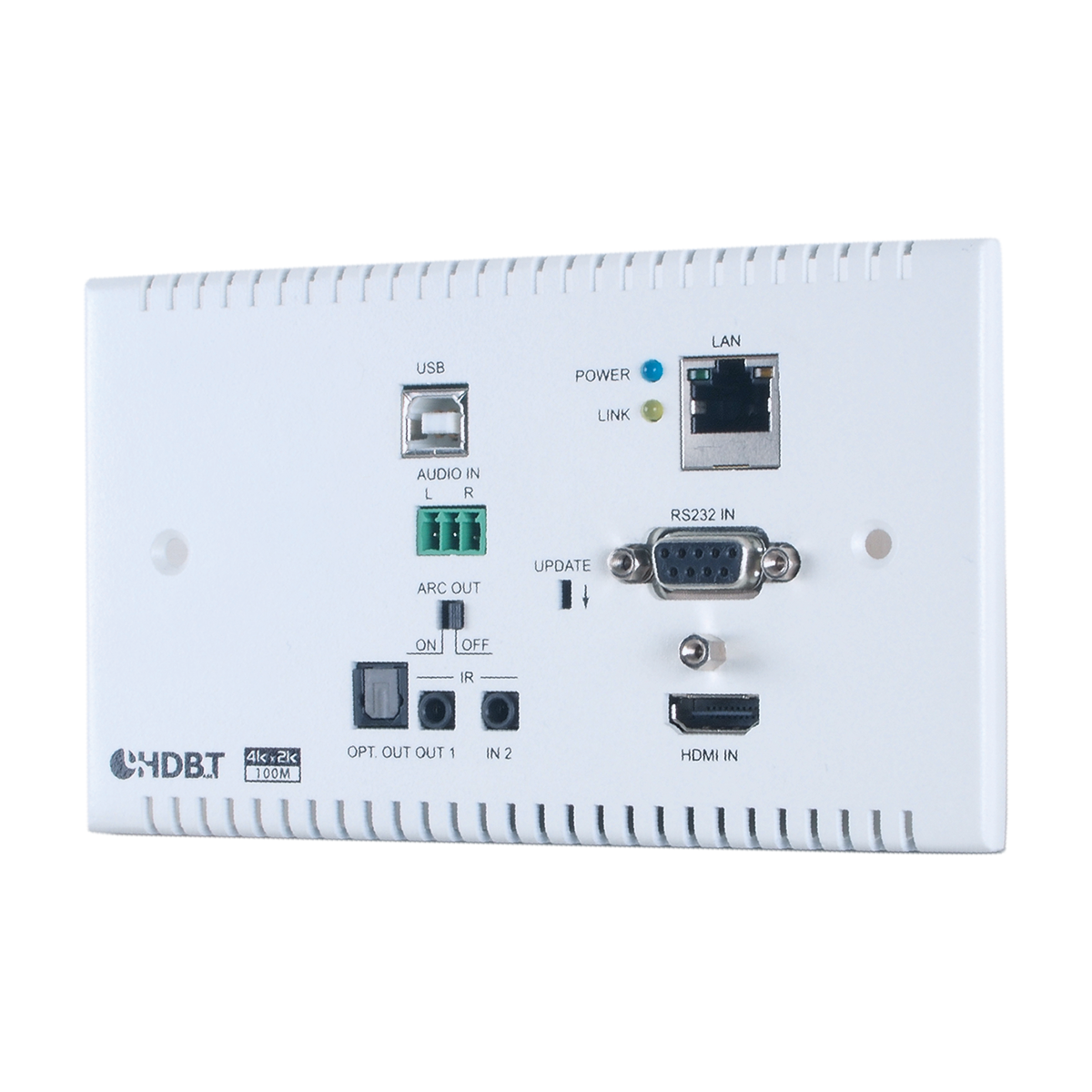

1xHDMI, 1xUSB, 1xL/R (Terminal Block), 1xLAN, 1xIR Extender, 1xRS-232
Output Port Type:
1xCAT5e/6/7, 1xOptical, 1xIR Blaster
Power
Current Rating:
0.83A
Dimensions
Width:
15.6cm
Depth:
9cm
Height:
4cm
Weight:
266g
Other
Voltage Rating:
48V
Voltage Rating:
48V
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
