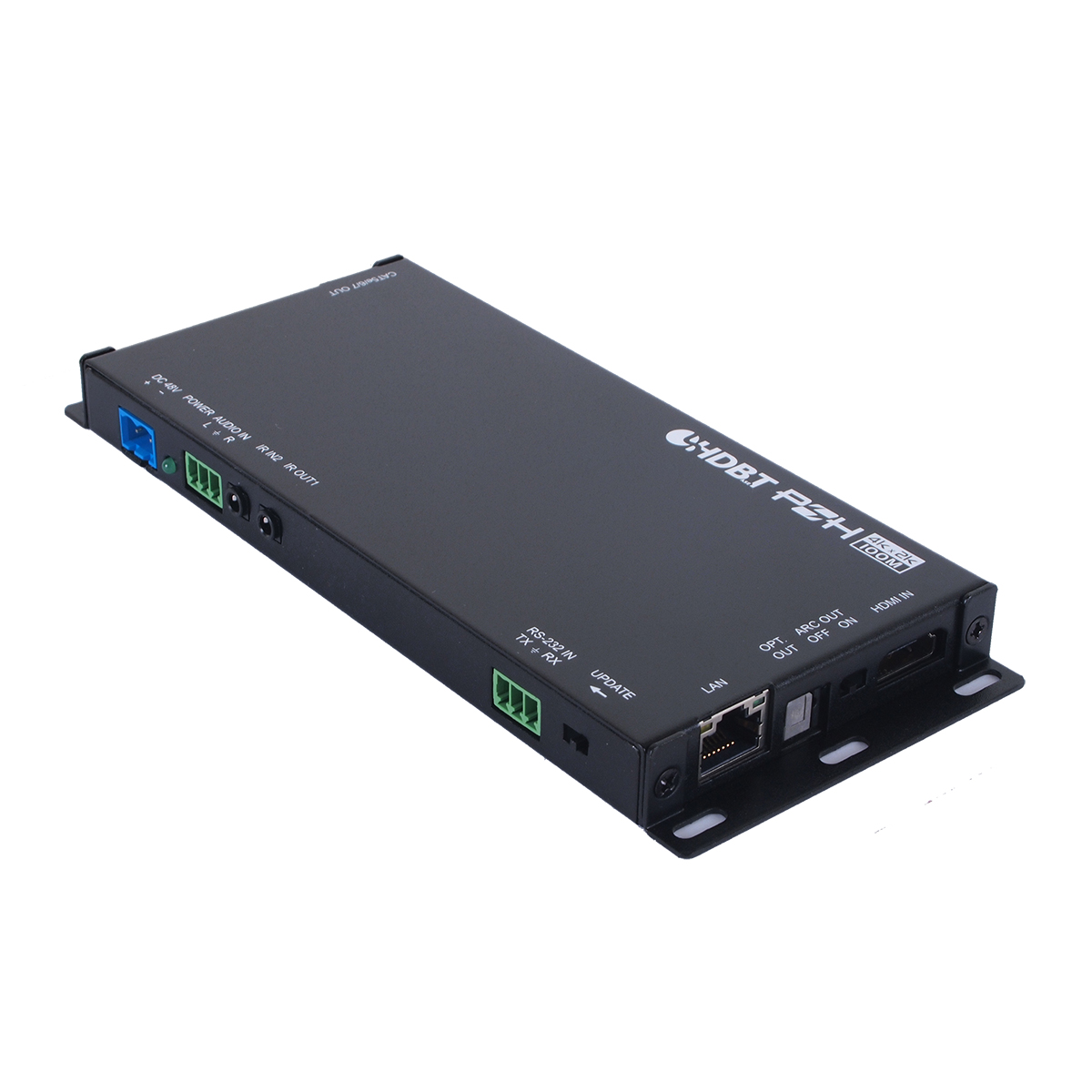

CH-1602TXR HDMI over HDBaseT Transmitter with Optical Audio Return (OAR)
Please sign in so that we can notify you about a reply

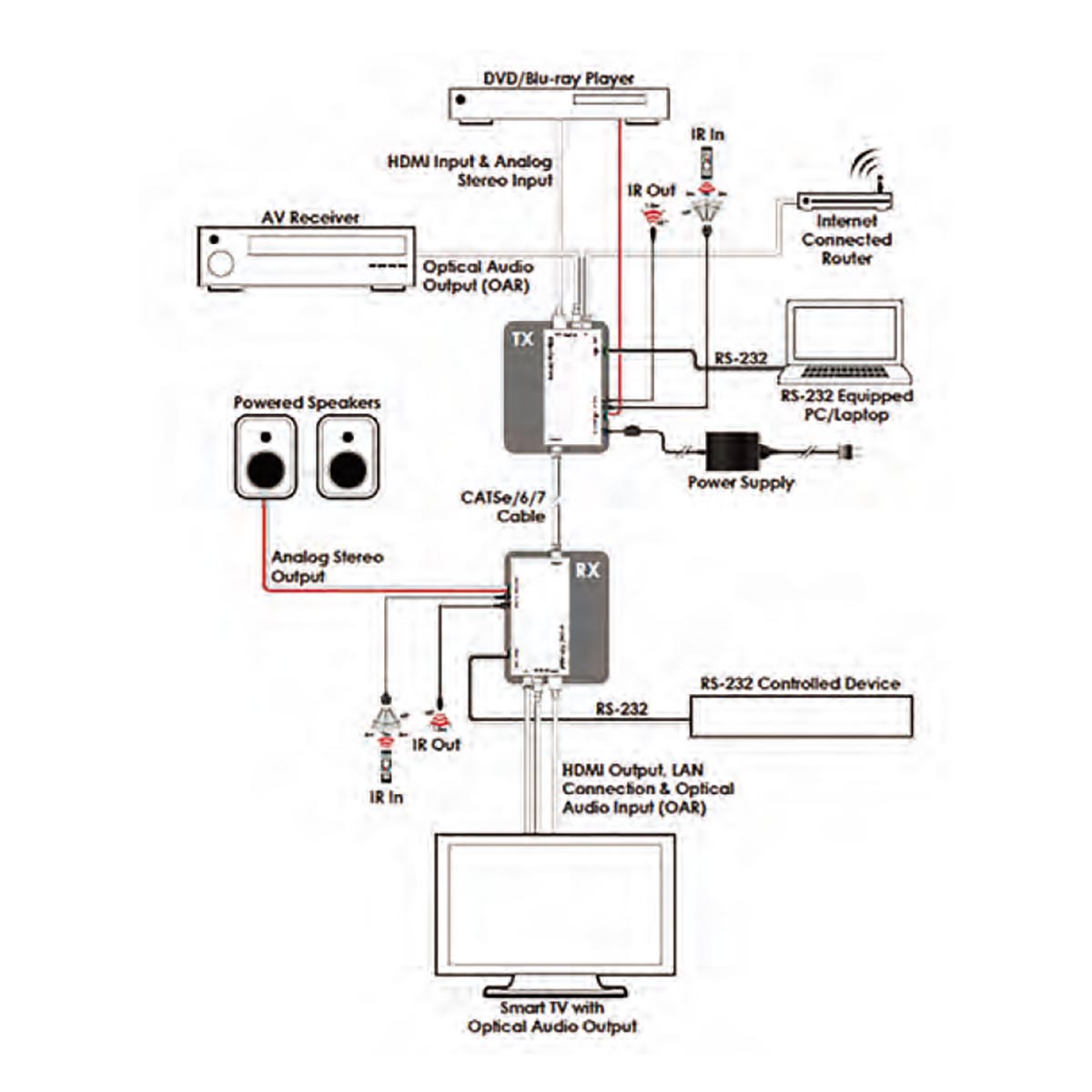

This HDBaseT 2.0 Transmitter and Receiver set can send uncompressed UHD video and audio over a single Cat.5e/6/7 cable up to 100m. It has the added benefit of extending control and communication signals through the built-in Ethernet, RS-232 and IR ports. Independent external digital and analog audio transmission capability gives users the extra convenience of additional audio connections. The integrated 48V PoH (Power over HDBaseT) support provides power to the Receiver (PD) from the Transmitter (PSE), eliminating the need for a separate power supply for the Receiver. The ultra-thin mechanical design allows for flexibility in mounting locations, saving space and making your presentation space orderly and tidy.
Features
- Supports the HDBaseT 2.0 specification over a single Cat.6/7 cable up to 100m/328ft and Cat.5e cable up to 90m/295ft
- HDBaseT 5Play™ convergence: High-Definition (HD) Video and Audio, 100BaseT Ethernet, 48V PoH, and Control (Bi-directional IR/ RS-232 pass-through)
- Receiver (PD) is powered by 48V PoH from the transmitter (PSE)
- HDMI with 3D & 4K@60Hz (YUV 4:2:0) support
- Supports pass-through of HD audio formats: LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
- Supports optical audio sampling rates up to 48kHz
- Supports external analog and digital audio extension including support for ARC (Audio Return Channel)
- Supports RS-232 baud rates up to 115200bps
- Ultra-thin mechanical design
Brand:
Cypress Technology
Product Type:
HDMI Over HDBaseT Transmitter
Specifications
Maximum Operating Temperature:
+40°C
Encryption:
12bits
Transmission Range:
100, 90m
Sound Field:
Stereo
Special Features:
Receiver (PD) is Powered by 48V POH From the Transmitter (PSE), HDMI with 3D and 4K@60Hz (YUV 4:2:0) Support, Pass-Through of HD Audio Formats, Optical Audio Sampling Rates Up to 48kHz, External Analog and Digital Audio Extension Including Support for ARC
Power Rating:
15.5W
Chassis Color:
Black
Chassis Material:
Aluminium
Applications:
Home Theatre Extension and Control, Lecture Hall Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Video Format:
3D and 4K@60Hz (YUV 4:2:0)
Frequency Rating:
30kHz to 50kHz
Inputs and Ports
Input Port Type:

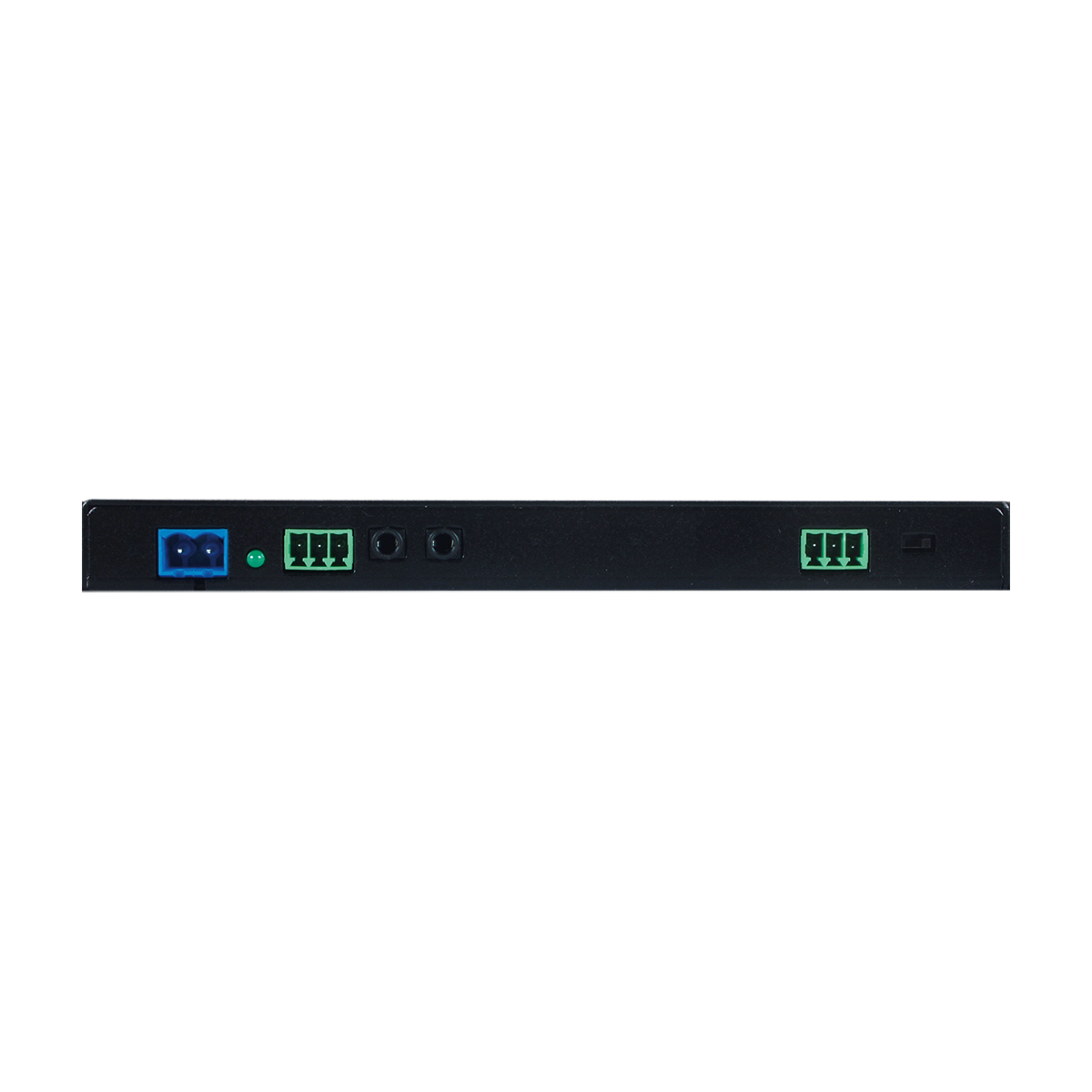

1xHDMI-Type A, 1xStereo Audio (Terminal Block), 1xLAN (RJ45), 1xIR Extender (3.5mm), 1xRS-232 (Terminal Block)
Output Port Type:

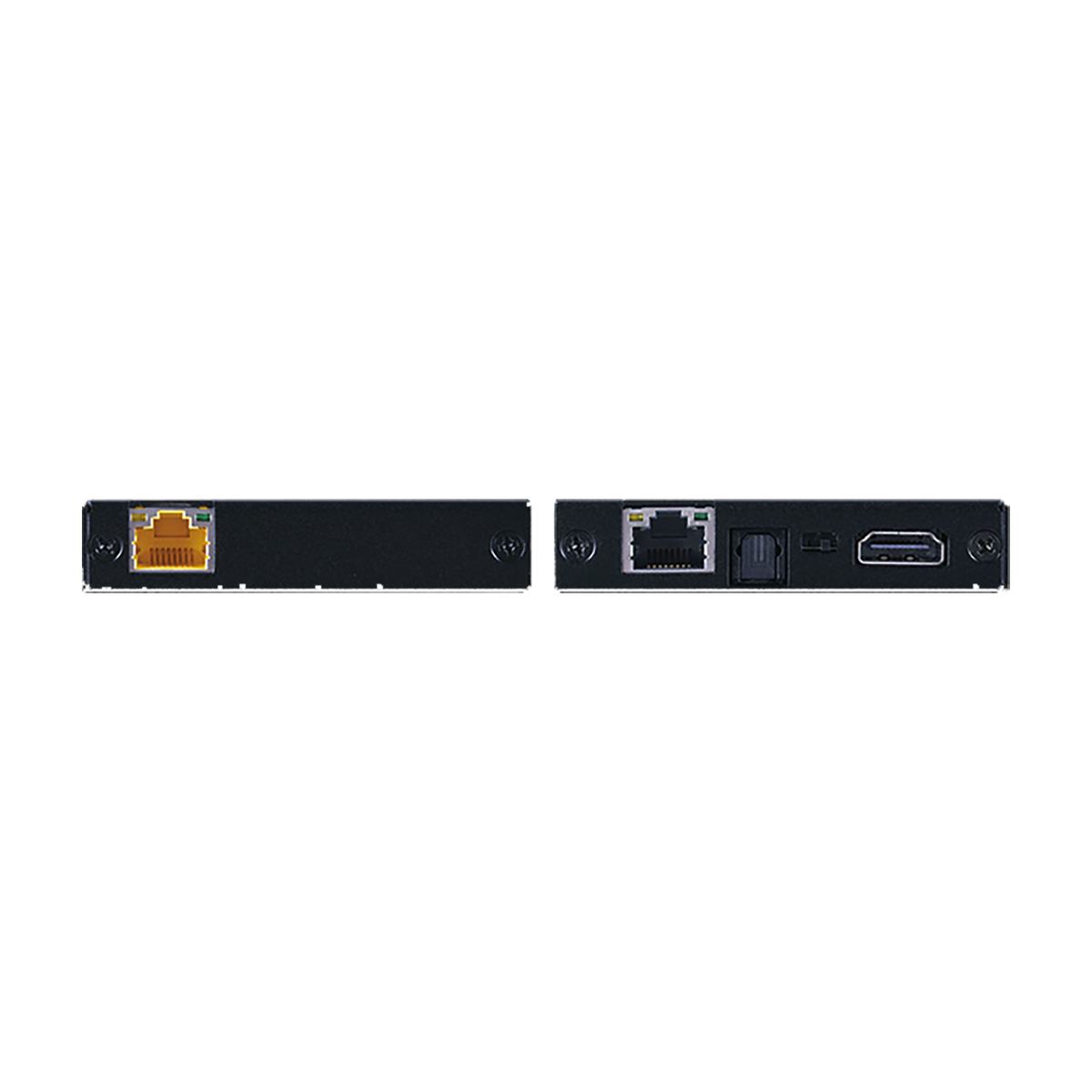

1xHDBaseT(RJ45), 1xOptical Audio (TOSLINK), 1xIR Blaster (3.5mm)
Interface Type:
PC
Power
Current Rating:
0.83A
Dimensions
Width:
18cm
Depth:
8cm
Height:
1.6cm
Weight:
354g
Other
Voltage Rating:
48V DC
Voltage Rating:
48V DC
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
