CH-1601TX HDMI/Audio over CAT5e/6/7 Transmitter with 48V PoE
Please sign in so that we can notify you about a reply

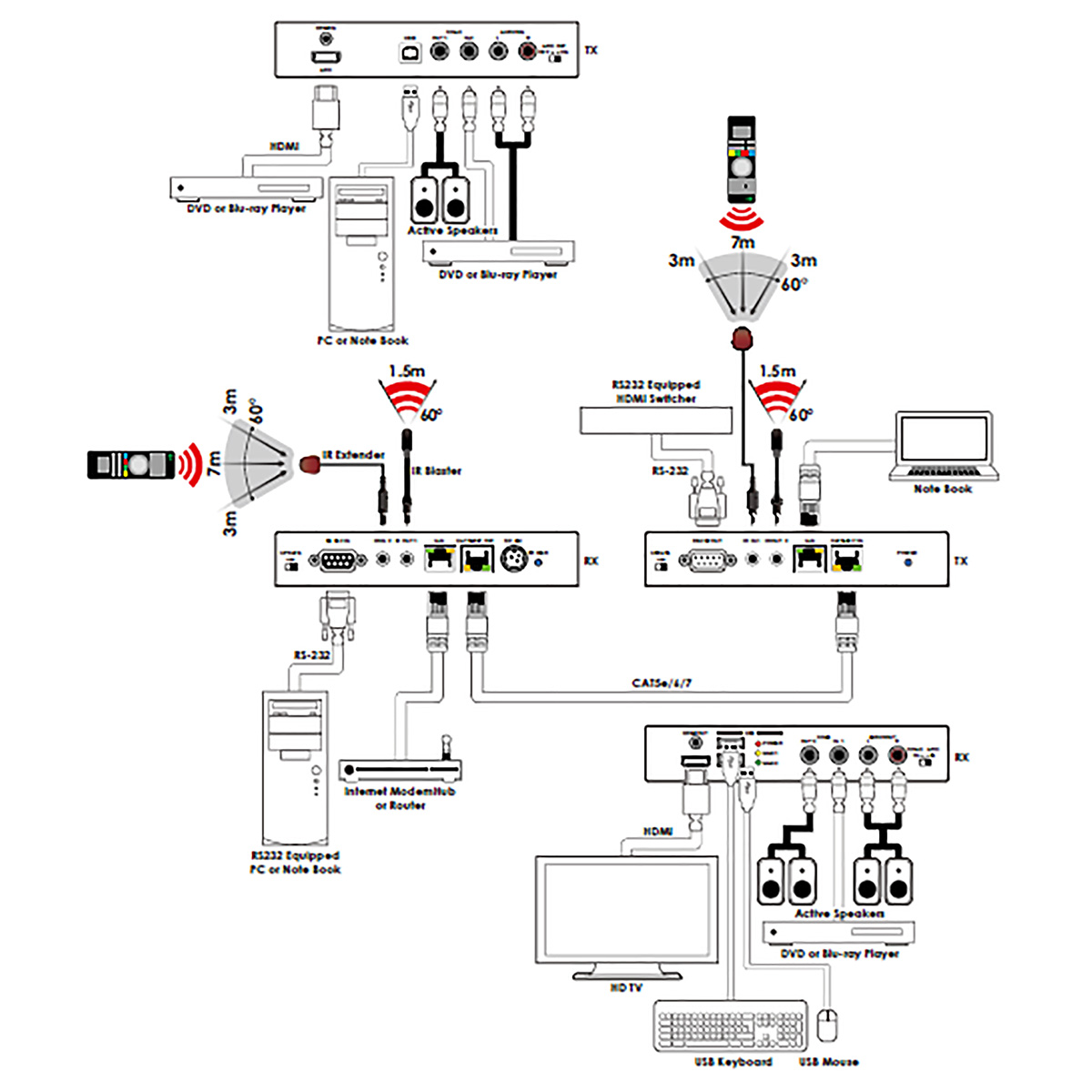

This HDMI and Audio over Single CAT5e/6/7 Transmitter can send uncompressed audio/video along with controls, IP and USB data over a single run of CAT5e/6/7 cable up to 100m. It has the added benefit of control through the built-in RS-232 and IR ports and a LAN serving connection. There is a bidirectional digital audio capability that gives users the convenience of an additional audio connection. This system also allows the connection of any USB host, enabling USB signal transmission and an analog L/R audio input for external audio extending. The 48V PoE design can power the compatible Receiver (PD), eliminating the need for a separate power supply for the Receiver.
Features
- Supports HDBaseT 2.0 specification supporting over a single CAT6/7 cable up to 100m/328ft and CAT5e cable up to 90m/295ft
- HDMI (with 3D & 4Kx2K support), HDCP and DVI compliant
- HDBaseT 5Play™ convergence: High-Definition (HD) Video and Audio, 100BaseT Ethernet, PoE and Control (Bidirectional IR/RS-232 pass-through)
- Supports pass-through of audio formats: LPCM2/5.1/7.1CH, Dolby Digital 2~5.1Ch, Dolby Digital Plus, Dolby TrueHD and DTS-HD Master Audio
- Supports coaxial cable up to 1 meter with sampling rate up to 48kHz
- Supports 10/100 Ethernet network connection
- LAN and external digital audio capability
- Supports RS-232 baud rate up to 115200bps
Brand:
Cypress Technology
Product Type:
HDMI/Audio Over CAT5e/6/7 Transmitter
Specifications
Maximum Operating Temperature:
+40°C
Encryption:
36bits
Transmission Range:
100, 90m
Special Features:
HDbaset 5play™ Convergence: High-Definition (HD) Video and Audio, Coaxial Cable Up to 1m with Sampling Rate Up to 48kHz, 10/100 Ethernet Network Connection, LAN and External Digital Audio Capability, RS-232 Baud Rate Up to 115200bps
Power Rating:
9W
Chassis Color:
Black
Chassis Material:
Metal
Applications:
48V PoE to Receiver (PD), Household Entertainment Extending and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Video Format:
3D, 4K, 2K
Frequency Rating:
30kHz to 50kHz
Inputs and Ports
Input Port Type:

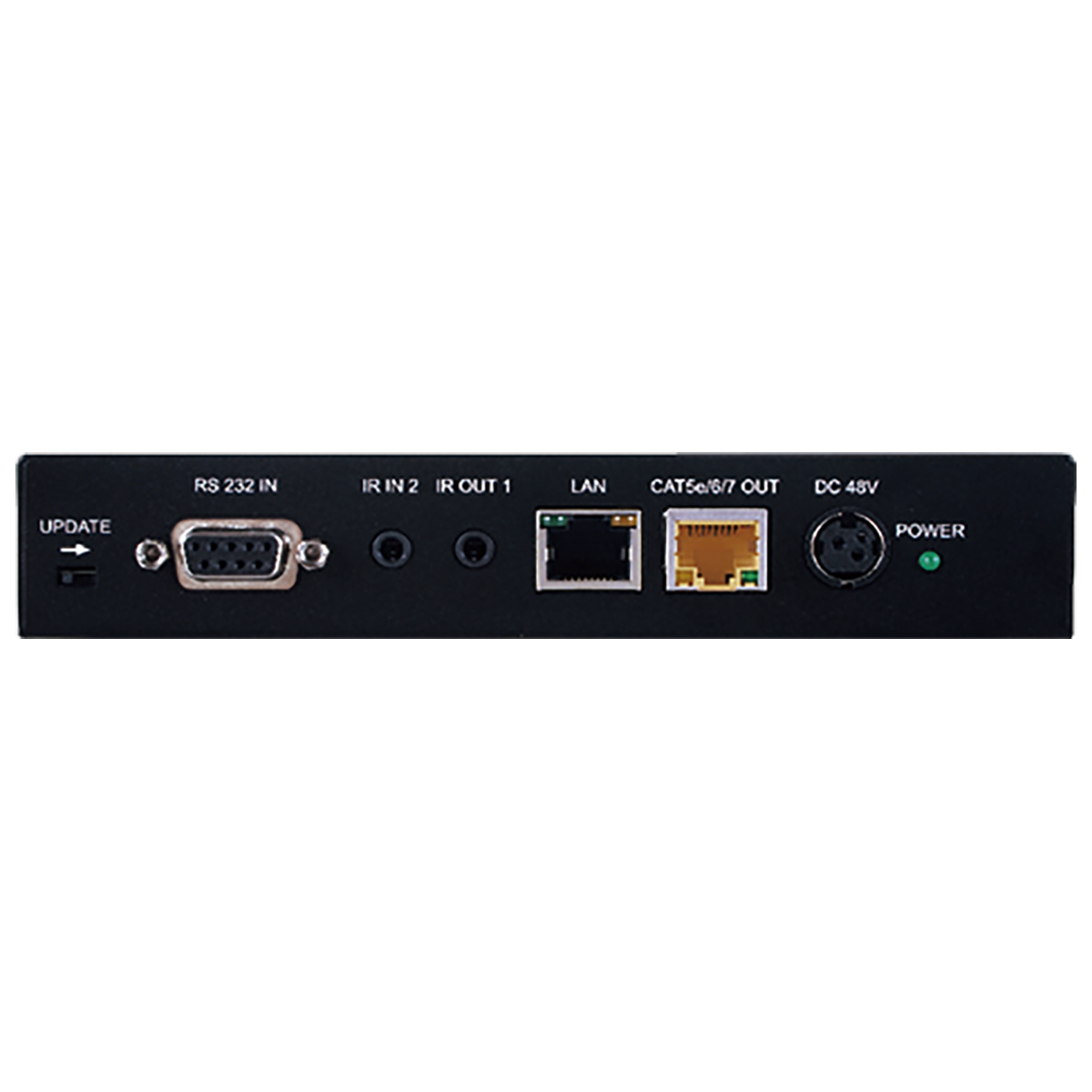

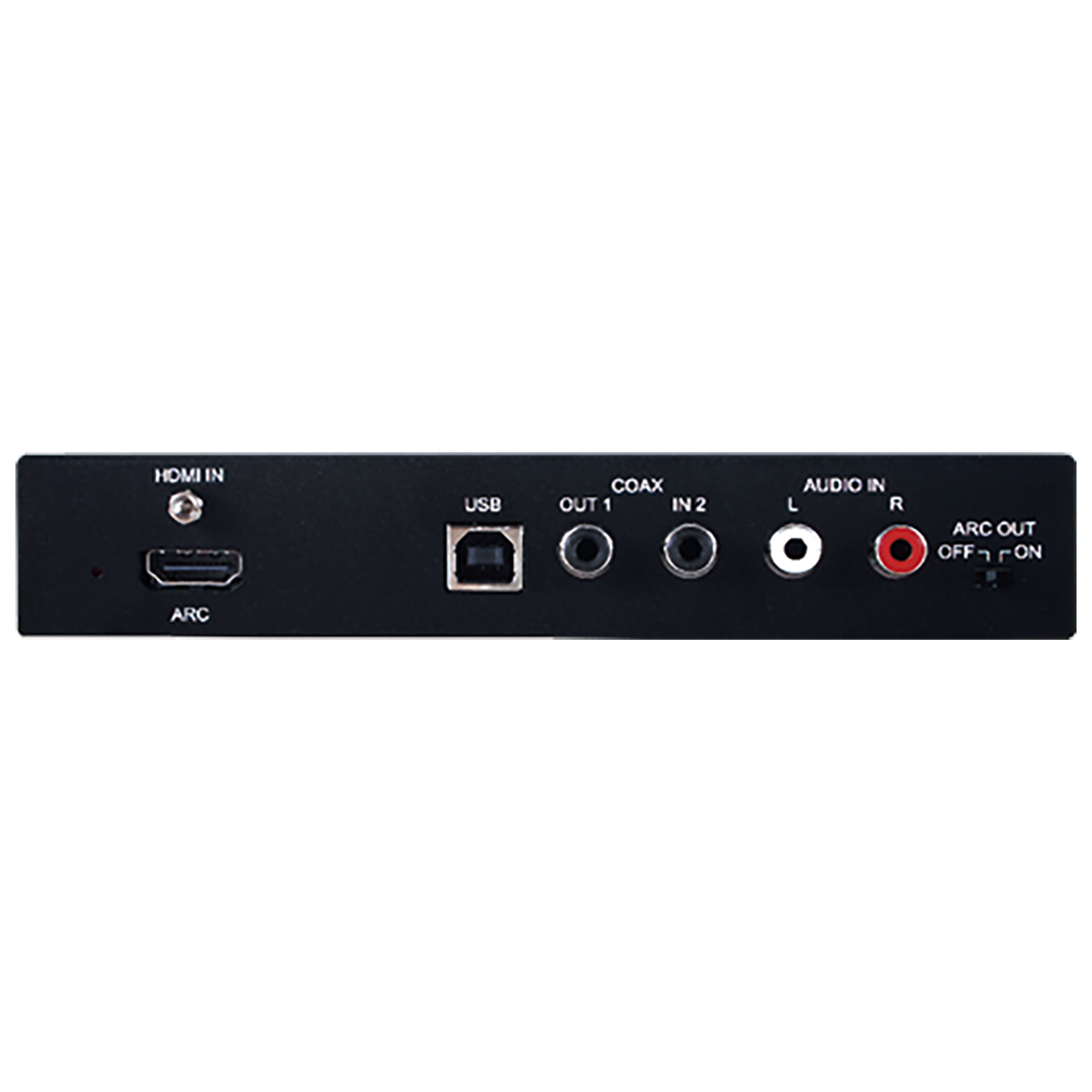

1xHDMI-Type A, 1xLAN (RJ45), 1xRS-232 (DB-9), 1xIR (3.5mm), 1xUSB Type B, 1xCoaxial (Female), 1 L/R (RCA)
Output Port Type:
1xHDBaseT(RJ45), 1xIR (3.5mm), 1xCoaxial (Female)
Interface Type:
PC
Power
Current Rating:
0.83A
Dimensions
Width:
16.5cm
Depth:
14.1cm
Height:
3.3cm
Weight:
624g
Other
Voltage Rating:
48V DC
Voltage Rating:
48V DC
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
