CH-1529TXPL 4K60 (4:2:0) HDMI over HDBaseT Slimline Transmitter with IR, RS-232, PoH (PSE), OAR & Audio Insertion
Please sign in so that we can notify you about a reply
CH-1529TXPL is an HDMI 2.0 4K2K/60 (3840x2160/60, 3D) signal transmitter with HDCP 1.4, 2.2, EDID and CEC, bidirectional IR and RS-232 (thermal block) to HDBaseT twisted pair. Supports audio return channel technology (via TOSLINK). Supports 1080p signals with 3D and Deep Color up to 12bit. Transmission distance of 1080p signal is 60m (4K2K is 35m) over Category 5e/6/7 twisted pair cable. EDID data management, configuration via special software. Transmits 48V PoH (Power over HDBaseT) power to the receiver.
Features
- HDCP 1.4/HDCP 2.2 and HDMI 2.0 compliant
- HDMI with 3D, 4K2K support and DVI Compliant
- 6G HDMI video (3840x2160 YUV444) input is supported
- Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 60m /196.8 ft at 1080p and 35m/115ft at 4K2K
- 4Play™ convergence: HDMI, PoE & Control (IR & RS-232)
- Supports output resolution up to 4K2K@50/60 _YUV_420
- Supports deep color input and output of 8 bits, 10 bits and 12 bits
- Supports CEC bypass
- Optical audio return supports audio transmit back from receiver to transmitter
- Audio insertion supports external audio insert to HDMI video such as background music insertion
- Supports EDID management PC software with default EDID and native EDID from display or other sink devices
- Supports HDMI DDC bus clock stretch for better compatibility of some Blu-ray players
- Manages TMDS re-clocking and signal re-generation for better signal
- Supports standard 48V from Transmitter (PSE) to Receiver (PD)
- Easily firmware update via USB in field
- Ultra-thin wall plate design with friendly installation (The thickness is 16mm only)
Brand:
Cypress Technology
Specifications
Product Type:
HDMI 2.0 Signal Transmitter
Maximum Operating Temperature:
+40°C
Encryption:
12bits
Transmission Range:
60m
Number of Channels:
Sound Field:
Stereo
Special Features:
HDMI (3D, 4K2K) and DVI Support, End-To-End CEC Control Protocol Signaling, Slow DDC Bus Mode for Compatibility with Some Blu-Ray Players, Recycle TMDS Signals for Signal Recovery and Better Picture Quality, Firmware is Easily Updated via USB, Easy Fit in
Power Rating:
19.5W
Chassis Color:
Black
Chassis Material:
Metal
Applications:
48V PoE from Transmitter (PSE) to Receiver (PD), Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Video Format:
1080pixels, 4K, 2K
Frequency Rating:
30kHz to 50kHz

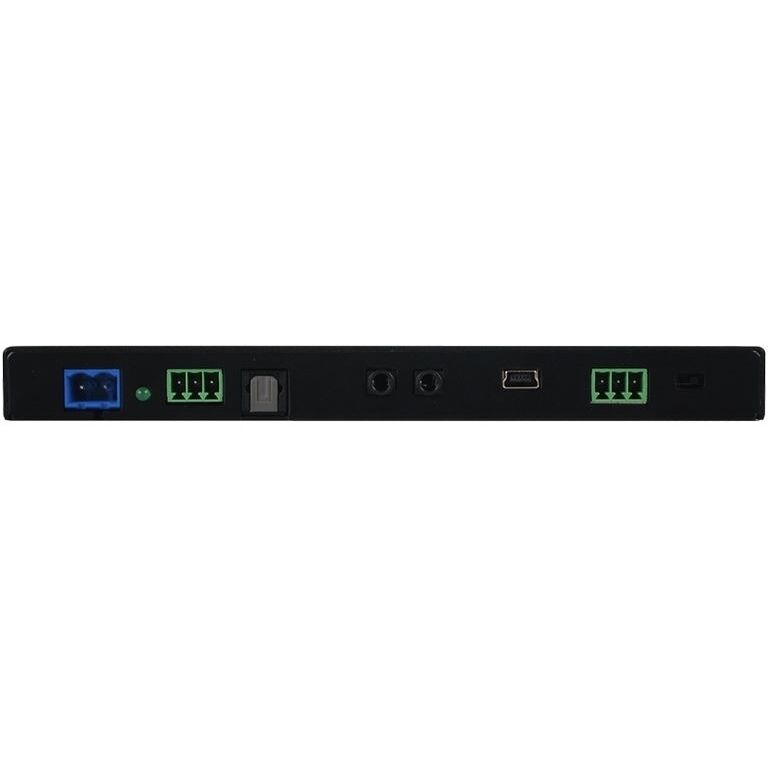

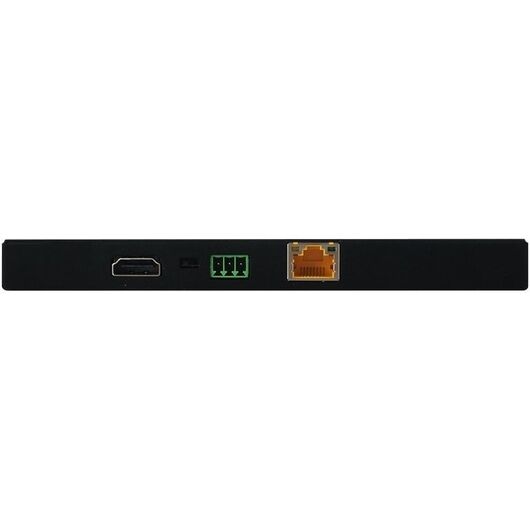

Inputs and Ports
Input Port Type:
1xHDMI Type a (Female), 1xAudio Stereo/Terminal Block, 1xIR/3.5mm Mini Jack Connector (Female)
Output Port Type:
1xOptical Out, 1xAudio Out, 1xCAT5e/6/7, 1xIR Out
Interface Type:
TOSLINK
Power
Current Rating:
0.83A
Dimensions
Width:
18.3cm
Depth:
7.8cm
Height:
7.8cm
Weight:
0.34kg
Other
Voltage Rating:
48V
Voltage Rating:
48V
