CH-1529TX HDCP 2.2 & HDMI2.0 Extender with OAR / Audio Insertion
Please sign in so that we can notify you about a reply

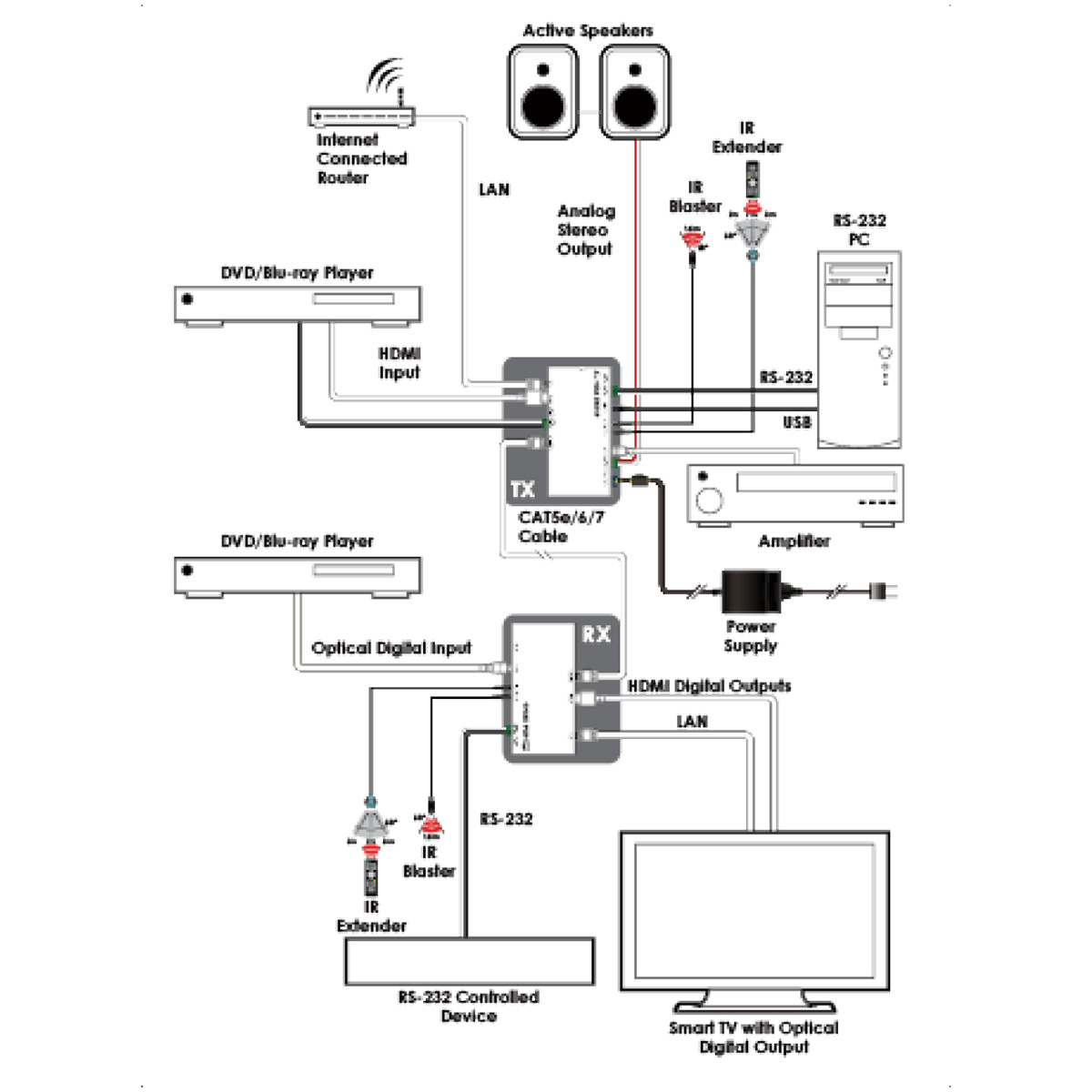

CH-1529TX is an HDMI 2.0 4K2K/60 (YUV 4:2:0) signal transmitter with HDCP 2.2/1.4, EDID and CEC, Ethernet, bidirectional IR and RS-232 (thermal block) over HDBaseT twisted pair. Supports audio return channel technology (output via TOSLINK), HDMI embedding of external audio is possible. Supports 1080p signals with 3D and Deep Color up to 12bit. Transmission distance of 1080p signal is 100m (4K2K is 70m) over Category 5e/6/7 twisted pair cable. EDID data management, configuration via special software. Power transmission PoC (Power over Cable) 48 V to the receiver.
Features
- HDMI with HDR, 3D & 4K@60Hz support
- Supports Deep Color input and output up to 12-bit
- Supports CEC bypass
- Simultaneous reception of uncompressed video, audio and data over a single Cat.5e/6/7 cable up to 100m/328ft at 1080p60 and 70m/230ft at 4K
- HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, 48V PoH, and Control (bidirectional IR/RS-232 pass-through)
- Support for compatible AVLC (Adaptive Visually Lossless Compression) Transmitters, allowing for the output of HDMI sources that were originally beyond 10.2Gbps (340MHz) and up to 18Gbps (600MHz) with no loss of visual quality
Brand:
Cypress Technology
Product Type:
HDBaseT Signal Transmitter Audio
Specifications
Maximum Operating Temperature:
+40°C
Encryption:
12bits
Transmission Range:
100, 70m
Number of Channels:
Sound Field:
Stereo
Special Features:
HDMI (3D, 4K2K) and DVI Support, End-to-End CEC Control Protocol Signaling, DDC (I2C) Bus Mode for Compatibility with Some Blu-Ray Players, User-Upgradable Firmware (via USB), Ultra-Thin Body with a Thickness of Only 16mm
Power Rating:
19.5W
Chassis Color:
Black
Chassis Material:
Metal
Applications:
48V PoE from Transmitter (PSE) to Receiver (PD), Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Video Format:
3D, 4K, 2K
Frequency Rating:
30kHz to 50kHz
Inputs and Ports
Input Port Type:
1xHDMI Type a (socket), 1xAudio Stereo/Terminal Block, 1xIR/3.5mm Mini Jack Connector (Female)
Output Port Type:
1xOptical Out, 1xAudio Out, 1xCAT5e/6/7, 1xIR Out
Interface Type:
TOSLINK
Power
Current Rating:
0.83A
Dimensions
Width:
18.3cm
Depth:
7.8cm
Height:
1.6cm
Weight:
0.34kg
Other
Voltage Rating:
48V
Voltage Rating:
48V
