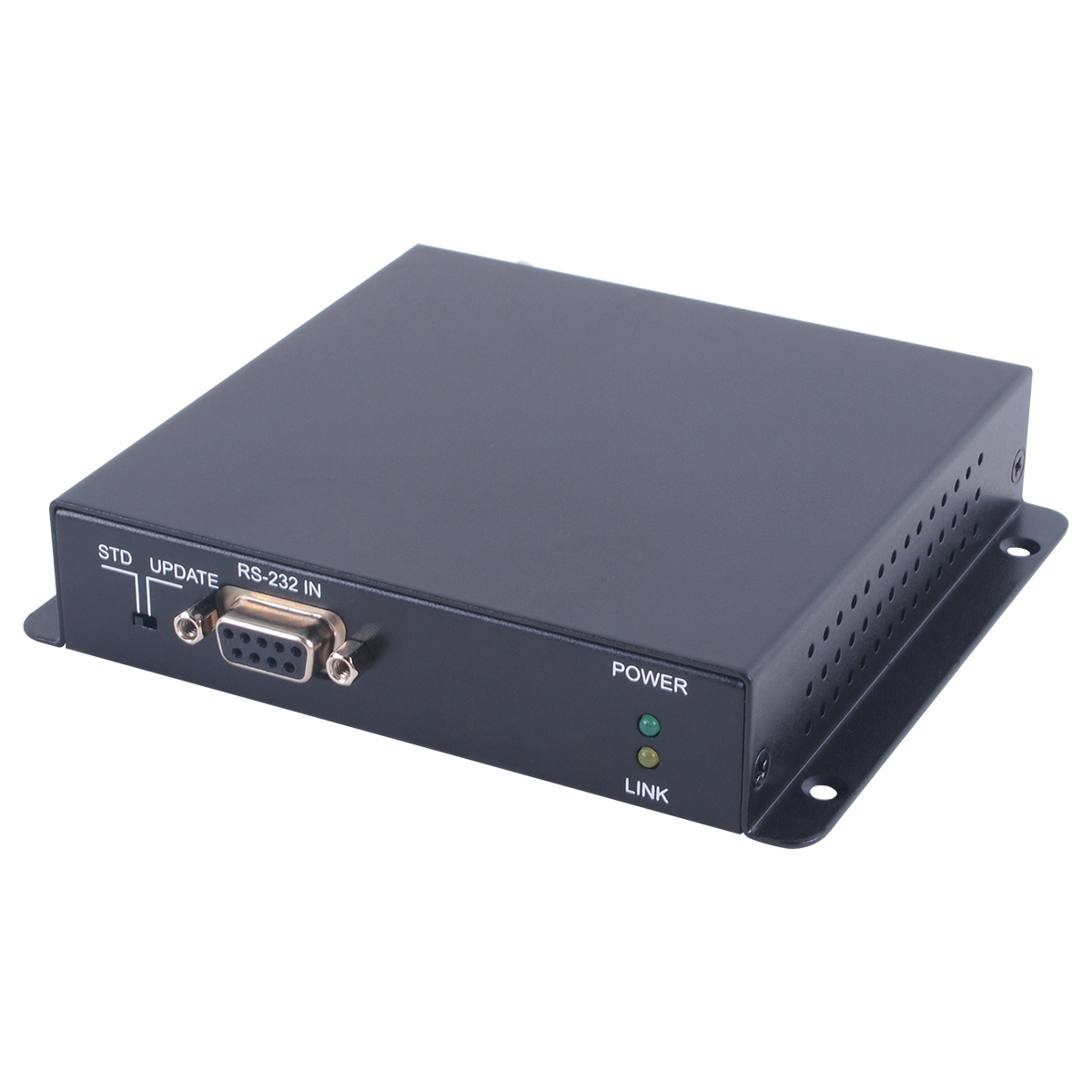

CH-1527TXPL UHD HDMI over HDBaseT Transmitter with PoH
Please sign in so that we can notify you about a reply

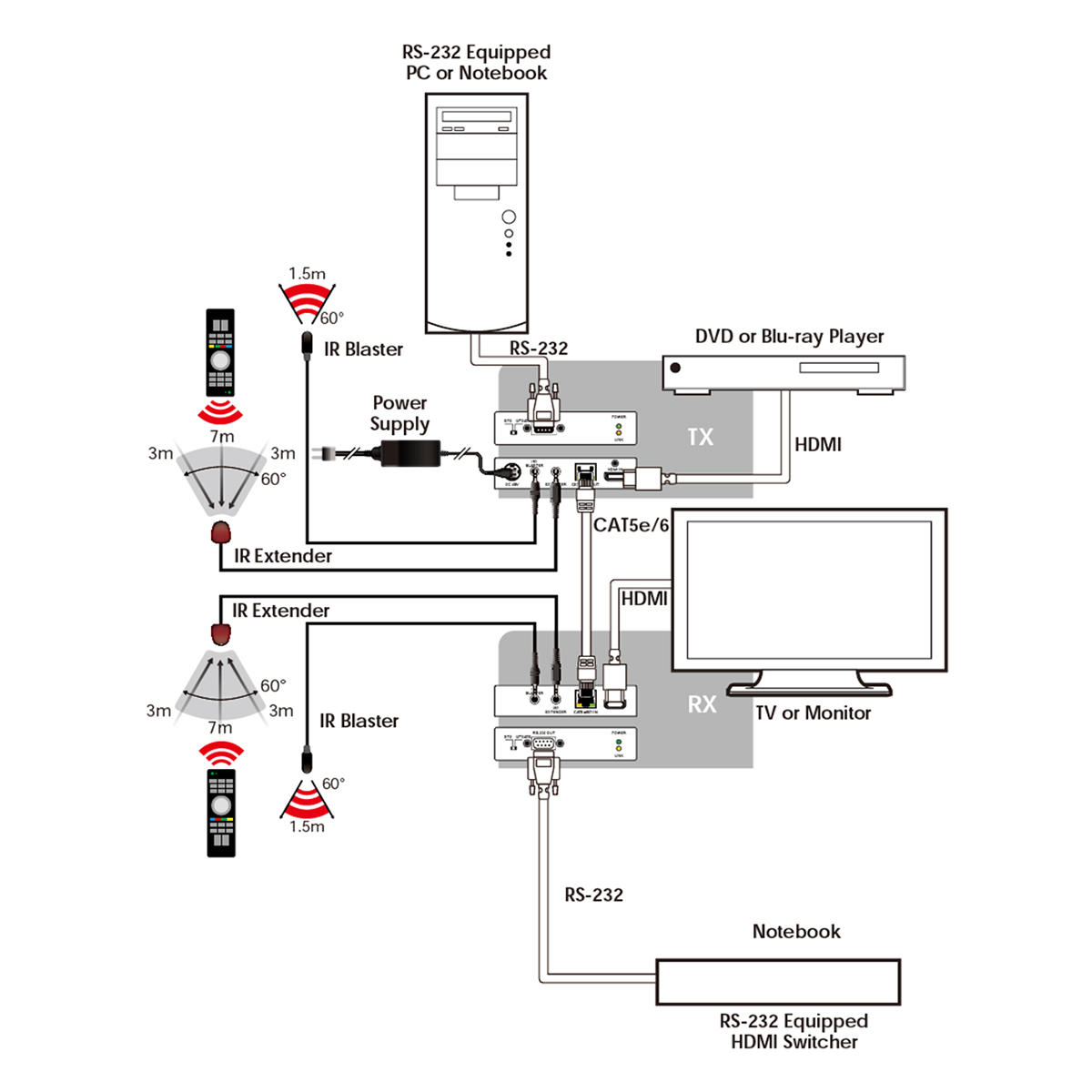

The HDMI over single CAT5e/6/7 Transmitter and Receiver set can send uncompressed audio/video and IP data over a single run of CAT5e/6/7 cable at a distance up to 60 meter. It has the added benefit of control through the builtin RS-232 and IR ports. The Receiver (PD) can be powered by the PoE 48V function of the Transmitter (PSE), allowing for greater flexibility in installations.
Features
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI
- RS-232 with baud rate up to 115200/sec
- Supports wide range of IR frequency from 30~50kHzHDMI with 3D, 4K2K support, HDMI & DVI Compliant
- Supports CEC bypass
- Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 60m
- 4Play™ convergence: HDMI, PoH & Control (IR & RS-2232)
- Supports resolution up to 4K2K@50/60 & YUV_420 and
- Supports standard 48V from Transmitter (PSE) to Receiver (PD)
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over HDBaseT Transmitter
Maximum Operating Temperature:
+40°C
Encryption:
12bits
Transmission Range:
60m
Special Features:
Pass-Through of Audio Formats Including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream Over HDMI, RS-232 with BAUD Rate Up to 115200/sec, CEC Bypass, 5Play™ Convergence: HDMI, LAN, PoE and Control (IR and RS-2232)
Power Rating:
13.5W
Chassis Color:
Black
Chassis Material:
Steel
Applications:
48V PoE from Transmitter (PSE) to Receiver (PD), Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
LPCM 2.0/5.1/7.1, BIT STREAM HD Bitstream Over HDMI
Performance
Video Format:
4K@60Hz YUV 4:4:4
Frequency Rating:
30kHz to 50kHz
Inputs and Ports
Input Port Type:

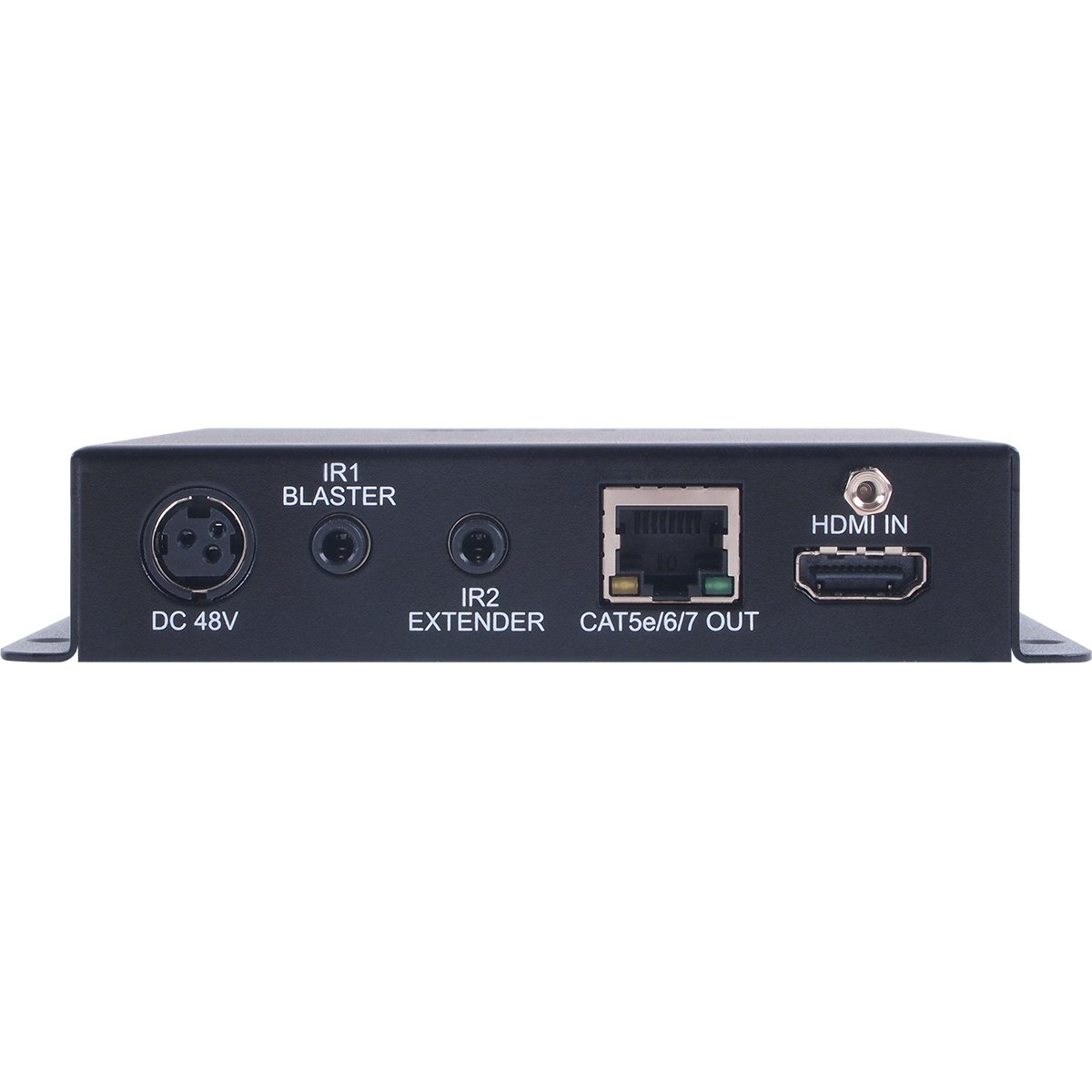

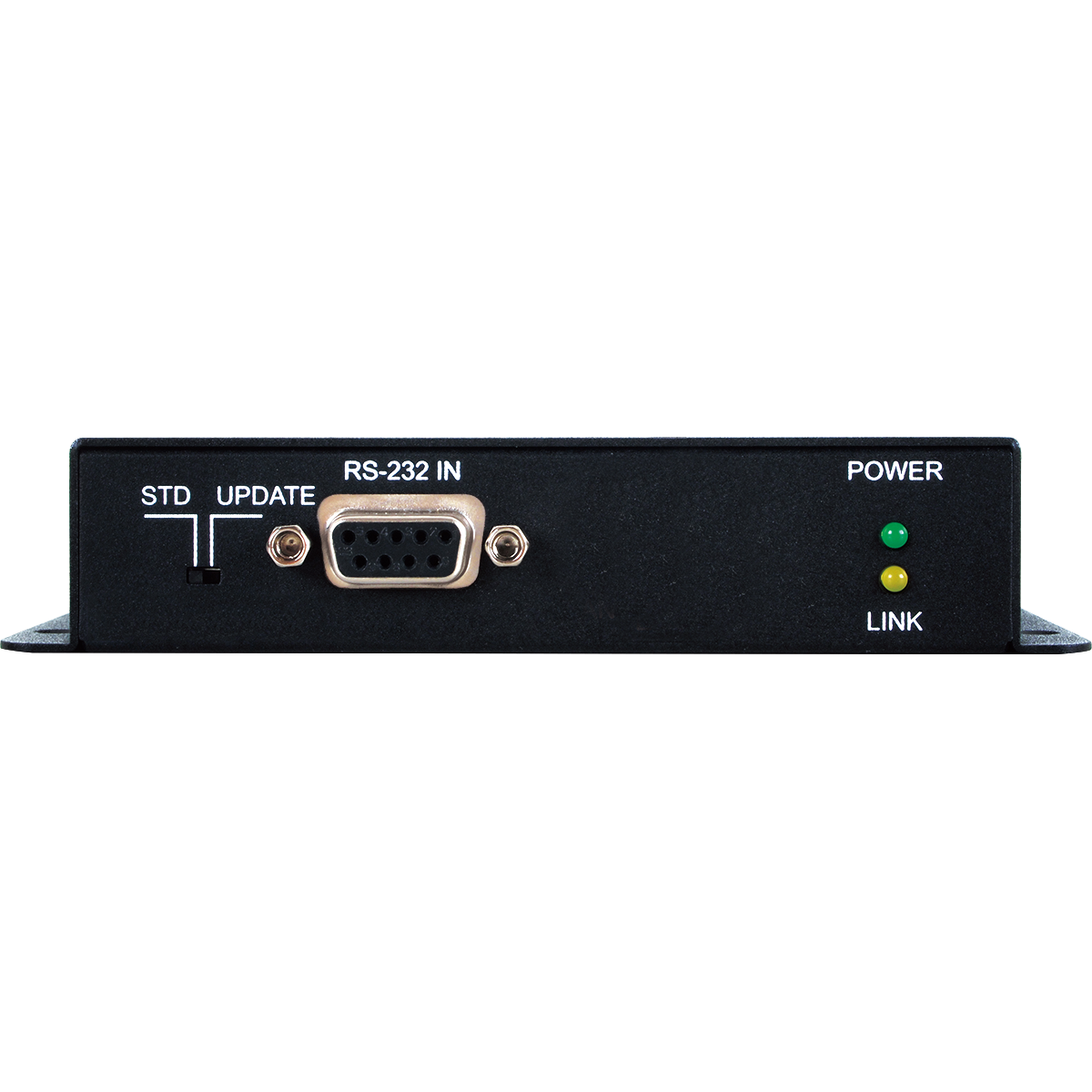

1xHDMI- Type A, 1xIR 3.5mm Extender, 1xRS-232 (DE-9)
Output Port Type:
1xHDBaseT (RJ45), 1xIR Blaster(3.5mm)
Interface Type:
RS-232L
Power
Current Rating:
0.83A
Dimensions
Width:
10.8cm
Depth:
11.6cm
Height:
2.9cm
Weight:
370g
Other
Voltage Rating:
48V
Voltage Rating:
48V
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
