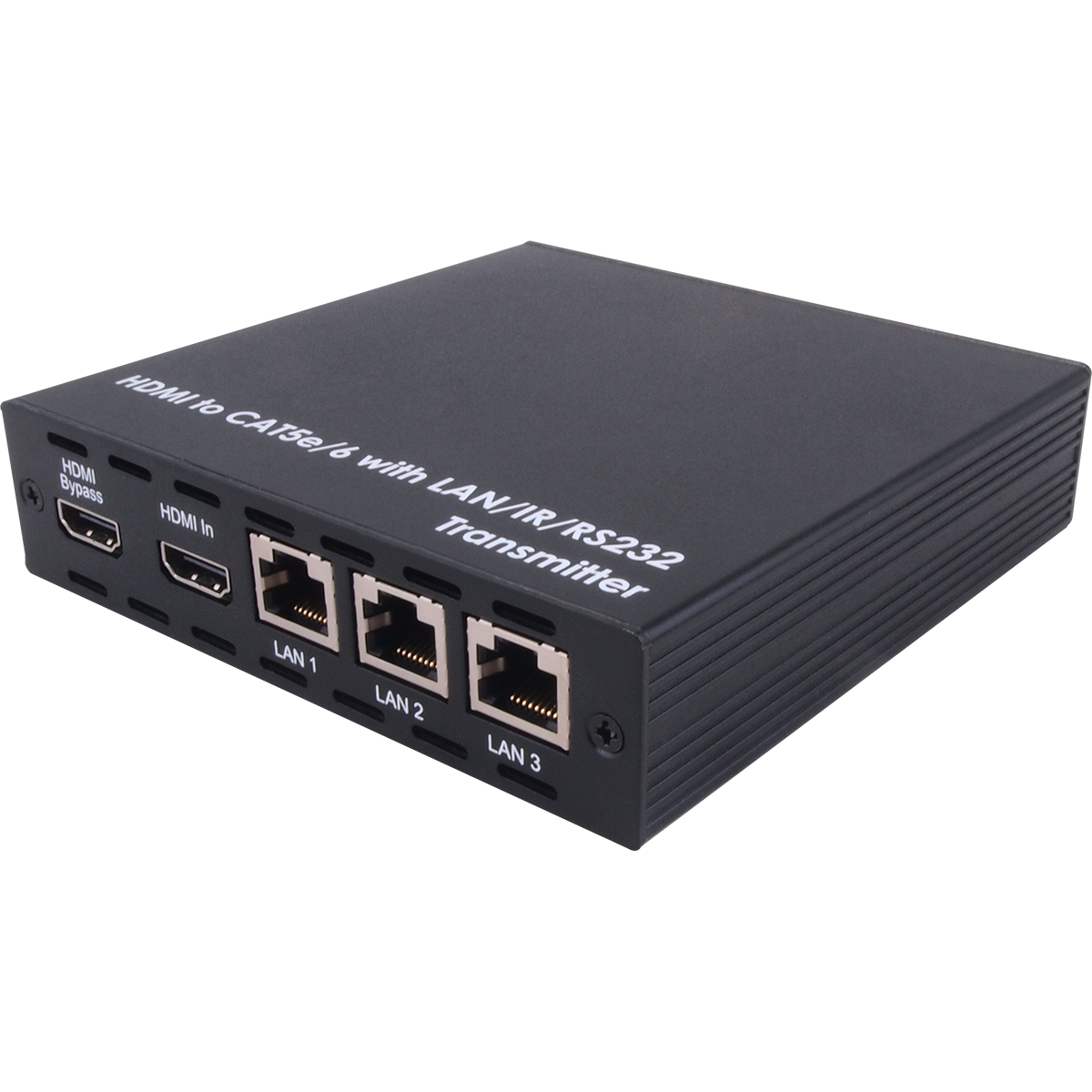

CH-1109TXC HDMI over CAT5e/6/7 Transmitter with 24V PoC and 3 LAN Serving
Please sign in so that we can notify you about a reply
The CH-1109TXC & RXC set features 5-Play™ HDBaseT™ technology. This will allow the user to distribute uncompressed HDMI™ (audio/video), 2-Way IR, 2-Way RS-232, PoE and 3 individual Ethernet connections over a single CAT5e/6/7 up to a distance of 100m.
Features
- HDMI 1.4 compliant with 3D formats and 4k×2k resolution support
- Supports CEC bypass function
- Simultaneous transmission of uncompressed video and audio (1080p@60Hz/-Deep Color) over a single CAT5e/6 type cable for up to 100m (300ft.)
- Audio support up to 7.1CH Dolby TrueHD and DTS-HD Master Audio
- Connect and share up to 6 Ethernet connections at speeds up to 100Mbps
- Various controls over HDMI: CEC, RS232 and IR
- 5Play™ convergence: HD video, audio & Control ports (IR and RS232)/LAN/PoC
- Installation friendly
- Single power supply powers both units, receiver unit is powered through the transmitter
Brand:
Cypress Technology
Product Type:
HDMI Over CAT5e/6/7 Transmitter
Specifications
Maximum Operating Temperature:
+40°C
Transmission Range:
100m
Special Features:
HDMI 1.4 Compliant with 3D Formats and 4Kx2k Resolution, CEC Bypass Function, Up to 7.1CH Dolby True HD and DTS-HD Master Audio, Various Control Over HDMI: CEC, RS-232 and IR
Power Rating:
6W
Chassis Material:
Aluminium
Applications:
House Hold Entertainment Media Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control, Any Smart AV Installation System
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Computers, Routers, Media Servers
Performance
Video Format:
3D, 4K
Frequency Rating:
30kHz to 50kHz
Inputs and Ports

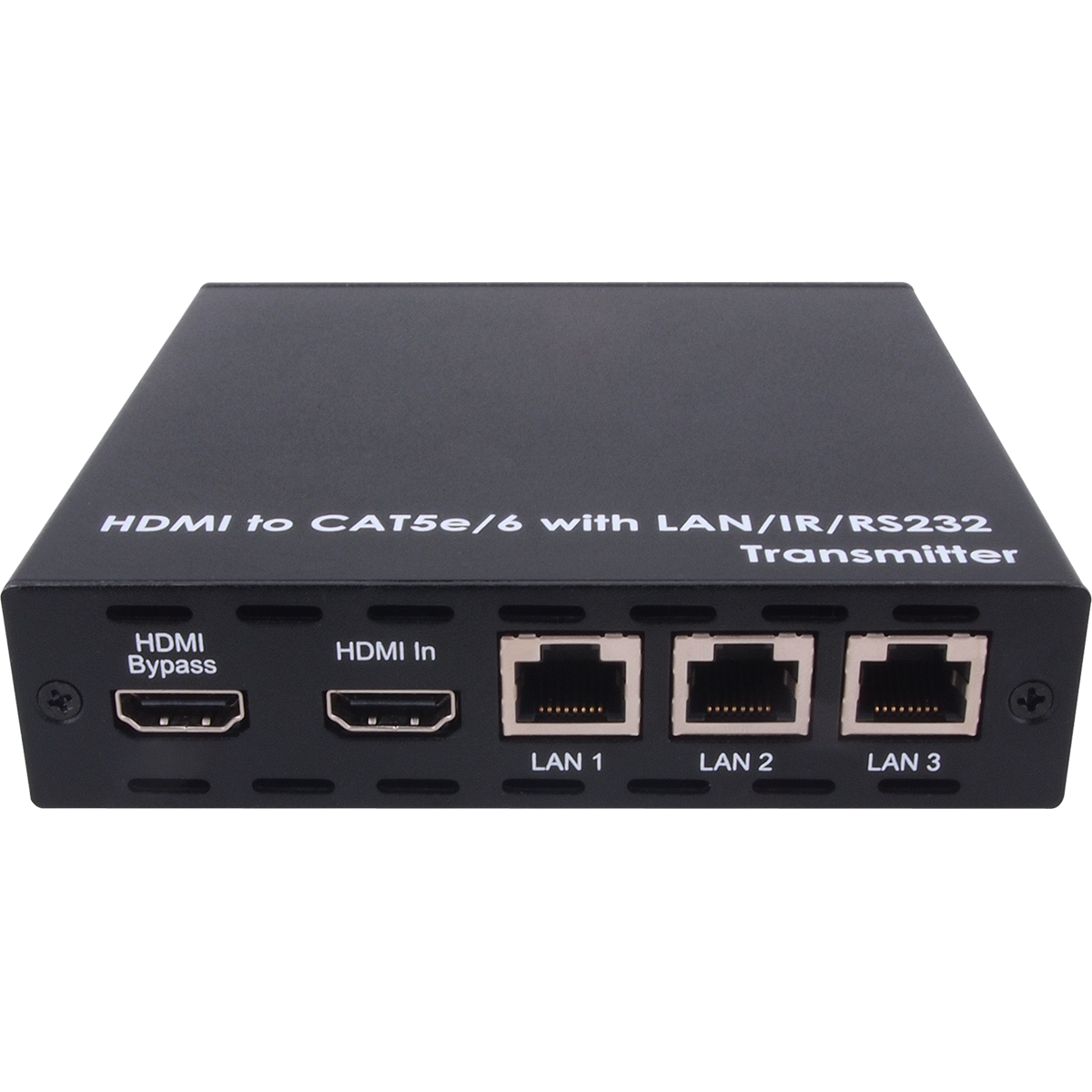

Input Port Type:
1xHDMI, 3xEthernet, 1xRS-232, 1xIR Extender

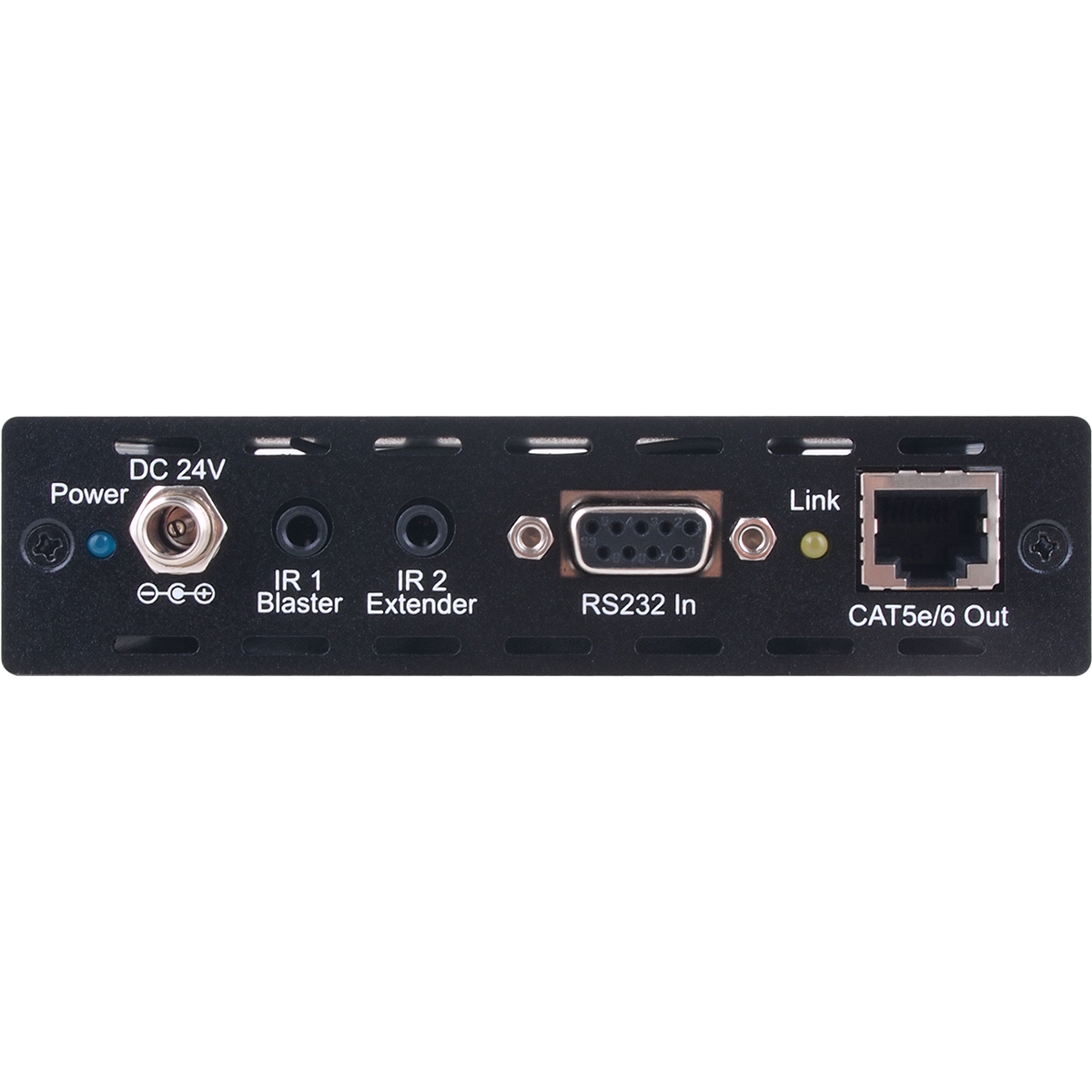

Output Port Type:
1xCAT5e/6, 1xHDMI Bypass, 1xIR Blaster
Interface Type:
High Definition Multimedia Interface
Power
Current Rating:
1.25A
Dimensions
Width:
12.5cm
Depth:
12.7cm
Height:
3cm
Weight:
360g
Other
Voltage Rating:
24V
Voltage Rating:
24V
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
