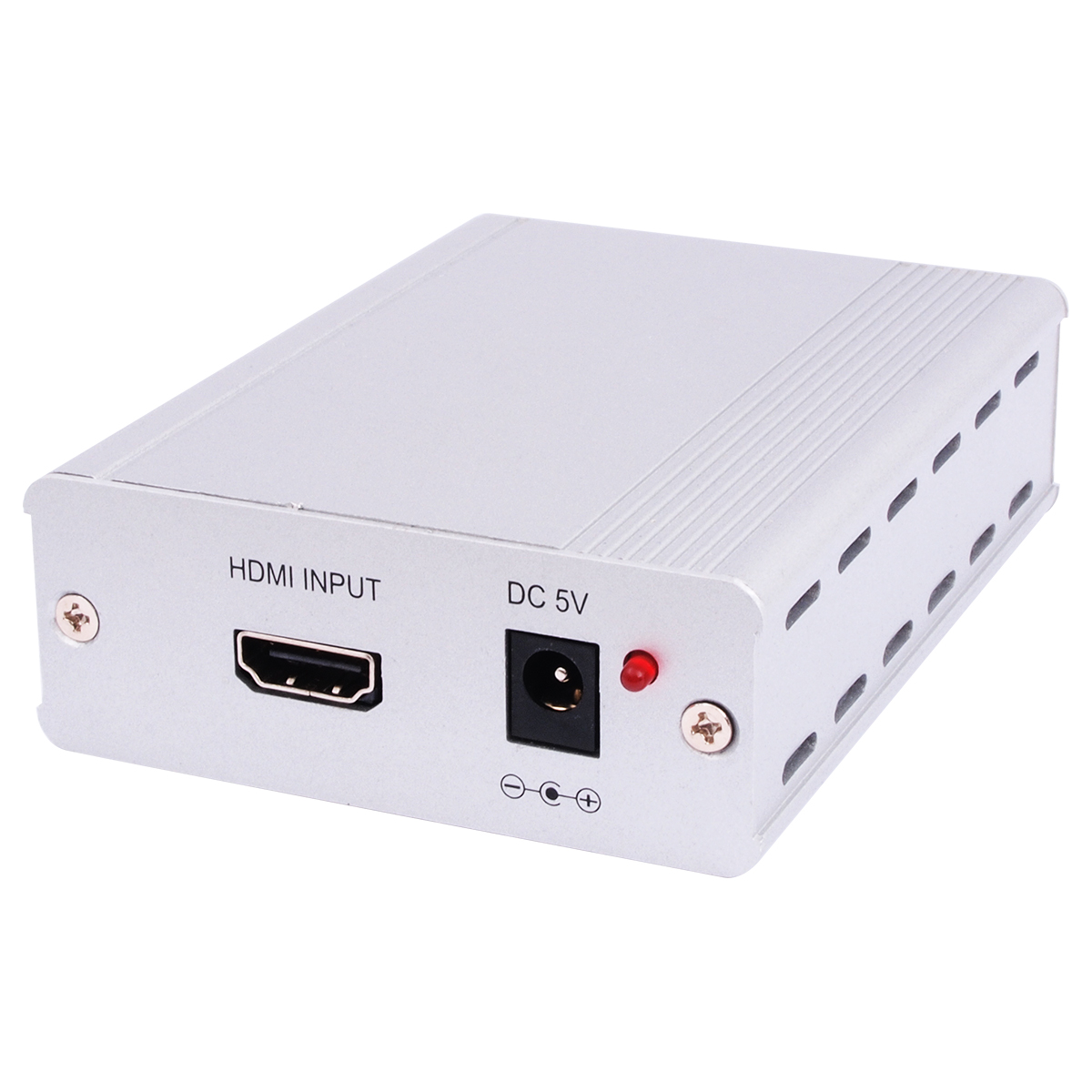

CH-1107TX HDMI v1.3 over ONE CAT6 HDMI Transmitter
Please sign in so that we can notify you about a reply
The HDMI 1.3 transmitter over ONE CAT6 is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT6 cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a bandwidth up to 225MHz. The HDMI 1.3 Transmitter and receiver, over ONE CAT6 extender is your substantial HDMI extender tool.
Features
- Supports digital video formats in ‘Deep Color’ mode at up to 36-bit (12-bit/color) Supports lossless compressed Digital Audio formats (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio)
- Uses a single CAT6 cable for Data/DDC transmission
- Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality

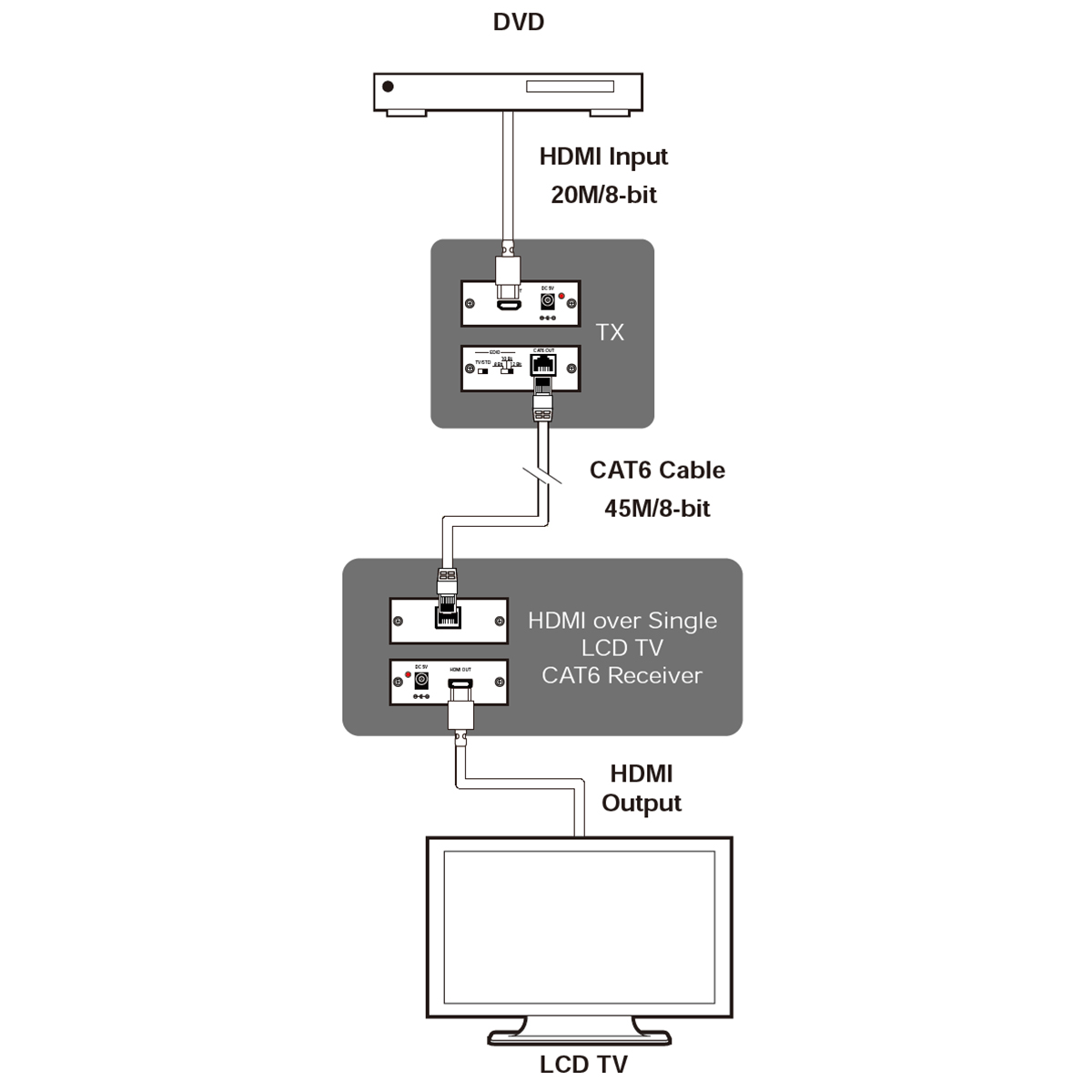

- Supports HDMI cable distances of up to 20 meters at 1080p/8-bit and 12-bit resolutions
- Supports CAT6 cable distances of up to 45 meters at 1080p/8-bit resolution and 10 meters at 1080p/12-bit resolution
- Supports x.v.YCC
Brand:
Cypress Technology
Specifications
Product Type:
HDMI v1.3 Over ONE CAT6 HDMI Transmitter
Encryption:
36bits
Special Features:
Single CAT6 Cable for Data/DDC Transmission, HDMI Cable Distances of Up to 20m at 1080p/8bits and 12bits Resolutions, CAT6 Cable Distances of Up to 45m at 1080p/8bits Resolution and 10m at 1080p/12bits Resolution, Supports X.V.YCC
Power Rating:
3.5W
Chassis Color:
White
Chassis Material:
Steel
Performance
Video Format:
1080pixels@60Hz
Frequency Rating:
60Hz
Inputs and Ports
Input Port Type:

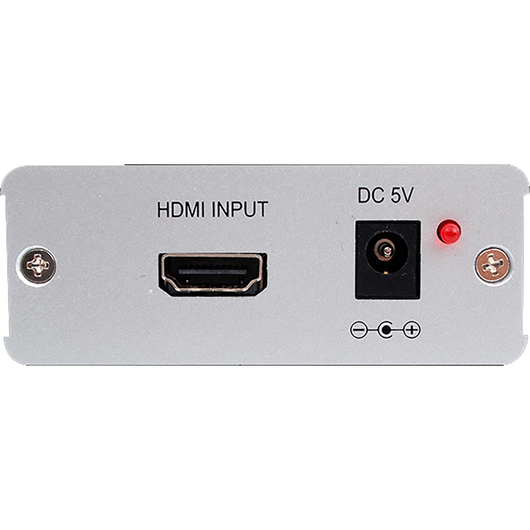

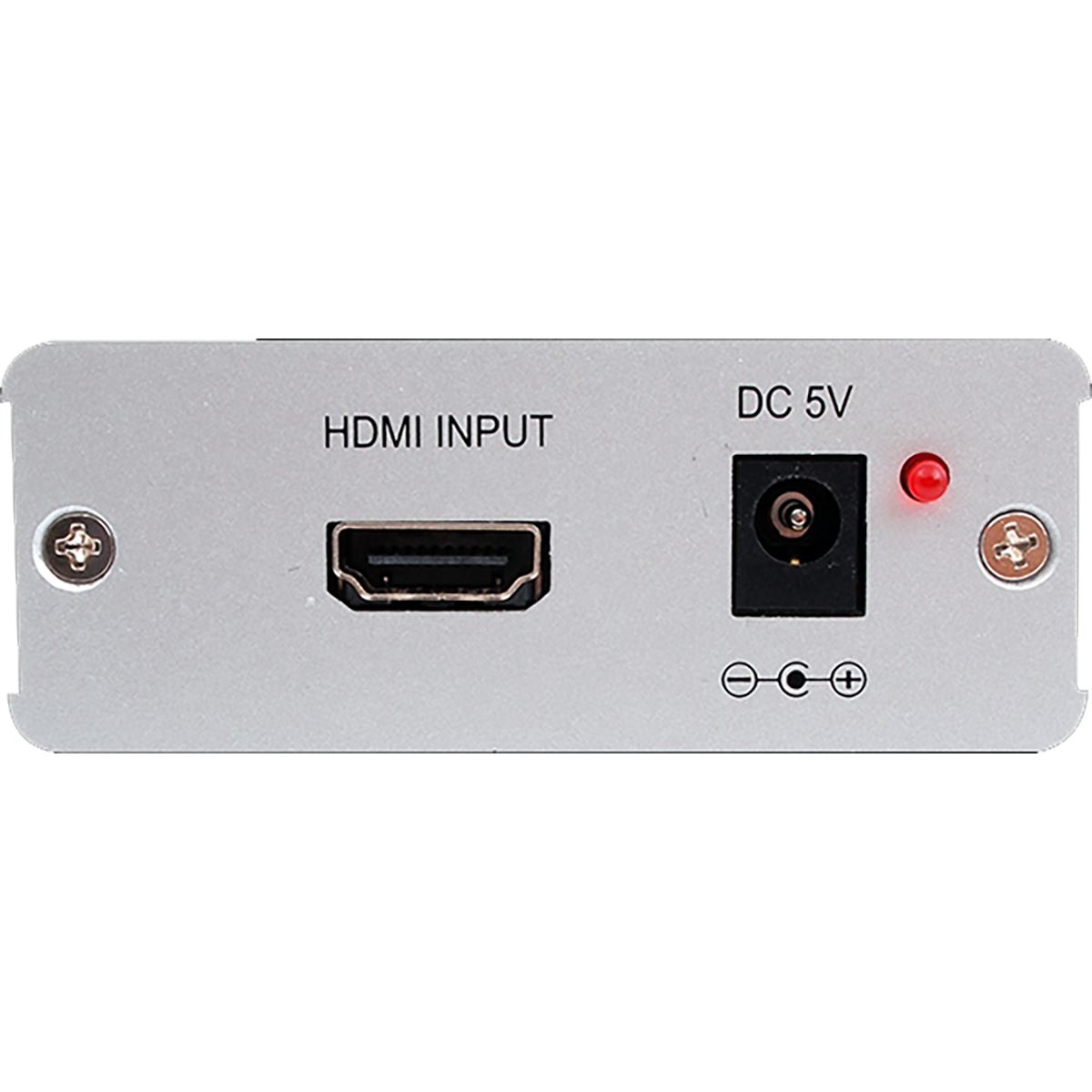

1xHDMI (Type A)
Output Port Type:

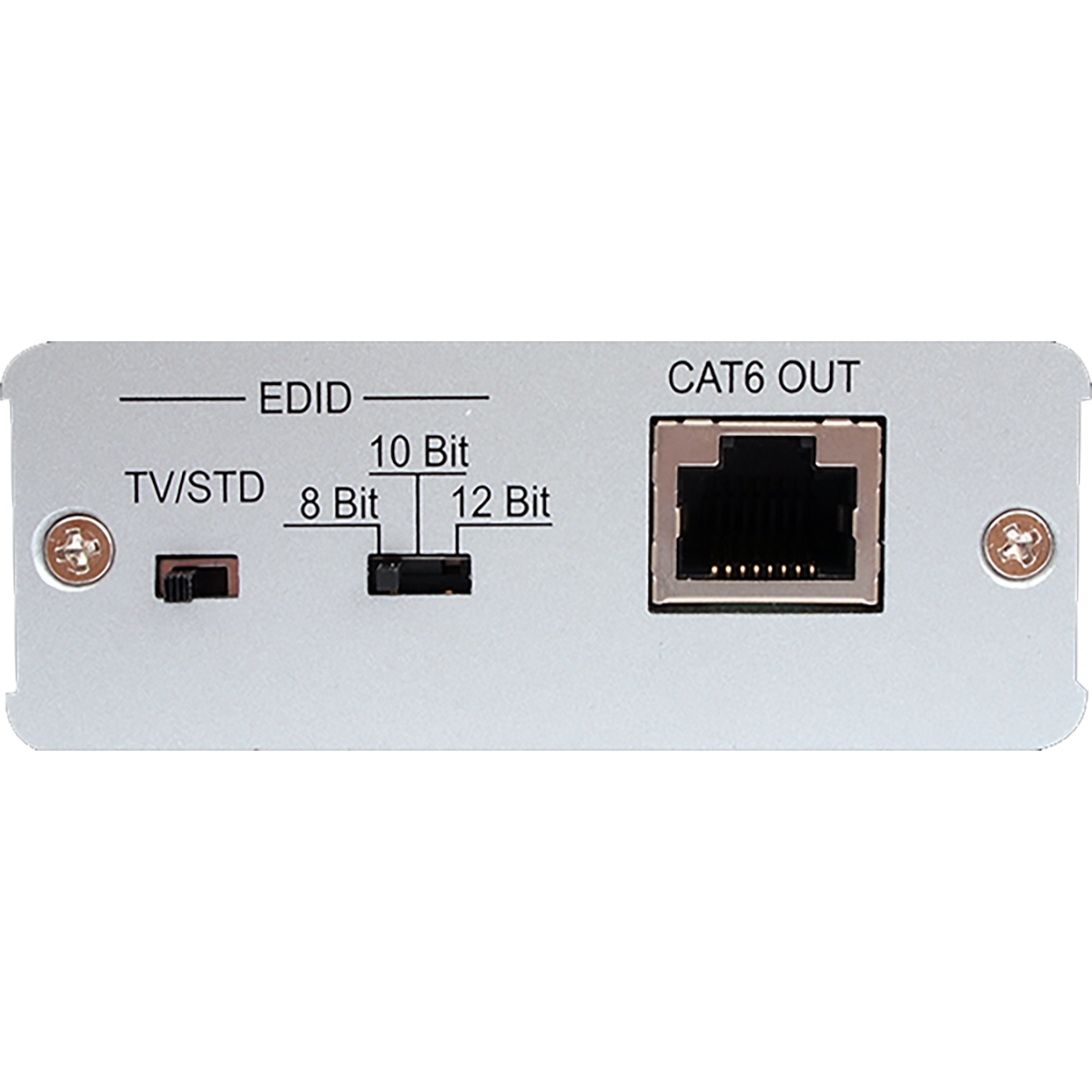

1xCAT6 (RJ45)
Interface Type:
PCB on Board, Uses RS-232L
Power
Current Rating:
1A
Dimensions
Width:
7.85cm
Depth:
10.2cm
Height:
3cm
Weight:
182g
Other
Voltage Rating:
5V
Voltage Rating:
5V
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
