CH-1103TX HDMI over Dual CAT6/7 Transmitter
Please sign in so that we can notify you about a reply
This is the transmitter (Tx) unit of HDMI to CAT6 Solution that can extend HDMI digital signal through CAT-6 cables. This is compatible to HDMI v1.3 specifications, a cutting-age technology which defines the support to transfer Deep Color (12 bits/color) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio, with a bandwidth up to 225MHz. The installation of HDMI to CAT6 is easy and quick, simply place transmitter side next to your HDTV source such as a DVD player, then place the receiver side next to your CAT 6 to CAT6 repeater unit and get all necessary cables connected and enjoy.
Features- Compliant with HDMI 1.3, HDCP 1.1 and DVI1.1 standards
- Supports digital video formats in Deep Color Mode at up to 36 bits (12bits/color) and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio
- Supports CAT-6 cables for data/DDC transmission
- Supports equalize and recover incoming TMDS data before re-transmitting them with optimal quality regardless of the incoming signal quality
- Supports high definition resolution, the cable distance test with 1080p/8bits resolution the Input/Output source can run up to 30/45 meters. If 1080p/12bits resolution the Input/Output source can run up to 15/15 meters
- Without power supply. (Need to connect with our HDMI series product, otherwise this feature will not guarantee.)
- Support CEC bypass
- Support xvYCC
Brand:
Cypress Technology
Product Type:
Transmitter
Specifications
Maximum Operating Temperature:
40°C
Transmission Range:
30/45m (1080Pixel/8Bits), 15/15m (1080Pixel/12Bits)
Special Features:
Supports High Definition Resolution, Supports CEC Bypass, Supports YCC, 1080Pixel
Chassis Material:
Aluminium
Minimum Operating Temperature:
0°C
Includes:
Operation Manual
Inputs and Ports

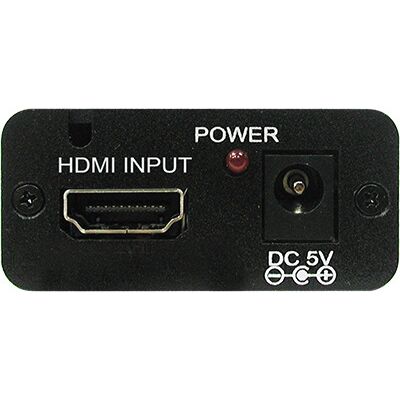

Input Port Type:
1xHDMI

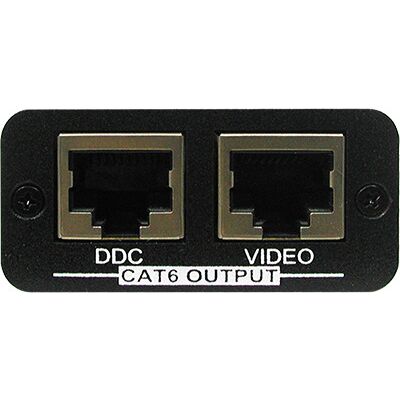

Output Port Type:
1xCAT-6 Output for Video, 1xCAT-6 Output for DDC
Dimensions
Width:
5cm
Depth:
6.2cm
Height:
2.3cm
Weight:
90g
