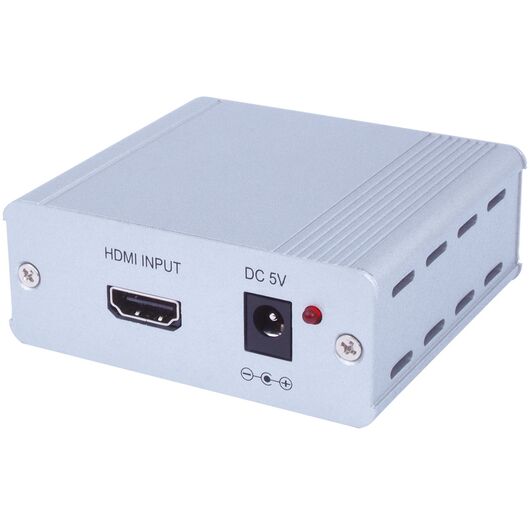

CH-107TX HDMI over Single CAT6 Transmitter
Please sign in so that we can notify you about a reply

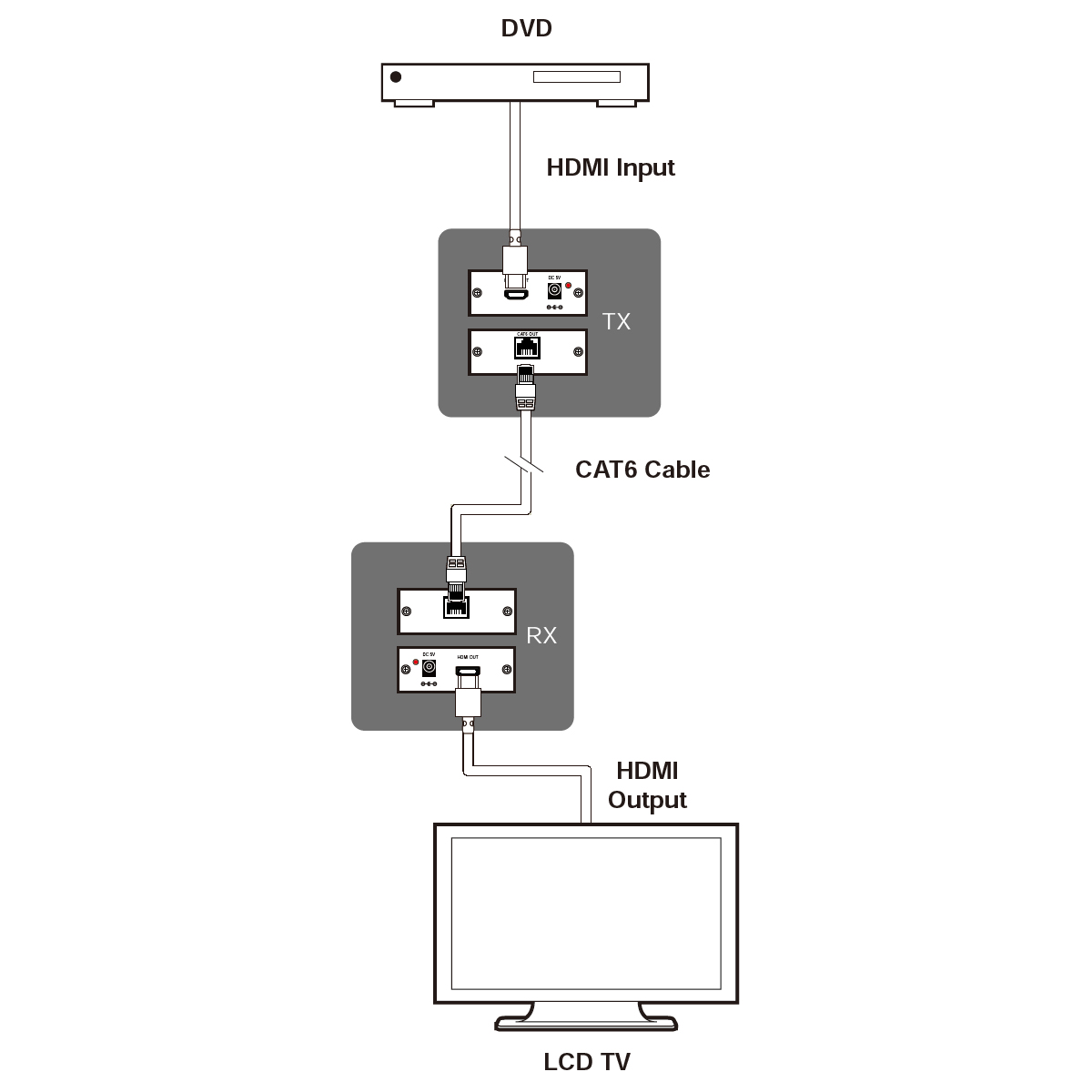

The HDMI transmitter over Single CAT6 is a tool for displaying HDMI content at long distances. Instead of using expensive HDMI cables, your existing CAT6 cables/sockets can perform functions like transferring Deep Color (12 bits/ color) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) Digital audio. The HDMI transmitter and receiver, over ONE CAT6 extender is your preferred HDMI extension tool.
Features
- Supports digital video formats in ‘Deep Color’ mode at up to 36-bit (12- bit/color) Supports lossless compressed Digital Audio formats (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio)
- Uses a single CAT6 cable for Data/DDC transmission
- Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality
- Supports HDMI cable distances of up to 20 meters at 1080p/8-bit and 12-bit resolutions
- Supports CAT6 cable distances of up to 45 meters at 1080p/8-bit resolution and 10 meters at 1080p/12-bit resolution
- Supports x.v.YCC
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over Single CAT6 Transmitter
Maximum Operating Temperature:
+40°C
Encryption:
12bits
Special Features:
Single CAT6 Cable for Data/DDC Transmission, HDMI Cable Distances of Up to 20m at 1080p/8bits and 12bits Resolutions, CAT6 Cable Distances of Up to 45m at 1080p/8bits Resolution and 10m at 1080p/12bits Resolution, Supports X.V.YCC
Power Rating:
3.5W
Chassis Color:
White
Chassis Material:
Steel
Applications:
Long Distance HDMI Signal Distribution, Showroom Display, Hypermarket Display, Lecture Room Display
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Video Format:
1920x1080pixels@60Hz
Frequency Rating:
225MHz
Inputs and Ports
Input Port Type:

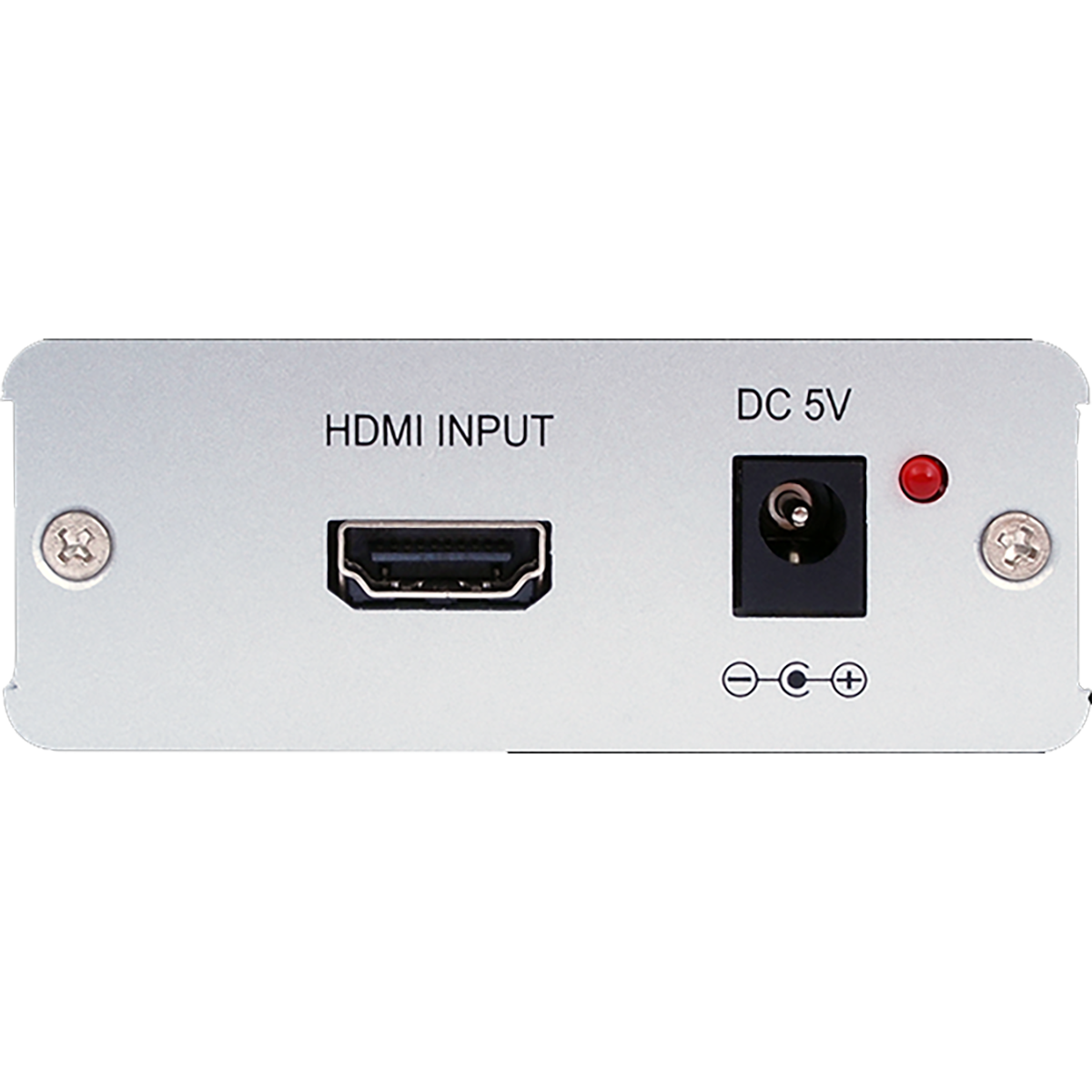

1xHDMI (Type A)
Output Port Type:

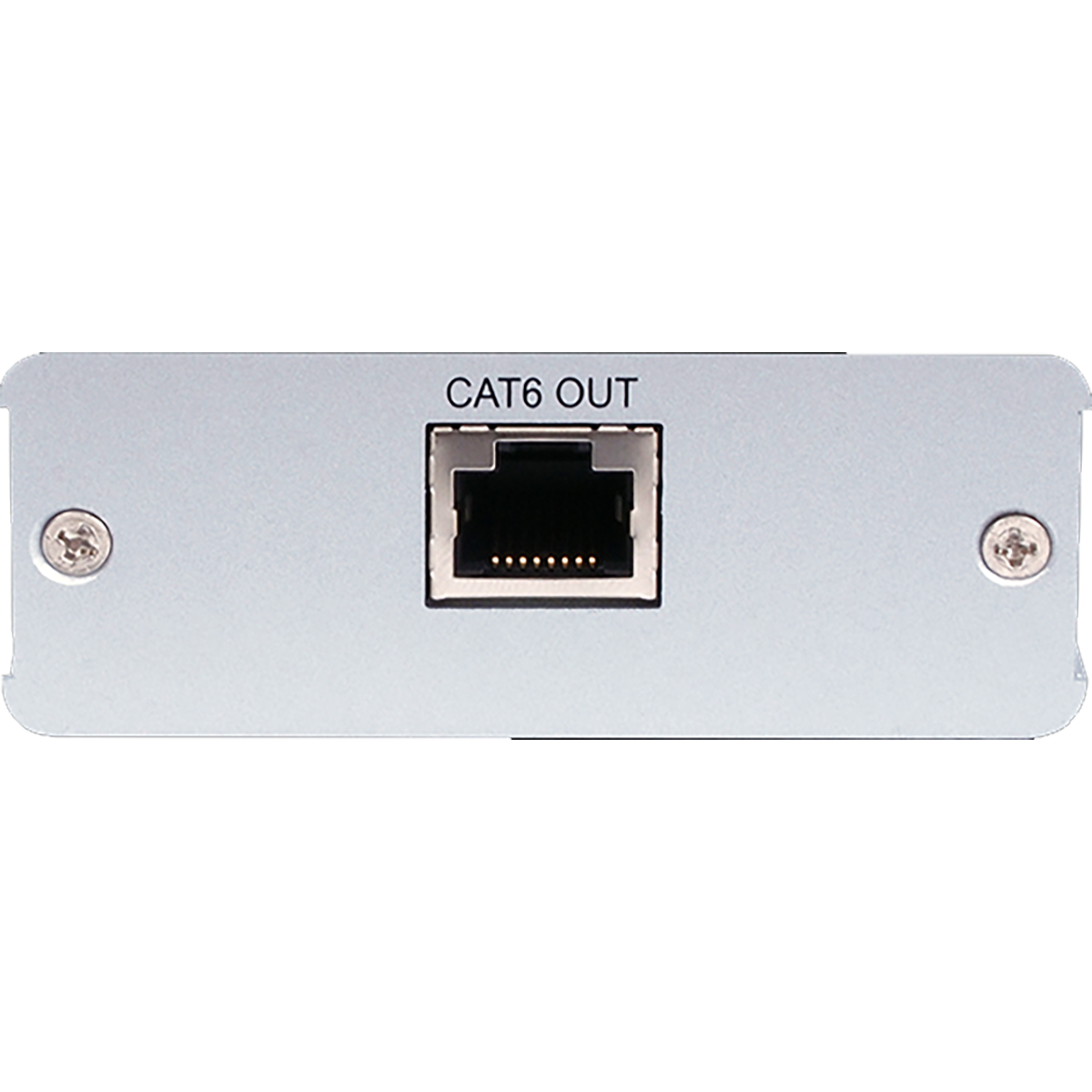

1xCAT6 (RJ45)
Power
Current Rating:
1A
Dimensions
Width:
7.85cm
Depth:
7.2cm
Height:
3cm
Weight:
909g
Other
Voltage Rating:
5V
Voltage Rating:
5V
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
