CDPS-P313RTX UHD 4x1 Multi-input to HDBaseT Live Video Streaming Transmitter with Recording
Please sign in so that we can notify you about a reply

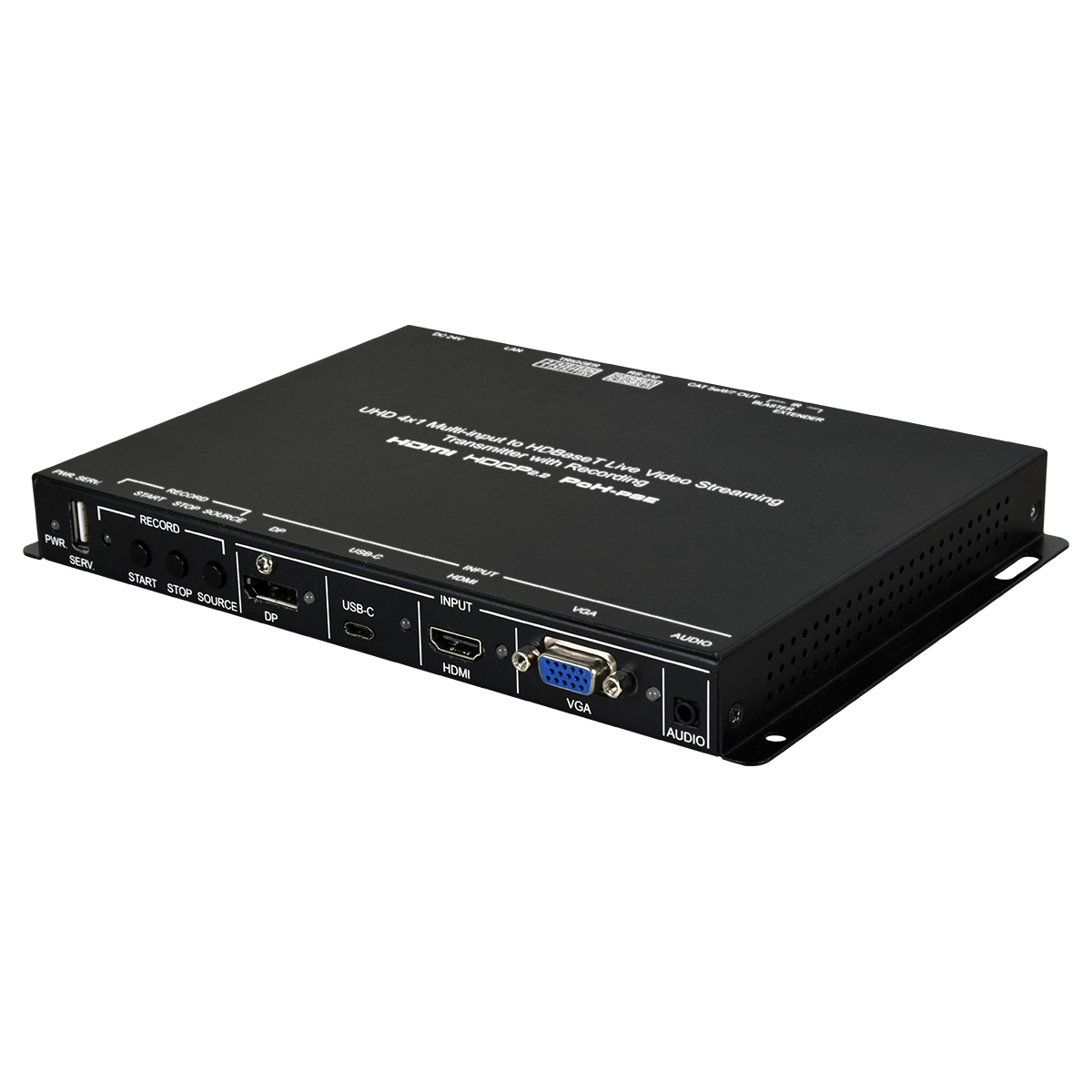

This Video Streaming Recorder Transmitter makes online broadcasting of live video, with a locally stored archive, an easy and simple process. Video sources from cameras, PCs, video game consoles, etc. are a breeze to connect for immediate broadcast and recording. Video content up to 4K UHD+ is supported and is automatically scaled down to a resolution that is more appropriate for effi cient streaming. In addition to the standard HDMI input, a VGA input, DP input, USB-C input resolution up to 4K@30 (4:4:4, 8-bit) or 4K@60Hz (4:2:0, 8-bit) and an analog stereo audio input is also available as a source. Standard HDBaseT output allows long distance transition and outputting to a maximum of 4K@30Hz (4:4:4, 8-bit) or 4K@60Hz (4:2:0, 8-bit) to a compatible Receiver.
Features
- Advanced H.264 video streaming and recording is provided at QVGA (320×240), VGA (640×480), 720p, or 1080p at up to 60fps
- Can act as a streaming server (using RTP/RTSP protocols) or streaming client (using the RTMP protocol)
- Audio embedding and mixing support with the analog stereo audio input Note: Analog audio can only be mixed with LPCM 2.0 audio from the HDMI source
- Integrated support for live streaming to Facebook or YouTube channels
- On screen countdown timer to inform the audience and event host of the scheduled ending time for the current stream
- Automatic input switching and downscaling function converting UHD video content (up to 4K@60Hz) down to 1080p or lower for live video broadcast
- Generates 4 simultaneous streams from the same video source (1080p@60fps, 1080p@30fps, VGA@30fps, QVGA@30fps) for easy system integration at multiple bandwidth targets
- Supports automatic input switching
Brand:
Cypress Technology
Product Type:
Transmitter
Specifications
Maximum Operating Temperature:
+40°C
Encryption:
8bits
Number of Channels:
Sound Field:
Stereo
Special Features:
Streaming Server (Using RTP/RTSP Protocols) or Streaming Client (Using the RTMP Protocol), Analog Audio can Only be Mixed with LPCM 2.0 Audio From the HDMI Source, Automatic Input Switching
Power Rating:
39.84W
Chassis Color:
Black
Chassis Material:
Steel
Applications:
Webcasting, Social Media Broadcasting, Live Event Streaming, Video on Demand Streaming, Live Recording and Storage
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Source Selection, Resolution, Bitrate
Performance
Video Format:
4096x2160pixels@30Hz 8bits YUV4:2:0, 4096x2160pixels@60Hz 8bits YUV4:2:0
Frequency Rating:
30kHz to 50kHz
Inputs and Ports
Input Port Type:
1xHDMI-Type A, 1xVGA (HD-15), 1 Display Port, 1xUSB-C, 1 Unbalanced Stereo (3.5mm)
Output Port Type:
1xHDBT (RJ45)
Power
Current Rating:
6.25A
Dimensions
Width:
23.15cm
Depth:
15.8cm
Height:
2.5cm
Weight:
909g
Other
Voltage Rating:
24V
Voltage Rating:
24V
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
