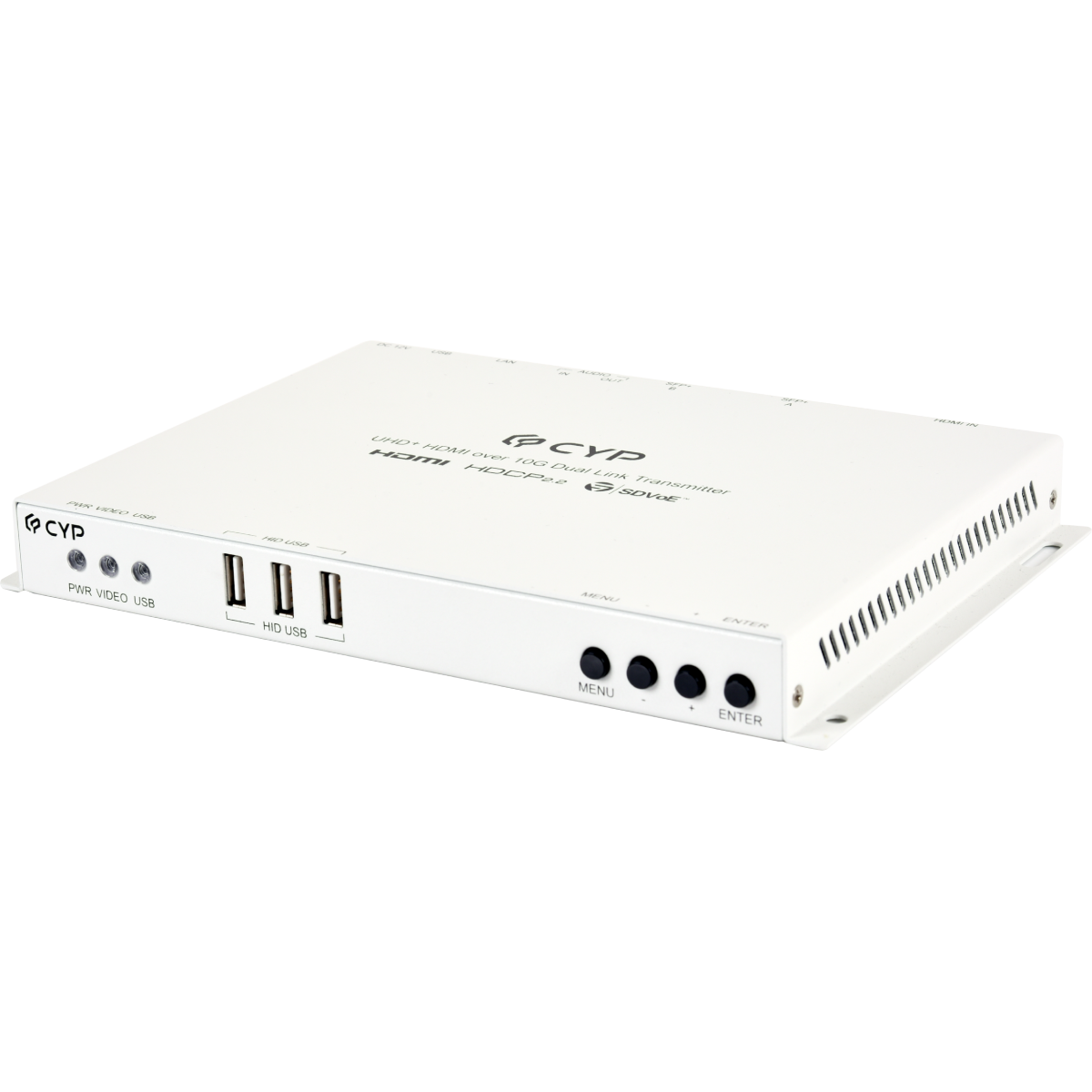

AVIP-P6101T-B1F UHD+ HDMI over 10G Dual Link Transmitter
Please sign in so that we can notify you about a reply
The unit is flexible to operate with different link mode to fulfill the requirement of the environment. Dual link type transmitter and receiver could be able to expand 4K60 uncompressed signals simultaneously in both Transmitter and Receiver mode. With Bidirectional audio, it is able to achieve 2 way live chat with low latency. Seamless transition between two sources of same resolution in fast switch mode, with only 3 frames black when transit between 2 sources of different resolutions.Full suite of peripherals supported, including 1G Ethernet, RS232, and HID USB. Supporting all HDMI 2.0 formats including multichannel PCM, Dolby True HD and DTS HD master audio.
Features
- Uncompressed 4k@60p RGB in genlock mode
- 4k@30 endoscopy plus four sub 2k vital signs
- Flexible multiview as side by side, PiP for endoscopy, four 2k@30 quadview
- No crop, no stretch, and no change in aspect ratio in the scaled down video in multiview mode
- Preview at PC side
- Dual link decoder operating in dual link mode can only operate in Genlock mode
- Dual link decoder operating in single link mode has the same capabilities as a standard single link encoder
- USB KVM function
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Over Dual Link Transmitter
Number of Channels:
Sound Field:
Stereo
Special Features:
Uncompressed 4K@60Hzp RGB in Genlock Mode, 4K@30Hz Endoscopy Plus Four Sub 2k Vital Signs, USB KVM Function
Chassis Color:
White
Chassis Material:
Steel
Applications:
External Control Centre or Control Software to Provide Expanded Functionality
Includes:
1G Ethernet, RS-232, HID USB
Performance
Video Format:
20G LAN 4096x2160pixels@60Hz YUV 4:4:4, HDMI (Streaming) 4096x2160pixels@60Hz YUV 4:4:4
Frequency Rating:
1kHz
Reference Audio Input Level:
>80dB
Inputs and Ports

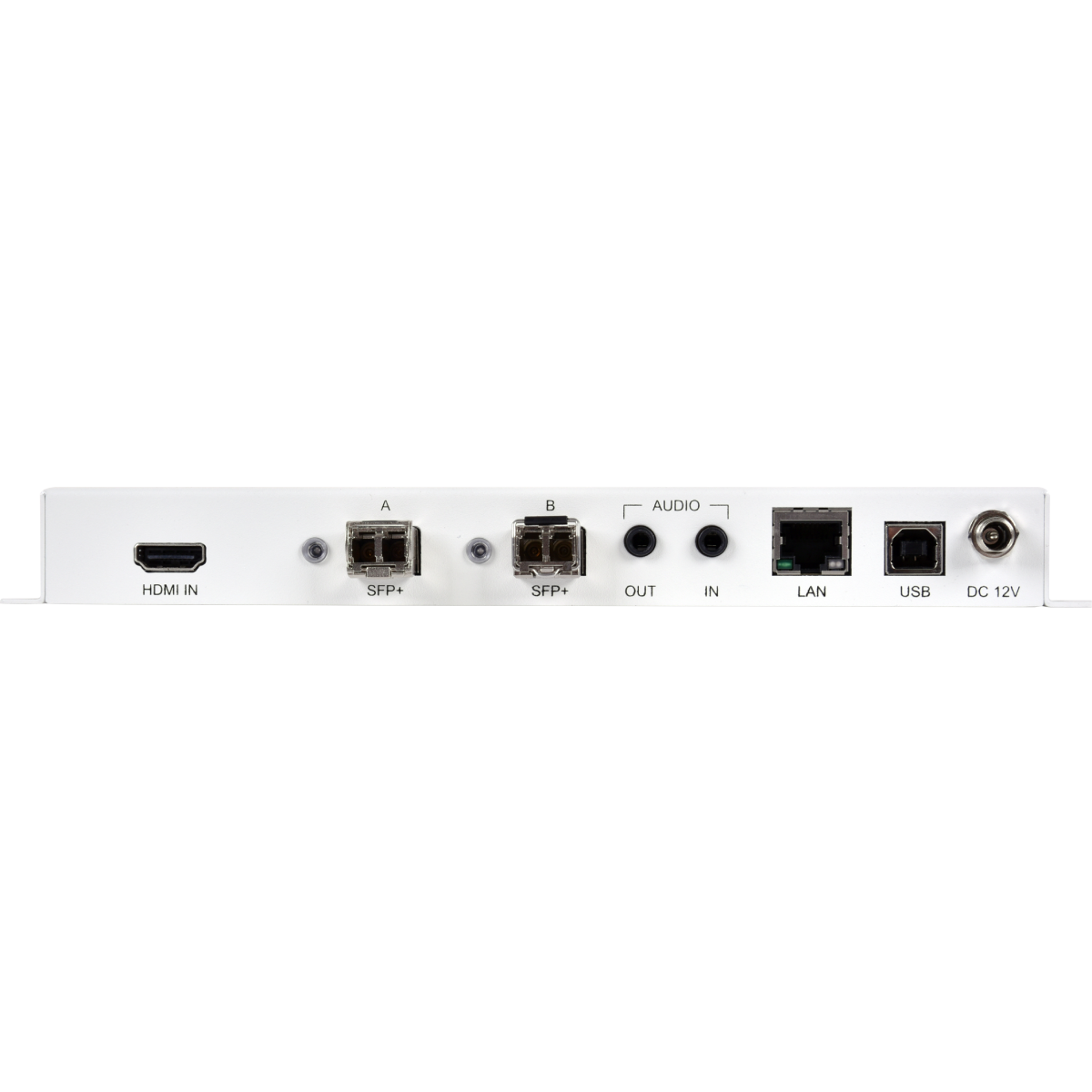

Input Port Type:
1xHDMI (Type A), 1xAnalog(3.5mm)
Output Port Type:
1xAnalog(3.5mm)
Power
Current Rating:
3A
Dimensions
Width:
23.15cm
Depth:
16.7cm
Height:
2.5cm
Weight:
967g
Other
Voltage Rating:
12V
Voltage Rating:
12V
