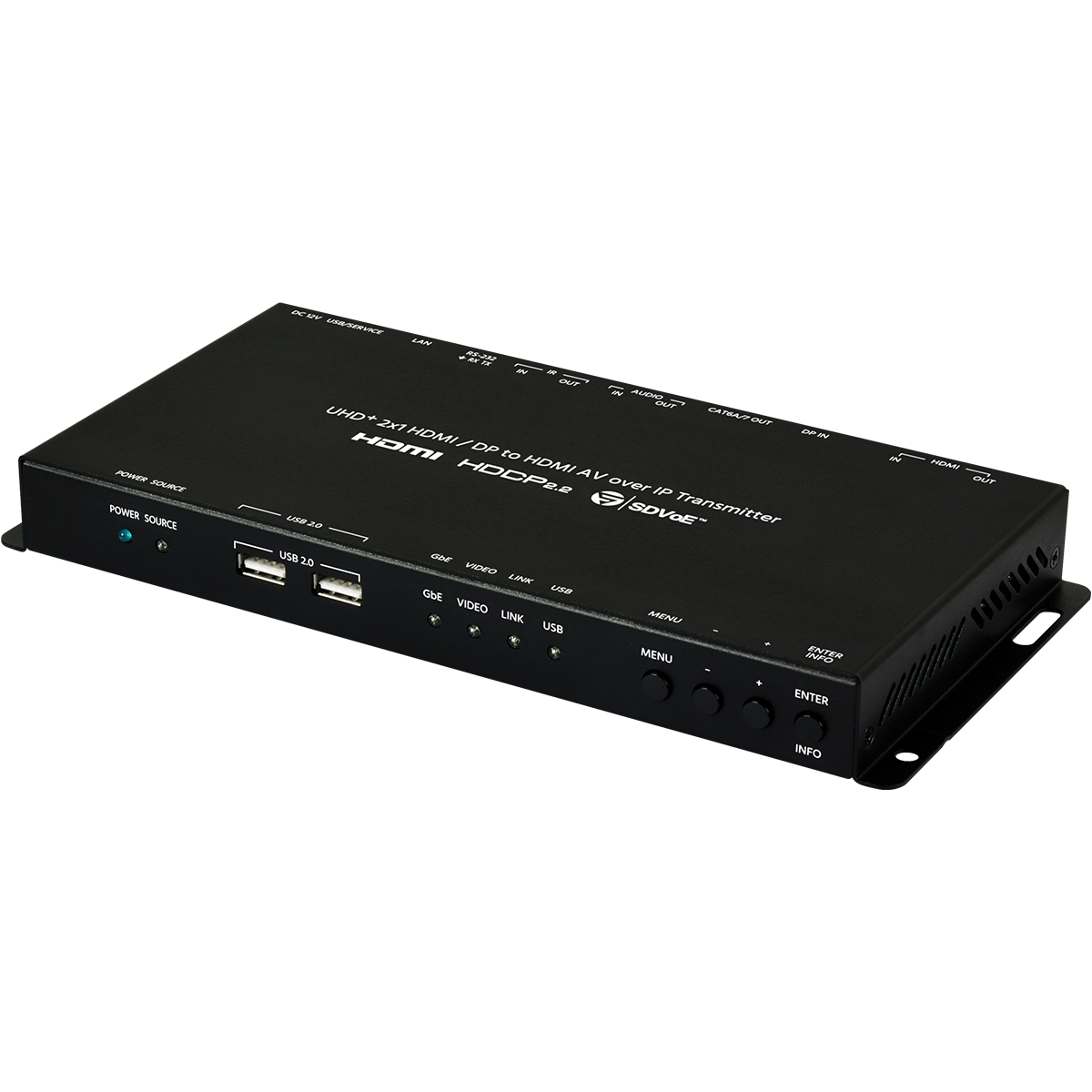

AVIP-P5104T-B1C UHD+ 2x1 HDMI/DP to HDMI AV over IP Transmitter
Please sign in so that we can notify you about a reply
This Transmitter is designed for high-quality, IP routable, AV extension with minimum latency. By using a sophisticated ultra-light compression scheme (lossless for most content) it’s a great solution for extending 4K audio/video streams and data. When combined with the optional IP Master Controller or control software, the functionality of the Transmitter expands exponentially. Multiple Transmitters and Receivers may be combined with one or more 10-Gigabit Ethernet switches and the units can be used together to form a distributed video matrix, a multiviewer system, or a video wall system adding to their flexibility in large event installations. The very own exclusive development technology of preview function has remedy the lack of this AV over IP solution and provide the way to fulfill the needs of long distance transmission.
Features
- HDMI 2.0 and DVI 1.0 compatible, HDCP 2.2 and HDCP 1.x compliant
- 2 USB 2.0 (Type A) ports and 1 USB 2.0 (Mini B) port
- Supports pass-through of 10/12-bit HDR sources (Point-to-Point and Bypass modes only)
- Analog stereo audio extension, insertion and extraction (insertion and extraction requires optional IP Master Controller/control software)
Brand:
Cypress Technology
Product Type:
HDMI/DP to HDMI AV Over IP Transmitter
Specifications
Maximum Operating Temperature:
+40°C
Encryption:
10/12bits
Transmission Range:
100m
Number of Channels:
Sound Field:
Stereo
Special Features:
2 USB 2.0 (Type A) Ports and 1 USB 2.0 (Mini B) Port, Supports Pass-Through of 10/12bits HDR Sources (Point-to-Point and Bypass Modes Only)
Power Rating:
18.7W
Chassis Color:
Black
Chassis Material:
Steel
Applications:

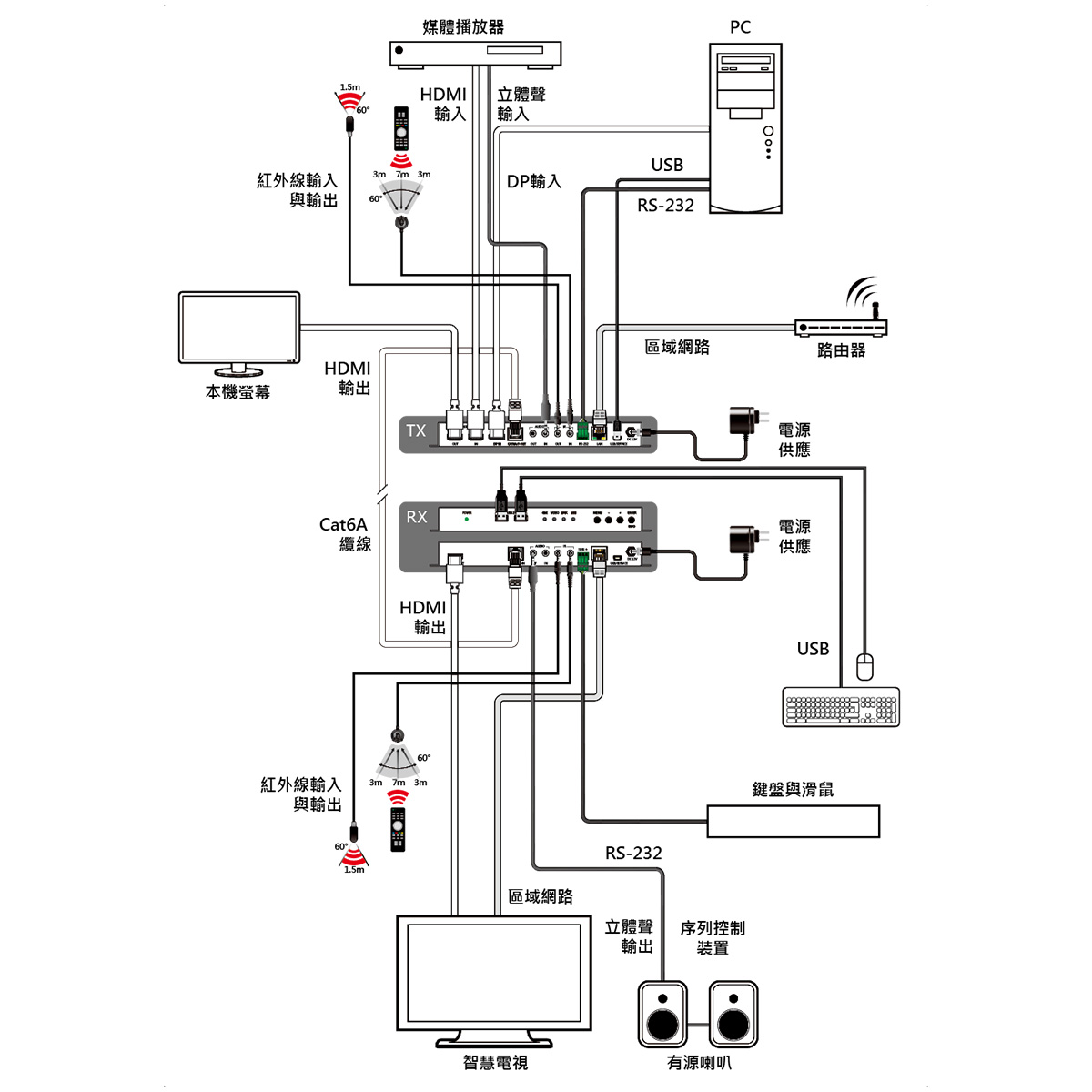

Video/Audio/LAN/IR/and USB 2.0 Over CAT.6A Extension, Point-to-Point Secure Video Conferencing, Hotel or Convention Centre Display, Multi-Monitor Broadcast, Distributed Video Matrix System, Distributed Video Wall System, Remote KVM System Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
Individual Transmitter, Receiver, Transceiver Units
Performance
Video Format:
HDMI 4096x2160pixels@60Hz YUV 4:4:4, DP 4096x2160pixels@60Hz YUV 4:4:4, 10G LAN (Streaming)
Impedance Rating:
10kΩ (Analog Input), 470Ω (Analog Output)
Frequency Rating:
38kHz
Reference Audio Input Level:
>80dB

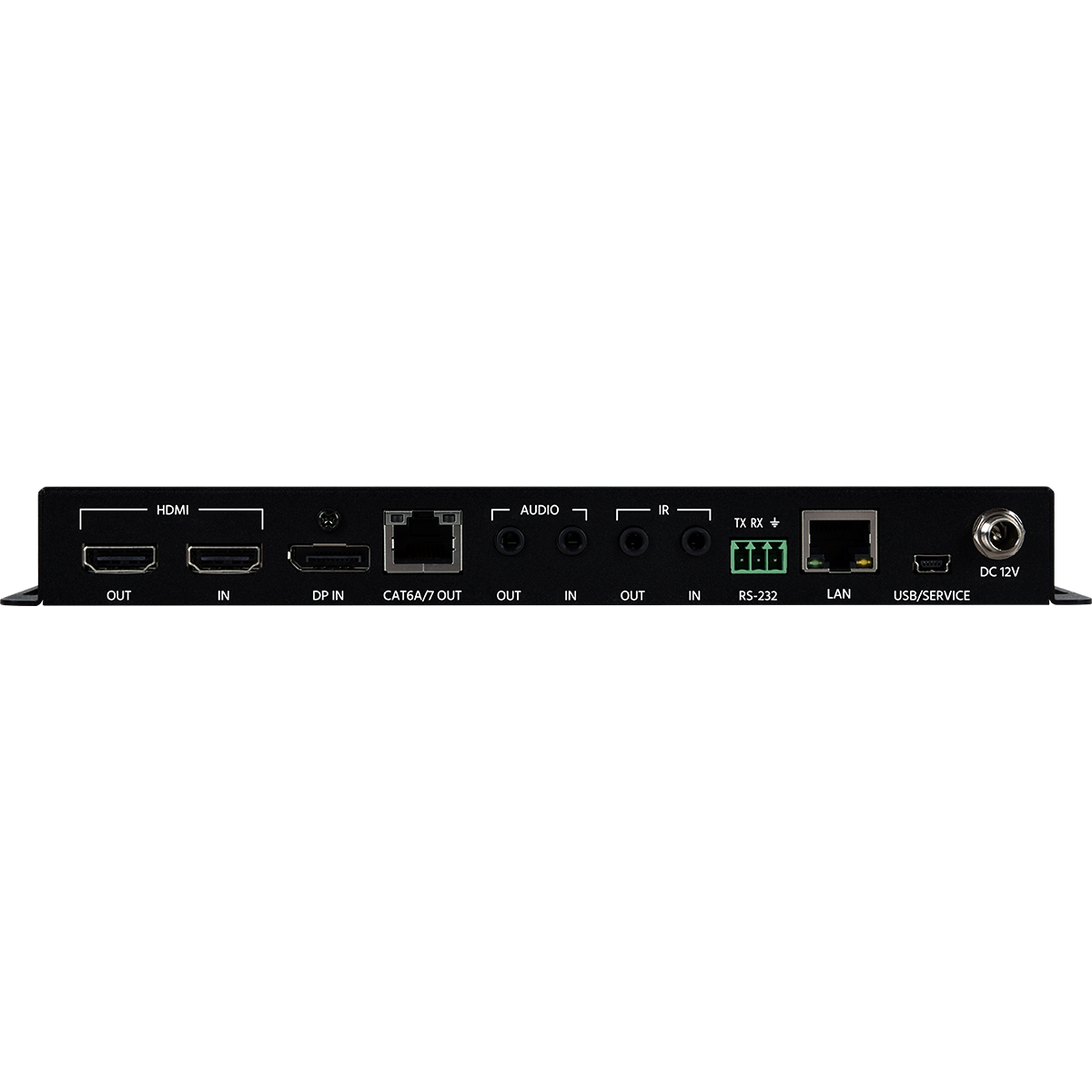

Inputs and Ports
Input Port Type:
1xHDMI (Type A), 1xDisplay Port(Female), 1xAnalog(3.5mm)
Output Port Type:
1xHDMI (Type A), 1xAnalog(3.5mm), 1x10GbE LAN (RJ45)
Power
Current Rating:
3A
Dimensions
Width:
23.15cm
Depth:
16.7cm
Height:
2.5cm
Weight:
594g
Other
Voltage Rating:
12V
Voltage Rating:
12V
Standards Met:
US/EU Standards, CE, FCC Compliant, UL Listed
