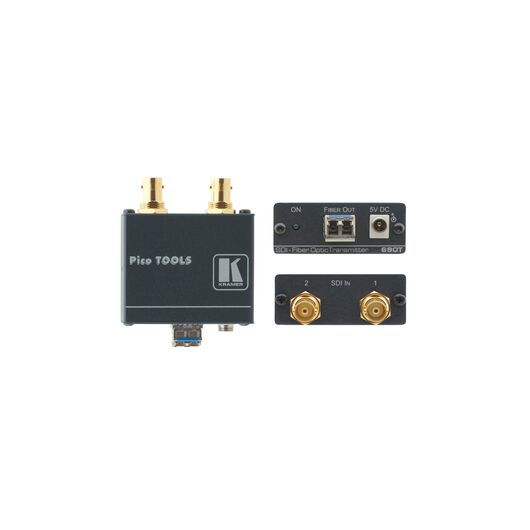

690T 2x3G SDI Transmitter over Ultra–Reach SM Fiber
Please sign in so that we can notify you about a reply

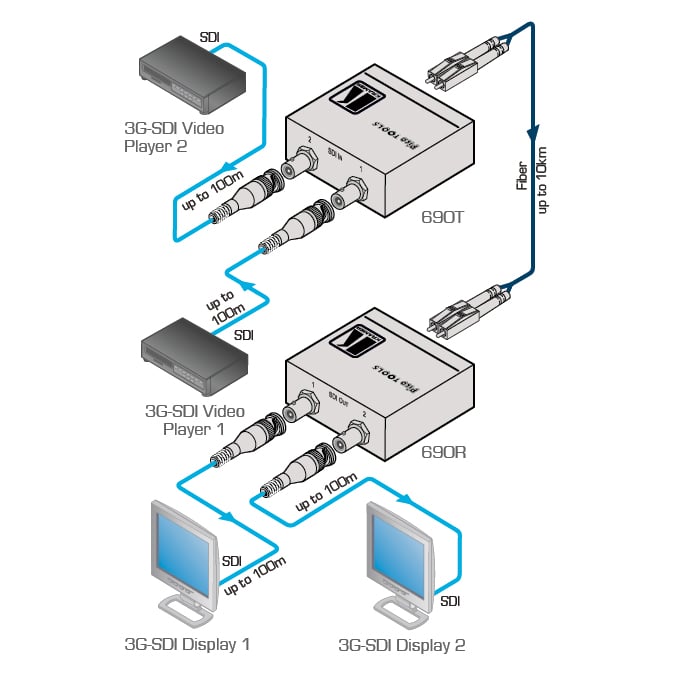

The 690T is a high−performance fiber optic transmitter for SDI video signals up to 3G HD−SDI. The 690T converts two 3G HD−SDI signals to single−mode fiber optic and the 690R receiver converts them back to the two original SDI formats. The unit is compatible with the fiber optic matrix VS−88FO.
Features
- Max. Data Rate - 3Gbps.
- Inputs - 2 SDI on BNC connectors.
- Outputs - 2 single–mode fiber optic on LC connectors.
- HDTV Compatible.
- Multi–Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD–SDI (SMPTE 292M), 3G HD–SDI (SMPTE 424M).
- Laser Standards Compliance - IEC 60825–1, FDA 21CFR1040;Laser Class 1: Safety of laser products.
- Kramer Equalization & re‑Klocking™ Technology - Rebuilds the digital signal to travel longer distances on the coax cable, 200m (HD–SDI) & 100m (3G HD–SDI).
- System Range - Up to 10km (6.2mi).
Brand:
Kramer
Part number:
50-80038090
Product Type:
SDI Transmitter
Specifications
Maximum Operating Temperature:
+40°C
Transmission Range:
10km
Number of Channels:
Special Features:
Max. Data Rate-3Gbps, Multi-Standard Operation-SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M), 3G HD-SDI (SMPTE 424M), Kramer Equalization and Re‑Klocking™ Technology-Rebuilds the Digital Signal to Travel Longer Distances on the Coax Cable, 200m
Applications:
Home Theatre/Presentation and Multimedia, Long Range Multimedia Distribution for Cinemas/Stores/and Entertainment Centres, Video Production and Broadcast Facilities, Retail Stores and Other Point-of-Sale Systems, Digital Signage
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Supply
Inputs and Ports
Input Port Type:
2 SD/HD/3G HD-SDI on BNC Connector
Output Port Type:
Dual Single-Mode Fibre (9/125) Over LC Connector
Power
Current Rating:
480mA
Dimensions
Width:
6.22cm
Depth:
5.1cm
Height:
2.4cm
Weight:
0.1kg
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
CE, ISO 9001 Certified
