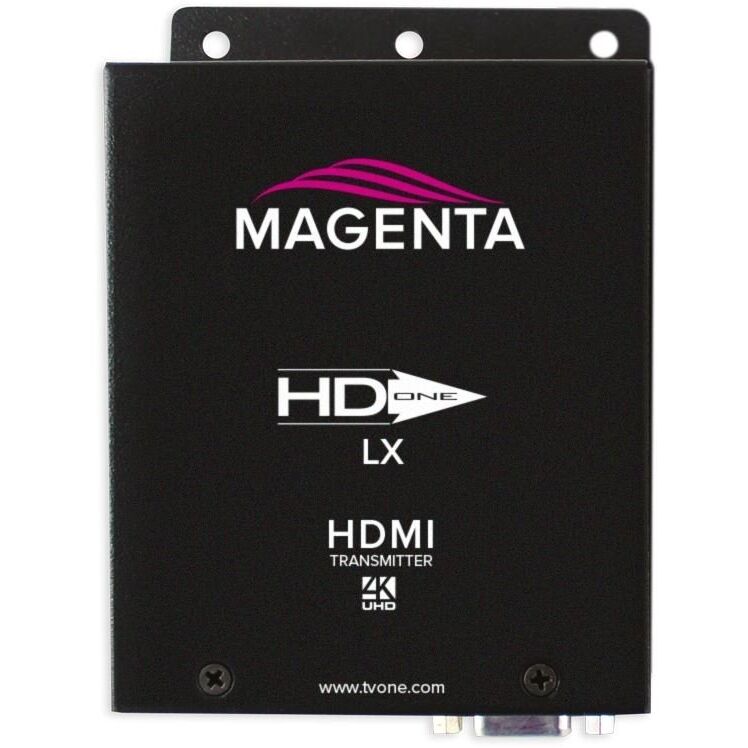

2211095-02 HD-One LX Transmitter- Extend HDMI, Audio, IR, and RS232 - 4K UHD 60 m, 1080P 100 m
Please sign in so that we can notify you about a reply
Magenta’s HD-One LX is a top of the line 4K and 1080p extender that greatly reduces the issues that most extenders face. The HD-One DX can send 1920x1200 resolution HDCP-protected video, embedded audio, RS-232 Control and IR to a distance of 328 feet (100 meters) and 4K60 200 feet (60m), all on a single Cat6 while also using less power, dissipating less heat and providing significantly better resistance to environmental emissions and interference. In addition to video, the HD-One LX also functions with HDMI embedded audio. Dolby®, TrueHD, and DTS-HD Master Audio are all supported. HD-One is fully HDCP compliant and features plug-and-play functionality. Most importantly for installers, HD-One products just work, period.
Features- 1920x1080, 1080P/60, Resolution, 4K UHD (LX,DX)
- Works Over a Single CAT5e, CAT6, CAT6e, CAT7 UTP, STP or FTP Cable
- Supports Embedded HDMI Audio, Including Dolby® TrueHD and DTS-HD Master Audio
- No Adjustments or Tuning Required
- 328'/100 Meter Reach
- 200'/60 Meter Reach 4k Resolutions (LX, DX)
- 500’/152 Meter Reach (LX500, DX500)
- HDMI 1.4 Compliant, HDBaseT
- HDCP Compliant
- Bi-Directional RS-232 Interface (HD-One LX/LX500)
- Two-Way IR Support (HD-One LX/LX500)
- Includes one IR Emitter/Receiver pair (HD-One LX/LX500)
- Tolerances Designed for Commercial Environments
- Compatible with CORIOmax HDBaseT input and output modules
Brand:
tvONE
Product Type:
HD-One LX Transmitter
Specifications
Maximum Operating Temperature:
+55°C
Special Features:
Works over a Single CAT5e, CAT6, CAT6e, CAT7 UTP, STP or FTP Cable, No Adjustments or Tuning Required, HDCP Compliant, Two-Way IR Support
Humidity:
Up to 95%
Minimum Operating Temperature:
0°C
Inputs and Ports
Input Port Type:
1xHDMI
Output Port Type:
1xHDMI
Interface Type:
RJ45, RS-232
Power
Current Rating:
600mA, 1200mA
Dimensions
Length:
13cm
Width:
8.8cm
Height:
3cm
Weight:
0.2kg
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
