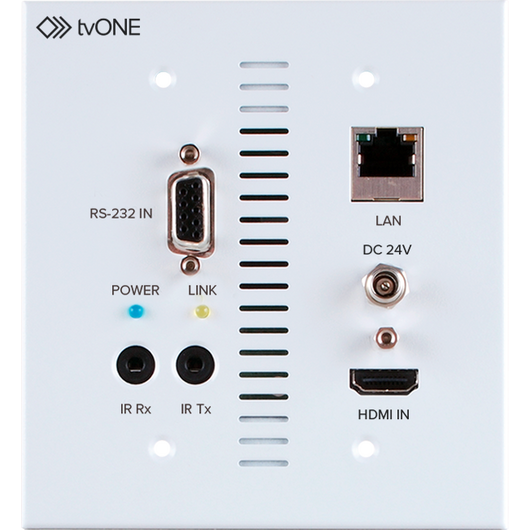

1T-CT-653-USWP Wall Plate Transmitter, HDMI1.4 over Single CAT5e/6 HDBaseT 5Play™
Please sign in so that we can notify you about a reply
The product group consists of a 1T-CT-653-USWP Transmitter coupled with a 1T-CT-654-USWP Receiver which employs HDMI v1.4 capability and HDBaseT 5Play™ technology to allow transmission of uncompressed, 1080p high definition television signals over a single Cat.5e or Cat.6 cable (this is the type cable typically employed for Ethernet computer networks). HDMI v1.4 signals - including 3D and 4K x 2K formats - are supported and the system will also allow DVI signal transmission with appropriate DVI to HDMI Cable adapters. In addition, embedded 7.1CH LPCM, Dolby TrueHD and DTS-HD Master Audio capability is standard. The 1T-CT-653-USWP/1T-CT-654-USWP system can achieve signal distribution distances of up to 100 meters (325 feet) for uncompressed 1080p signals without signal degradation. Control signals can be transmitted (Ethernet, Infrared or RS- 232) and PoH (Power Over HDBaseT) technology is employed to allow powering of the Receiver from the Transmitter, negating the need for a separate power supply for that unit.
Features- HDMI with 3D, 4k(24Hz/30Hz) support
- Compliant with HDMI v1.4a, HDCP 1.1 and DVI 1.0 specifications
- Uncompressed signal distribution to 100 meters (325 feet)
- Uses HDBaseT performance enhancing technology
- Full HD resolution support (1080p@60Hz/36bit), UHD support (4k@30Hz)
- HD 3D formats & PC resolutions up to WUXGA
- Supports Embedded HDMI Lossless Digital Audio
- Supports CEC bypass
- Uses a single Cat.5e/Cat.6/Cat.6a/Cat.7
- Ethernet cable via RJ45 connectors
- Bi-directional Infrared remote control extension support
- Bi-directional RS-232 remote control
- Bi-directional Ethernet support
- Receiver supports both PoH (Power over HDBaseT) and local power
- Designed for installation into 3.7” x 2.8” wall cut outs or standard 2 gang low voltage electrical boxes
Brand:
tvONE
Product Type:
Wallplate Transmitter
Specifications
Maximum Operating Temperature:
+40°C
Special Features:
Compliant with HDMI v1.4a, HDCP 1.1 and DVI 1.0 Specifications, Uncompressed Signal Distribution to 100m, Uses HDBaseT Performance Enhancing Technology, Supports CEC Bypass
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
(1) Power Adapter, (1) User Manual, (1) IR Transmitter or Receiver
Performance
Video Format:
HDMI
Inputs and Ports
Input Port Type:
1xHDMI
Output Port Type:
1xHDMI
Interface Type:
LAN, IR, RS-232
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
FCC, CE, RoHS, UL, CUL, CE, PSE, GS, RoHS
