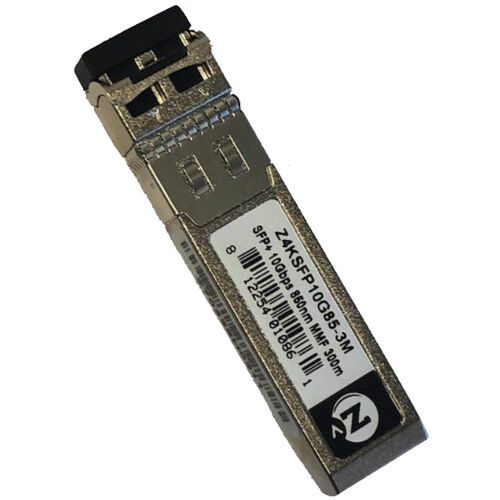

Z4KSFP10G85-3M ZeeVee Transceiver, 10GBASE-SR SFP+ 850 nm
Please sign in so that we can notify you about a reply
10Gb/s SFP+ transceivers are designed for use in 10-Gigabit Ethernet links over multimode fiber. They are compliant with SFF-8431, SFF-8432, IEEE 802.3ae 10GBASESR/SW and 10G Fibre Channel 1200-Mx-SN-I. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The transceiver is a “limiting module”, i.e., it employs a limiting receiver. Host board designers using an EDC PHY IC should follow the IC manufacturer's recommended settings for interoperating the host-board EDC PHY with a limiting receiver SFP+ module. The optical transceivers are compliant per the RoHS Directive 2011/65/EU.
Features
- Hot-pluggable SFP+ footprint
- RoHS-6 compliant (lead-free)
- Industrial temperature range - 40°C to 85°C
- Single 3.3Vpower supply
- Maximum link length of 400m on 4700 MHZ-km OM4 MMF
- Heated 850nm VCSEL laser
- Receiver limiting electrical interface
- Duplex LC connector
- Built-in digital diagnostic functions
Brand:
Kramer
Product Type:
Transceiver
Specifications
Maximum Operating Temperature:
40°C
Series:
ZeeVee
Special Features:
Receiver Limiting Electrical Interface, Duplex LC Connector, Built-In Digital Diagnostic Functions
Minimum Operating Temperature:
85°C
Power
Current Rating:
289mA
Dimensions
Width:
5.6cm
Depth:
1.4cm
Height:
0.8cm
Other
Voltage Rating:
3.14 to 3.46V
Standards Met:
RoHS-6 Compliant
