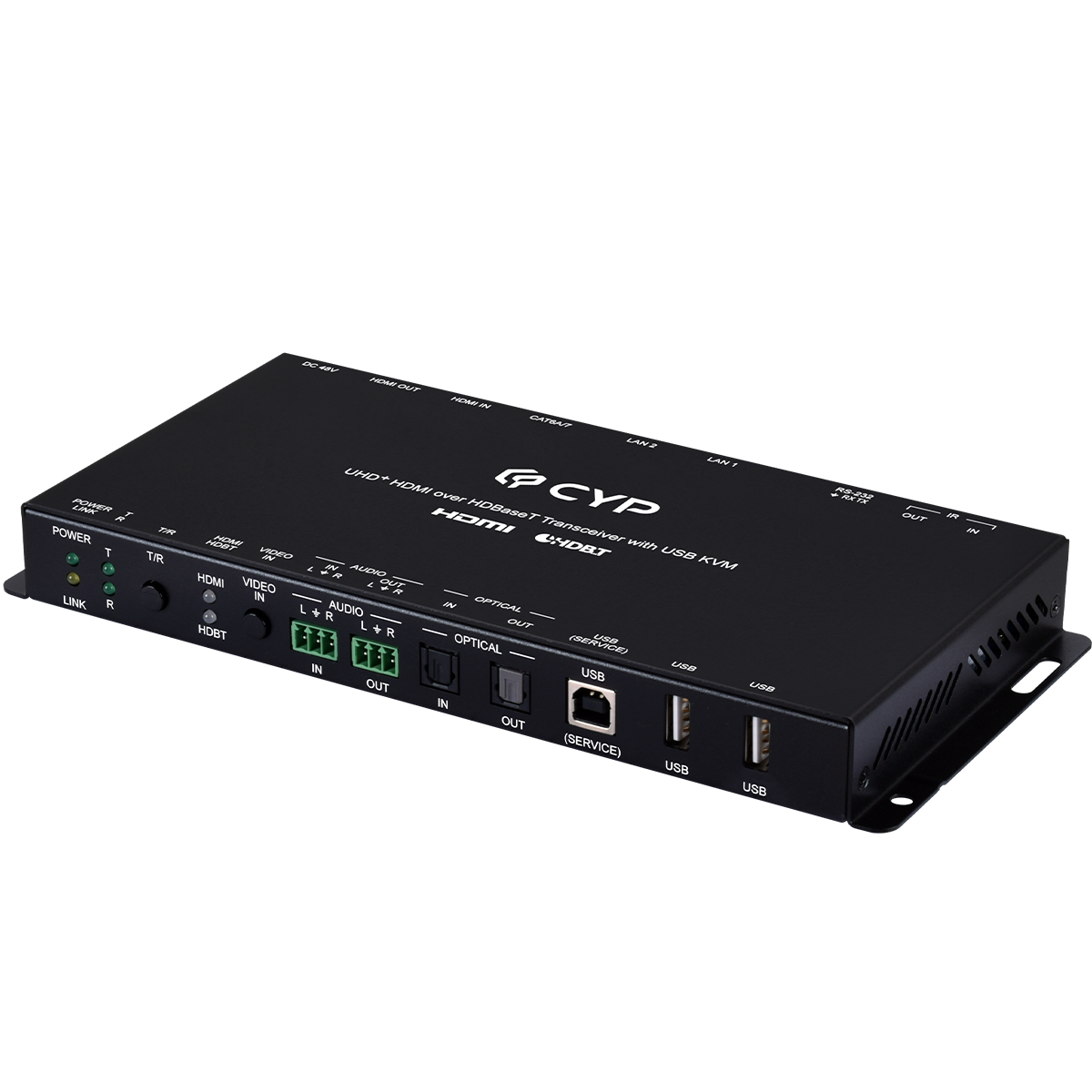

VEX-E4701TR UHD+ HDMI over HDBaseT Transceiver with USB KVM

Write a review
VEX-E4701TR
Cypress Technology
Log in to see price Add to wish list Add to Project

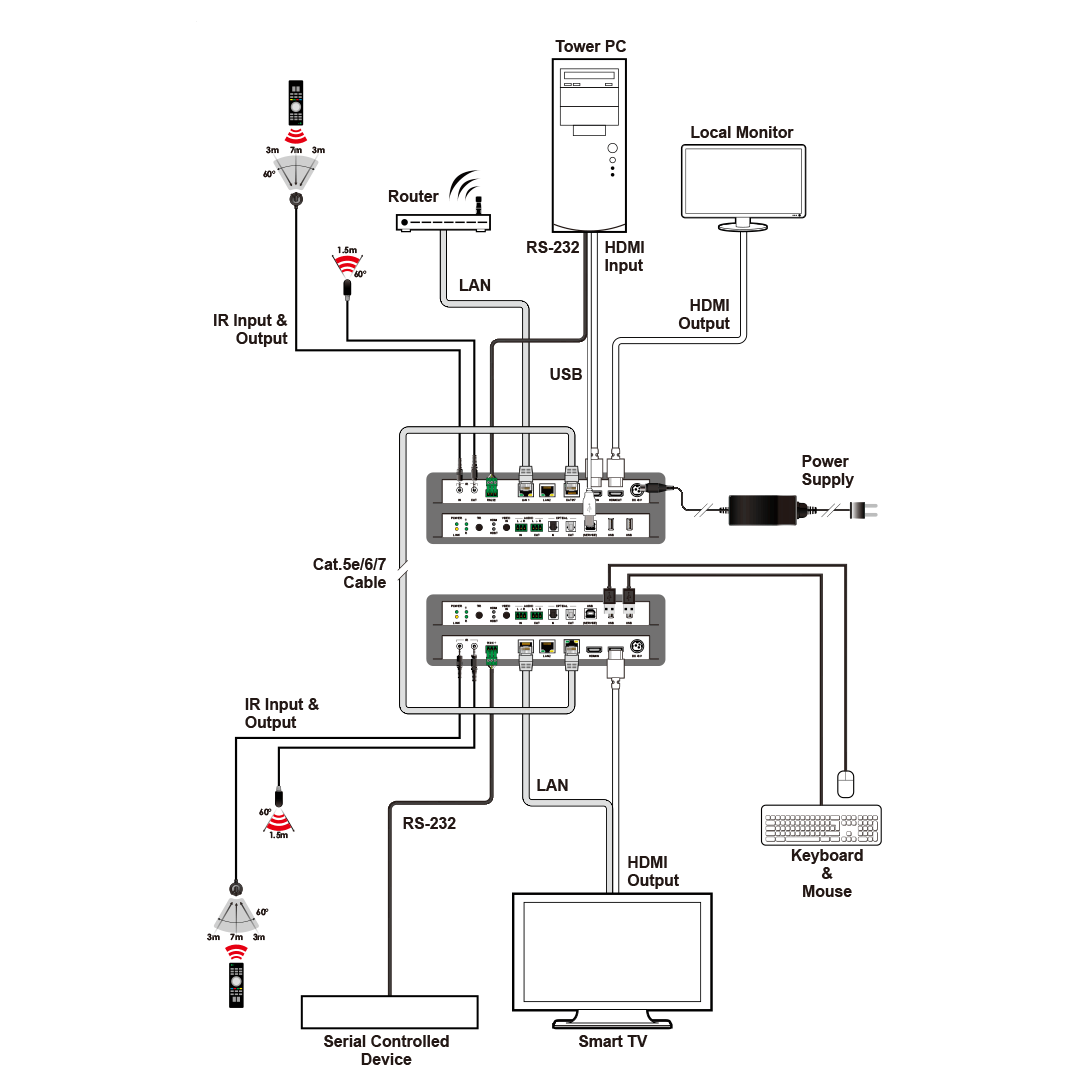

This Transceiver is new generation HDBaseT 3.0 technology, it is a great solution for extending uncompressed HDMI 2.0 4K@60 (4:4:4, 8-bit) video and HD audio as well as Ethernet and control via a single run of Cat.6a/7 cable over distances of up to 100 meters. Every Transceiver can be configured to function as either a Transmitter or a Receiver, enhancing the flexibility of any installation. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, USB 2.0, and 1000BaseT Ethernet. This Transceiver is ideal for any scenario which needs uncompressed video like medical equipment, conference room, education and anything you want to extend.

Features

  • HDMI 2.0 and DVI 1.0 compatible, HDCP 2.2 and HDCP 1.x compliant
  • HDBaseT 3.0 compliant (Backwards compatible with HDBaseT 2.0/1.0)
  • Supports up to 4K UHD+ (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output over both HDMI and HDBaseT
  • Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
  • HDBaseT extends video, audio and data over a single Cat.6A/7 cable and can reach distances up to 100m/328ft
  • HDBaseT feature support: HD Video and Audio, Gigabit Ethernet, Bidirectional PoH, Bi-directional audio (optical and analog), and Control (bidirectional USB/IR/RS-232 pass-through)
  • 2 USB 2.0 Type-A device ports and 1 USB 2.0 Type-B host port
  • HDMI output functions as a local monitor when in transmitter mode
Brand:
Cypress Technology
Product Type:
UHD+ HDMI Over HDBaseT Transceiver
Specifications
Audio Format:
HDMI LPCM (8 Channels), Bitstream, HD Bitstream
Maximum Operating Temperature:
+40°C
Colour:
Black
Service Port Type:
1xUSB 2.0 (Mini B)
Special Features:
HDBaseT 3.0 Compliant (Backwards compatible with HDBaseT 2.0/1.0), Supports 10bits and 12bits HDR (High Dynamic Range) Input/Output, HDBaseT Feature Support: HD Video and Audio, Gigabit Ethernet, BiDirectional PoH, Bidirectional Audio (Optical and Analog)
Power Rating:
30.48W
Chassis Material:
Steel
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0
HDCP Compliance Type:
2.2
Maximum Input Resolution:
4096x2160pixels@60Hz
Maximum Output Resolution:
4096x2160pixels@60Hz
Output Signal Type:
HDMI 4K@60Hz 8bits RGB 4:4:4, HDBT 4K@60Hz 8bits RGB 4:4:4
Signal-to-Noise Ratio:
80dB
Frequency Rating:
<±0.5dB@20Hz, 20kHz
Crosstalk Level:
<-71dB@10kHz

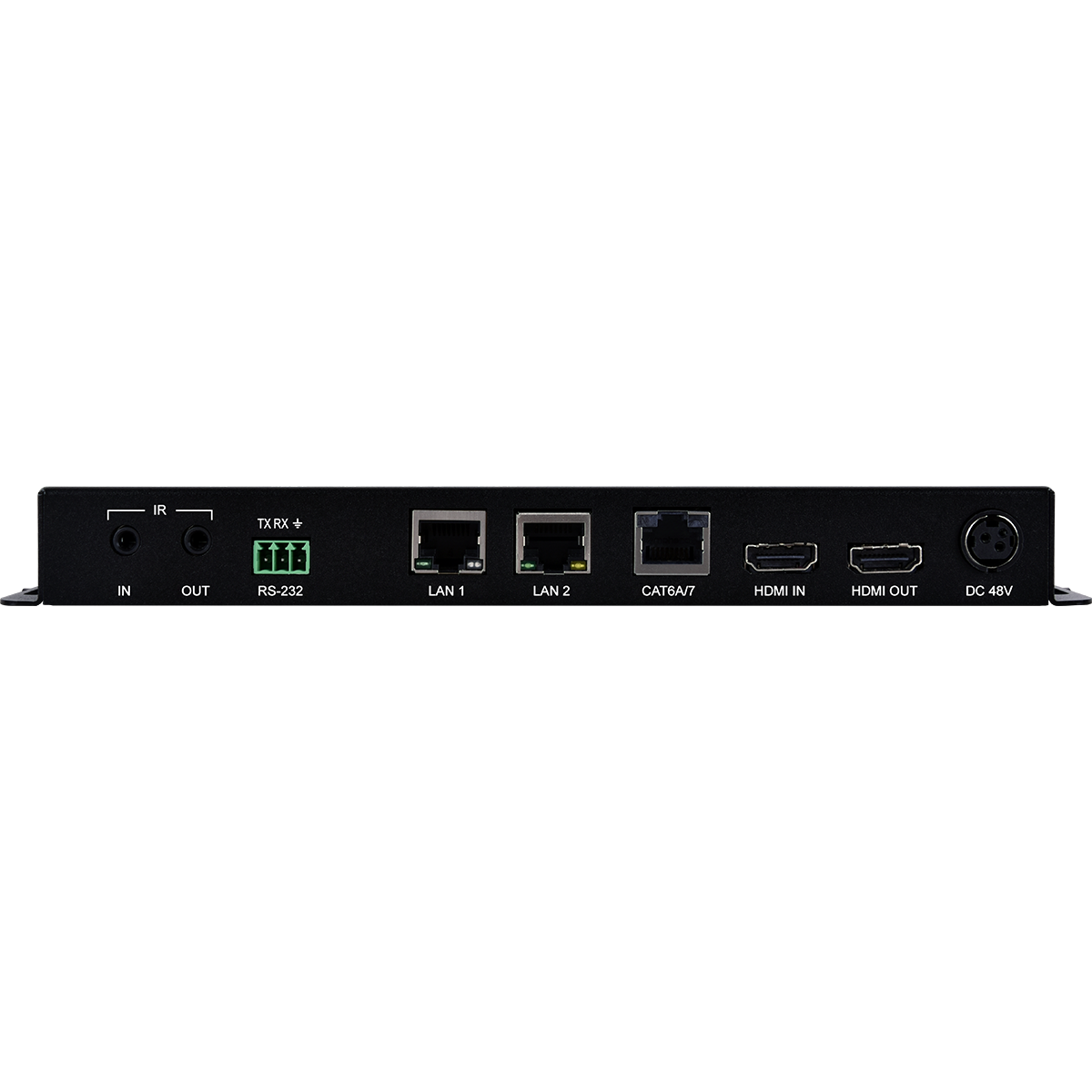

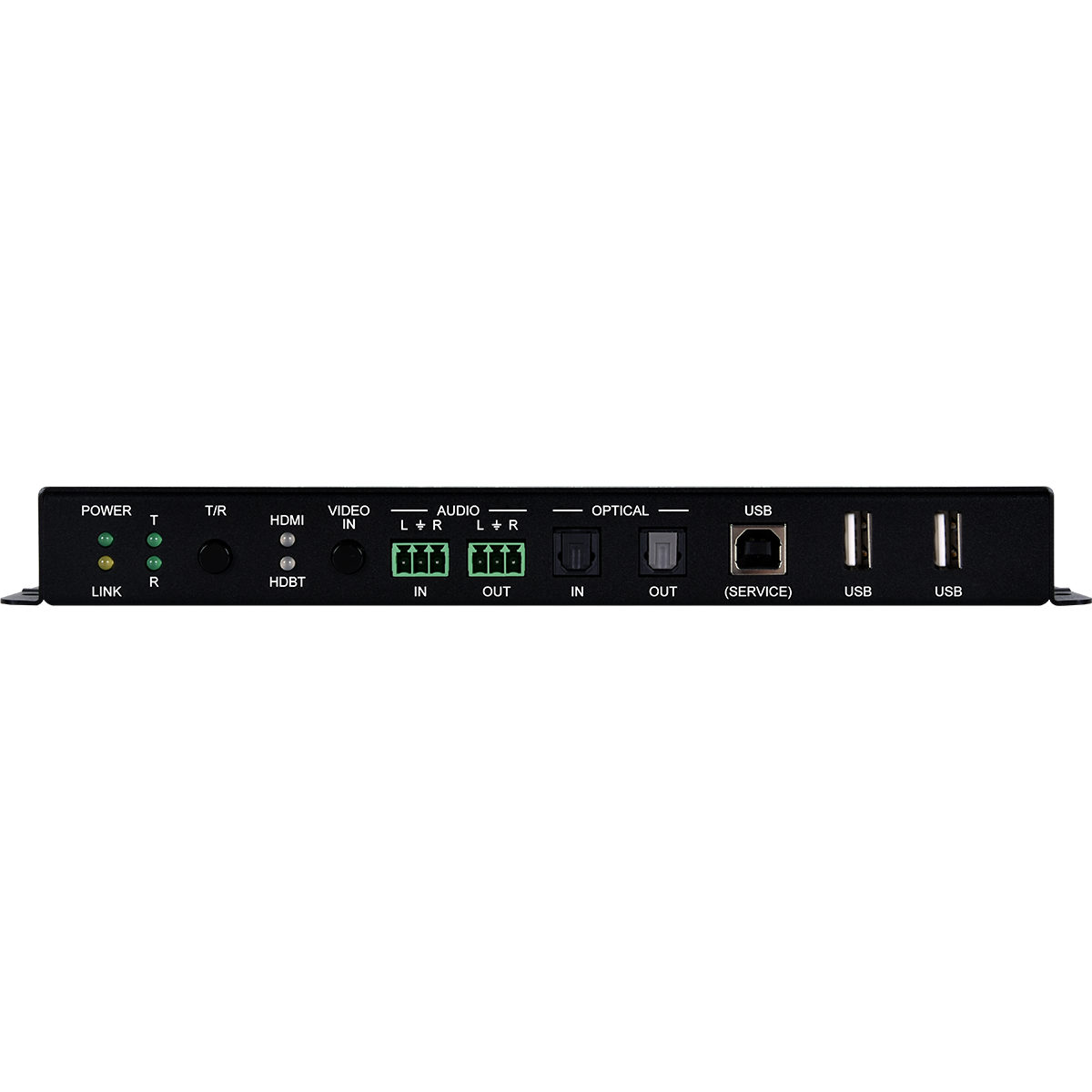

Inputs and Ports
Bi-Directional Port:
1 HDBaseT (RJ45)
Input Port Type:
1xHDMI-Type A, 1xDigital Audio (TOSLINK), 1xAnalog Audio (3-Pin Terminal Block)
Output Port Type:
1xHDMI-Type A, 1xDigital Audio (TOSLINK), 1xAnalog Audio (3-Pin Terminal Block)
Input Signal Type:
HDMI 4K@60Hz 8bits RGB 4:4:4, HDBT 4K@60Hz 8bits RGB 4:4:4
Pass-Through Port:
1xIR 3.5mm Extender, 1xIR 3.5mm Blaster, 1xRS-232 (3-Pin Terminal Block), 2xLAN (RJ45), 2xUSB 2.0 Type A
Power
Current Rating:
0.83A
Dimensions
Width:
23.15cm
Depth:
11.6cm
Height:
2.5cm
Weight:
700g
Other
Voltage Rating:
48V DC
Voltage Rating:
48V DC
Standards Met:
US, EU, CE, FCC Compliance, UL Listed
