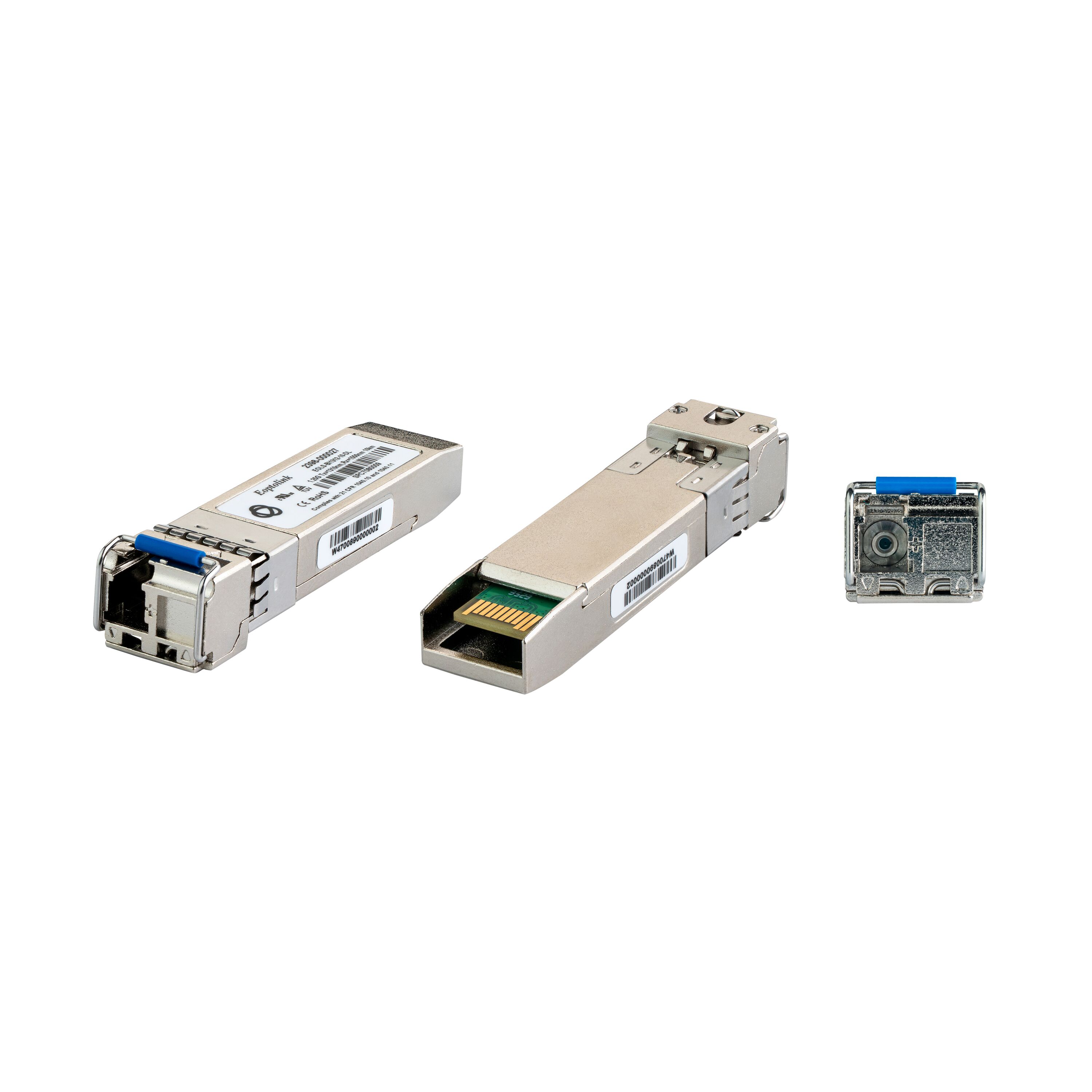

SFP1-SMA-S Transceiver, 2 Strand Simplex Fiber Optic LC (PC/UPC) Connector, Silver, Single Mode
Please sign in so that we can notify you about a reply
SFP1-SMa-S are complementary fiber optic transceivers using 1310nm and 1550nm single-mode signals. These standard pluggable SFP optical modules have two LC connectors for reception and transmission over two strands of single-mode optical fiber.
Features- Certified Transceivers - Kramer certified, hot pluggable SFP optical modules, for high quality transmission of 1.25Gbps signal over single mode optical fiber cables, connecting 2 single–mode fiber strands via LC AP/UPC connectors.
- Ultra reach - Up to 10km (6.2 miles)
Brand:
Kramer
Part number:
50-001399
Product Type:
Transceiver
Specifications
Maximum Operating Temperature:
70°C
Colour:
Silver
Special Features:
Transmitter 1550nm and Receiver 1310nm, Two LC Connectors for Reception and Transmission, High Quality Transmission of 1.25Gbps Signal Over Single Mode
Applications:
Optical Reach Extension, Secured Signal Transport
Humidity:
0 to 95%
Minimum Operating Temperature:
0°C
Inputs and Ports
Input Port Type:
2 Strand Simplex Fiber Optic LC (PC/UPC) Connector
Other
Standards Met:
IEEE 802.3ah-2004, SFF-8472, Laser Class 1 FDA, IEC60825-1, TUV R50135086, UL E317337, EMC CE AE 50285865 0001, 001 FCC WTF14F0514417E
