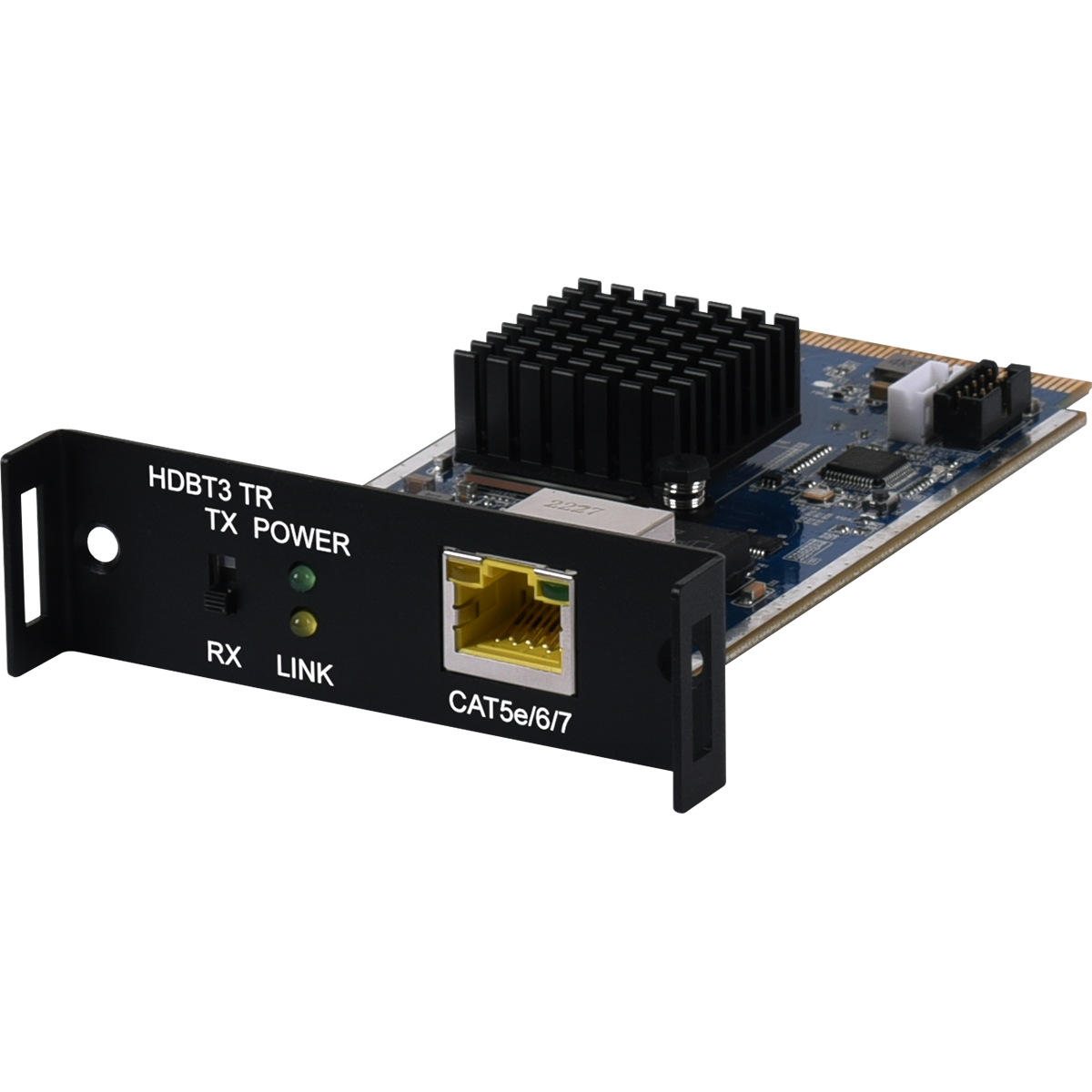

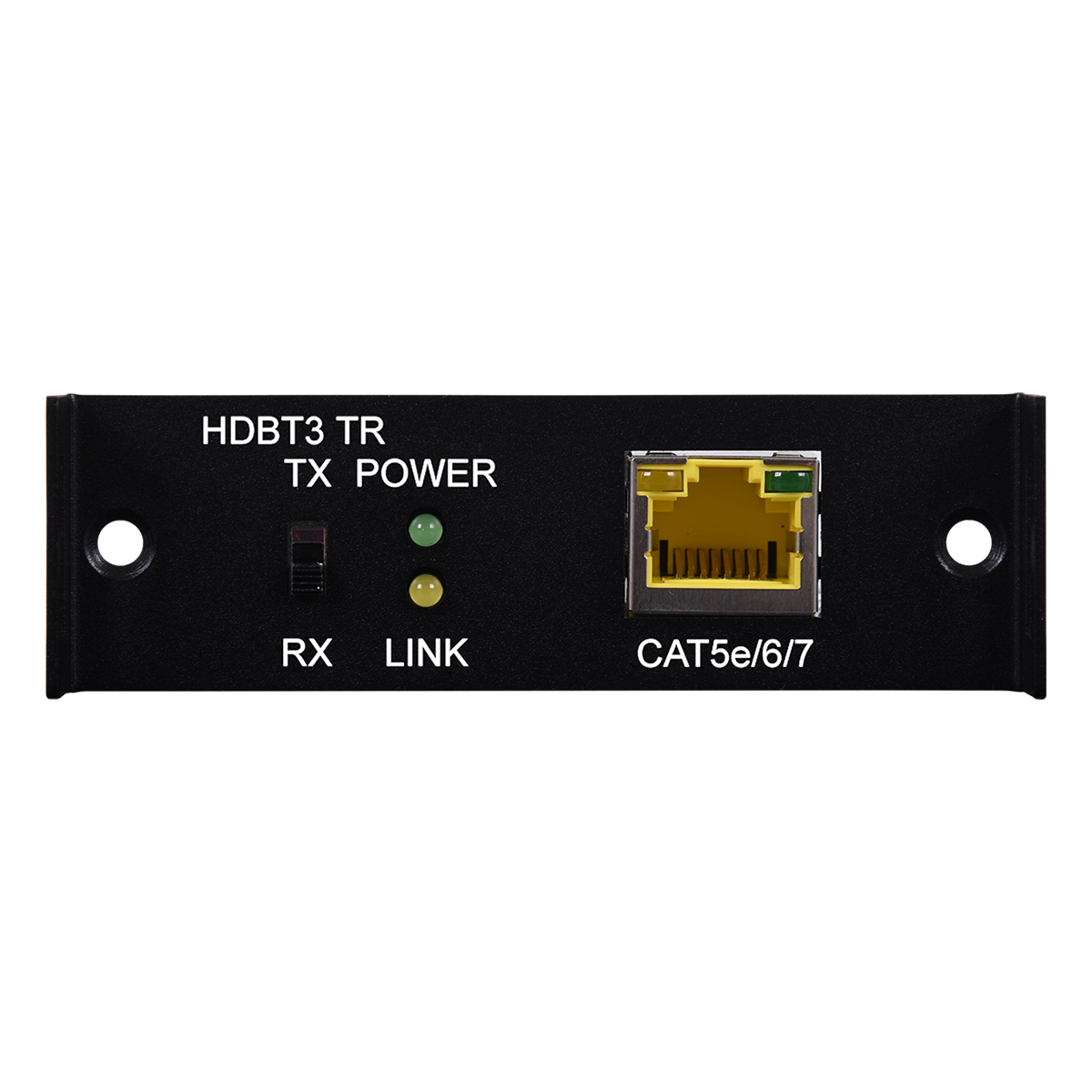

SDM-E301TR UHD HDMI Over HDBT3 Transceiver Extender Module Card, HDCP 2.2
Please sign in so that we can notify you about a reply
This HDBaseT Transceiver Module uses HDBaseT 3.0, the newest generation of HDBaseT technology, and is the perfect solution for extending full bandwidth (18Gbps) HDMI 2.0, 4K@60Hz (4:4:4, 8-bit) video with HD audio via a single run of Cat. 5e/6/7 cable over distances of up to 40 meters. Every Transceiver can be configured to function as either a transmitter or a receiver, enhancing the flexibility of any installation. This extender complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards.
Features- HDBaseT extends video and audio over a single Cat. 5e/6/7 cable and can reach distances up to 40m/131ft
- Supports up to 4K UHD+ (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input and output over both HDMI and HDBaseT
- Supports HDCP repeater and CEC bypass
- Supports Deep Color input and output up to 12-bit and 10-bit and 12-bit HDR (High Dynamic Range) input/output
- Supports pass-through of many audio formats including LPCM (up to 8 channels), Bitstream, and HD Bitstream
- HDMI 2.0 and DVI 1.0 compatible
- HDCP 2.2 and HDCP 1.x compliant
