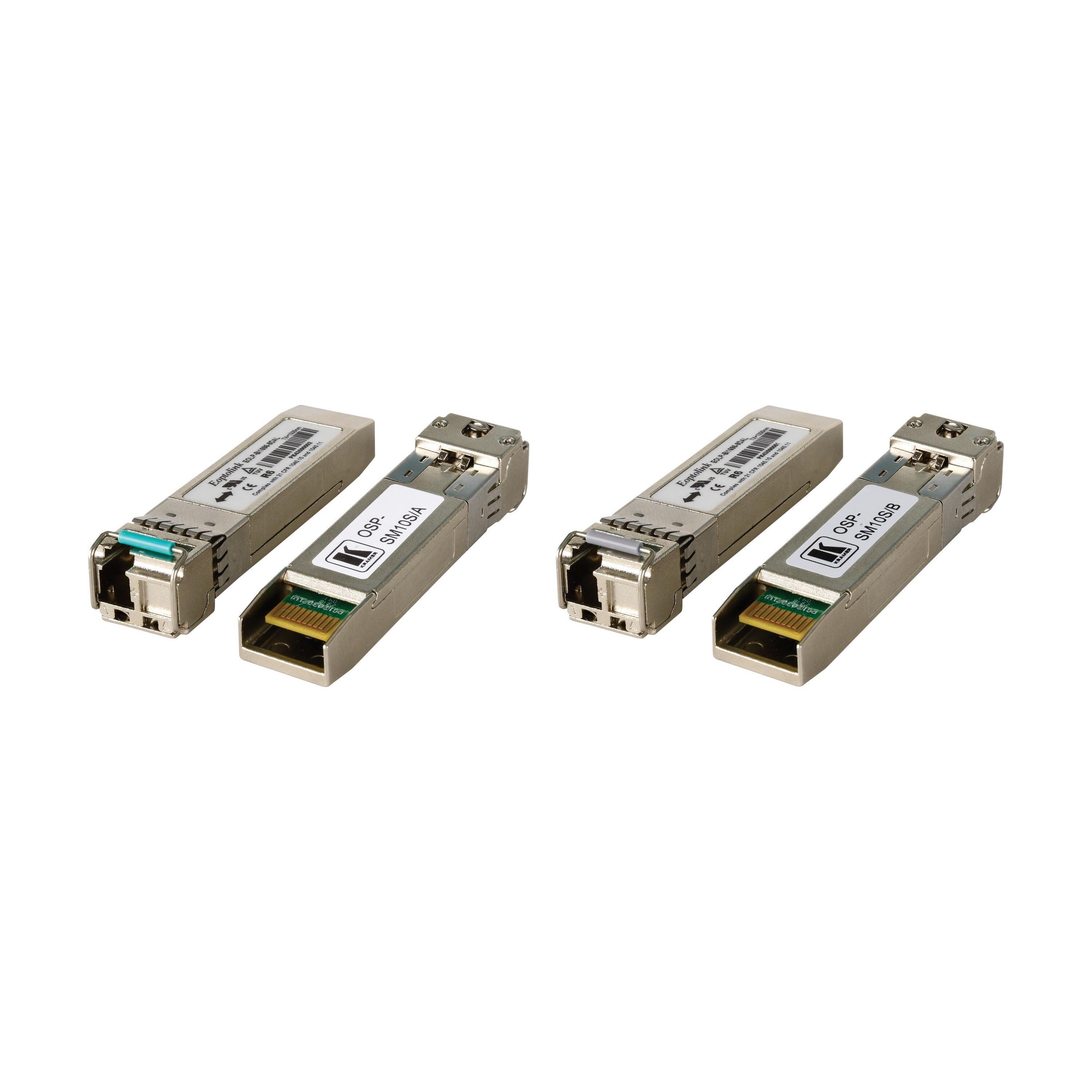

OSP-SM10S Optical SFP+ Transceiver Pair over 10G 1270/1330nm Simplex SM Fiber
Please sign in so that we can notify you about a reply
OSP−SM10S is a pair of fiber optic transceivers for 1270/1330nm single−mode signals. These standard pluggable SFP+ optical modules have one LC connector for reception and transmission of signals over one strand of single−mode optical fiber.
Features
- Certified Transceiver — Kramer certified, hotpluggable, simplex SFP+ optical modules, for high–quality transmission of 10.2Gbps signal over single–mode fiber cable, connecting 1 single–mode fiber strand via LC PC/UPC connector.
Brand:
Kramer
Part number:
50-000299
Specifications
Product Type:
Optical SFP+ Transceiver
Maximum Operating Temperature:
+70°C
Special Features:
Certified SFP+ Optical Modules, Single-Strand LC-Connected Single-Mode Fibre, Ultra-Reach-Up to 20km (12.4miles)
Power Rating:
1W
Humidity:
5 to 95%
Minimum Operating Temperature:
0°C
Inputs and Ports
Input Port Type:
1xOptical:1xStrand LC, 1xSingle-Mode Fibre
Dimensions
Width:
1.33cm
Depth:
5.7cm
Height:
0.8cm
Weight:
0.1kg
Other
Standards Met:
IEEE, SFF, Laser Class I, FDA, TUV, EN60825-1/2, UL Listed, CSA, RoHS, EMC EN 55032, EN 55024
