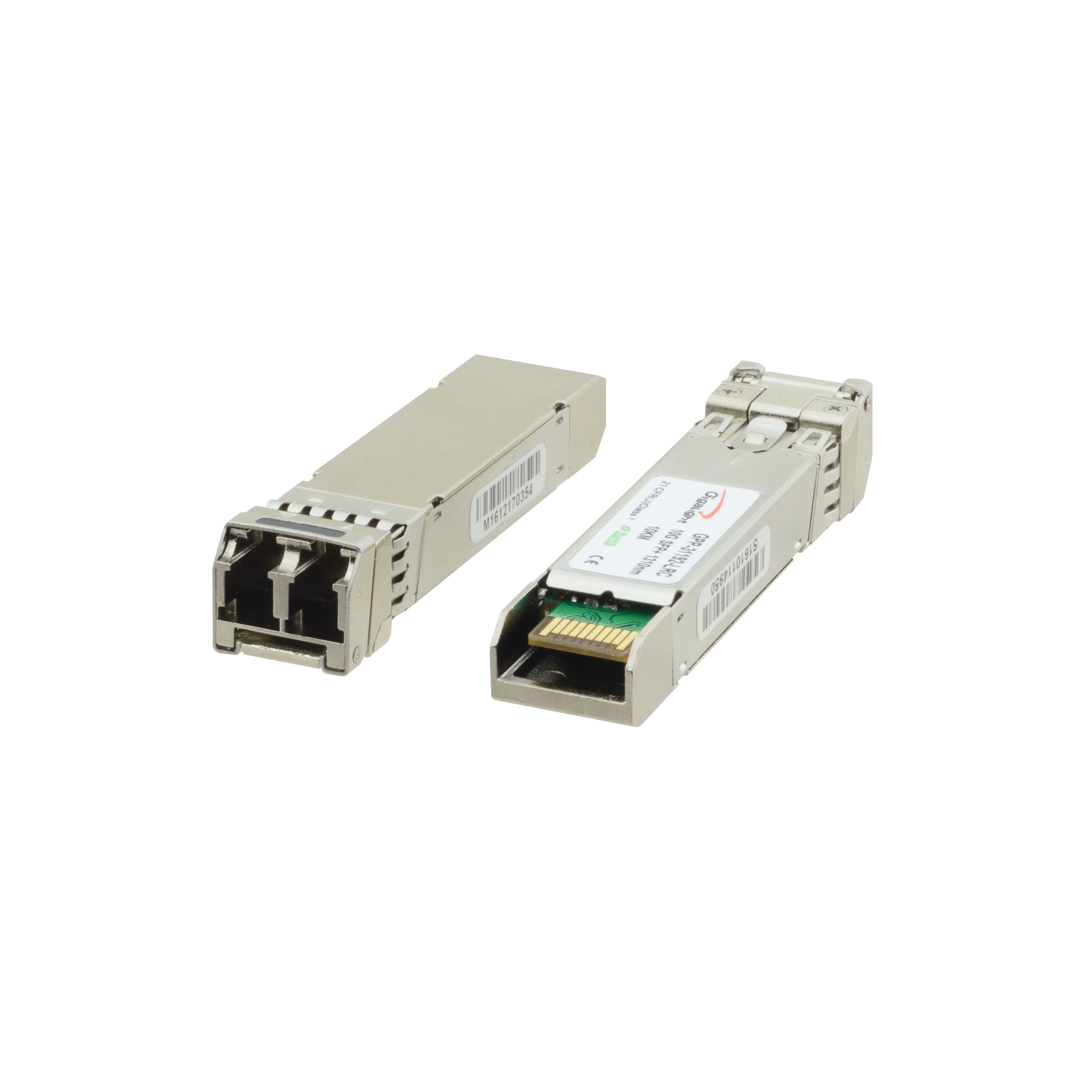

OSP-SM10 Optical SM 1310nm 10G SFP+ Transceiver Up to 33km
Please sign in so that we can notify you about a reply
OSP−SM10 is a fiber optic transceiver for 1310nm single−mode signals. This standard pluggable SFP+ module has two LC connectors for reception and transmission signals over two strands of single−mode optical fiber.
Features
- Certified Transceiver — Kramer certified, hot–pluggable SFP+ optical module, for high–quality transmission of 10.2Gbps signal over single–mode fiber cables, connecting 2 simplex single–mode fiber strands via LC AP/UPC connectors
Brand:
Kramer
Part number:
50-000097
Specifications
Product Type:
Optical SM 1310nm 10G SFP+ Transceiver
Maximum Operating Temperature:
+70°C
Special Features:
Certified SFP+ Optical Module, 2-Strand LC-Connected Single-Mode Fibre, Ultra-Reach-Up to 33km (20.5miles), 2 Single-Mode LC Strands
Power Rating:
1W
Applications:
Optical Reach Extension, Secured Signal Transport
Humidity:
5 to 95%
Minimum Operating Temperature:
0°C
Inputs and Ports
Input Port Type:
2xStrand Fibre Optic LC (PC/UPC) Connector for Reception and Transmission SFP+ Compliant Pluggable Interface
Dimensions
Width:
1.33cm
Depth:
5.7cm
Height:
0.8cm
Other
Standards Met:
IEEE, SFF
