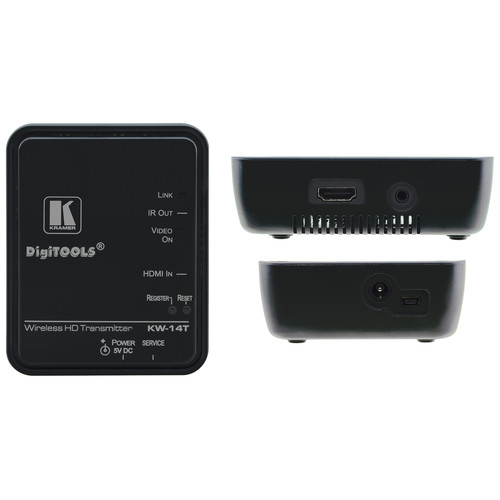

KW-14T/EU Wireless HD Transmitter, EU
Please sign in so that we can notify you about a reply

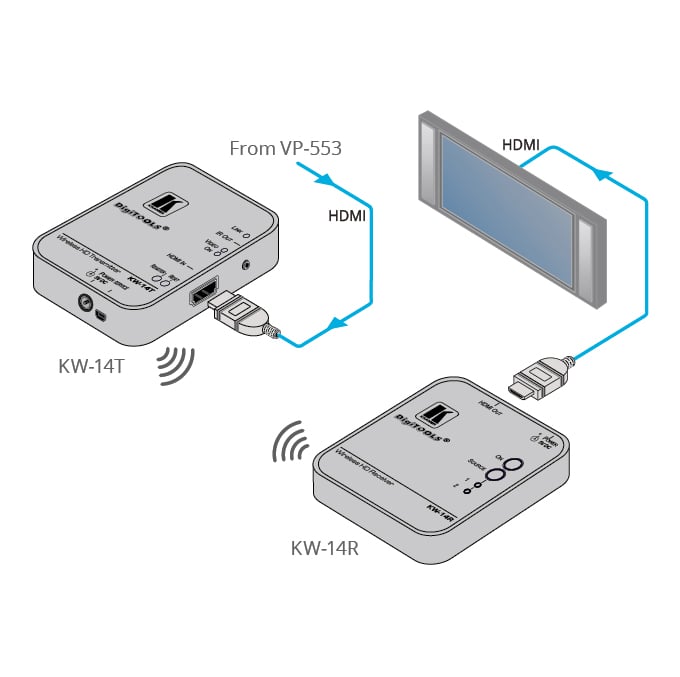

The KW−14T is a high−definition, wireless, HDMI transmitter for indoor use. Up to four KW−14R receivers can receive from one KW−14T transmitter and up to three KW−14T transmitters can be paired with one KW−14R receiver. The KW−14T and KW−14R pair comes pre−associated.
Features
- Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel), Deep Color up to 12–bit.
- Secure Link — Uses AES–128 bit encryption.
- Connection Capacity — Up to four receivers can receive from one transmitter simultaneously; up to three transmitters associated with one receiver at any given time.
- Transmission Range — Up to 30m (100ft) including through walls and furniture.
- Automatic Frequency Selection — Selects the most suitable frequencies to prevent RF interference.
- Auto EDID Adjustment — To allow multi–screen support.
- IR Remote Control — Enables the OSD menu to be displayed on the output display.
- OSD (On Screen Display) — For simplified setup and configuration.
- HDCP Compliant — HDCP sources are supported only when all connected displays support HDCP.
- Zero Latency.
- Automatic Sleep Mode — After three minutes when no input or link is detected.
Brand:
Kramer
Part number:
60-0000290
Specifications
Product Type:
Wireless HD Transmitter
Audio Format:
PCM/Dolby Digital 2/0, Dolby Digital 2/0 Surround, Dolby Digital 5.1, Dolby Digital Surround EX, DTS 2-Channel, DTS Digital Surround 5.1, DTS 96/24
Maximum Operating Temperature:
+104°F
Version:
EU Version
Special Features:
Secure Link-Uses AES-128bits Encryption, Automatic Frequency Selection-Selects the Most Suitable Frequencies to Prevent RF Interference, Auto EDID Adjustment-to Allow Multi-screen Support, IR Remote Control-Enables the OSD Menu to be Displayed on the Outp
Humidity:
10 to 90%
Minimum Operating Temperature:
32°F
Includes:
2xHDMI Cable-3ft
Performance
HDMI Compliance Type:
DVI 1.0
HDCP Compliance Type:
2.0
Maximum Output Resolution:
1920x1080/1080pixels@60Hz
Signal-to-Noise Ratio:
18dB
Frequency Rating:
5GHz
Power
Current Rating:
1A
Dimensions
Width:
9.398cm
Depth:
9.3cm
Height:
3.3cm
Weight:
0.1kg
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
FCC Compliance, UL Listed, VCCI, C-Tick, cUL, RoHS, AES-128, WEEE, ICES, KC
