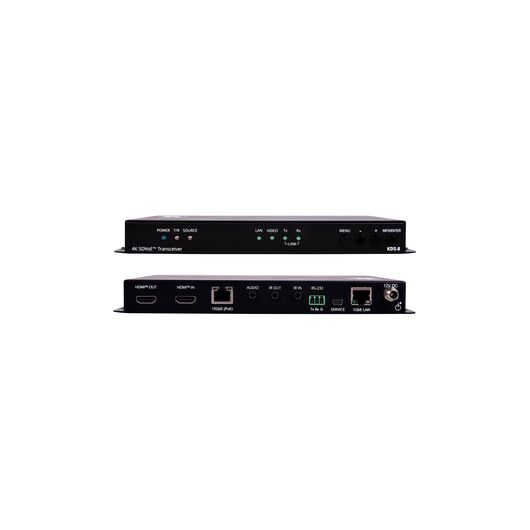

KDS-8 Zero Latency 4K HDR SDVoE Video Streaming Transceiver
Please sign in so that we can notify you about a reply
KDS−8 is a high−performance, zero latency, 4K@60Hz (4:4:4) video streaming transceiver for streaming via Ethernet over copper cable. KDS−8 can be set as either an encoder or decoder. As an encoder, it encodes and streams the HDMI input along with IR, RS−232, and analog audio, over an IP network. As a decoder, it receives the encoded signal and decodes it for output.
Features
- High–Performance Video Streaming Transceiver — Streams up to 4K@60Hz (4:4:4) resolution signals over a 10G network interface, providing lossless compression.
- Maximum Compatibility — Fully standard and compliant SDVoE™ codec, enables compatibility with other software and hardware streaming platforms.
- Streamlined Management and Configuration — Kramer KDS–8–MNGR device (sold separately) provides a central point of management and enables creating multiple virtual matrices, video walls and multi–view configurations. In addition, KDS–8–MNGR supports preset configurations that can be activated using Kramer Control.
- HDCP 2.2 Compliant, HDR Support, Genlock and Fastswitch Modes Support.
- High–Speed 10G Network Switch — Managed switch provides: multicast, jumbo frames, IGMP snooping and fast leave.
- Analog Audio Embedding — Provides an unbalanced analog audio port for embedding audio into the streaming signal.
- Bi–directional IR over IP — Control an IR device located on the decoder side from the encoder and vice versa.
- Bi–directional RS–232 over IP — Control a serial device located on the decoder side from the encoder and vice versa.
- Video Wall Support.
- Multiview Support.
- Easy, Cost–Effective Maintenance — LED indicators for main power, Tx/Rx mode setting, HDMI video source detection, and Tx and Rx transmission enable easy local maintenance and troubleshooting.
- Simple System Management — Remote system management support to enable quick and efficient remote system and device life–cycle management.
Brand:
Kramer
Part number:
59-001890
Product Type:
Zero Latency 4K HDR SDVoE Video Streaming Transceiver
Specifications
Audio Format:
HDMI, LPCM 2.0/5.1/7.1, Bitstream, HD Bitstream
Maximum Operating Temperature:
+45°C
Audio Analog Format:
Unbalanced
Special Features:
User Configured as Encoder or Decoder, Fully Standard and Compliant SDVoE Codec, Streaming Support-Multicast, Unicast, Powered by the Network (PoE), Video Wall and Multiview Support
Power Rating:
25W
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
Ethernet-RJ45, 4K/60 UHD (4:4:4)
HDCP Compliance Type:
2.2
Maximum Output Resolution:
4K@60Hz (4:4:4)
Frequency Rating:
60Hz
Inputs and Ports
Input Port Type:
1x10 GbE Ethernet, 1 1GbE Ethernet, 1 RS-232
Output Port Type:
HDMI, IR
Power
Current Rating:
3A
Dimensions
Width:
23.1cm
Depth:
11.6cm
Height:
2.5cm
Weight:
0.5kg
Other
Voltage Rating:
12V DC
Voltage Rating:
12V DC
