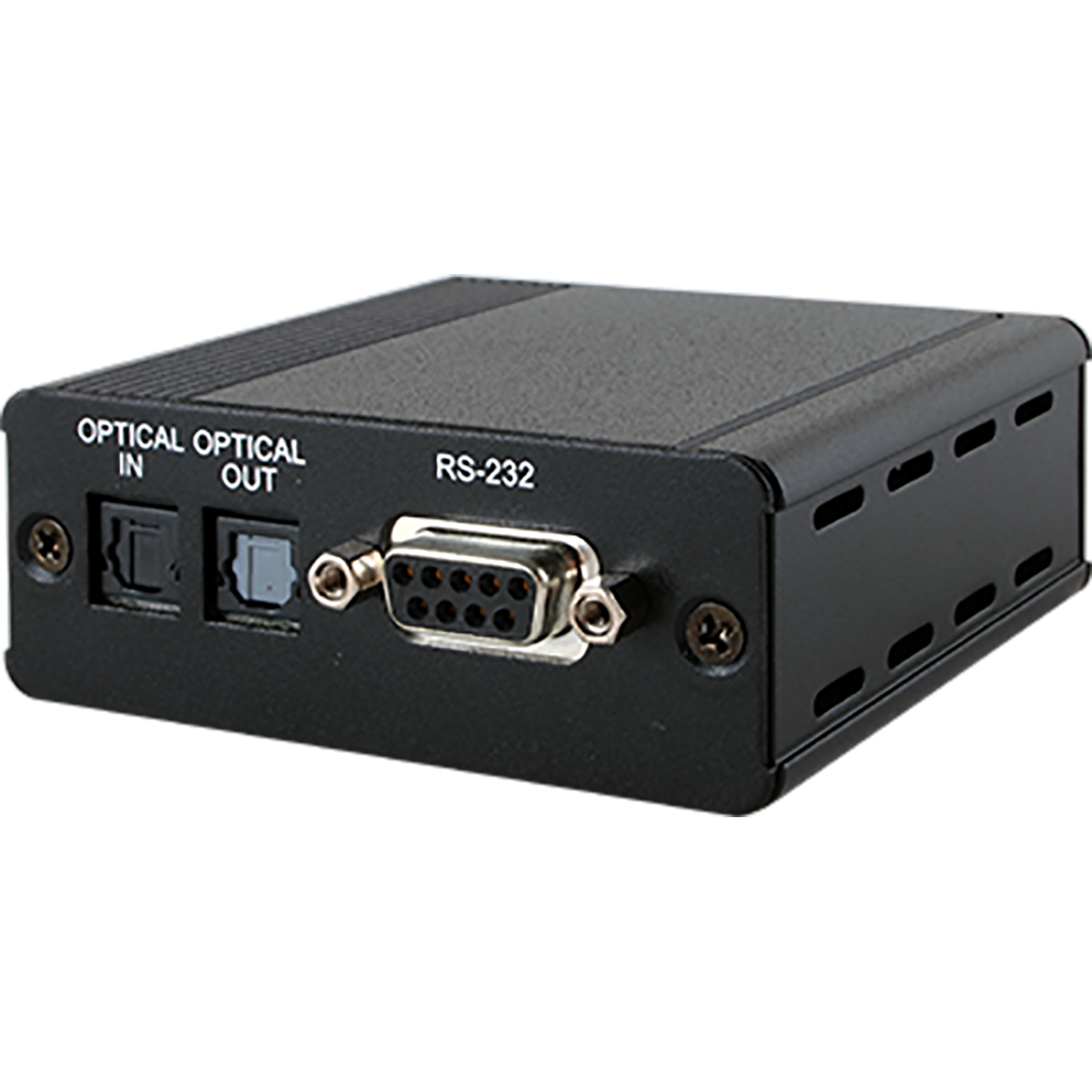

DCT-30TX Optical Digital Audio over CAT5e/6/7 Transmitter with RS-232 Control
Please sign in so that we can notify you about a reply
The Optical Digital Audio with RS-232 Transmitter and Receiver set can send and receive digital audio (S/PDIF) signals over a single run of CAT5e/6 cable up to 300m. It has the added benefit of RS-232 pass-through allowing control of devices and the bi-directional Power over Ethernet (PoE) function eliminates the need for a second power supply, providing greater flexibility in installations.
Features

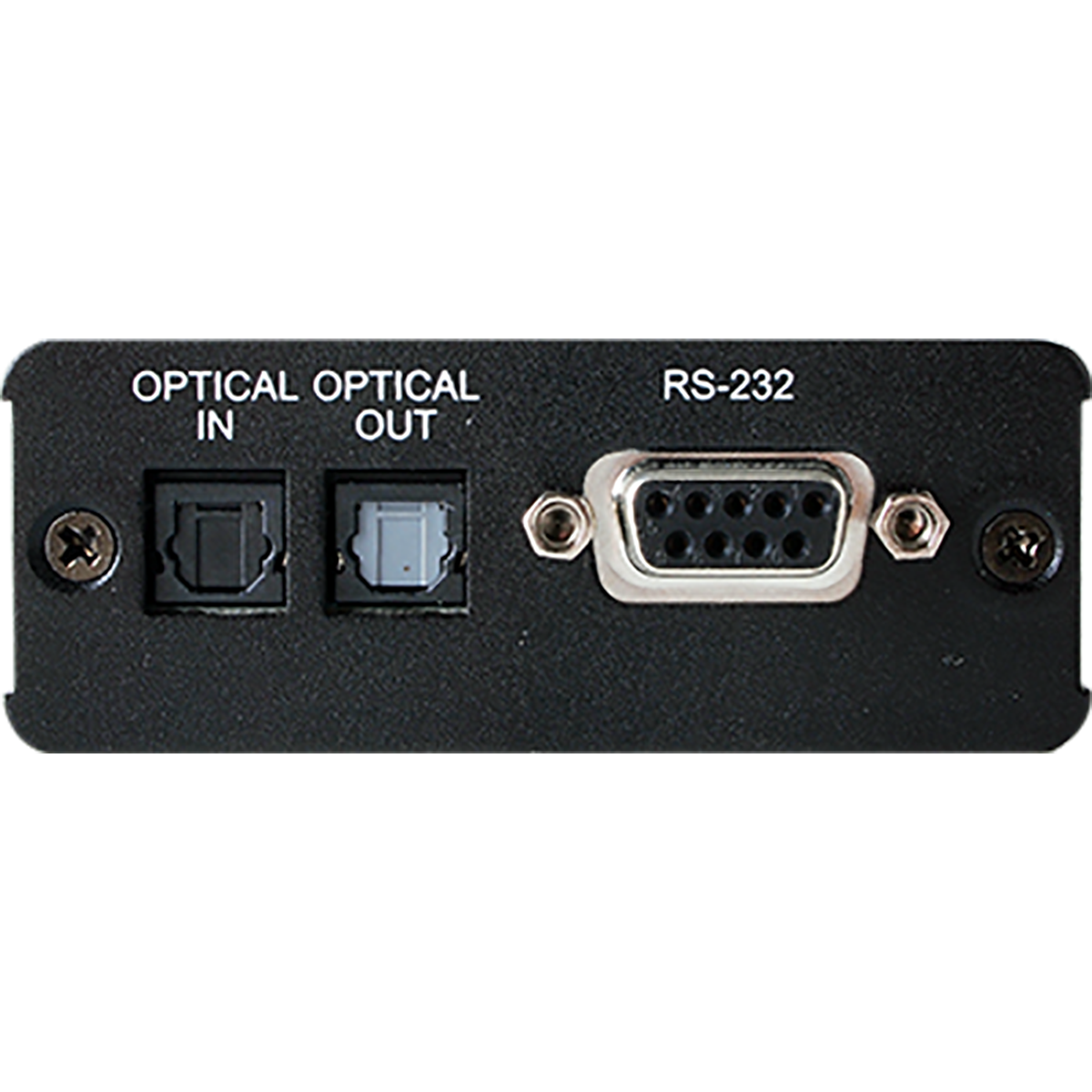

- Supports S/PDIF IN & OUT and RS-232 control
- Supports Optical S/PDIF audio sampling rate up to 192 kHz
- The S/PDIF with 192kHz sampling rate over a single CAT5e/6/7 cable up to 100m/328ft, 96kHz sampling rate the cable up to 150m/492ft and 48kHz sampling rate the cable up to 300m/984ft
- Supports LPCM 2CH,Dolby Digital 2~5.1CH, DTS 2~5.1CH (Pass through)
- Support Bi-direction Power over Cable (PoC)
- Bi-directional RS-232 control
Brand:
Cypress Technology
Product Type:
Optical and RS-232 Transmitter Operation
Specifications
Audio Format:
Analog Stereo 2CH
Maximum Operating Temperature:
+40°C
Colour:
Black
Audio Analog Format:
Unbalanced
Special Features:
Supports S/PDIF IN and OUT and RS-232 Control, Supports LPCM 2 CH,Dolby Digital 2 to 5.1CH, DTS 2 5.1CH (Pass Through), Support Bi-Direction Power Over Cable (PoC)
Power Rating:
0.85W
Chassis Material:
Metal
Applications:
Home Sound System Extension, Sharing and Meeting Room Audio System Sharing, Showroom Audio Extension, Airport Announcement System, Public Sound System Installation
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Signal-to-Noise Ratio:
95dB
Frequency Rating:
±3dBFS/VRMS
Crosstalk Level:
-88dB
Inputs and Ports
Input Port Type:
1xL/R (2-RCA), 1xRS-232
Output Port Type:

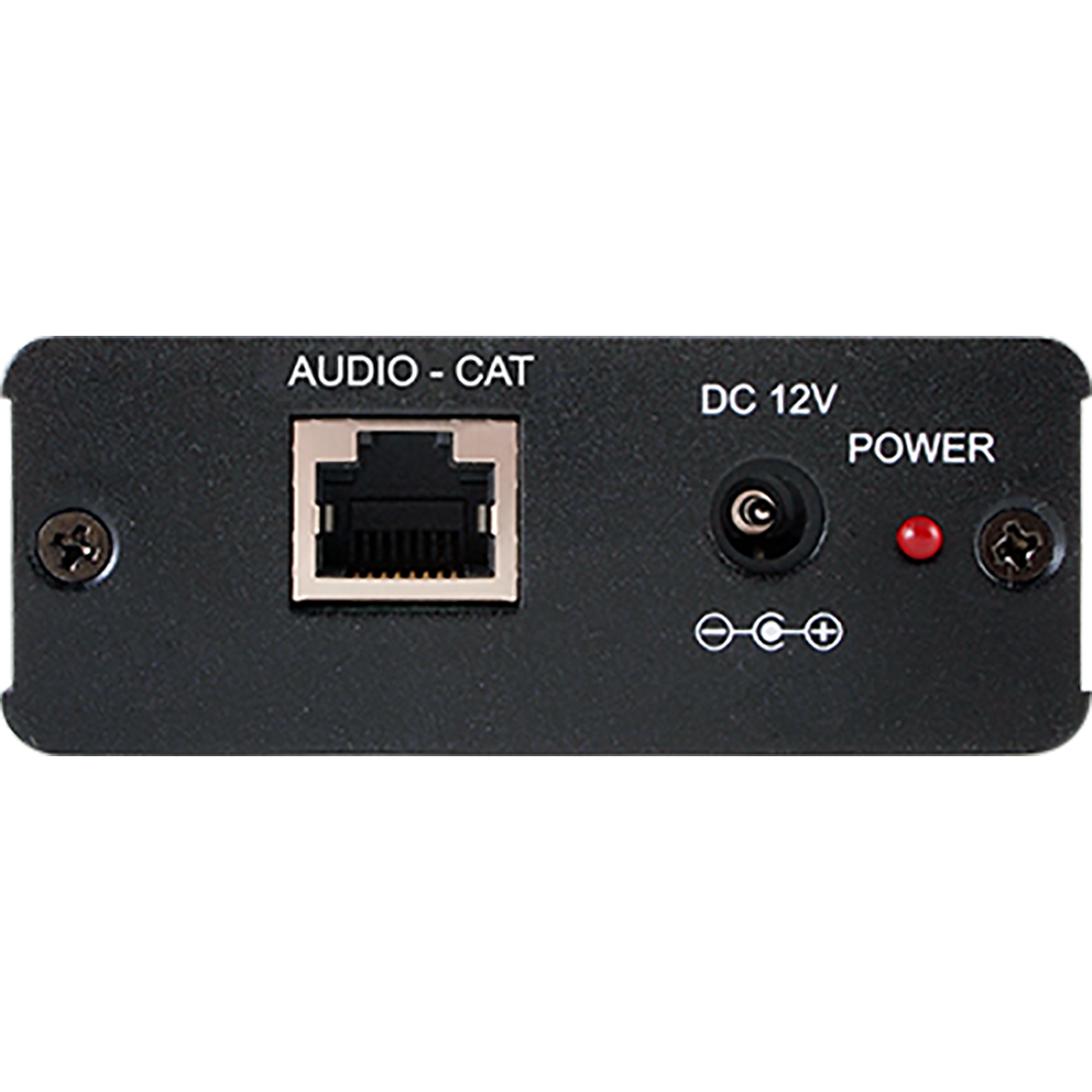

1xL/R (2-RCA), 1xAudio-CAT
Power
Current Rating:
1.25A
Dimensions
Width:
10.2cm
Depth:
11.cm
Height:
2.5cm
Weight:
242g
Other
Voltage Rating:
12V DC
Voltage Rating:
12V DC
