CH-V501TR 4K UHD+ HDMI over IP Transmitter/Receiver

Write a review
CH-V501TR
Cypress Technology
Log in to see price Add to wish list Add to Project

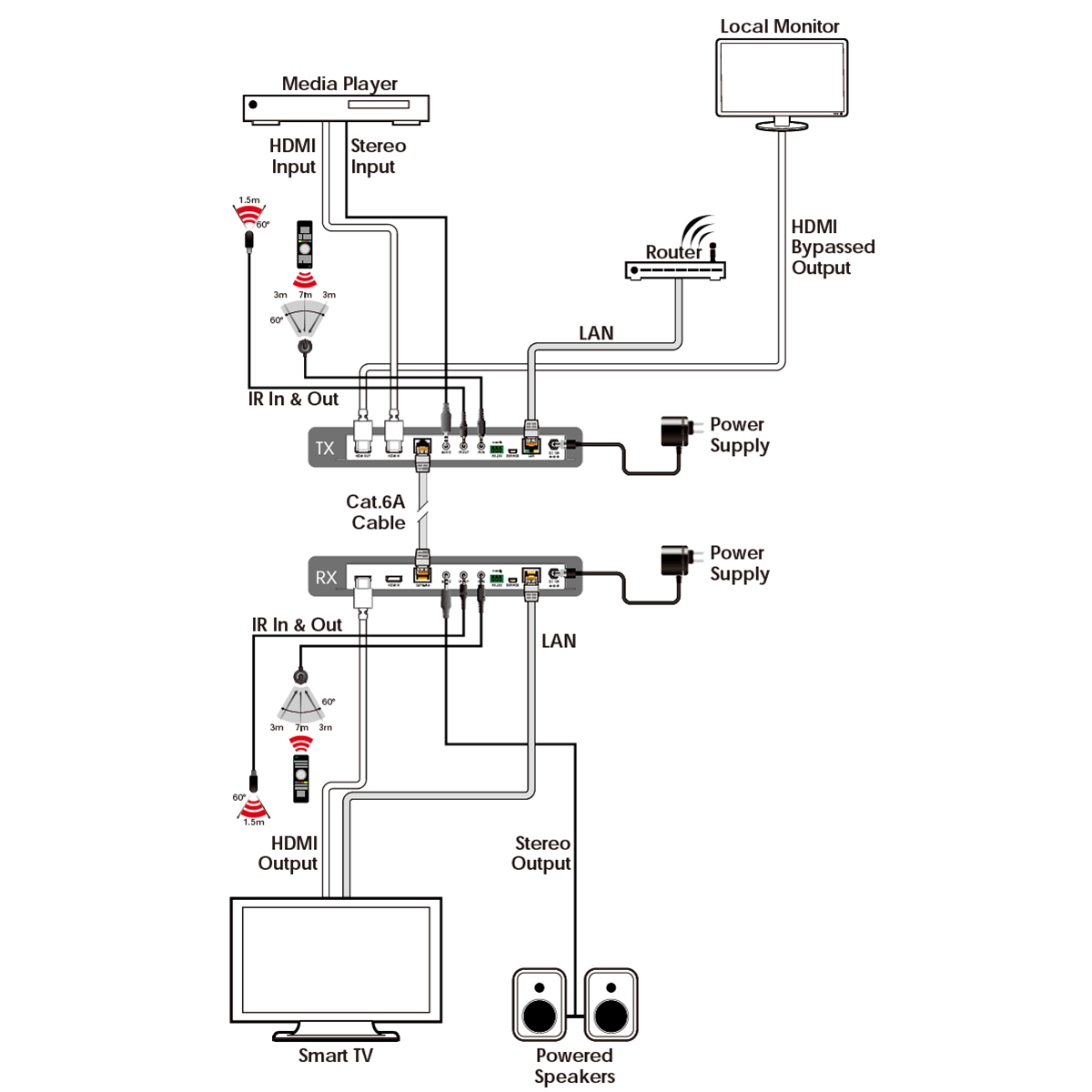

This Transceiver is designed for high-quality, IP routable, AV extension with zero latency. Each single Transceiver can be confi gured as either a Transmitter or a Receiver depends the requirement of installation facility. The 4K@60 high quality video with HDR 10 bits and multi-channel HD Bitstream audio are able to transmit in pass through mode over Cat.6A up to 100m extension.

Features

  • Visually lossless compression with zero latency
  • Video wall and multi viewer supported (requires optional control center/ software)
  • Independent breakaway A/V matrix switching (requires optional control center/software)
  • Pass-through of 10/12-bit HDR sources (Point-to-point and Genlock modes only)
  • Pass-through of audio formats including LPCM (up to 8 channels), Bitstream and HD Bitstream from HDMI sources
  • Analog stereo audio extension, insertion and extraction (insertion and extraction requires optional control center/software)
  • Unit can be powered directly by PoE (802.3at) when connected to a 10-Gigabit Ethernet
  • Supports the use of an external control center or control software to provide expanded functionality (Contact your authorized dealer for more information)
Brand:
Cypress Technology
Product Type:
HDMI Over IP Transceiver
Specifications
Audio Format:
LPCM, Bitstream, HD Bitstream
Maximum Operating Temperature:
+40°C
Colour:
Black
Audio Analog Format:
Unbalanced
Service Port Type:
1xUSB (Mini-B)
Special Features:
Visually Lossless Compression with Zero Latency, Video Wall and Multi Viewer Supported (Requires Optional Control Centre/ Software), Independent Breakaway A/V Matrix Switching (Requires Optional Control Center/Software), Analog Stereo Audio Extension, Ins
Power Rating:
30W
Chassis Material:
Steel
Applications:
Video/Audio/LAN/IR and RS-232 Over Ethernet Extension, Hotel or Convention Centre Display, Multi-Monitor Broadcast, Long Distance Data and Video Transmission Immune to RF Interference, Distributed Video Matrix System, Distributed Video Wall System
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.x
Maximum Input Resolution:
4096x2160pixels@60Hz, 2560x1600pixels@60HzRB (HDMI), 4096x2160pixels@60Hz, 2560x1600pixels@60HzRB (Ethernet)
Maximum Output Resolution:
4096x2160pixels@60Hz, 2560x1600pixels@60HzRB (HDMI), 4096x2160pixels@60Hz, 2560x1600pixels@60HzRB (Ethernet)
Output Signal Type:
4096x2160pixels@60Hz 12bit YUV 4:2:0
Signal-to-Noise Ratio:
80dB
Frequency Rating:
<±0.5dB (20Hz to 20kHz)
Crosstalk Level:
<-80dB (10kHz/Vin=0dBFS)

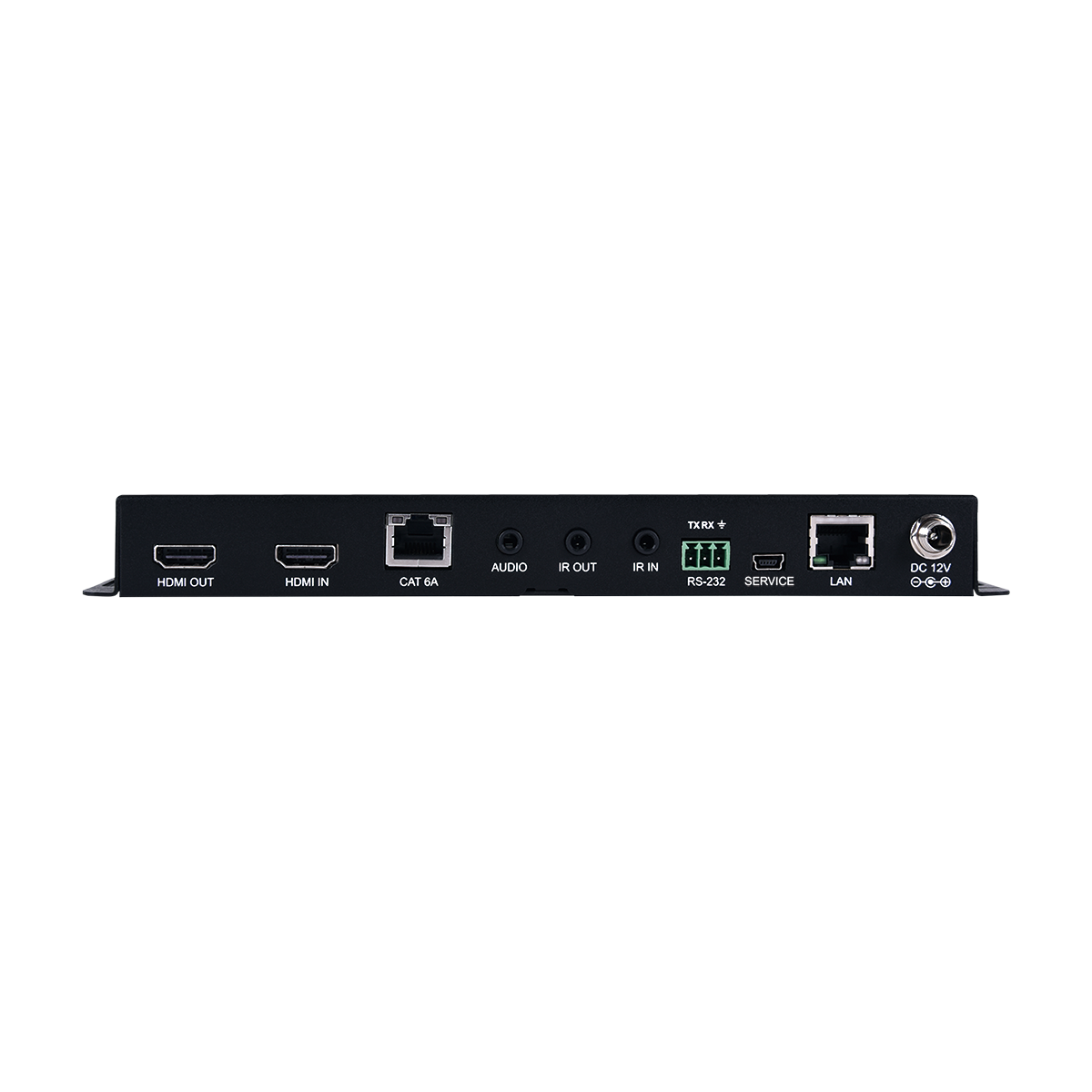

Inputs and Ports
Bi-Directional Port:
1 10GbE LAN (RJ45)
Input Port Type:
HDMI-Type A
Output Port Type:
HDMI-Type A
Input Signal Type:
4096x2160p@60Hz 12bits YUV 4:2:0
Pass-Through Port:
1xAnalog Stereo (3.5mm), 1xIR Blaster (3.5mm), 1xIR Extender (3.5mm), 1xRS-232 (3-Pin Terminal Block)
Power
Current Rating:
3A
Dimensions
Width:
23.15cm
Depth:
11.6cm
Height:
2.5cm
Weight:
552g
Other
Voltage Rating:
12V DC
Voltage Rating:
12V DC
Standards Met:
US, EU, CE, FCC Compliance, UL Listed
