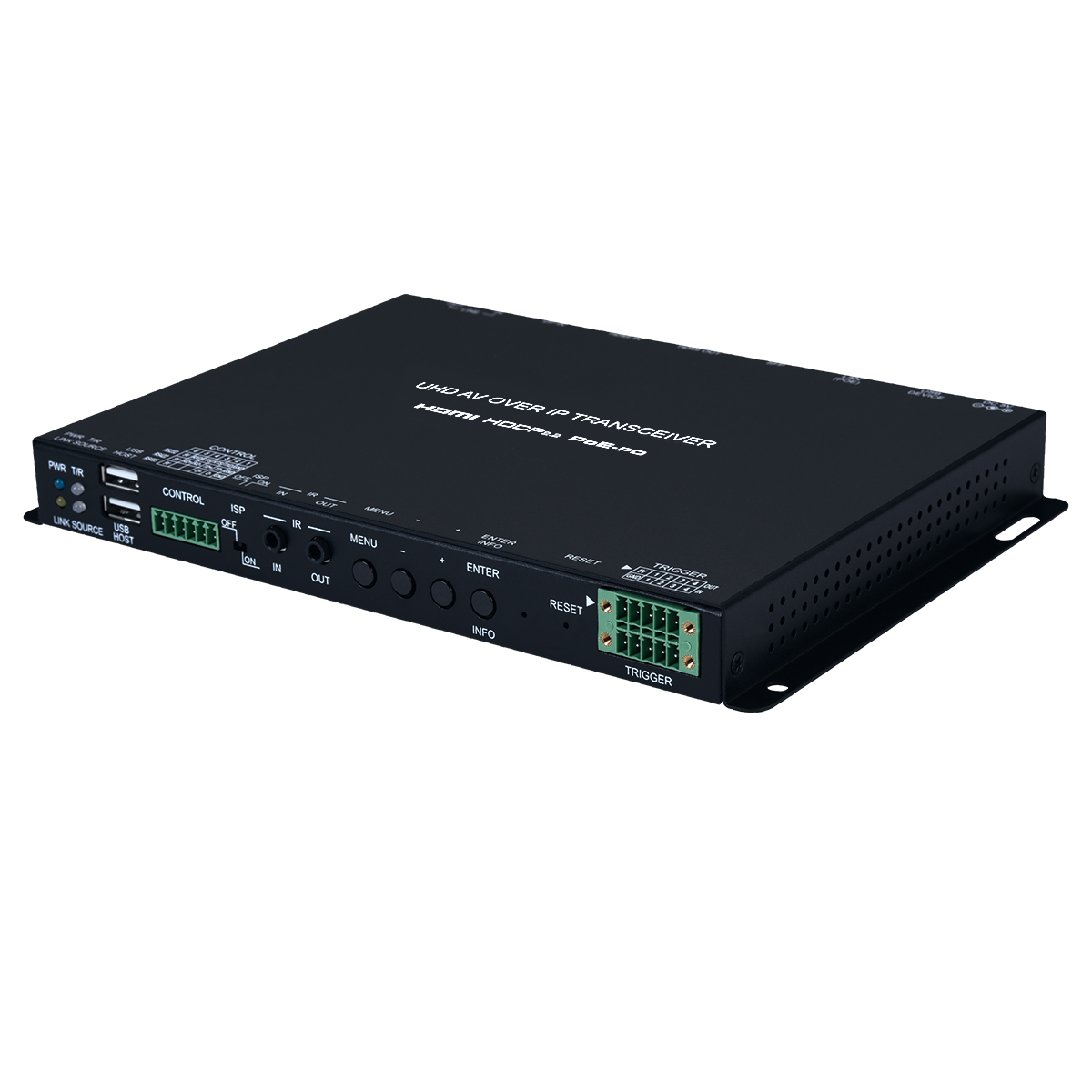

CH-U331TR UHD AV over IP Transceiver
Please sign in so that we can notify you about a reply

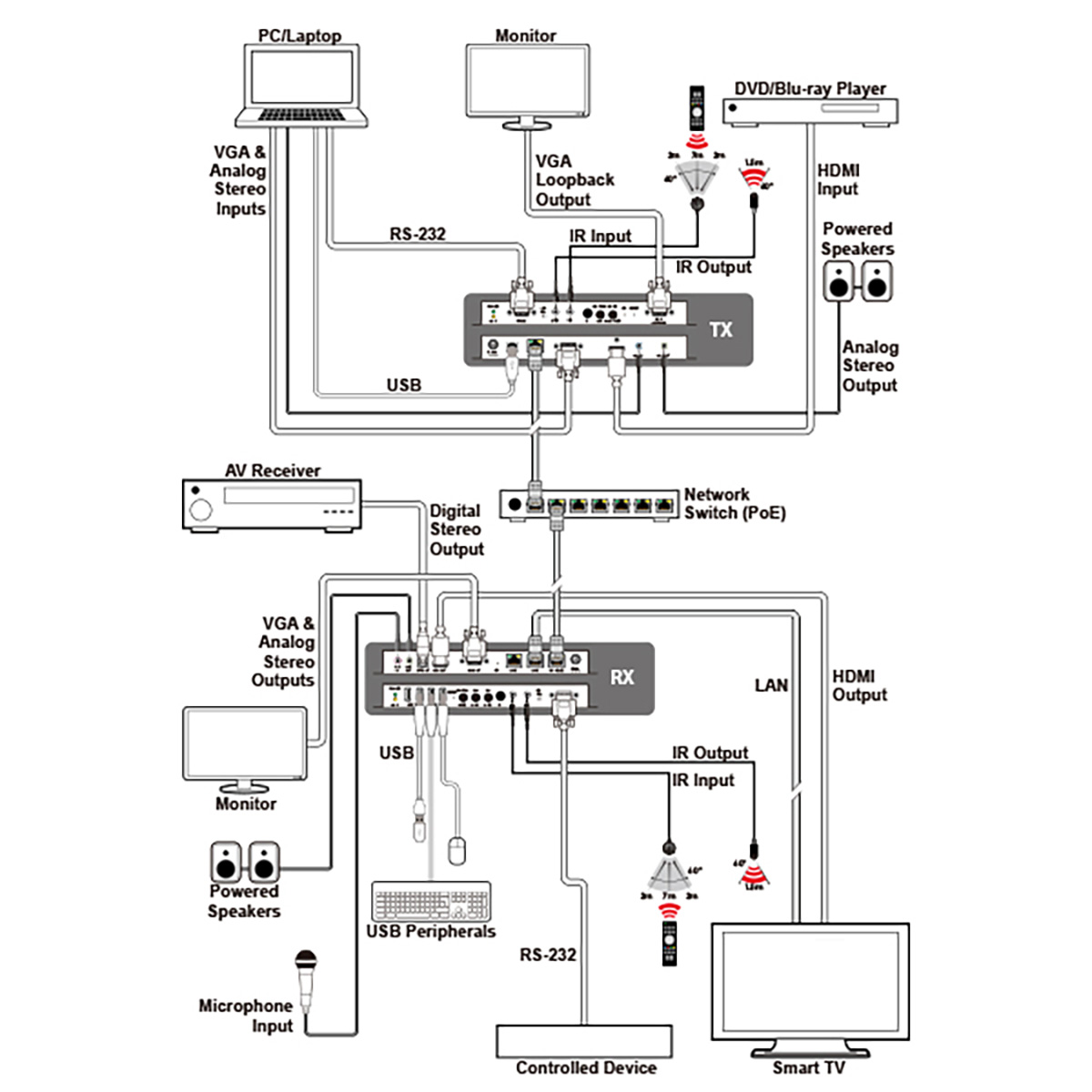

The Dual-Format 4K UHD AV over IP Transceiver are innovation design of integrate Transmitter and Receiver into one unit;user could able to switch unit into Transmitter or receiver by the needs. The Transceiver supports the transmission of Ultra High-Definition signals (up to 4K@30Hz, 4:4:4 or 4K@60Hz, 4:2:0) with audio and USB up to 100 meters on a single cable. The transmission distance can be further extended (up to 100 meters per segment) by using gigabit network switches, or using SFP fi ber cable to extend (up to 550m~2km, depends on the Fiber module that been used), allowing the user to cascade the system without signal loss or introducing delay. It is also possible to have the Transmitter operate in multicast mode, allowing you to send a single AV signal to a large number of Receivers within the same local network.
Features
- Video, audio, and control transmission over TCP/IP in Unicast(point-topoint) or Multicast (single-to-many, many-to-many) modes
- The analog Line In sends audio directly to the analog Line Out and is inserted into the HDMI output
- Unit may powered directly by PoE when connected to a Gigabit Ethernet switch that provides PoE (802.3af)
- Supports USB keyboard, mouse and storage extension

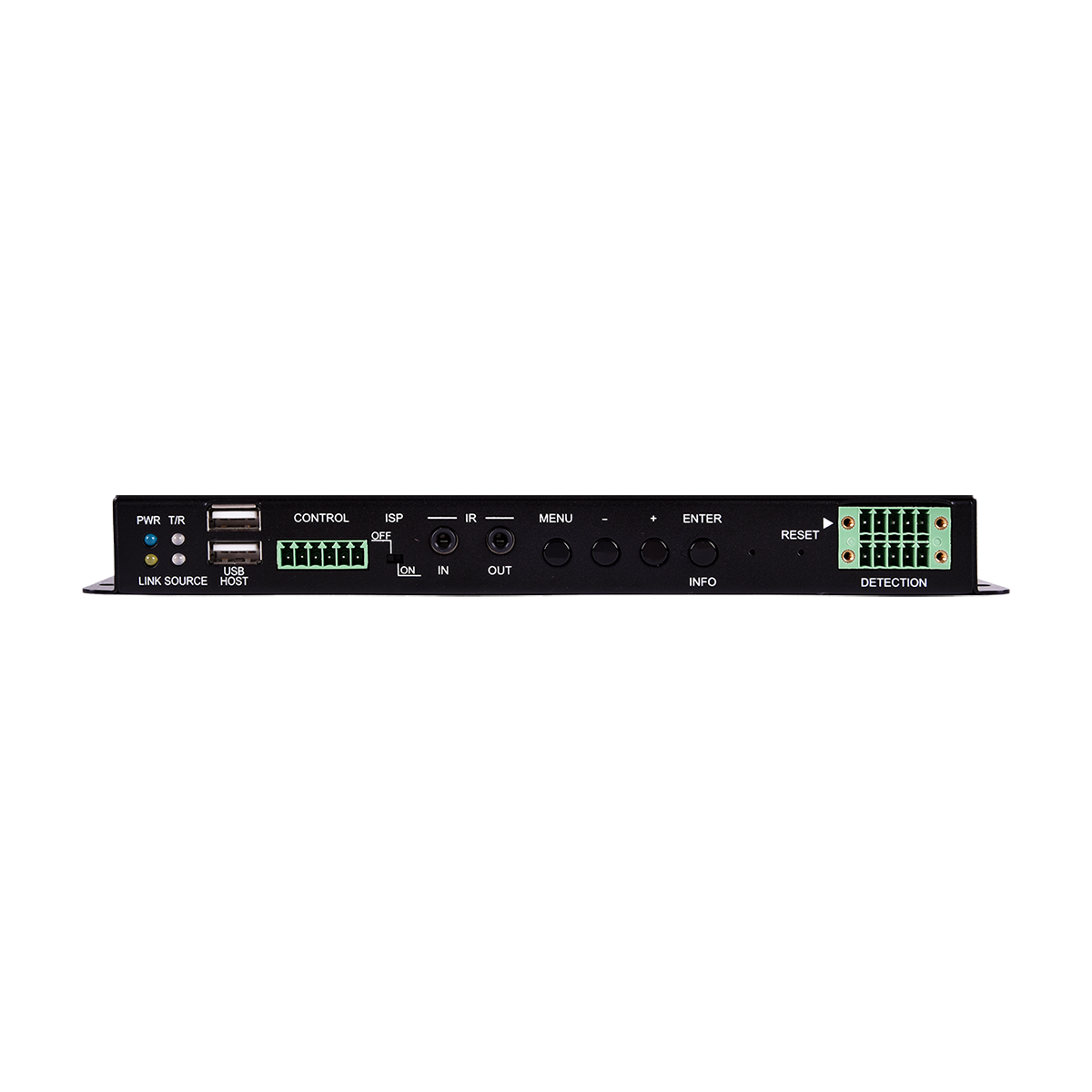

- Device has an info OSD and can be controlled via WebGUI, Telnet, and front panel controls
- Depends on different site scenario to configure as Transmitter or Receiver and easy maintain the stock and spare unit
Brand:
Cypress Technology
Product Type:
UHD AV Over IP Transceiver
Specifications
Audio Format:
LPCM, Bitstream
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
The Analog Line in Sends Audio Directly to the Analog Line Out and is Inserted into the HDMI Output, Unit may Powered Directly by PoE When Connected to a Gigabit Ethernet Switch that Provides PoE (802.3af), Supports USB Keyboard, Mouse and Storage Extensi
Power Rating:
18.92W
Chassis Material:
Steel
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.x
Maximum Input Resolution:
4K@60Hz (4:2:0,8bits) or 4K@30Hz (4:4:4, 8bits)
Maximum Output Resolution:
4K@30Hz (RGB, 8bits)
Output Signal Type:
4K@60Hz (Tx)
Signal-to-Noise Ratio:
80dB
Frequency Rating:
30kHz to 50kHz

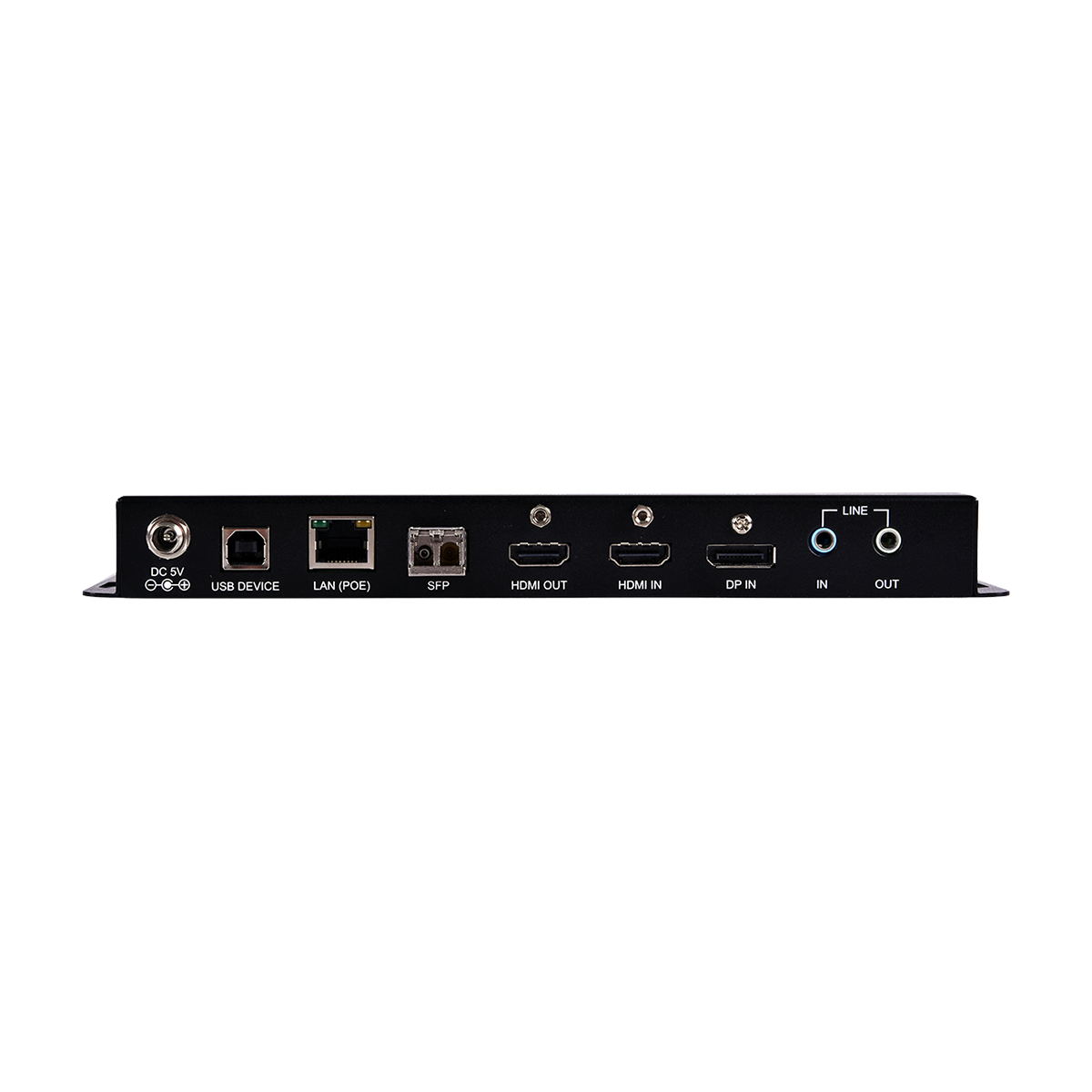

Inputs and Ports
Bi-Directional Port:
1 SFP 1 CAT.5e/6/7 (LAN)
Input Port Type:
1xHDMI-Type A, 1xDisplay Port, 1xUnbalanced 3.5mm Stereo Audio
Output Port Type:
1xHDMI-Type A, 1xUnbalanced 3.5mm Stereo
Input Signal Type:
4096x2160p@60Hz 12bits YUV 4:2:0
Pass-Through Port:
1xIR 3.5mm Extender, 1xIR 3.5mm Blaster, 2xUSB 2.0 Type A, 1xUSB 2.0 Type B, 8xTrigger (10-Pin Terminal Block)
Power
Current Rating:
4A
Dimensions
Width:
23.15cm
Depth:
16.7cm
Height:
2.5cm
Weight:
929g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
US, EU, CE, FCC Compliance, UL Listed
