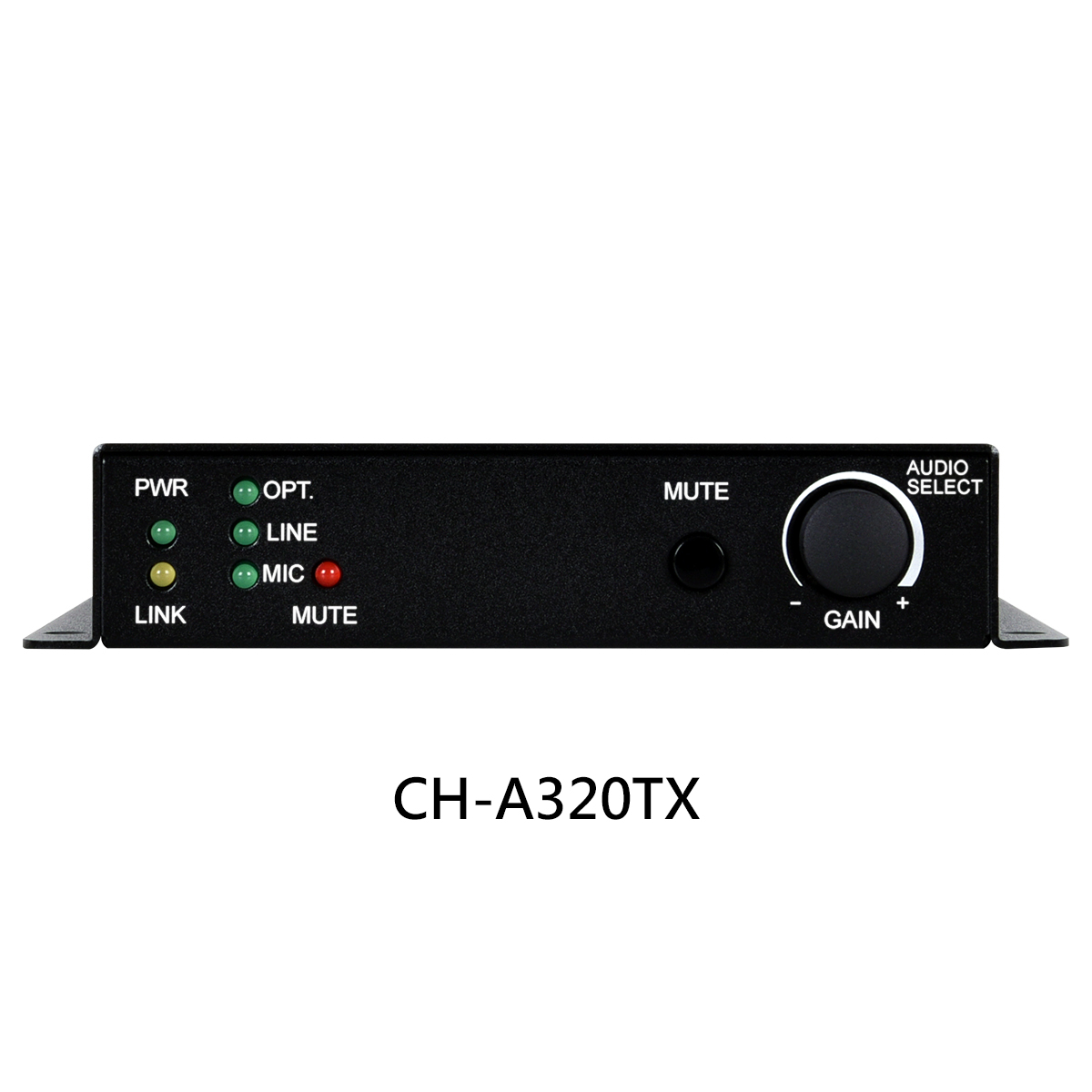

CH-A320TX Audio over IP Transmitter
Please sign in so that we can notify you about a reply

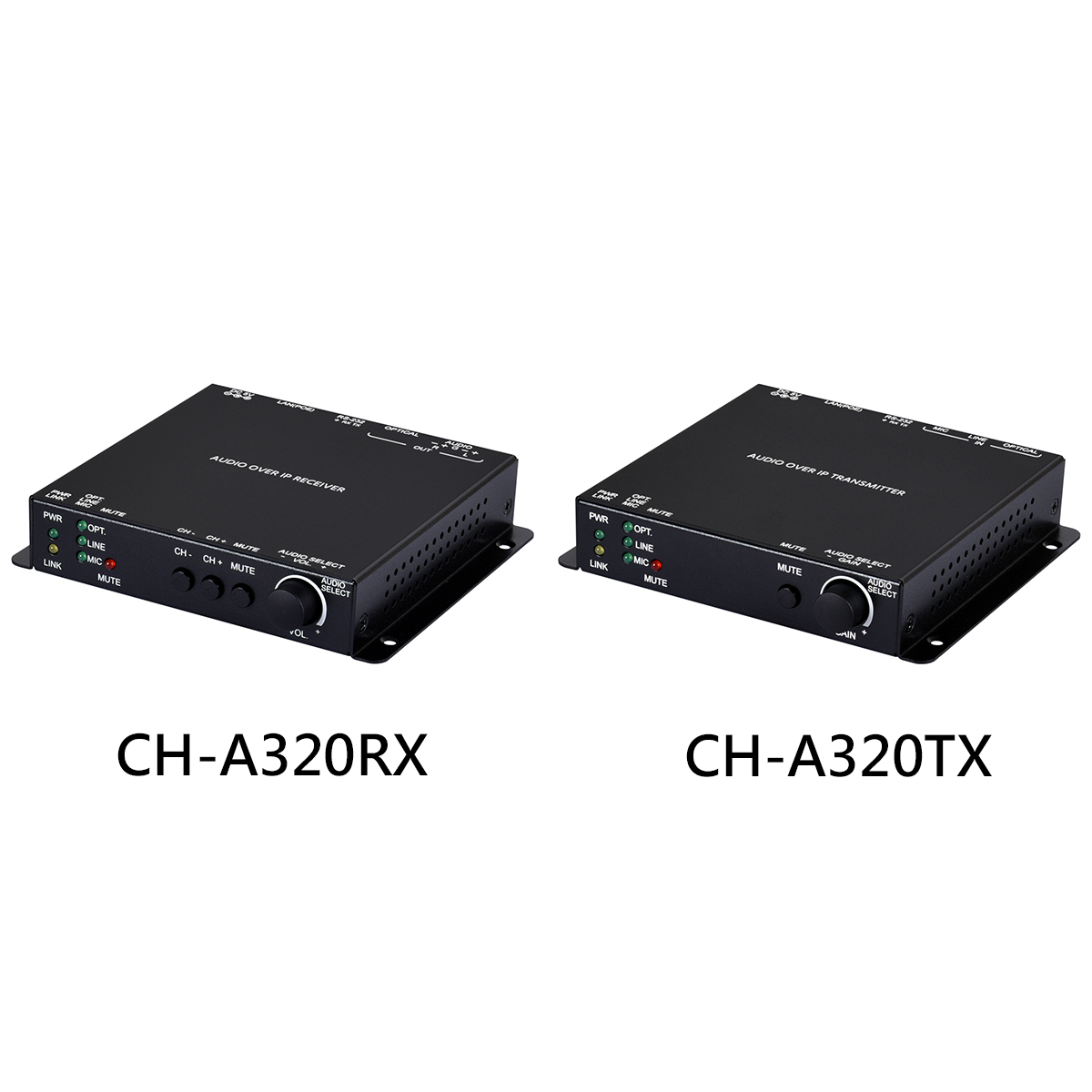

The advantage of Audio over IP is that it can flexibly route and use cost effective CAT cable. This greatly reduces the cost of wiring and improves convenience. CH-A320TX and CH-A320RX take the advantage of Audio over IP and provide fl exibility for installation. These products specify the system to implement Analog (Line in and Mic in) and Digital (S/PDIF and TOSLINK®) over IP, allows you with help of CDPS-CS7S AV over IP master controller to easily extend the connection between an audio source and an audio playback device via a Local Area Network.
Features
- Extend analog and digital audio over an IP network with 100m (330ft) of CAT 5/6 cable between TX/RX and network switch
- Compatible with CDPS-CS7 Controller to allow creation of video matrix switch using multiple Video-Over-IP Extender products. In order to achieve this, require commands to integrate with CDPS-CS7 discovery and robust TCP/UDP command set
- IP to RS-232 bridging feature will allow users to control serial equipped devices using IP enabled control interfaces
- The CDPS-CS7 Software integration for device discovery, confi guration, monitoring, and fi rmware upgrading. CDPS-CS7 has to control the unit via web interface
- Field-updatable fi rmware. (Note: Power cannot be removed during bootloader updating)
Brand:
Cypress Technology
Specifications
Product Type:
Audio Over IP Transmitter and Receiver
Audio Format:
LPCM, Bitstream
Maximum Operating Temperature:
+40°C
Colour:
Black
Special Features:
Extend Analog and Digital Audio Over an IP Network with 100m (330ft) of CAT 5/6 Cable Between TX/RX and Network Switch, IP to RS-232 Bridging Feature will Allow Users to Control Serial Equipped Devices Using IP Enabled Control Interfaces, The CDPS-CS7 Sof
Power Rating:
2.27W
Chassis Material:
Steel
Applications:
Home Theatres, Classroom, Lecture Halls
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
Signal-to-Noise Ratio:
98dB (Line In), 82dB (Mic In)

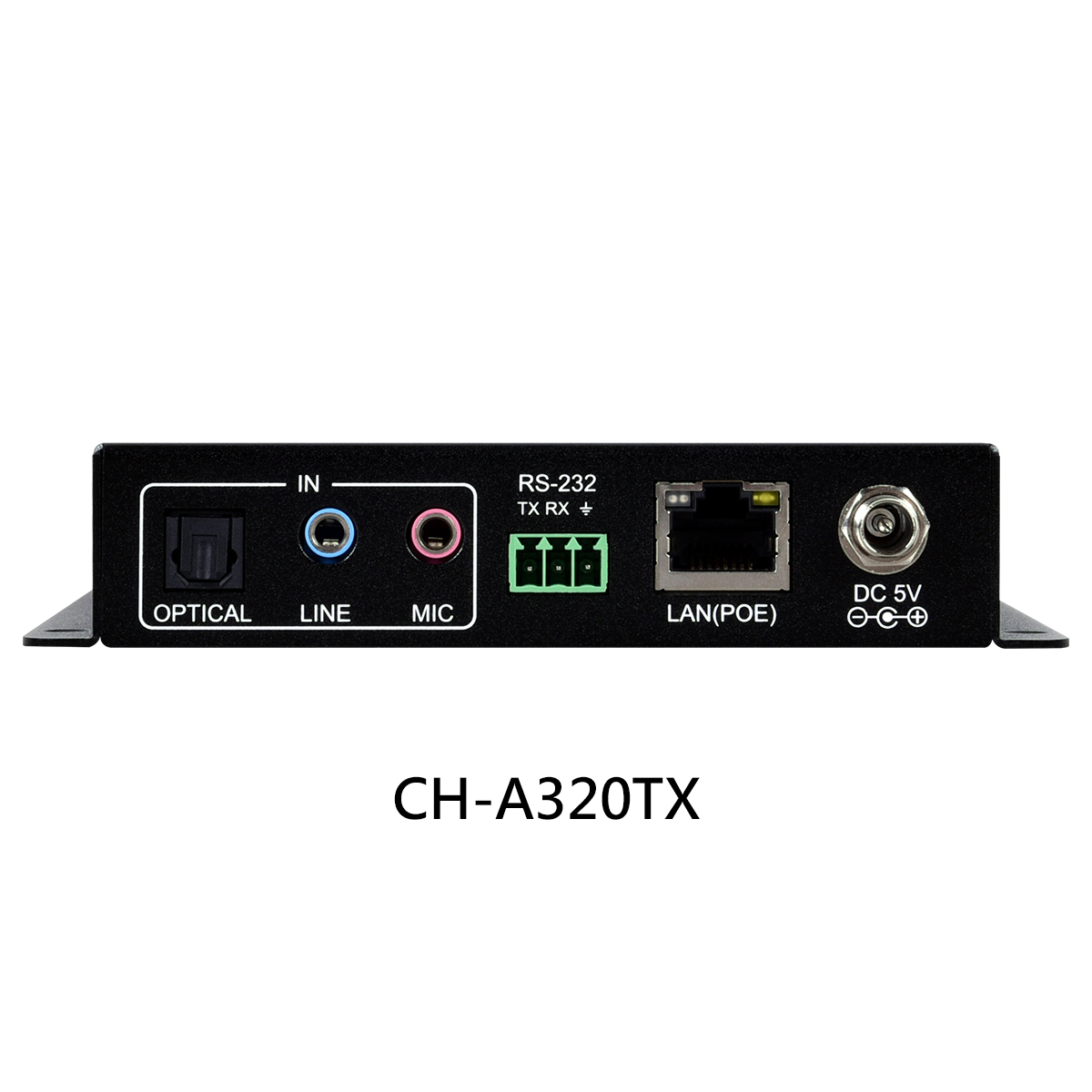

Inputs and Ports
Bi-Directional Port:
1 GbE LAN (RJ45)
Input Port Type:
1xOptical, 1x3.5mm Line, 1x3.5mm Mic
Output Port Type:
1xOptical, 1xAnalog Audio (5-Pin Terminal Block)
Pass-Through Port:
1xRS-232 (3-Pin Terminal Block)
Power
Current Rating:
2.6A
Dimensions
Width:
10.8cm
Depth:
11.6cm
Height:
2.5cm
Weight:
671g
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
US, EU, CE, FCC Compliance, UL Listed
