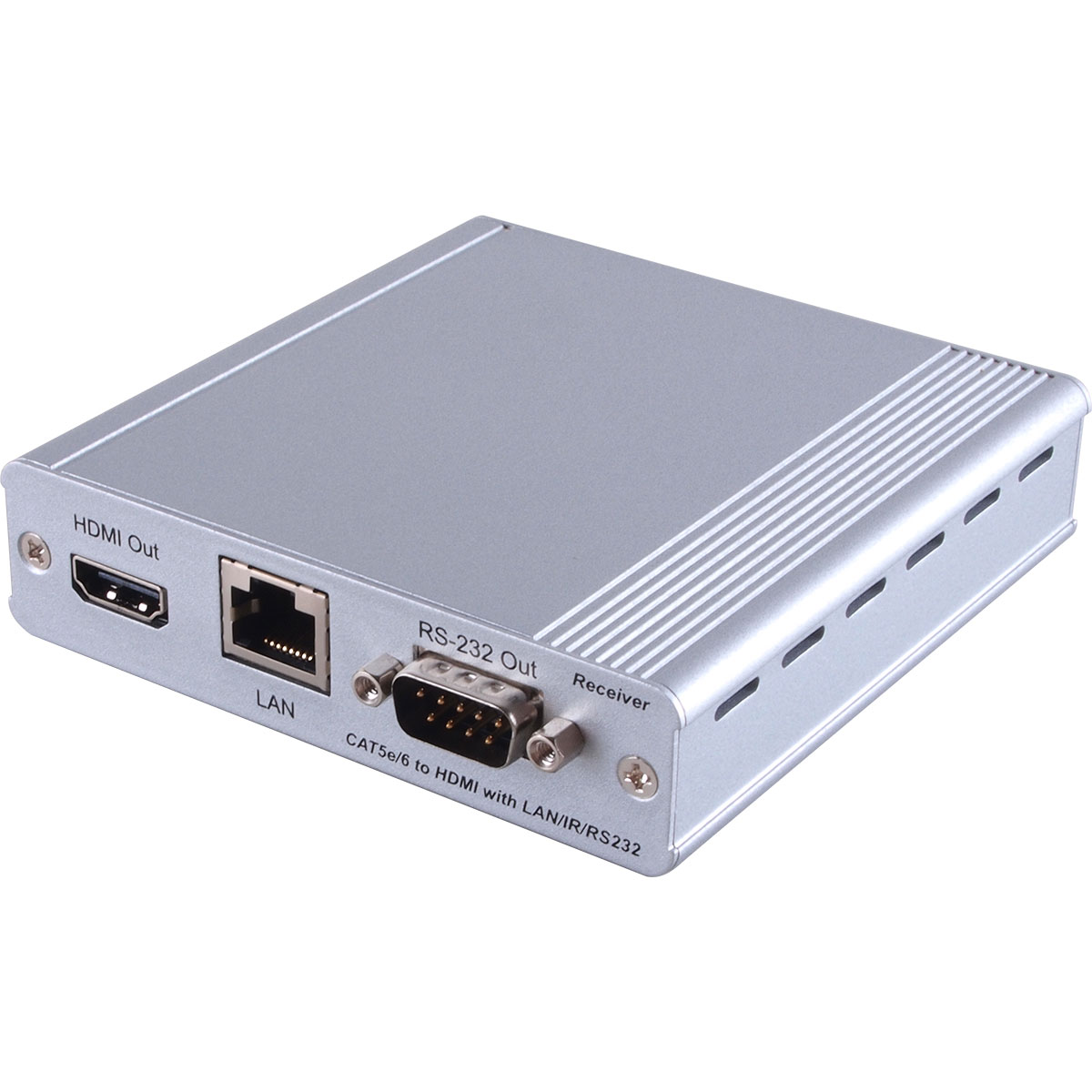

CH-507RXBD CAT5e/6 to HDMI with LAN/IR/RS-232
Please sign in so that we can notify you about a reply
The HDMI over CAT5e/6/7 Transmitter and Receiver set can send uncompressed video/audio and IP data over an single run of CAT5e/6/7 cable up to 100m/328ft at 1080p and 70m/229ft at 4K. It has the added benefi t of control through the built-in RS-232 pass-through and 2-way IR control and a LAN serving connection. Additionally, it has bi-directional Power over Cable (PoC) functionality that allows for greater fl exibility in installations.
Features
- RS-232 with baud rate up to 115200/sec
- Supports wide range of IR frequency from 30~50kHz
- Supports HDMI 3D and 4K x 2K features
- Supports HDCP repeater and CEC bypass
- Supports distance up to 100m/328ft at 1080p and 70m/229ft at 4K through CAT5e/6/7 cable
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI
- HDBaseT™ convergence: uncompressed high-defi nition Video and Audio, LAN serving, Bi-directionlal Power over Cable (PoC) and IR/RS-232 Control pass-through
Brand:
Cypress Technology
Product Type:
HDMI Over CAT5e/6/7 Transmitter and Receiver
Specifications
Audio Format:
LPCM, Bitstream, HD Bitstream
Maximum Operating Temperature:
+40°C
Colour:
White
Special Features:
Supports HDMI 3D and 4Kx2K Features, Supports HDCP Repeater and CEC bypass, Supports Distance Up to 100m/328ft at 1080p and 70m/229ft at 4K Through CAT5e/6/7 Cable, HDBaseT™ Convergence: uncompressed high-Definition Video and Audio, LAN serving, Bi-Dire
Power Rating:
13W
Chassis Material:
Aluminium
Applications:
Household Entertainment Sharing and Control, Lecture Room Display and Control, Showroom Display and Control, Meeting Room Presentation and Control, Classroom Display and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.x
Maximum Input Resolution:
4096x2160pixels@60Hz YUV 4:2:0
Maximum Output Resolution:
4096x2160pixels@60Hz YUV 4:2:0, 4096x2160pixels@30Hz YUV 4:2:0
Output Signal Type:
4K@60Hz YUV 4:2:0
Frequency Rating:
30kHz to 50kHz
Inputs and Ports
Input Port Type:

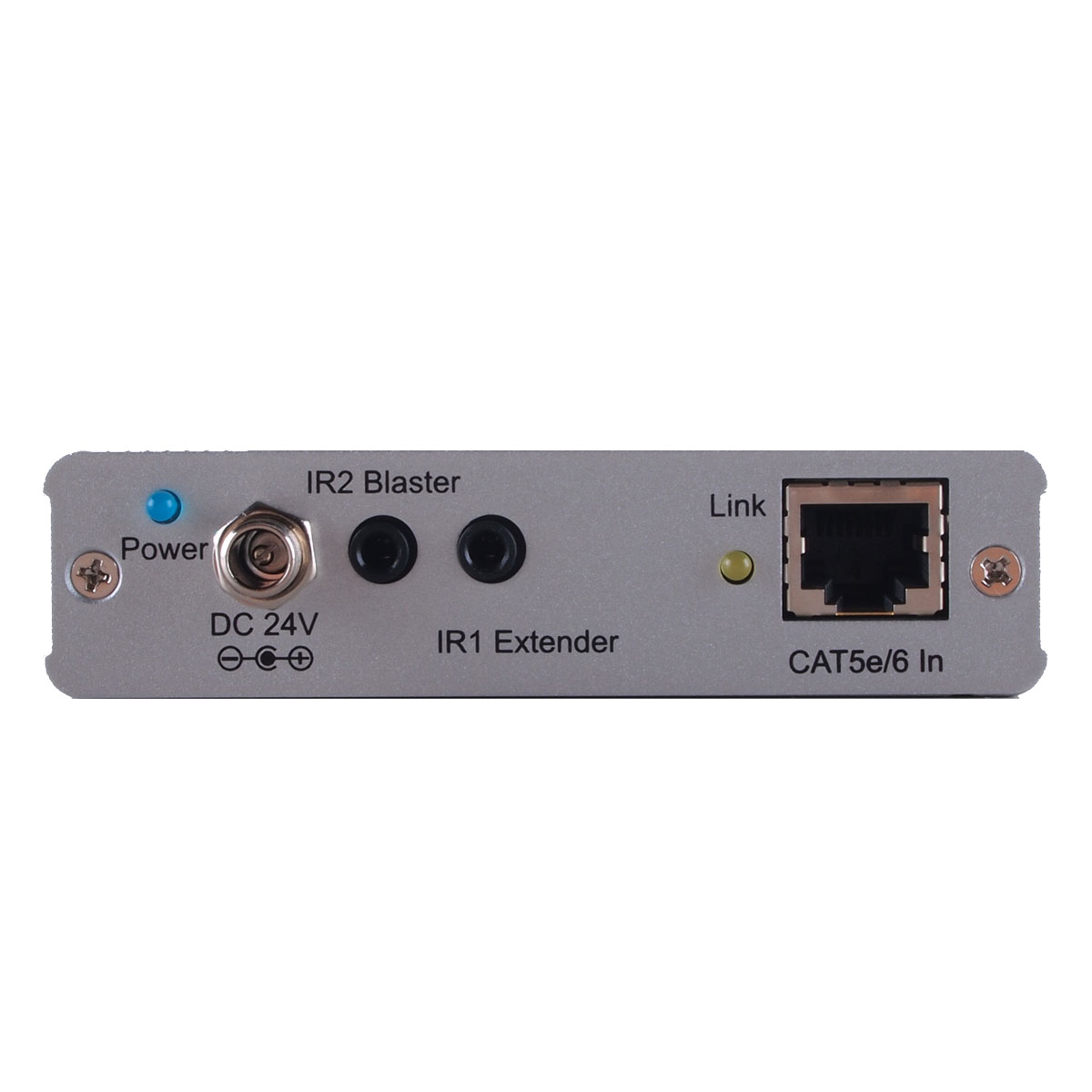

HDBaseT (RJ45), IR Extender (3.5mm)
Output Port Type:

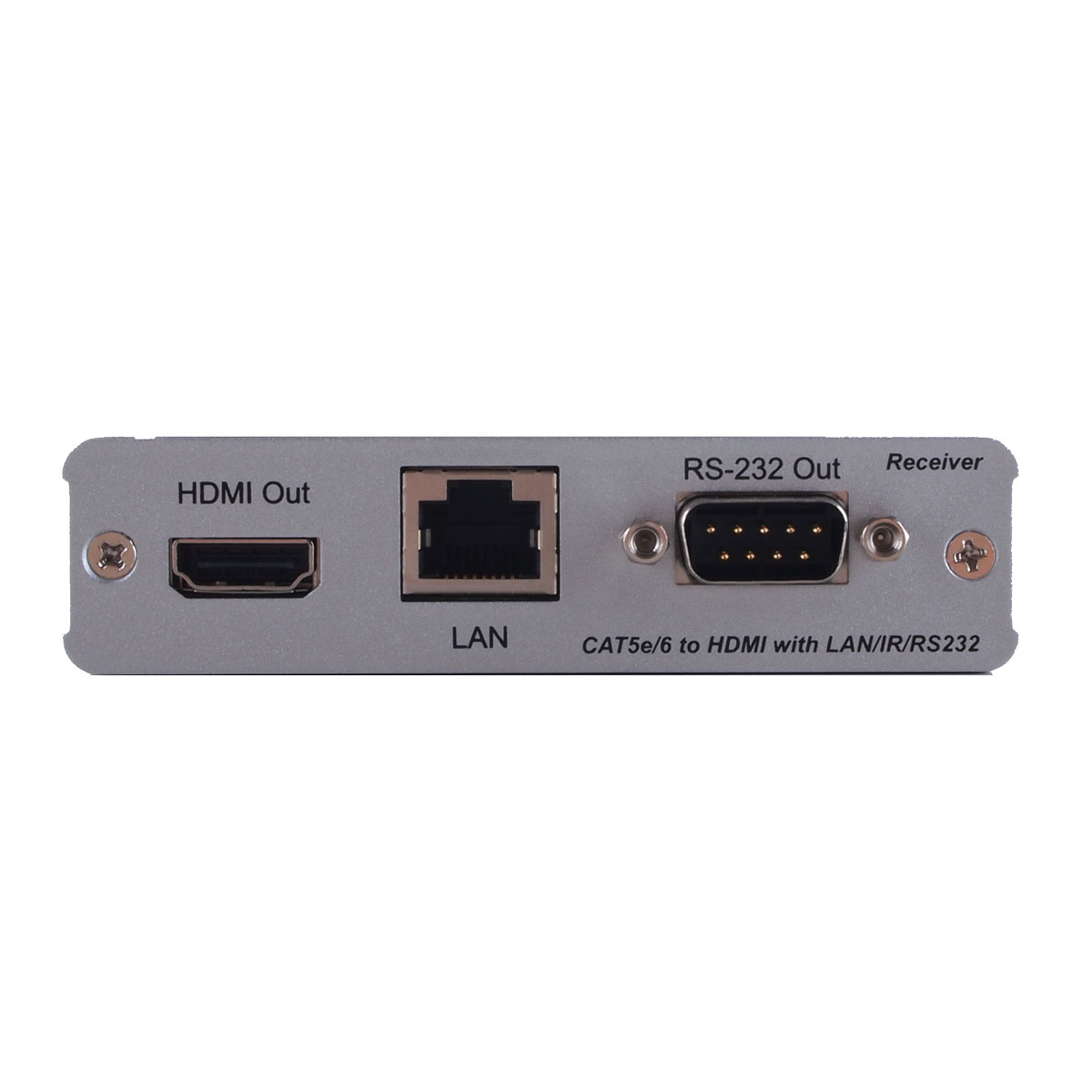

HDMI-Type A, LAN (RJ45), RS-232 (DE-9), IR 3.5mm Blaster
Input Signal Type:
4K@60Hz YUV 4:2:0
Power
Current Rating:
1.25A
Dimensions
Width:
10.2cm
Depth:
11.3cm
Height:
2.5cm
Weight:
252g
Other
Voltage Rating:
24V DC
Voltage Rating:
24V DC
Standards Met:
US, EU, CE, FCC Compliance, UL Listed
