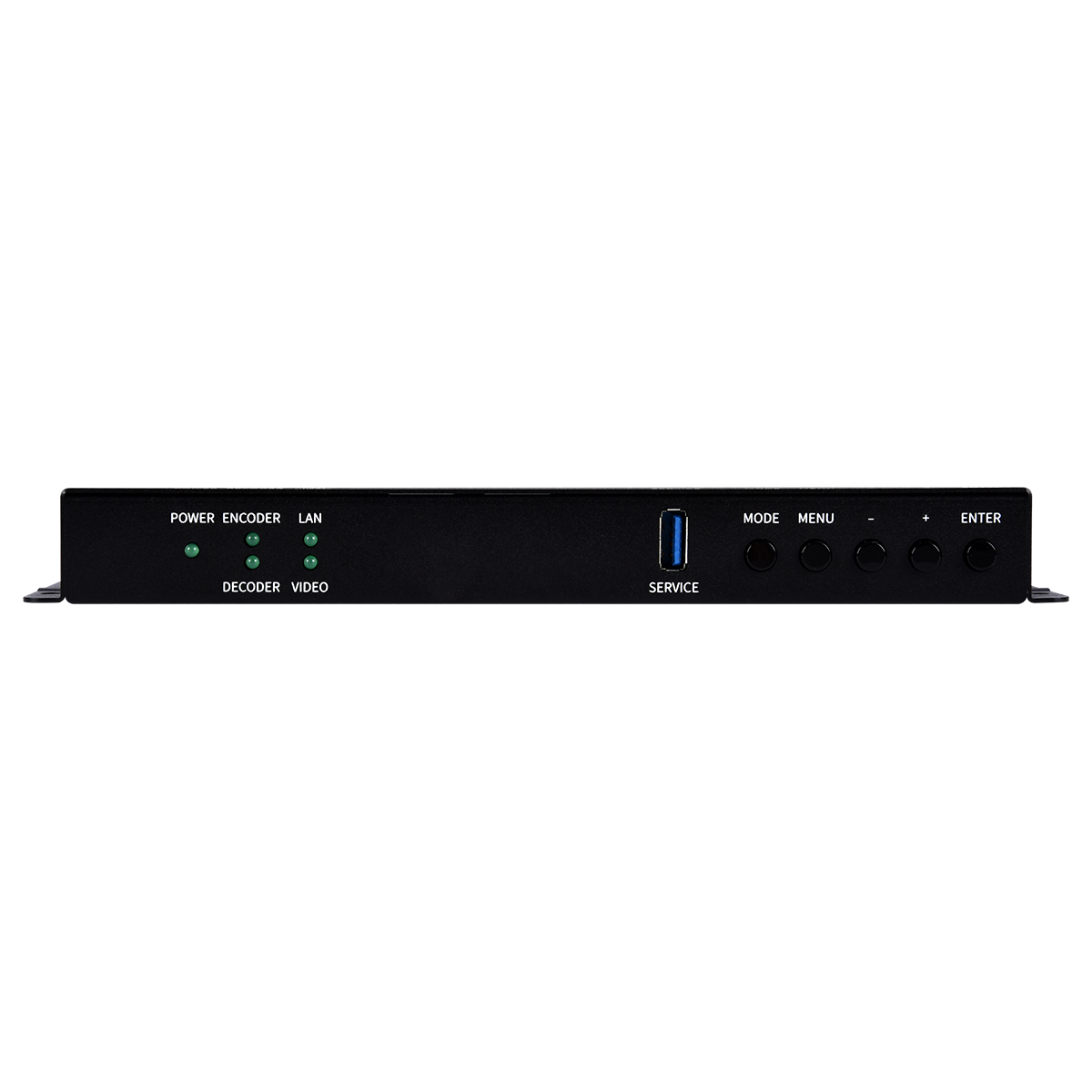

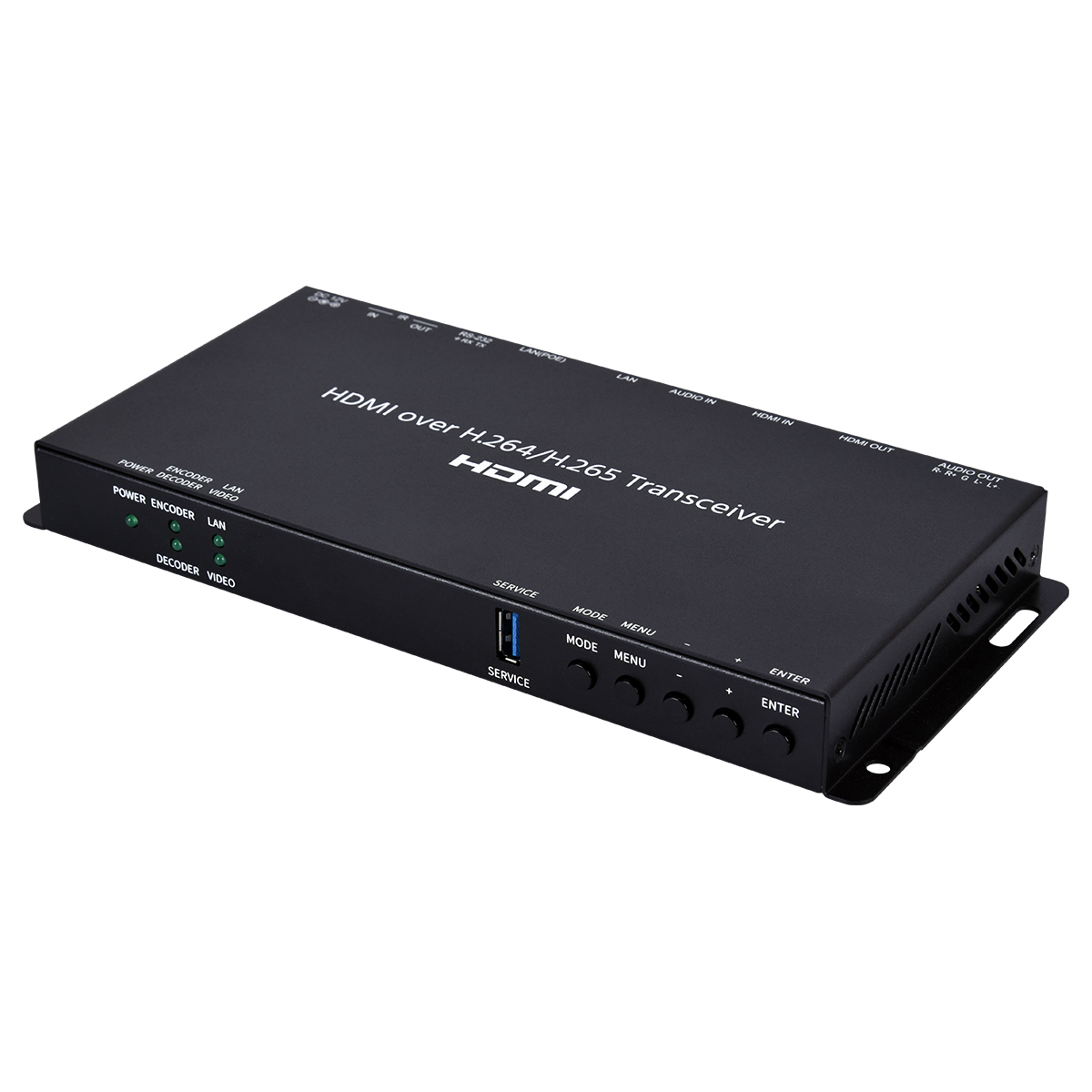

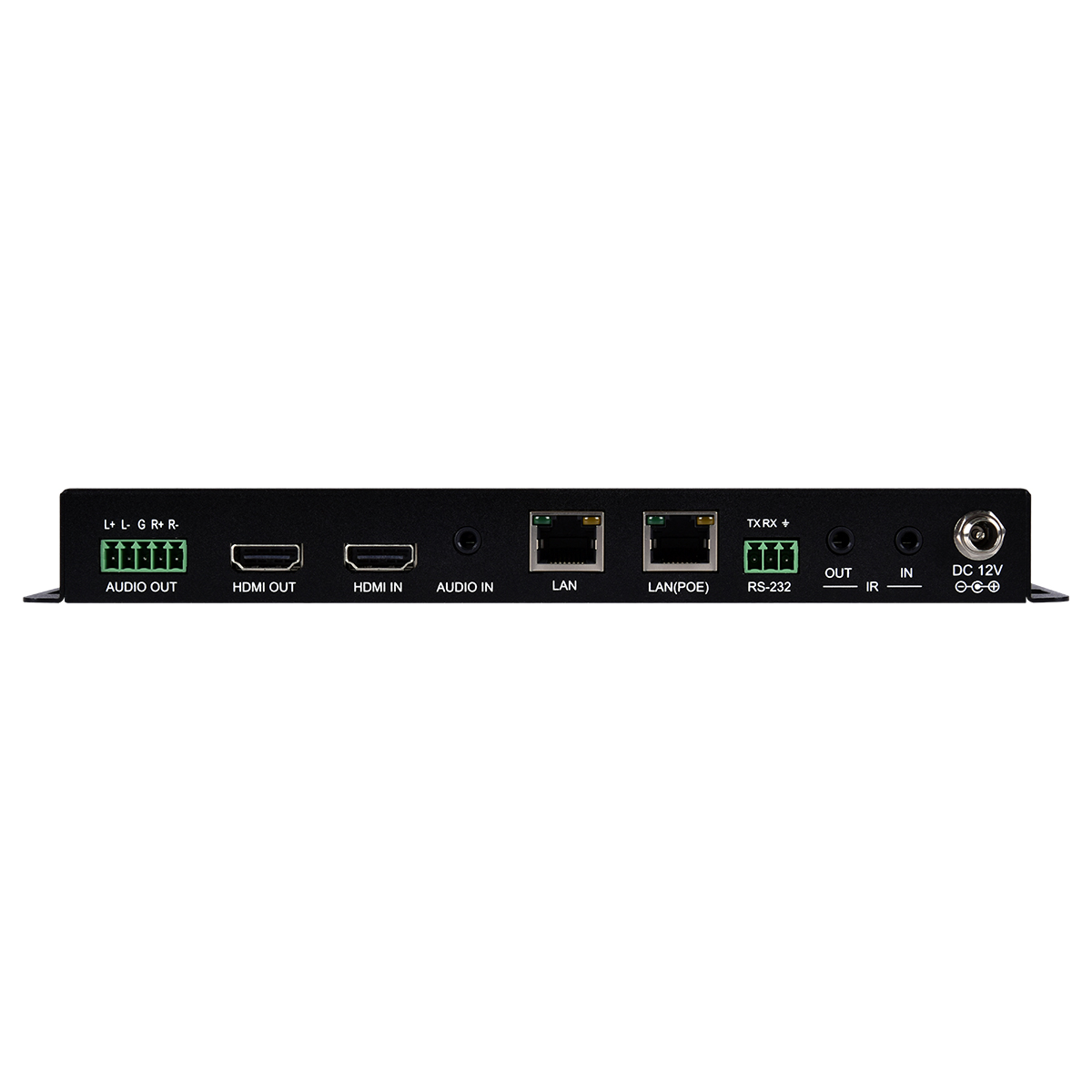

CDPS-P314EDC HDMI over H.264/H.265 Transceiver 4K30
Please sign in so that we can notify you about a reply

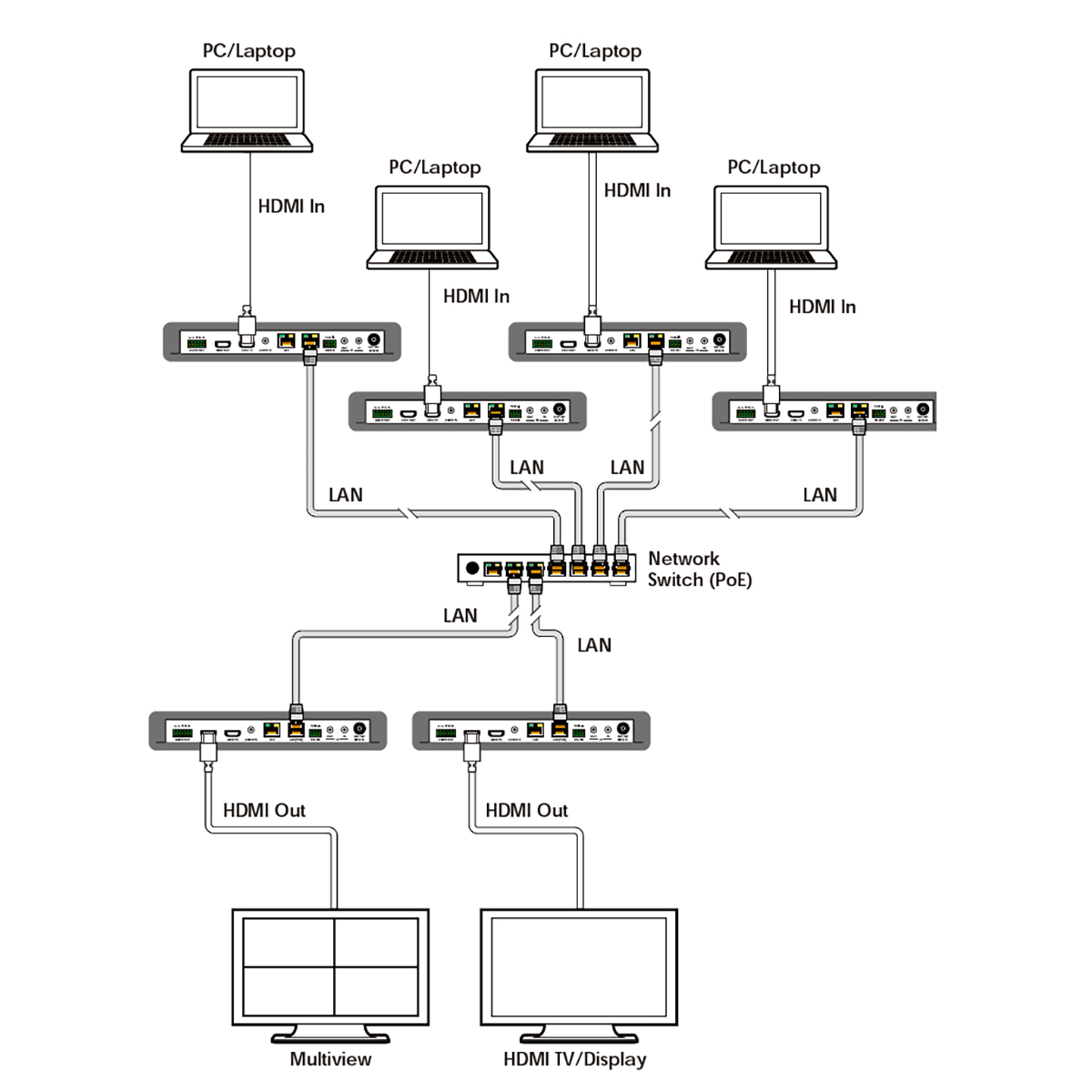

As people share videos on the Internet more and more frequently, a transceiver that can support H.265 / H.264 will be helpful. The HDMI over H.264/H.265 transceiver can encode any standard 4K UHD source from HDMI to high image quality streaming and decode any standard streaming to HDMI output which can supports resolution up to 4K@60. The fl exibility settings of bitrate range from 1000 to 20000 kbps provides user to adjust video quality easily. This transceiver supports unicast and multi-cast via Cat cable within single transmitter to single receiver or single transmitter to multiple receivers. The unit integrates all dominant security protocol such as HTTPS, SSH and 802.1X. This transceiver can be powered by Ethernet switches supporting the IEEE 802.3af-2003 PoE standard. Transceiver provides Videowall, Multi-view, CEC over IP, IR over IP, RS232 over IP and Audio over IP function, all functions can be controlled via design WebUI or user-friendly control system.
Features
- Supports transport protocol RTSP, RTP, RTMP and FLV
- Low latency 160~250 ms. (1080P@60 160~180ms. 4K@30 200~250 ms.)
- Supports CEC, RS-232 and IR over IP
- Supports independent Recording
- Recorded video can be stored on the locally USB storage or to a designated network drive supporting fi le system FAT32, EXFAT, NFS, and CIFS
- Supports security HTTPS, SSH, 802.1X
- Video wall and Multi-view support
- Supports the IEEE 802.3af-2003 PoE standard (PD)
- Provides mode selection to switch between transmitter and receiver
- Control system supports up to 256 TXs and Rxs
