AVIP-P5102TR-B1F UHD+ HDMI/DP Bidirectional AV over Fiber Transceiver with USB 2.0
Please sign in so that we can notify you about a reply
This Transceiver is a brand new meaning of transceiver, which able to transmit and receive signal at the same time, there’s no need to confi gure transmitter/ receiver anymore. The unit is designed for high-quality, AV extension with minimum latency through IP transmit. With ultra-light compression scheme (lossless for most content) to extending, 4K audio/video streams (HDMI or DisplayPort) with simultaneous transmitter and receiver Video, and data under 0.1 milliseconds of matrix switch-like end to end transit.Full suite of peripherals supported, including 1G Ethernet, RS232, IR and USB 2.0 hub equipped. The integrated USB hub of each Transceiver can be confi gured to be in USB Host or Device Mode and can function as a simple point to point KVM extension, freely routed between any two endpoints, or it can be configured into a special “Simultaneous” mode, allowing up to 7 Host Mode Transceivers to extend their USB ports to a single Device Mode Transceiver. This type of USB KVM routing fl exibility enables a wide range of multi-user, control room, or on- demand installation scenarios.
Features- Broadcast quality scaler, programmable to scale up or down any resolutions up to 4K
- Video wall image splitting with bezel correction
- Ultra-light compression, lossless for most content
- Analog stereo audio extension, insertion and extraction (insertion and extraction requires optional control center or control software)
- Simultaneously transmission and receive

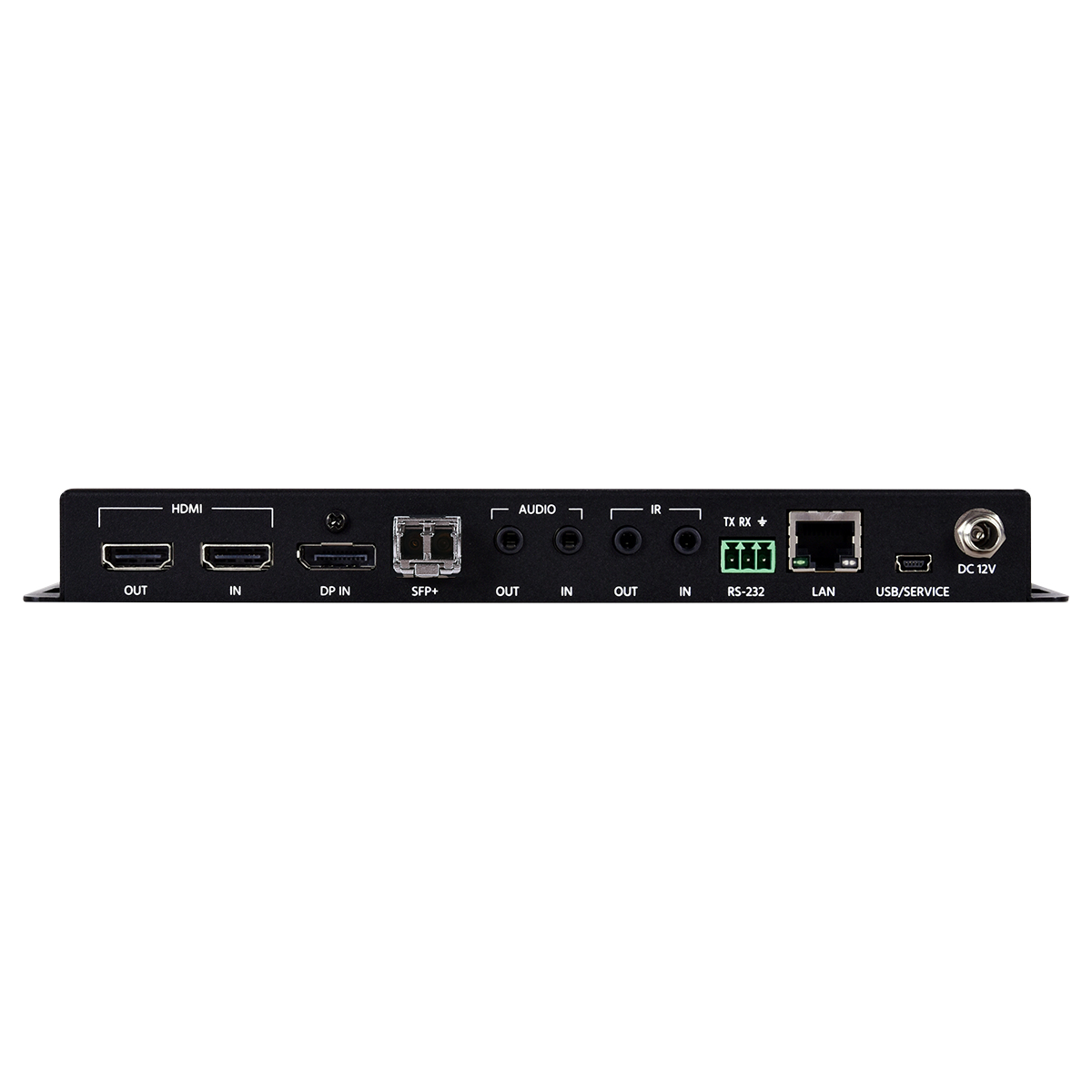

- Signal transmission interfaces with 10-Gigabit Ethernet switches via XFI (IEEE 802.3ae) compatible SFP+ fi ber modules

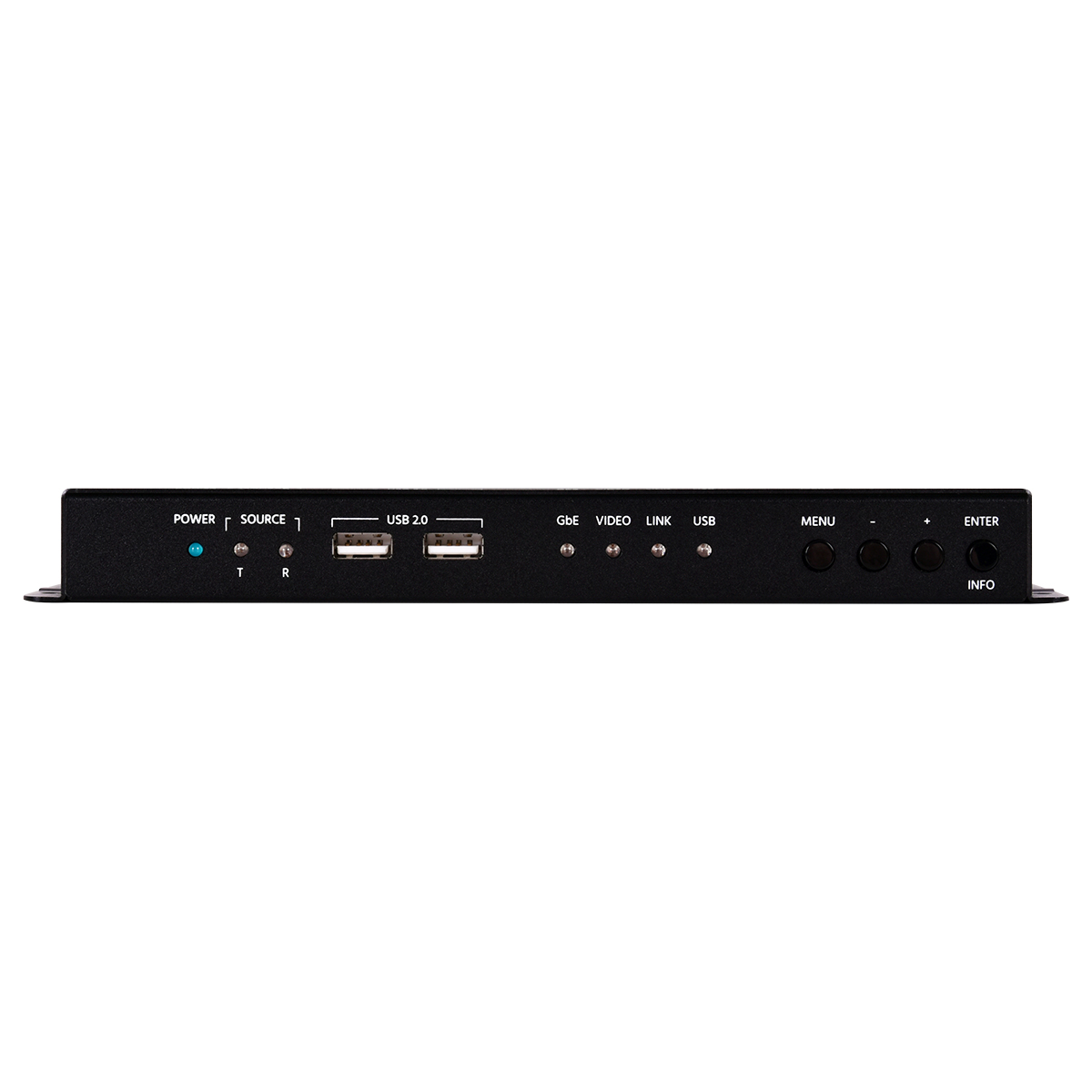

- Basic confi guration via front panel buttons with an On-Screen Display (OSD)
- Supports the use of an external control center or control software to provide expanded functionality
