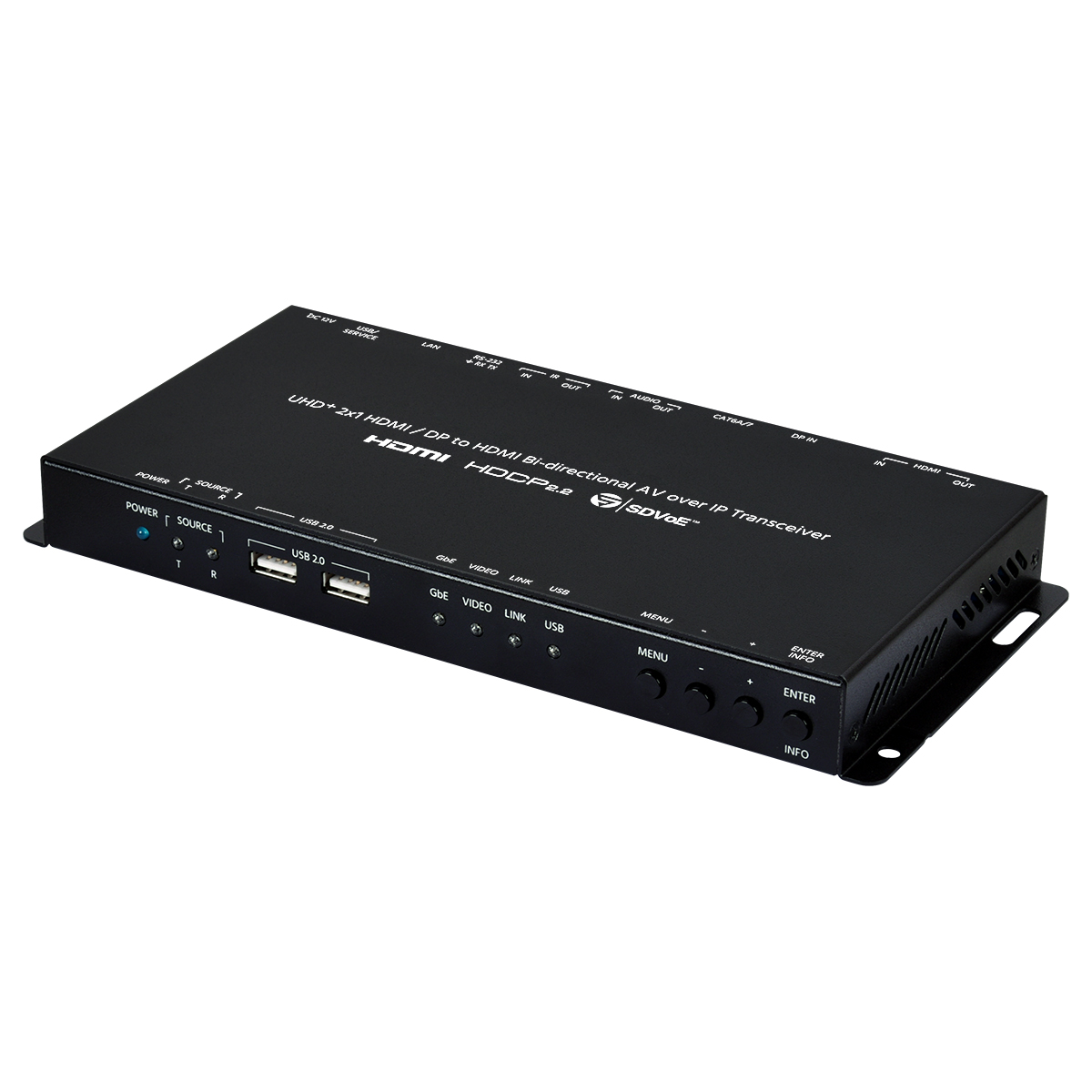

AVIP-P5102TR-B1C UHD+ HDMI/DP Bidirectional AV over IP Transceiver
Please sign in so that we can notify you about a reply
This Transceiver is a brand new meaning of transceiver, which able to transmit and receive signal at the same time, there’s no need to confi gure transmitter/ receiver anymore. The unit is designed for high-quality, AV extension with minimum latency through point to point IP transmit. With ultra-light compression scheme (lossless for most content) to extending, 4K audio/video streams (HDMI or DisplayPort) with simultaneous transmitter and receiver Video, and data under 0.1 milliseconds of matrix switch-like end to end transit. Full suite of peripherals supported, including 1G Ethernet, RS232, IR and HID USB. Supporting all HDMI 2.0 formats including multichannel PCM, Dolby True HD and DTS HD master audio.
Features- Point to point extension of audio, video, Gigabit Ethernet, USB and control signals
- Full range of formats including 4K60 RGB/4:4:4, HDR10, 3D and broadcast-friendly 4K60 10-bit 4:2:2
- Zero latency transmission for all signal types
- Broadcast quality scaler, programmable to scale up or down any resolutions up to 4K
- Audio down-mixing engine from multi-channel PCM audio to stereo
- Colour space conversion and frame rate conversion
- Ultra-light compression, lossless for most content
- Extension up to 100m
- Simultaneous video transmit and receive functionality
- Supports pass-through of 10/12-bit HDR sources
- Analog stereo audio extension, insertion and extraction (insertion and extraction requires optional control center or control software)
- Simultaneously transmission and receive
- Signal transmission interfaces with 10-Gigabit Ethernet switches via XFI (IEEE 802.3ae) compatible 10-Gigabit Ethernet connector

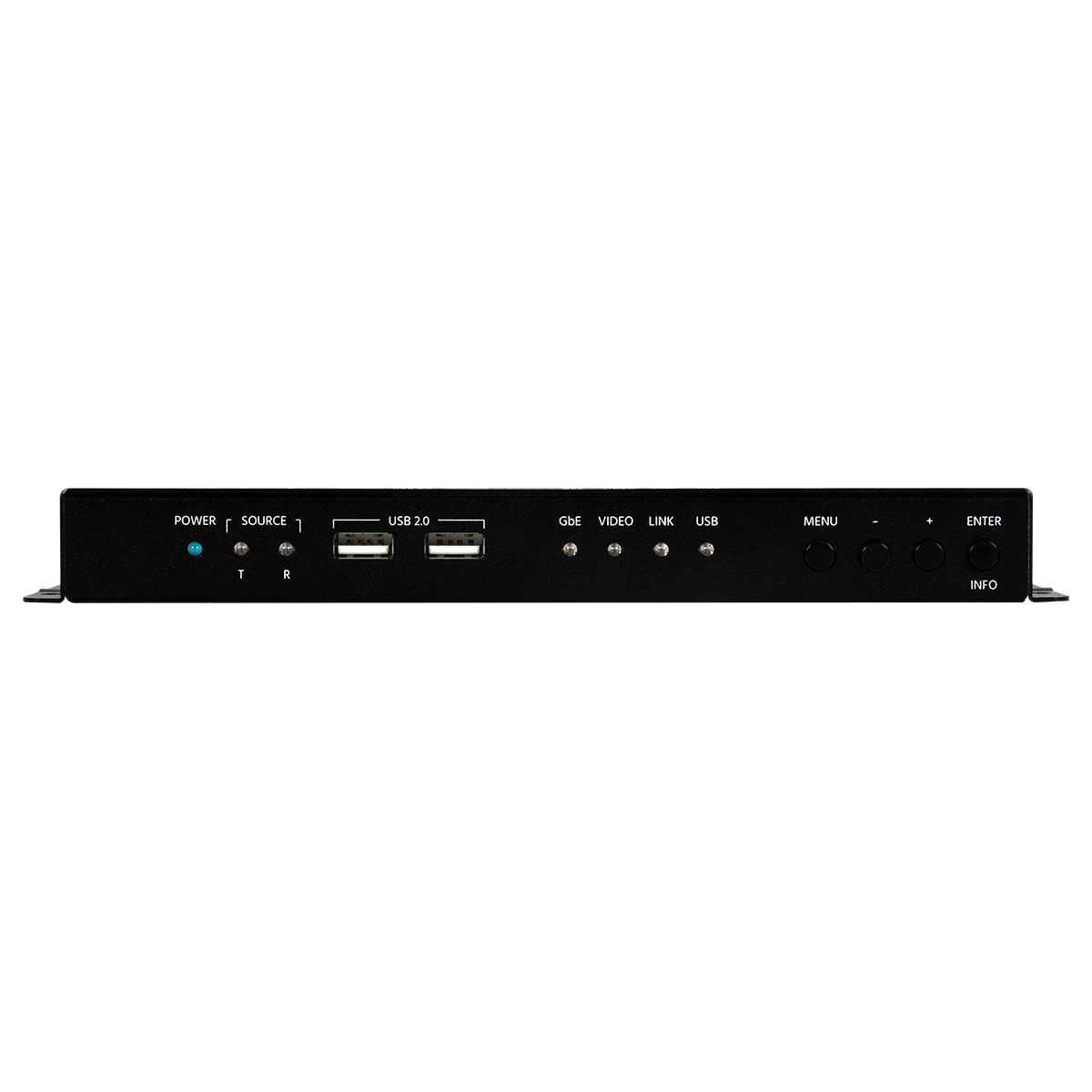

- Basic confi guration via front panel buttons with an On-Screen Display (OSD)
- Supports the use of an external control center or control software to provide expanded functionality
Brand:
Cypress Technology
Product Type:
UHD+ 2x1 HDMI/DP to HDMI Bidirectional AV Over IP Transceiver
Specifications
Audio Format:
HDMI, LPCM, Bitstream
Maximum Operating Temperature:
+40°C
Colour:
Black
Power Rating:
18.7W
Chassis Material:
Steel
Applications:
Video/Audio/LAN/IR/and USB Over 10Gbs Extension, Point-to-Point Secure Video Conferencing, Hotel or Convention Centre Display, Multi-Monitor Broadcast, Distributed Video Matrix System, Distributed Video Wall System, Remote KVM System Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1G Ethernet, RS-232, IR and USB 2.0 hub
Performance
HDMI Compliance Type:
2.0 (DVI 1.0)
HDCP Compliance Type:
2.x
Maximum Input Resolution:
4096x2160pixels@60Hz YUV 4:4:4
Maximum Output Resolution:
4096x2160pixels@60Hz YUV 4:4:4
Output Signal Type:
4K@60Hz YUV 4:4:4
Signal-to-Noise Ratio:
80dB
Frequency Rating:
1kHz (0dBFS)
Crosstalk Level:
<-80dB@10kHz

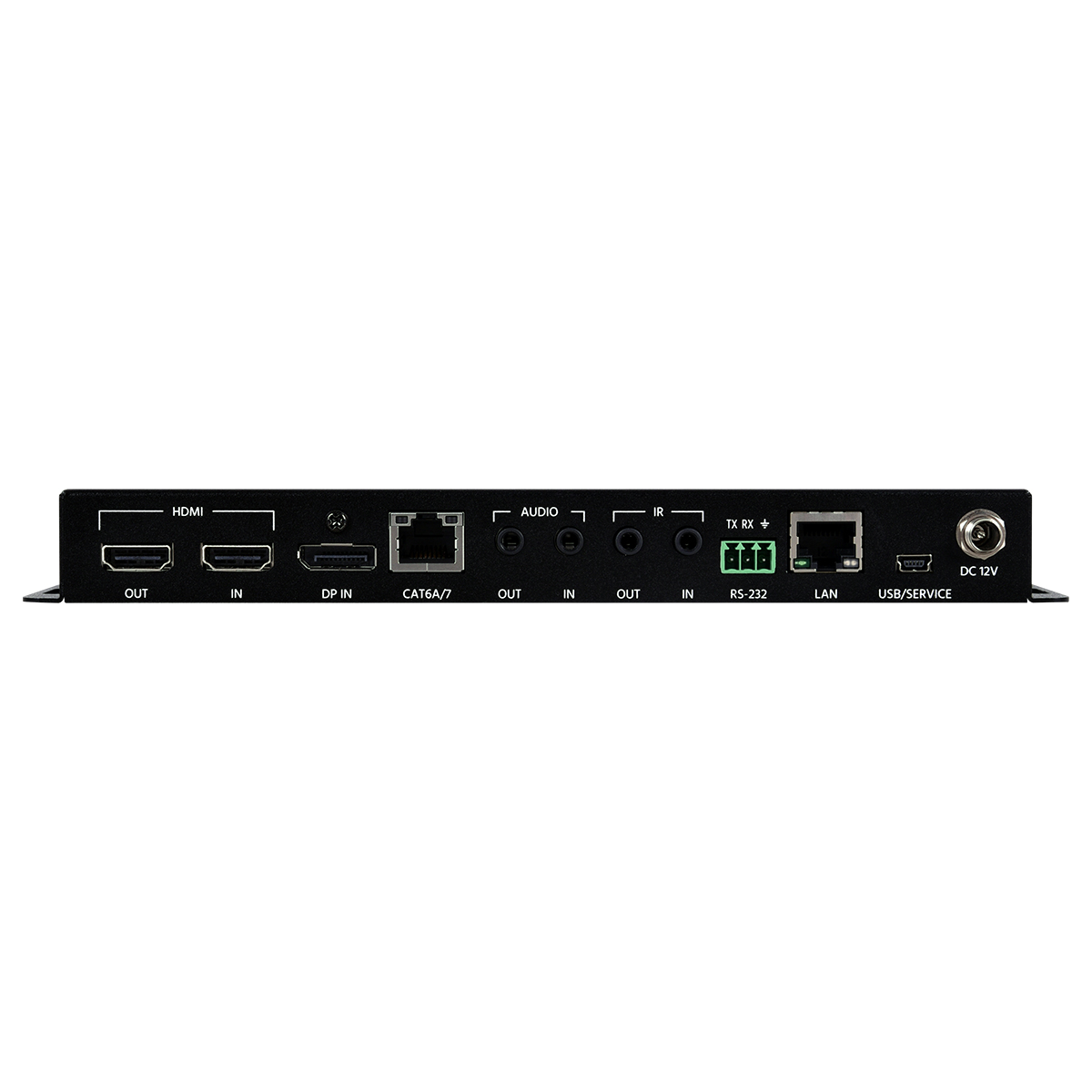

Inputs and Ports
Bi-Directional Port:
1 10GbE LAN (RJ45)
Input Port Type:
1xHDMI-Type A, 1xDisplayport (Female), 1x3.5mm Analog
Output Port Type:
1xHDMI-Type A, 1x3.5mm Analog Stereo
Input Signal Type:
4K@60Hz YUV 4:4:4
Power
Current Rating:
3A
Dimensions
Width:
23.15cm
Depth:
16.7cm
Height:
2.5cm
Weight:
916g
Other
Voltage Rating:
12V DC
Voltage Rating:
12V DC
Standards Met:
US, EU, CE, FCC Compliance, UL Listed
