617R/T 4K HDR HDMI Transmitter/Receiver, 2 HDMI: On Female HDMI Connectors
Please sign in so that we can notify you about a reply

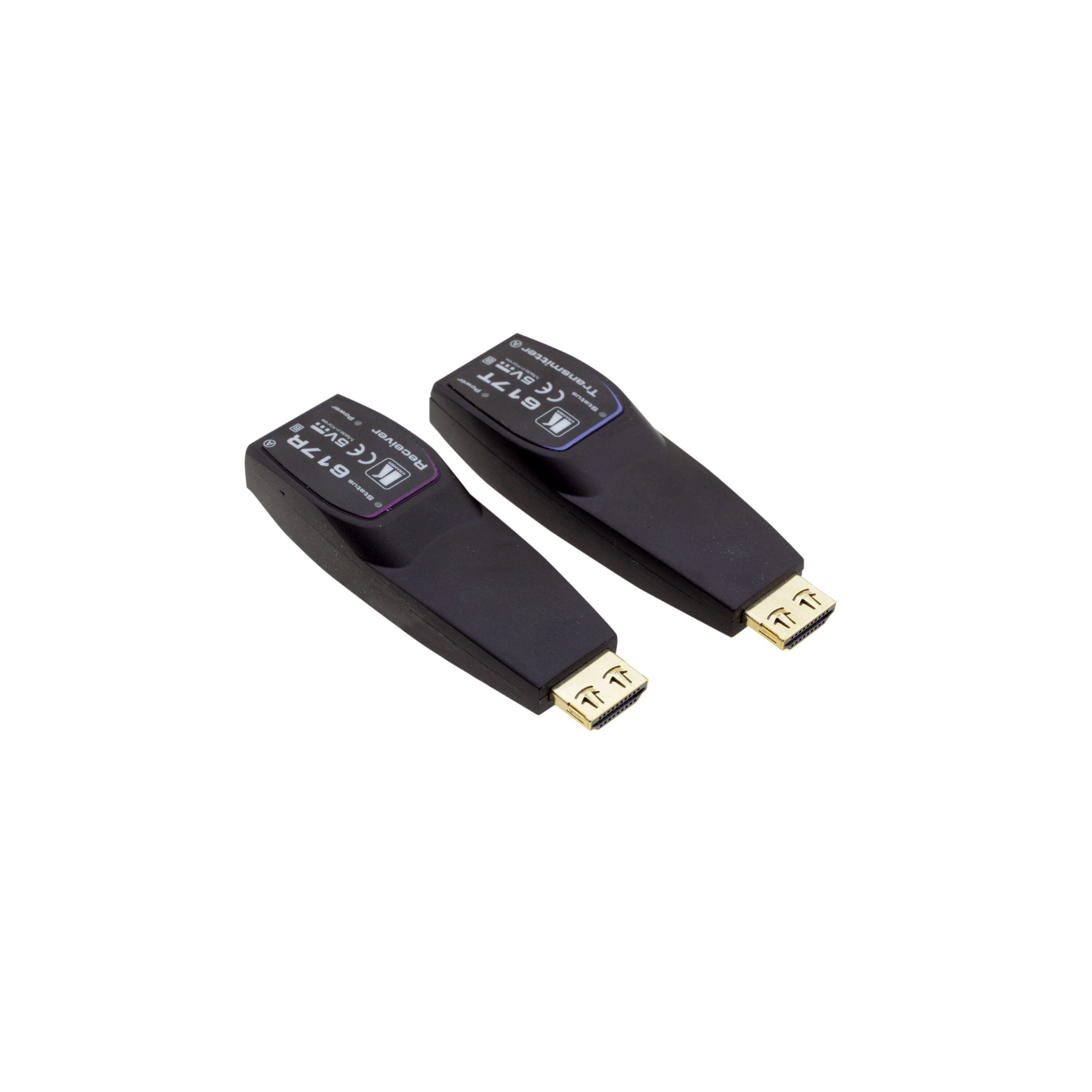

617R/T is a compact fiber optic transmitter and receiver capable of extending HDMI signals over fiber optic cable. This set of extenders supports 4K@60 (4:4:4) resolution up to 656 feet (200 meters) on a dual LC multi−mode fiber cable.
Features
- Max. Resolution — 4K@60(4:4:4).
- Max. Data Rate — 18Gbps.
- HDMI Support — HDCP 2.2, EDID and CEC. 18Gbps, 3D content transmission, and HDR10 as specified in HDMI 2.0.
- High Quality Connectors — 24K gold-plated and corrosion-resistant for the best possible connectivity.
- K-Lock Pull-Resistant Connectors — Provides 15lbs of restraining force for a non-slip connection.
- Max. Extension — 656ft (200m) over dual LC multi-mode OM3 fiber optic cable.
- Compact Design — For easy plug and play installation.
- Pure fiber connectivity for secure applications.
Brand:
Kramer
Part number:
94-0006150
Product Type:
4K HDR HDMI Transmitter/Receiver
Specifications
Maximum Operating Temperature:
+50°C
Special Features:
High Quality Connector-24K Gold-Plated and Corrosion-Resistant for the Best Possible Connectivity, K-Lock Pull-Resistant Connector-Provides 15lbs of Restraining Force for a Non-Slip Connection, Max. Extension-656ft (200m) Over Dual LC Multi-Mode OM3 Fibre
Power Rating:
2.5W
Humidity:
0 to 85%
Minimum Operating Temperature:
0°C
Includes:
2 Micro USB to USB Type-a Cables, 2 Wall-Mount Power Adaptors
Performance
HDMI Compliance Type:
4K/60 UHD (4:4:4)
Maximum Output Resolution:
4K@60 (4:4:4)
Frequency Rating:
60Hz
Inputs and Ports
Input Port Type:
2xHDMI: on Female HDMI Connector
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
CE, FCC Compliant
