614R/T Single–Fiber Detachable DVI Optical Transmitter & Receiver - EU Version
Please sign in so that we can notify you about a reply

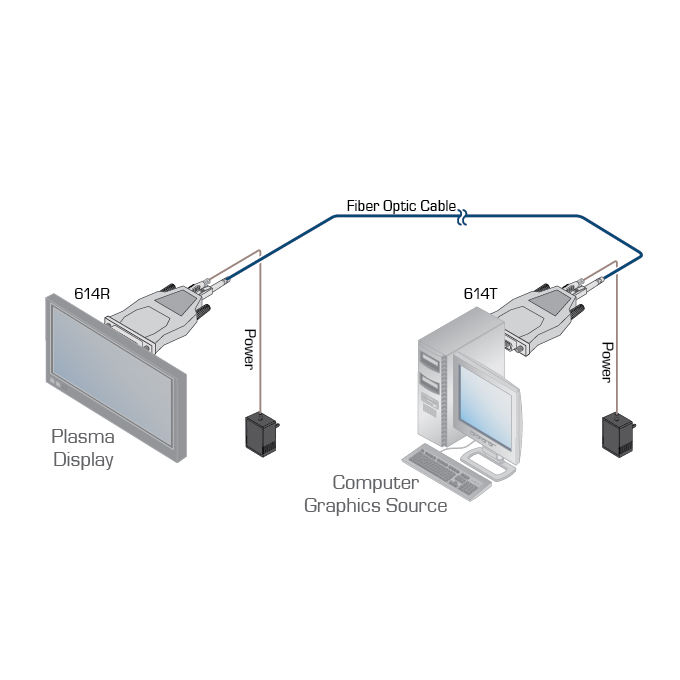

The 614T and 614R are a small and lightweight, detachable optical transmitter and receiver pair. They transmit uncompressed DVI resolutions of up to 1920x1200 at 60Hz using one multimode fiber optic cable with SC connectors. The 614T converts the DVI signal to an optical signal that it transmits to the 614R. The 614R decodes the optical signals back to a DVI signal.
Features
- Max. Data Rate — 4.95Gbps (1.65Gbps per graphic channel).
- Max. Resolution — Up to WUXGA, 2K or 1080p (XGA not supported).
- HDTV Compatible.
- Not HDCP Compliant.
- Standards Compliance — Certified for medical applications according to IEC 60601–1–2 (Electromagnetic Compatibility).
- Laser Standards Compliance — IEC 60825–1, FDA 21CFR1040;Laser Class 1: Safety of laser products.
- System Range — Up to 500m (1640ft) (multimode).
- EDID Capture — Copies and stores the EDID from a display device (614T).
- EMI/RFI Free.
- Cable — 1 SC multimode fiber optic cable.
- Power — External power adapters (supplied) or 5V DC from source (auto detect).
Brand:
Kramer
Part number:
50-00003390
Specifications
Product Type:
Single-Fibre Detachable DVI Optical Transmitter and Receiver
Maximum Operating Temperature:
+40°C
Version:
EU Version
Special Features:
EDID Capture, Range-500m (1640ft), Multimode Fibre
Applications:
Digital Flat Panel and Plasma Displays Used in medical/Commercial and Travel, Sharing Rooms and Auditoriums, Kiosks with Digital Flat Panel Displays for Presenting Information, LED Sign Boards in Streets and Stadiums
Humidity:
10 to 85%
Minimum Operating Temperature:
0°C
Includes:
Two 5V DC/1A Power supplies
Performance
Maximum Output Resolution:
Up to WUXGA, 2K or 1080pixels (XGA not Supported)
Frequency Rating:
60Hz
Inputs and Ports
Input Port Type:
1xDVI (614T), 1xMultiMode Fibre Optic with SC Connector (614R)
Output Port Type:
1xMultimode Fibre Optic with SC Connector (614T), 1 DVI (614R)
Power
Current Rating:
300mA
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
IEC 60601-1-2, IEC 60825-1, FDA 21CFR1040
