602R/T(SET)/EU Detachable DVI Optical Transmitter and Receiver
Please sign in so that we can notify you about a reply

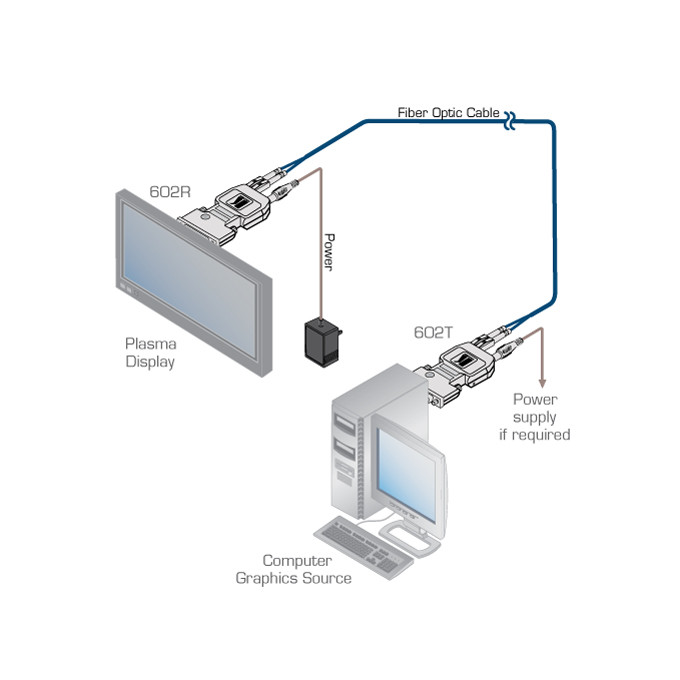

The 602T and 602R are a small and lightweight fiber optic transmitter and receiver pair for DVI signals. The 602T converts electrical signals to optical signals and the 602R decodes the optical signals back to electrical signals.
Features
- Resolution - Supports resolutions up to and exceeding WUXGA (1920x1200) at a 60Hz vertical refresh rate or 1.65Gbps bandwidth per graphic channel.
- Range - Up to 500m (1640ft) when using two 62.5(50)/125um core LC multimode fibers. Up to 1500m (5000ft) when using two 9 (8)/125um core LC single-mode fibers.
- EDID Capture - Copies and stores the EDID from a display device.
- Advanced Solution - Small and lightweight, indispensable asset in any digital signage application.
- Standards Compliance - Supports DVI1.0 and DDC2B, fully implemented by fiber-optic communication.
- EMI/RFI Free.
Brand:
Kramer
Part number:
94-0000602
Specifications
Product Type:
Detachable DVI Optical Transmitter and Receiver
Version:
EU Version
Special Features:
Range-Up to 400m (1312ft) (Multimode), Up to 1500m (5000ft) (Single-Mode), 602T-DVI to 2 LC, 602R-2 LC to DVI, Single or Multimode
Applications:
Digital Flat Panel and Plasma Displays Used in medical/Commercial and Travel, Sharing Rooms and Auditoriums, Kiosks with Digital Flat Panel Displays for Presenting Information, LED Sign Boards in Streets and Stadiums
Includes:
2 Power Supplies
Performance
Maximum Output Resolution:
Up to WUXGA@60Hz (1.65Gbps)
Frequency Rating:
60Hz
Inputs and Ports
Input Port Type:
DVI-D on a DVI-I Connector (602T), 2xLC Optical Connector (602R)
Output Port Type:
2xLC Optical Connector (602T), DVI-D on a DVI-I Connector (602R)
Power
Current Rating:
500mA
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
IEC 60601-1-2
