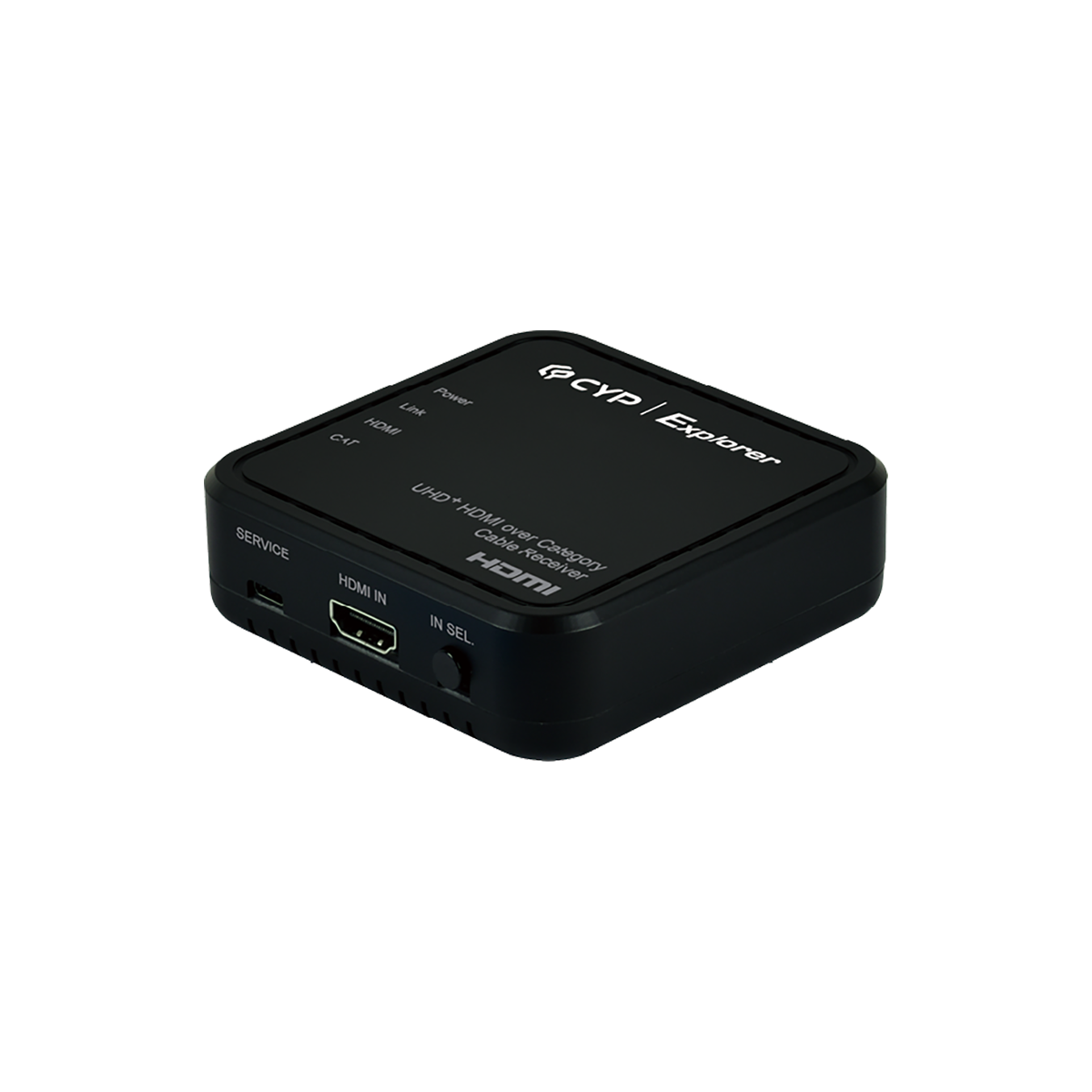

VEX-T1201R Cable Receiver, 3840x2160p@60 YUV 4:4:4, 20Hz to 20kHz, 1xUSB, 18Gbps
Please sign in so that we can notify you about a reply
The UHD+ HDMI over Category Cable Receiver is able to extend HDMI signals and receive UHD video and audio signals through a single CAT6/6A/7 network cable. The transmission distance can be up to 60m per segment, allowing the user to cascade the system without signal loss or introducing delay.
Features- Point to point extension for audio and video
- Transmitter has HDMI local Loop out
- Receiver can switch video and audio sources between local HDMI input and CAT input
- CAT6/6A/7 Cable can reach to up to 60M
- Supports POC (Power over Cable), transmitter powers compatible receiver
- Multi-channel audio compliant for PCM7.1 up to 192KHz, AC-3(Dolby5.1), and DTS 5.1
Brand:
Cypress Technology
Product Type:
Cable Receiver
Specifications
Maximum Operating Temperature:
+40°C
Number of Channels:
Special Features:
Point to Point Extension for Audio and Video
IR Frequency:
20Hz to 20kHz
Applications:
Long Distance Video and Audio Extension , Hotel Or Convention Center Displays, Lecture Halls, Auditoriums and Classroom, Houses of Worship, Conference Rooms and Boardrooms
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1× UHD+ HDMI over Category Cable Receiver, 1×Operation Manual
Performance
HDMI Compliance Type:
2
HDCP Compliance Type:
2.x
Video Bandwidth:
18Gbps
Maximum Audio Level:
2VRMS
Impedance:
4Ω
Output Signal Type:
3840x2160p60 YUV (4:4:4)
Signal-to-Noise Ratio:
>70dB
Maximum Resolution:
3840x2160pixels@60 (YUV 4:4:4)
Total Harmonic Distortion:
<-40dB
Inputs and Ports
Input Port Type:
1xHDMI, 1xCAT6
Output Port Type:
1xHDMI, 1xAnalog Stereo
I/O Interface Type:
1xUSB
Input Signal Type:
3840x2160p60 YUV (4:4:4)
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
8.8cm
Depth:
8.5cm
Height:
2.6cm
Weight:
150g
