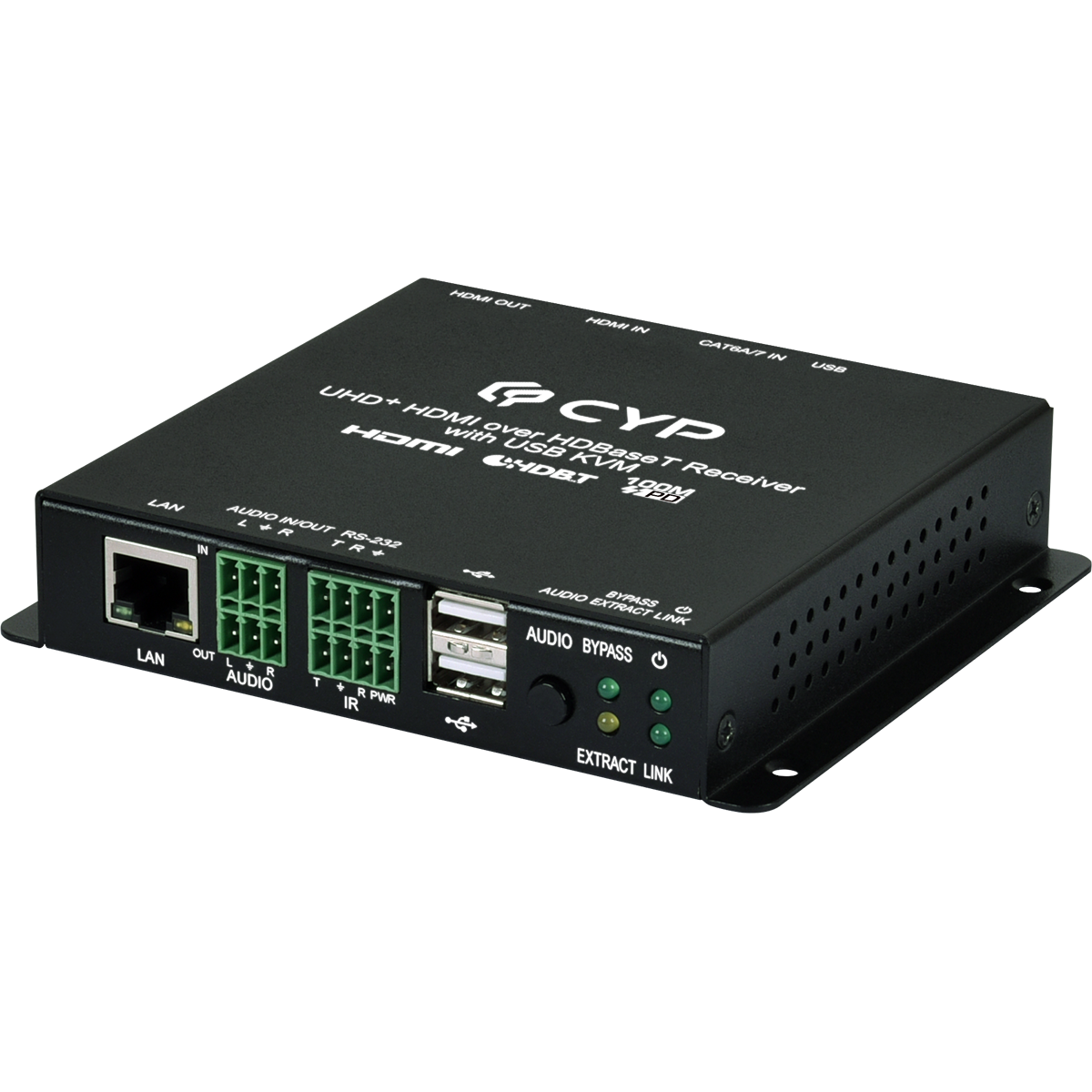

VEX-E4501R UHD+ HDMI over HDBaseT Receiver with USB KVM
Please sign in so that we can notify you about a reply
This Receiver is new generation HDBaseT 3.0 technology, it is a great solution for extending uncompressed HDMI 2.0 4K@60 (4:4:4, 8-bit) video and HD audio as well as Ethernet and control via a single run of Cat.6a/7 cable over distances of up to 100 meters. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, USB 2.0, and 1000BaseT Ethernet. This Receiver is ideal for any scenario which needs uncompressed video like medical equipment, conference room, education and anything you want to extend.
Features
- HDMI input and output with 3D & 4K video support (18Gbps)
- 1 HDMI output (Functions as local monitor output)
- HDBaseT 3.0 compatible, Backward compatibility with HDBaseT 2.0/1.0 product
- Supports HDBaseT features: HD video and audio, individual 1000BaseT and 100BaseT Ethernet ports, POH and control (bi-directional IR/RS-232/ USB pass-through)
- Supports analog audio and optical audio pass-through.
- Multiple USB hosts may be connected at once (up to 2 total, between the Tx and a compatible Rx unit) with a single selected host active at a time
- Supports providing PoH power from Transmitter to Receiver in same HDBaseT port.
Brand:
Cypress Technology
Specifications
Product Type:
UHD+ HDMI Over HDBaseT Receiver
Maximum Operating Temperature:
+50°C
Number of Channels:
Special Features:
HDMI Input and Output with 3D and 4K Video Support (18Gbps), 1 HDMI Output (Functions as Local Monitor Output), HDBaseT 3.0 Compatible, Backward Compatibility with HDBaseT 2.0/1.0 Product, Multiple USB Hosts may be Connected at Once (Up to 2 Total, Betwee
IR Frequency:
30 to 50kHz
Applications:
Household Entertainment Sharing and Control, Lecture Hall/Classroom Display and Control, Meeting Room Presentation and Control
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Performance
HDMI Compliance Type:
2.0
HDCP Compliance Type:
2.2
Maximum Audio Level:
2VRMS
Output Signal Type:
HDMI 4K@60Hz 8bits RGB 4:4:4, HDBT 4K@60Hz 8bits RGB 4:4:4
Baud Rate:
Up to 115200bps
Maximum Resolution:
4096x2160pixels@60Hz
Inputs and Ports
Input Port Type:
HDMI-Type A
Output Port Type:
1xHDMI-Type A, 1xHDBT (RJ45)
I/O Interface Type:
1xUSB 2.0 (Micro USB)
Input Signal Type:
HDMI 4K@60Hz 8bits RGB 4:4:4, HDBT 4K@60Hz 8bits RGB 4:4:4
Power
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Dimensions
Width:
12.8cm
Depth:
11.2cm
Height:
2.5cm
Weight:
390g
