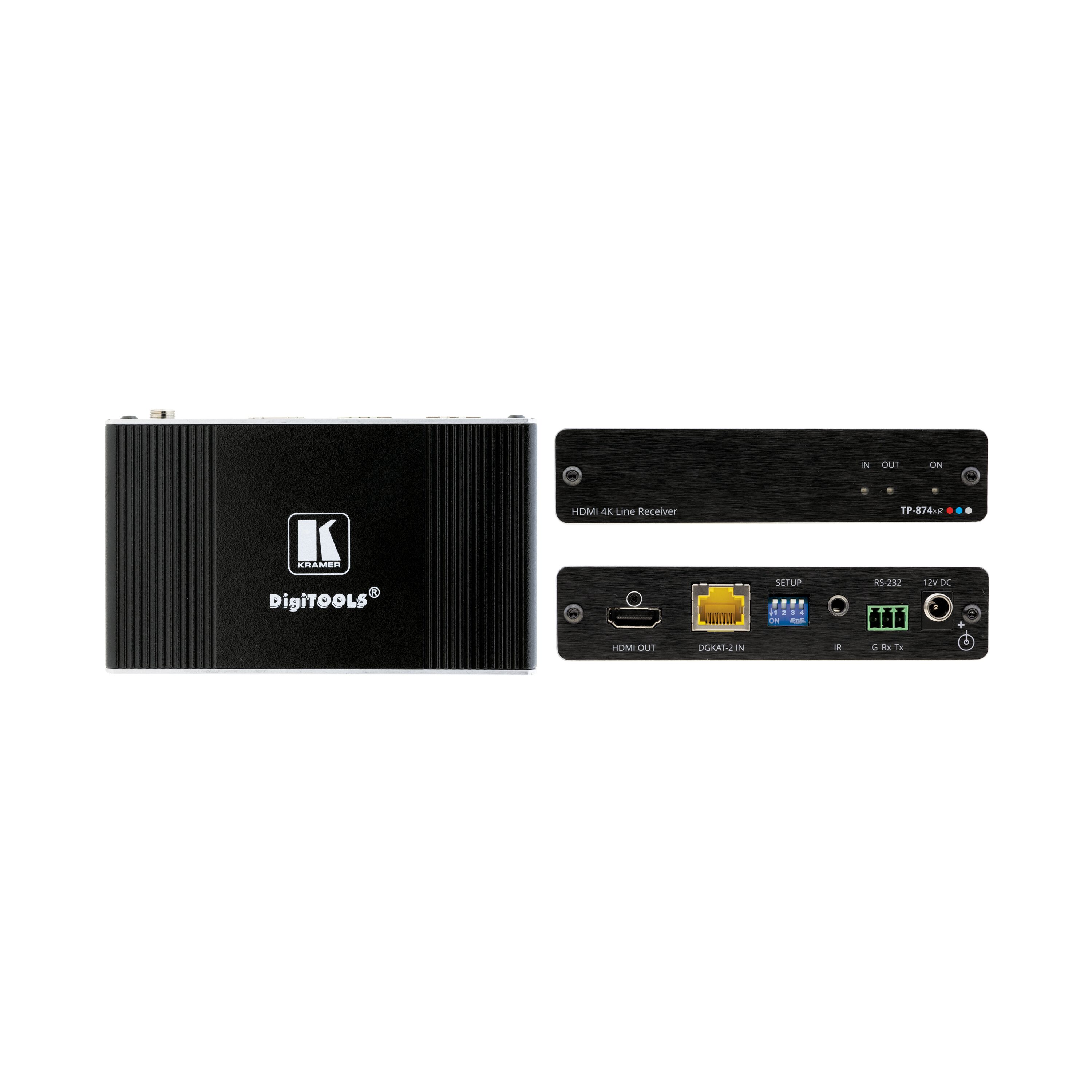

TP-874XR 4K HDR HDMI Compact Bidirectional-PoC Receiver with RS-232 & IR over Long-Reach DGKat 2.0
Please sign in so that we can notify you about a reply
TP−874xr is a high−performance, long−reach DGKat™ 2.0 receiver for 4K@60Hz (4:4:4) HDR HDMI HDCP 2.2 signals, RS−232 and IR signals and 2−way powering over twisted pair. It converts the transmitted DGKat™ 2.0 signal into an HDMI, RS−232 and IR signals. TP−874xr extends the signal to up to 50m (160ft) at 4K@60Hz (4:4:4) resolution and up to 70m (230ft) at 4K@30Hz (4:4:4) 24bpp resolution over Kramer shielded cables.
Features
- High Performance Extender — Professional DGKat™ 2.0 receiver for providing long–reach signals and 2–way power over twisted pair copper infrastructures. TP–874xr employs low–level video compression technology that delivers visually lossless performance for 4K@60Hz (4:4:4) HDR signals with near–zero latency. It converts the transmitted DGKat™ 2.0 signal into an HDMI signal.
- HDMI Signal Extension — HDR, HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0.
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Multi–channel Audio Extension — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
- Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
- Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
- Cost–effective Maintenance — Status LED indicators for HDMI and DGKat™ 2.0 ports facilitate easy local and remote maintenance and troubleshooting.
- Easy Installation — Single twisted–pair cable for signal and power wiring. Compact DigiTOOLS® fan–less enclosure for device–back mounting, or side–by–side mounting of 3 units in a 1U rack space with the recommended Kramer rack adapter.
Brand:
Kramer
Part number:
50-80524090
Specifications
Product Type:
4K HDR HDMI PoC Receiver
Maximum Operating Temperature:
+40°C
Number of Channels:
32
Special Features:
Compact, Low-Heat DGKat™ 2.0 Receiver, Control Extension, Two-Way Powering
Applications:
Long Distance AV and Control Signal Extension for Large Room Connectivity, Meeting Rooms/Boardrooms/Hotels and Corporate Facilities
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
1 Power Adapter with Cord, 1 Bracket Set
Performance
HDMI Compliance Type:
2.0
HDCP Compliance Type:
2.2
Video Bandwidth:
18Gbps
Maximum Resolution:
3840x2160@60Hz (4:4:4) 24bpp (High Compression Level), 4096x2160@60Hz (4:4:4) 24bpp (Standard Compression Level)
Inputs and Ports
Input Port Type:
RJ45
Output Port Type:
HDMI
I/O Interface Type:
Indicator, Control
Power
Current Rating:
2A
Dimensions
Width:
12.cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.2kg
Other
Voltage Rating:
12V DC
Voltage Rating:
12V DC
Standards Met:
CE, UL Listed, RoHS, WEEE
