TP-789RXR 4K60 4:2:0 HDMI HDCP 2.2 Compact Bidirectional PoE Receiver with Ethernet, RS-232 & IR over Extended-Reach HDBaseT
Please sign in so that we can notify you about a reply

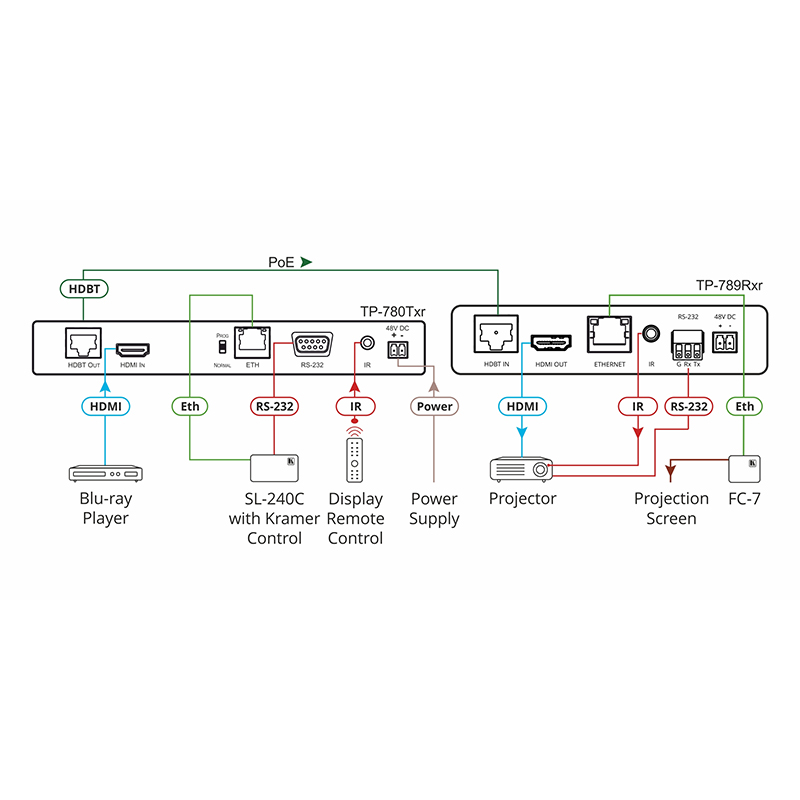

TP−789RXR is a high−performance, extended−reach HDBaseT receiver for 4K60Hz (4:2:0) HDMI, Ethernet, RS−232 and IR signals and 2−way powering over twisted pair. It extends video signals to up to 100m (330ft) over Kramer copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions. This receiver either provides power over the copper extension cable to a POE (Power over Ethernet) acceptor device such as a PoE wall−plate, or accepts PoE through the extension cable from a PoE provider remote device, as auto−sensed by the receiver.
Features
- High Performance Standard Extender — Professional HDBaseT extender for providing extended–reach signals and powering over twisted–pair copper infrastructures. TP–789Rxr is a standard extender that can be connected to any market–available HDBaseT–compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.

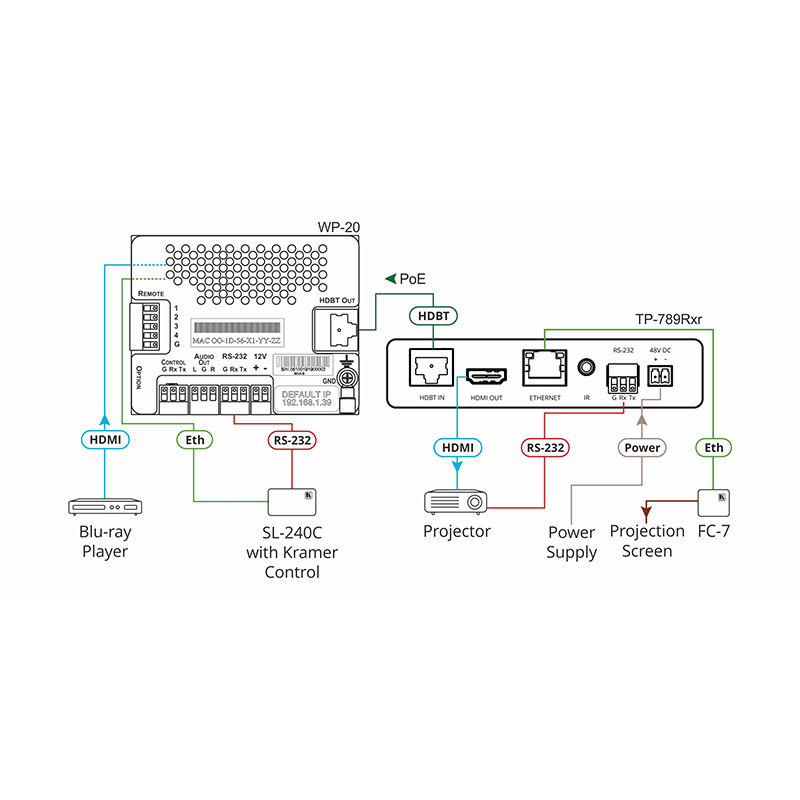

- Bidirectional PoE (Power over Ethernet) — Auto–senses the extension line PoE status and either provides power to a remote POE acceptor such as a PoE wall–plate, or accepts power from a remote PoE provider such as a PoE matrix.
- HDMI Signal Extension — Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.
- I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
- Multi–channel Audio Extension — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
- Ethernet Extension — Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
- Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
- Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.

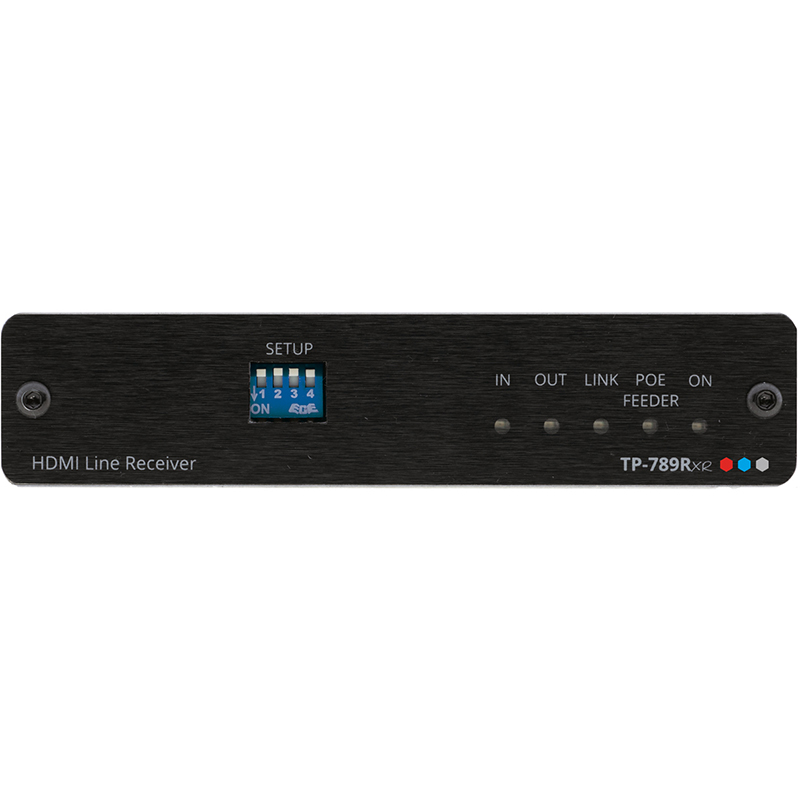

- Cost–Effective Maintenance — Status LED indicators for HDMI and HDBT ports and PoE feed status facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS–232 connection ensures lasting, field–proven deployment.

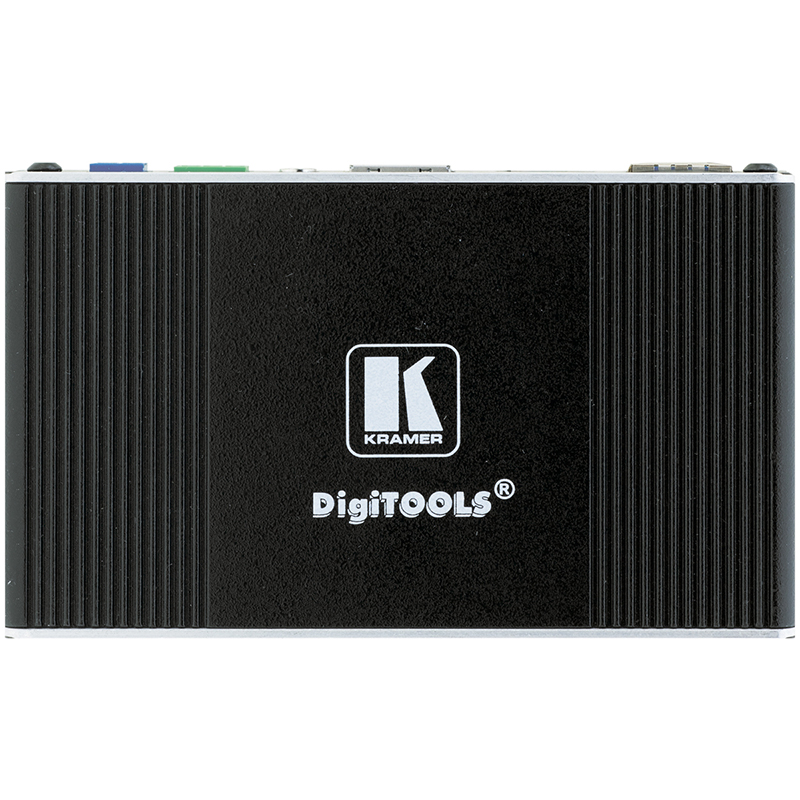

- Easy Installation — Single cable connectivity for both HDBaseT signals and power. Compact DigiTOOLS® fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
50-805060190
Product Type:
4K60 4:2:0 HDMI Bidirectional PoE Receiver
Specifications
Maximum Operating Temperature:
+40°C
Number of Channels:
32
Special Features:
HDBaseT 1.0 Receiver, BiDirectional PoE (Power Over Ethernet/HDBaseT), Up to 180m (590ft) at 1080pixels, Ethernet and Control Extension
IR Frequency:
20 to 100kHz
Applications:
Long Distance AV Signal Extension for Multi Room/Large Dividable Auditoriums and Lecture Hall Connectivity, Sharing Rooms/Boardrooms/Control Rooms/Hotels and Large Church Facilities
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Adapter, Bracket Set
Performance
HDMI Compliance Type:
2.0
HDCP Compliance Type:
2.2
Video Bandwidth:
10.2Gbps
Baud Rate:
300 to 115200bps
Maximum Resolution:
4K@60Hz (4:2:0) 24bpp

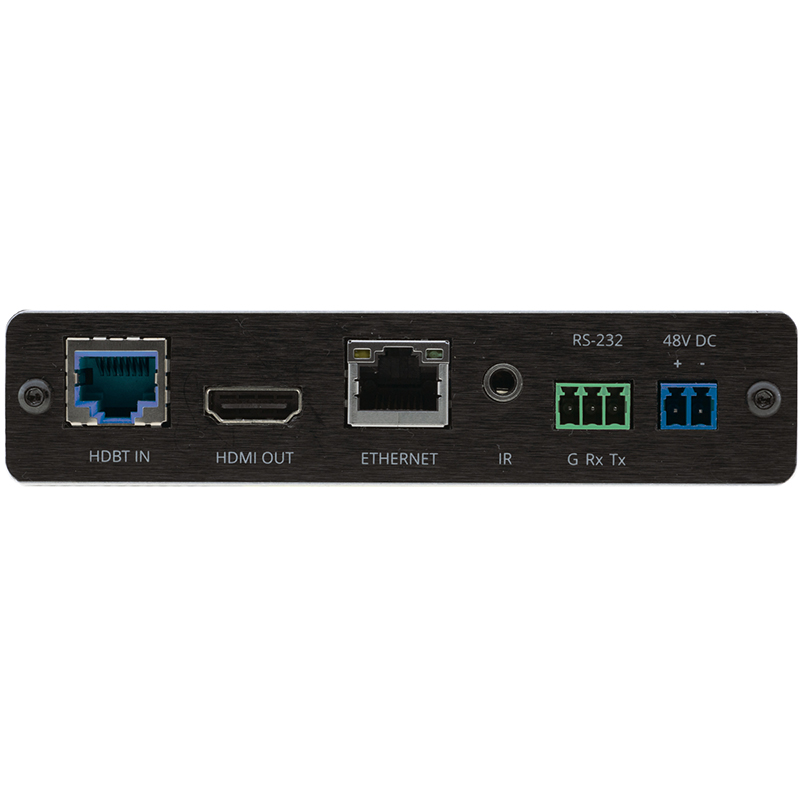

Inputs and Ports
Input Port Type:
RJ45
Output Port Type:
HDMI
I/O Interface Type:
Indicator, Control
Connectivity
Ethernet Speed:
100Mbps
Power
Current Rating:
1.36A
Dimensions
Width:
12.cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.3kg
Other
Voltage Rating:
48V DC
Voltage Rating:
48V DC
Standards Met:
CE, RoHS Compliant, WEEE
