TP-590R 4K60 4:2:0 HDMI Receiver with USB, RS-232, & IR over HDBaseT 2.0
Please sign in so that we can notify you about a reply
TP−590R is a high−performance, long−reach HDBaseT 2.0 receiver for 4K60Hz (4:2:0) HDMI, USB, RS−232, and IR signals over twisted pair. TP−590R receives the HDBaseT 2.0 signal and converts it back into the original input signals. It extends video signals to up 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.
Features
- High Performance Standard Extender — Professional HDBaseT extender for providing long–reach signals over twisted–pair copper infrastructures. TP–590R is a standard extender that can be connected to any market–available HDBaseT–compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
- HDMI Signal Extension — HDCP 2.3, EDID and CEC signals are passed through from the source to the display. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0.
- Flexible USB 2.0 Extension — An active USB host is connected at either the transmitter or receiver side. USB 2.0 signals are extended between the transmitter and receiver, enabling connection of the active USB host to both local and remote USB devices, such as camera and audio devices, or HID (Human Interface Devices) mouse or keyboard devices.
- I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing, and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
- Multi–channel Audio Transmission — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
- Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
- Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.

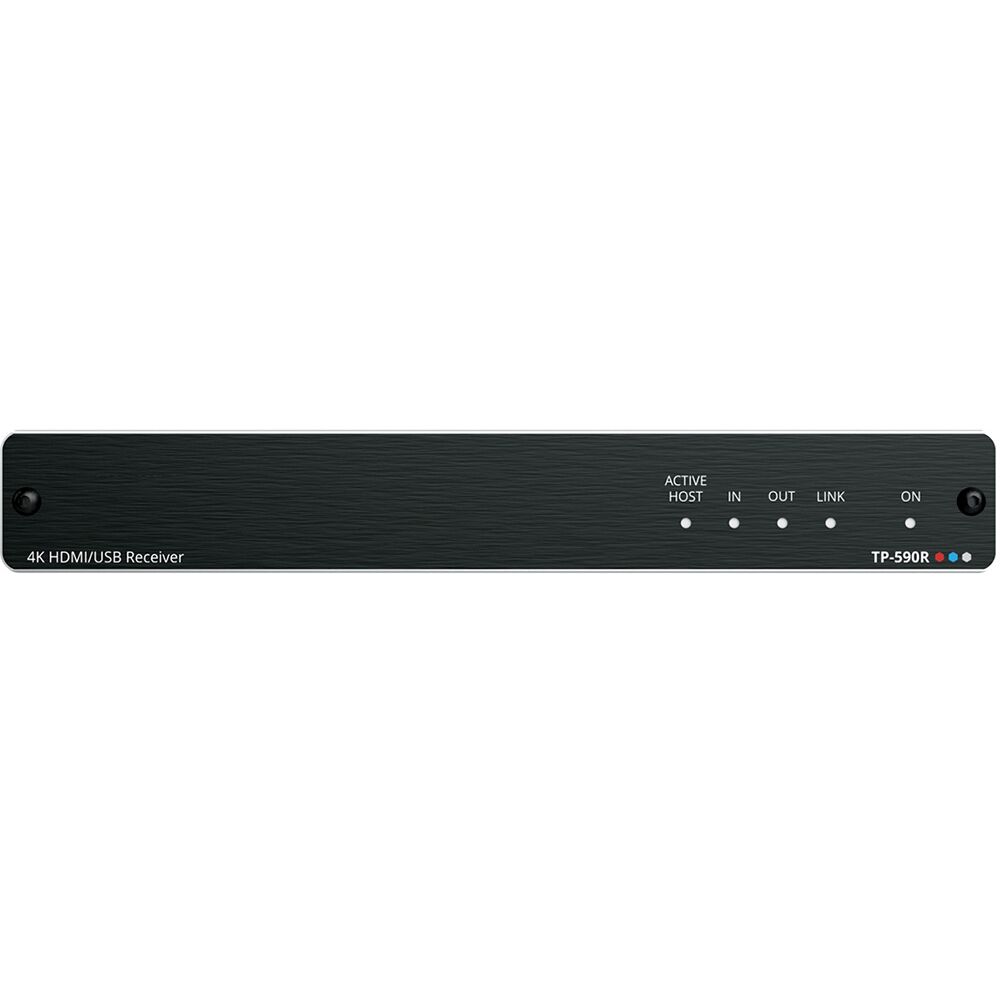

- Cost–effective Maintenance — Status LED indicators for HDMI, HDBT, and USB active host ports, facilitate easy local maintenance and troubleshooting.
- Easy and Elegant Installation — Compact DemiTOOLS™ fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
50-80571090
Specifications
Product Type:
4K60 4:2:0 HDMI Receiver
Maximum Operating Temperature:
+40°C
Number of Channels:
32
Special Features:
Flexible USB 2.0 Host and Devices Extension, Up to 40m (130ft) at 4K@60Hz (4:2:0), Compatible with Standard HDBaseT 2.0 Systems
Applications:
Corporate, Education, Sharing Rooms/BoardRooms/and Training Facilities
Humidity:
10 to 90%
Minimum Operating Temperature:
0°C
Includes:
Power Adapter, Bracket, Rubber Feet
Performance
HDMI Compliance Type:
2.0
HDCP Compliance Type:
2.3
Video Bandwidth:
10.2Gbps
Baud Rate:
300 to 115200bps
Maximum Resolution:
4K UHD@60Hz (4:2:0) 24bpp
Inputs and Ports
Input Port Type:
1xHDBT: on an RJ45 Female Connector
Output Port Type:
1xHDMI: on an HDMI Connector
Connectivity
Ethernet Speed:
127Mbps
Power
Current Rating:
4A
Dimensions
Width:
19.05cm
Depth:
5.9cm
Height:
2.7cm
Weight:
0.5kg
Other
Voltage Rating:
5V DC
Voltage Rating:
5V DC
Standards Met:
CE, RoHS Compliant, WEEE
